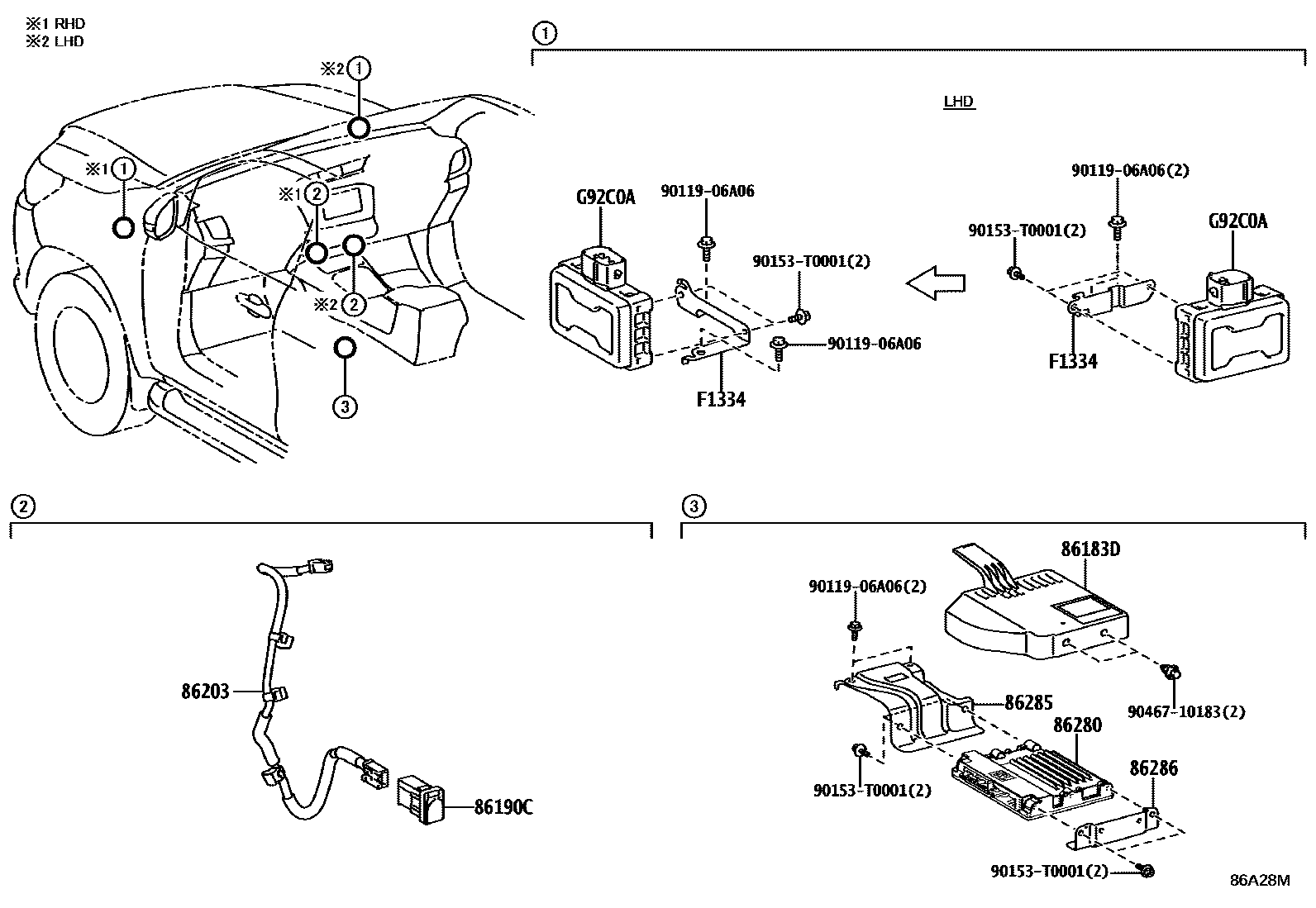

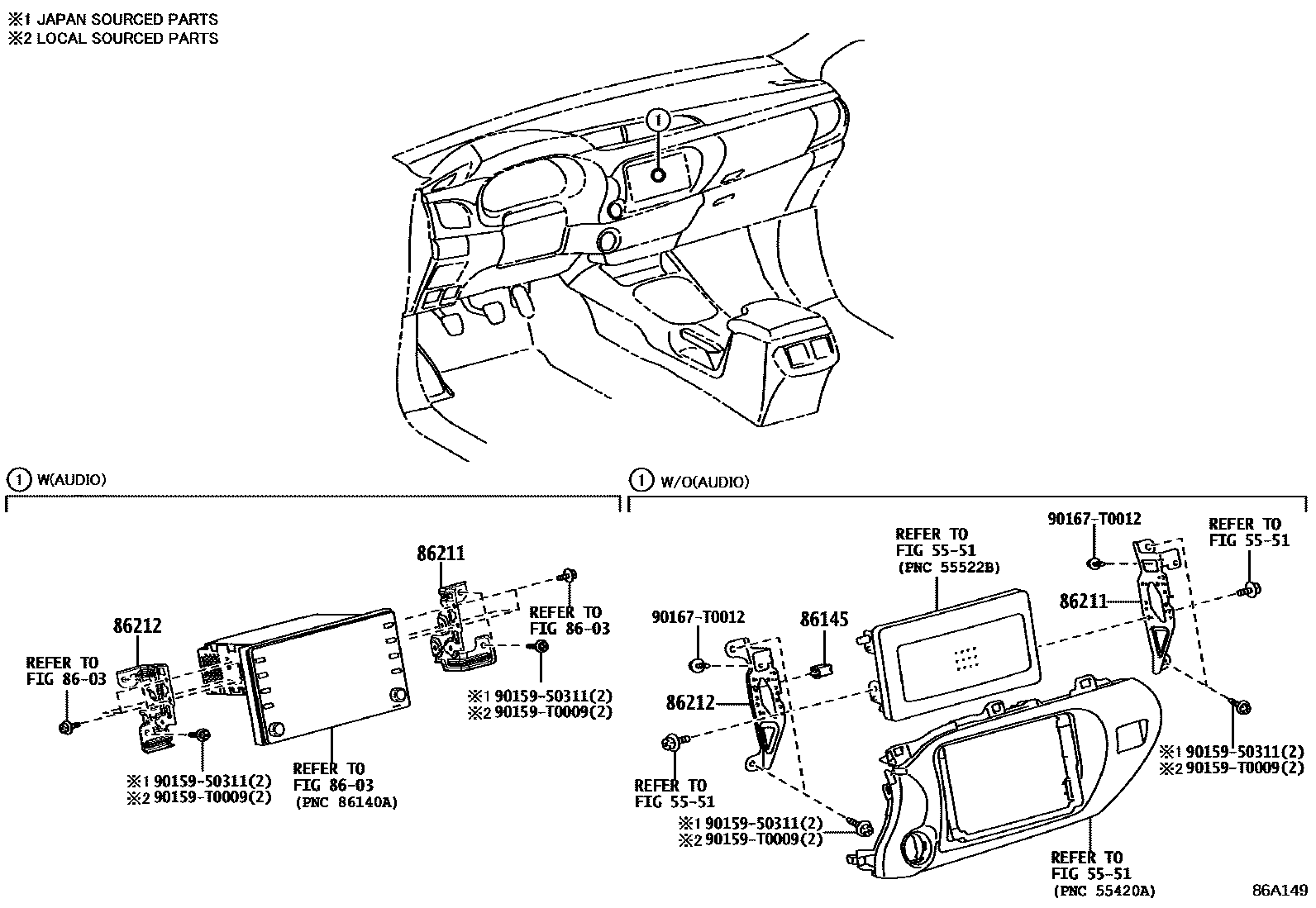

Toyota HILUX 收音机、放大器和冷凝器 — Figure 8601
Toyota HILUX EPC diagram 8601, 收音机、放大器和冷凝器, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86145 | Antenna connector | 86145-52010 |
| 86183D | audio amplifier cover | 86183-0K020 |
| 86190C | Stereo socket connector assembly No. 1 | 86190-35020 · 86190-71020 |
| 86203 | radio wiring harness | 86203-0K100 · 86203-0K120 · 86203-71220 · 86203-71260 |
| 86211 | No. 1 radio bracket | 86211-KK050 · 86211-KK100 · 86211-KK130 |
| 86212 | No. 2 radio bracket | 86212-KK050 · 86212-KK100 · 86212-KK130 |
| 86280 | Stereo parts amplifier assembly | 86280-0K050 · 86280-0K120 · 86280-0K130 |
| 86285 | Amplifier Stand No. 1 | 86285-0K010 · 86285-KK010 |
| 86286 | Amplifier Stand No. 2 | 86286-KK010 |
| F1334 | SUPPORT, COMMANDE CONVERTISSEUR, NO.1 | F1334-KK010 · F1334-KK030 |
| G92C0A | ENS. CONVERTISSEUR, VEHICULE ECO-RUN | G92C0-30020 |
