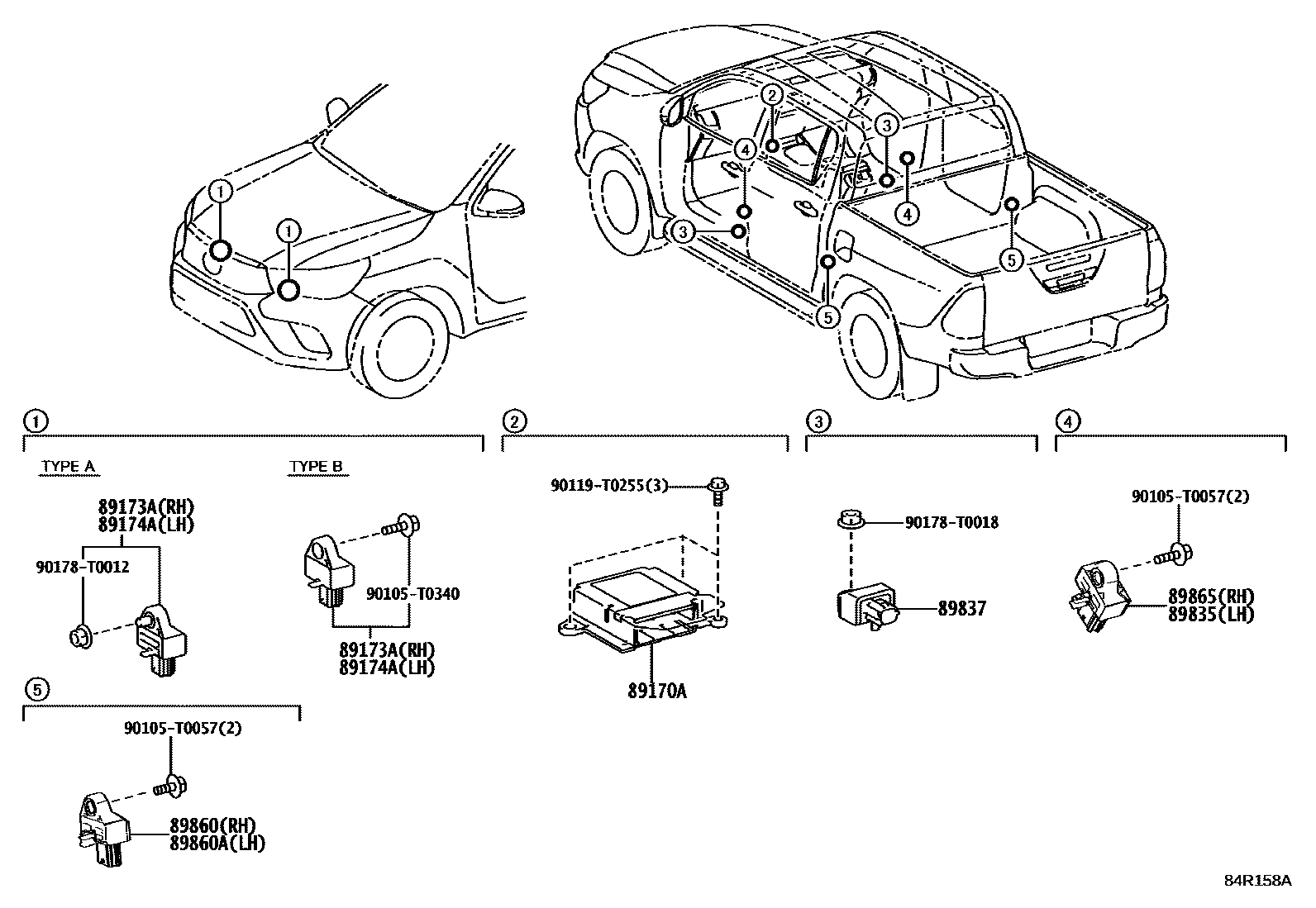

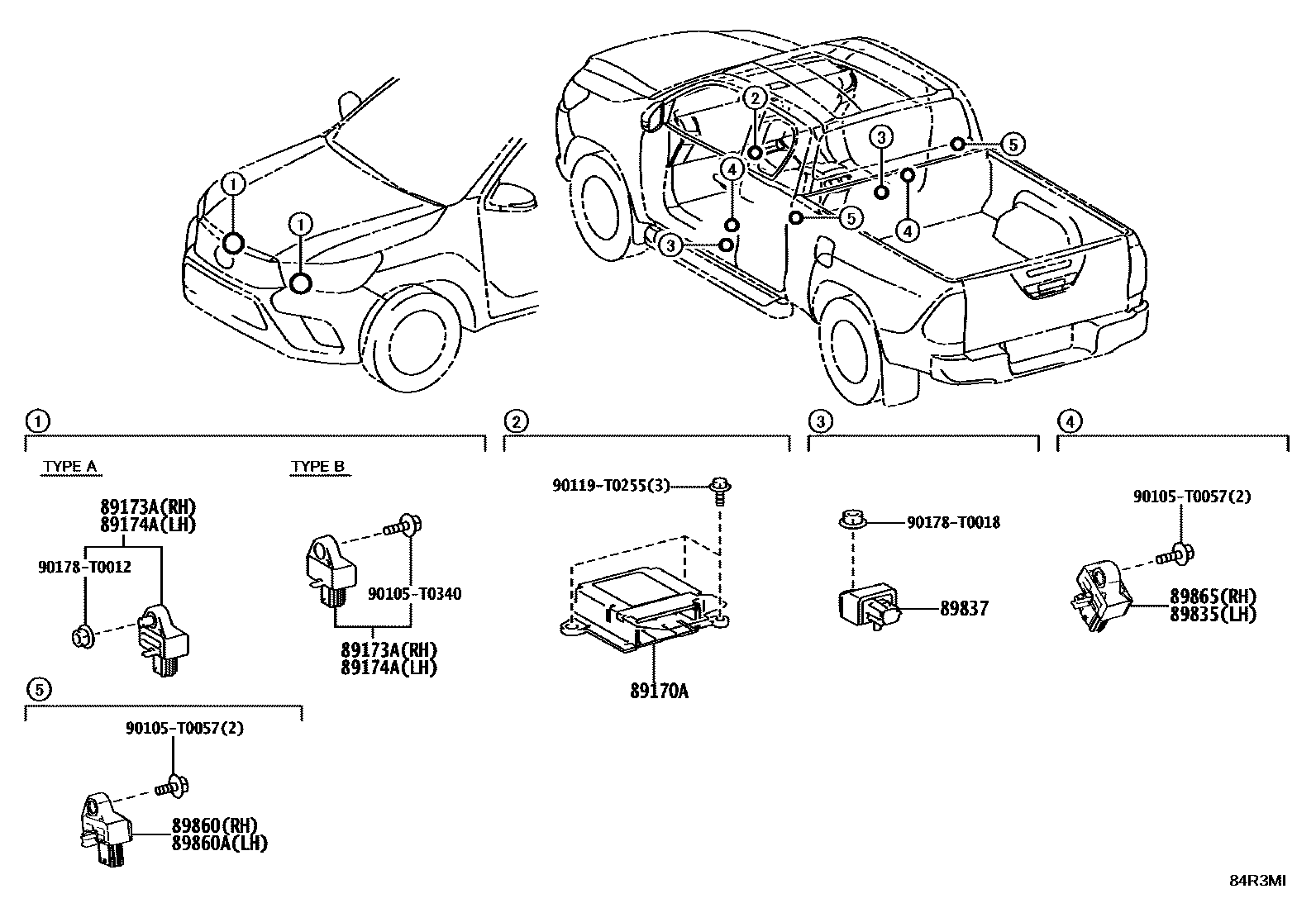

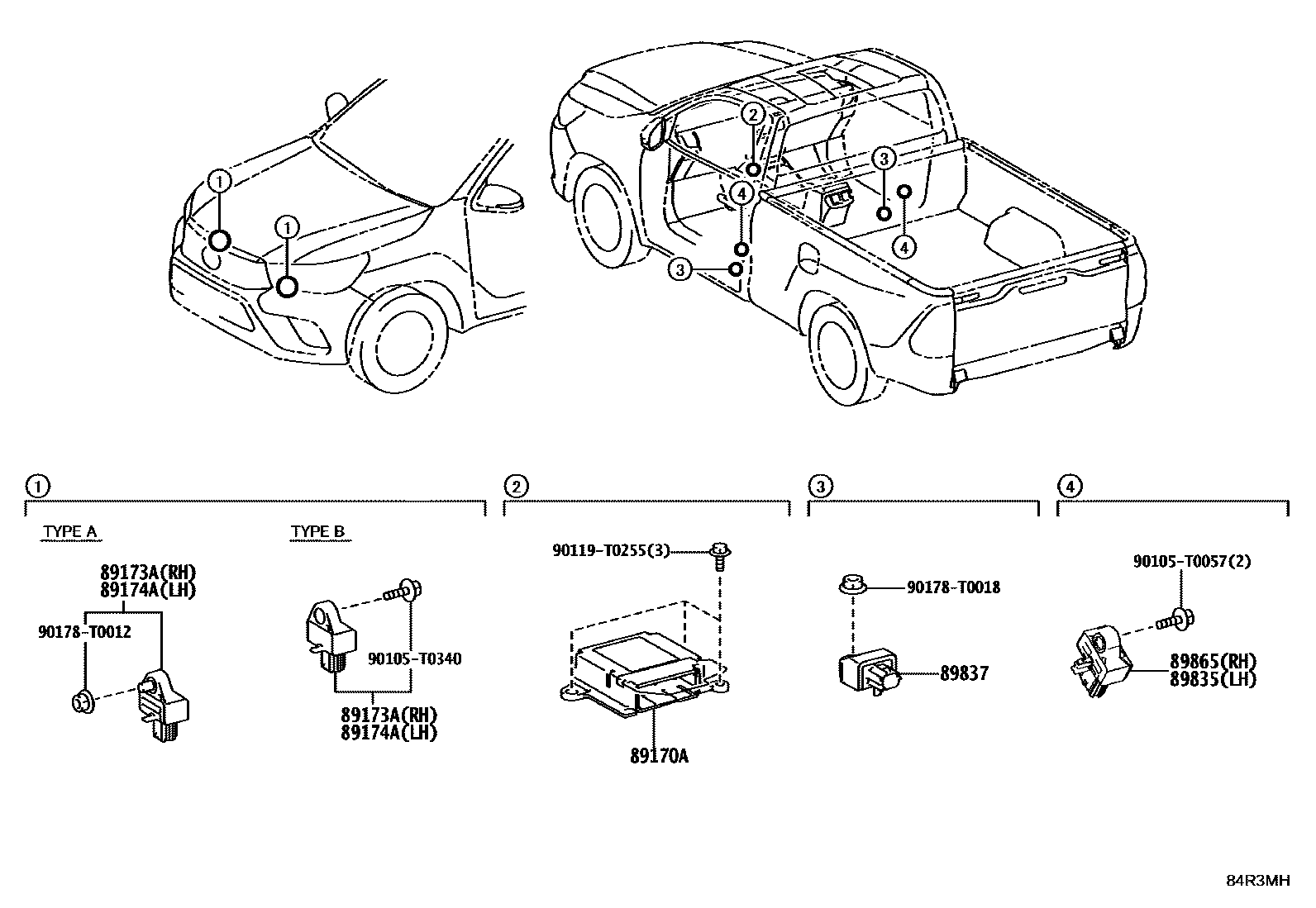

Toyota HILUX 空气囊 — Figure 8421
Toyota HILUX EPC diagram 8421, 空气囊, with 3 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89170A | Air bag ECU assembly | 89170-0KB80 · 89170-0KG60 · 89170-71020 · 89170-71030 · 89170-71040 · 89170-71050 · 89170-71060 · 89170-71070 · 89170-71080 · 89170-71090 · 89170-71100 · 89170-71110 · 89170-71120 |
| 89173A | Right front air bag sensor | 89173-09B20 · 89173-59335 |
| 89174A | Left front air bag sensor | 89173-09B20 · 89173-59335 |
| 89835 | Left door side air bag sensor | 89831-0K040 · 89831-42020 |
| 89837 | Front floor side air bag sensor | 89831-71010 |
| 89860 | Right side airbag sensor assembly | 89831-0K050 · 89831-52130 |
| 89860A | Left side air bag sensor assembly | 89831-0K050 · 89831-52130 |
| 89865 | Right door side air bag sensor | 89831-0K040 · 89831-42020 |
