Toyota HILUX 遥控门锁 — Figure 8420

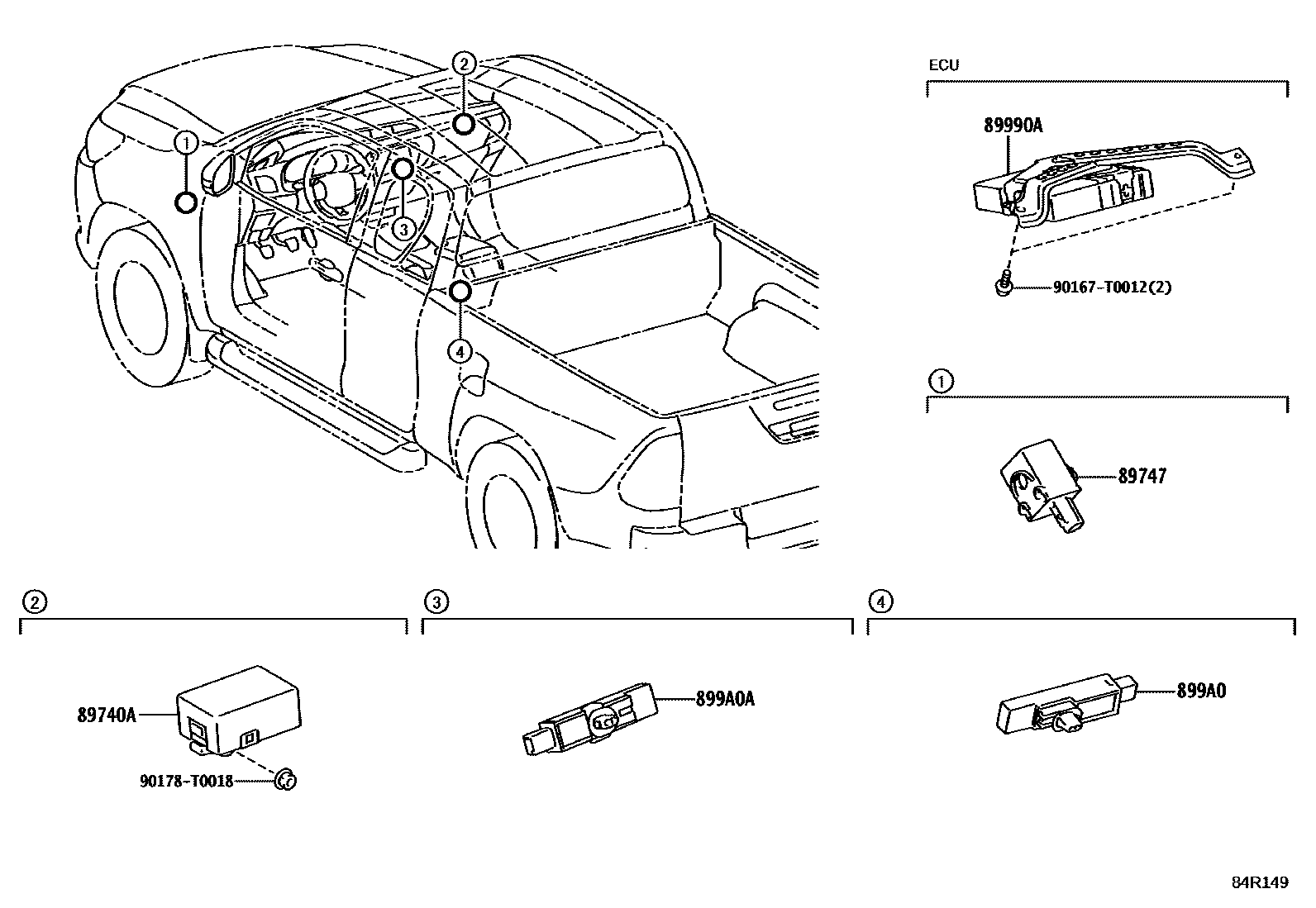

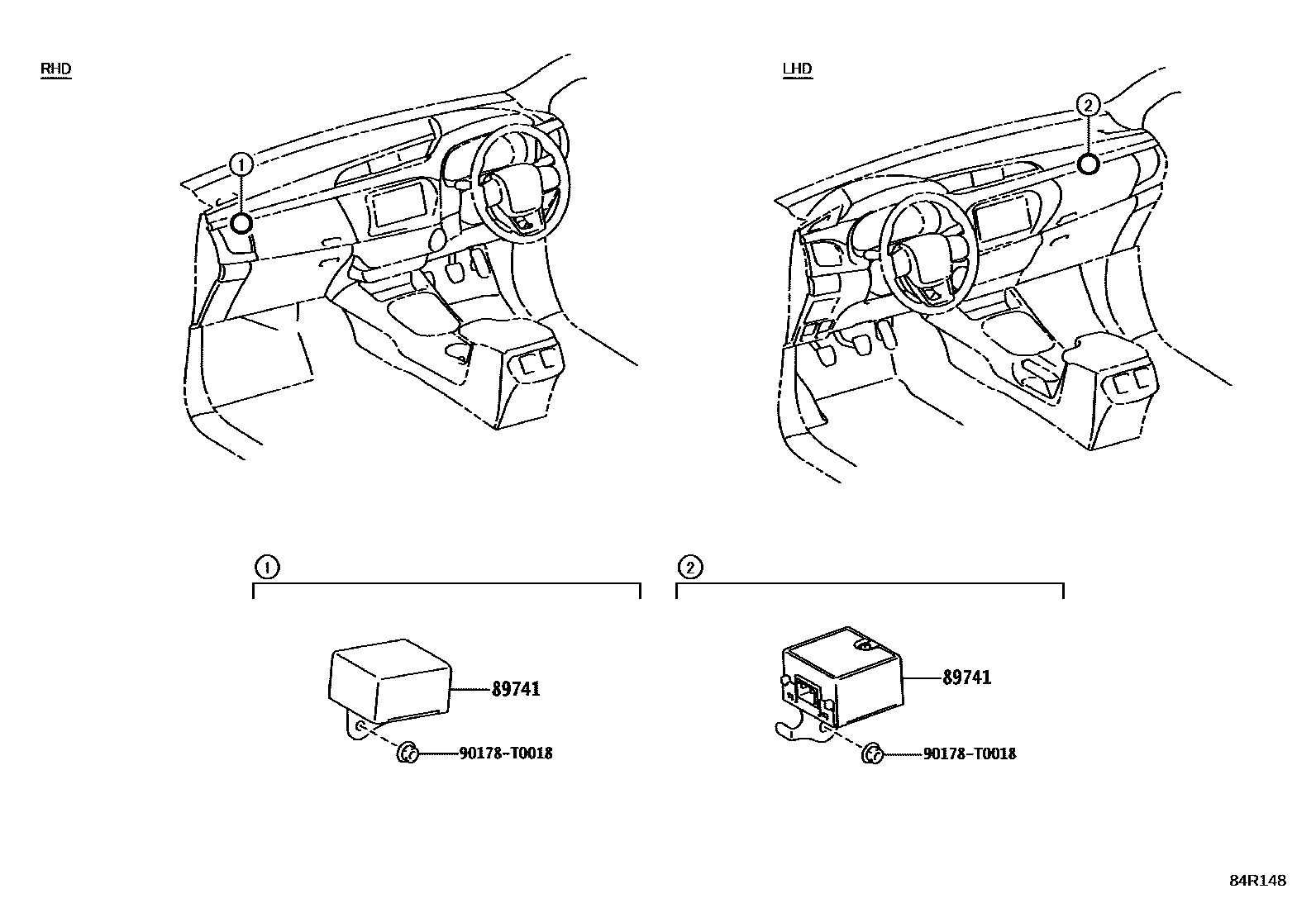

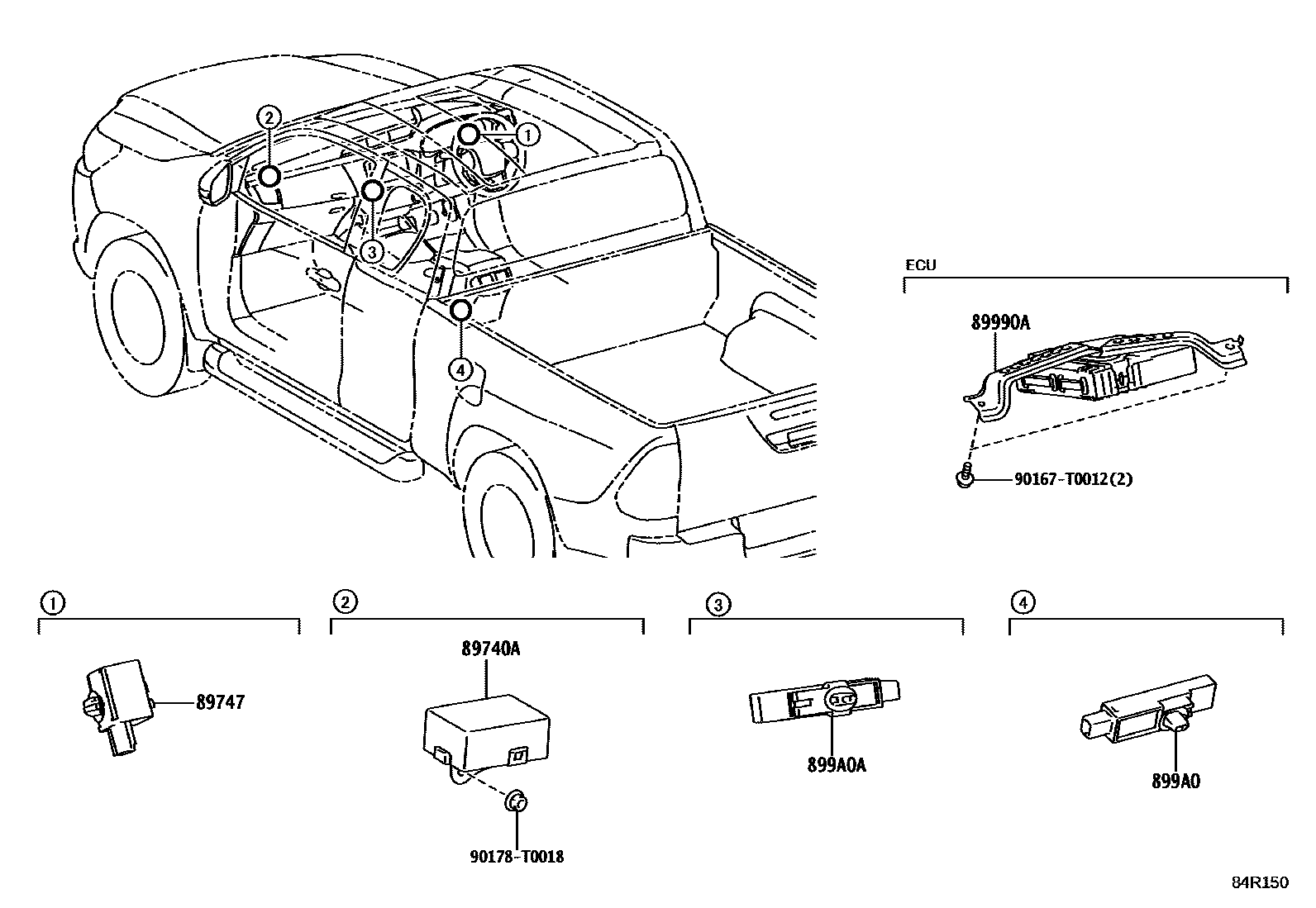

Toyota HILUX EPC diagram 8420, 遥控门锁, with 3 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89740A | ENSEMBLE RECEPTEUR, COMMANDE INTELLIGENTE DES PORTES | 89740-0K070 |
| 89741 | door control receiver | 89741-0K280 |
| 89747 | Remote door lock buzzer | 89747-30040 |
| 89990A | Smart key ECU assembly | 89990-0KK20 · 89990-0KK30 · 899H0-0K010 · 899H0-0K020 · 899H0-0K030 · 899H0-0K040 · 899H0-0K050 · 899H0-0K060 · 899H0-0K070 · 899H0-0K080 |
| 899A0 | No. 1 electronic key antenna assembly in car | 899A0-0A010 · 899A0-0D110 |
| 899A0A | Electronic key antenna assembly in car No. 2 | 899A0-0D170 · 899A0-0K060 |
