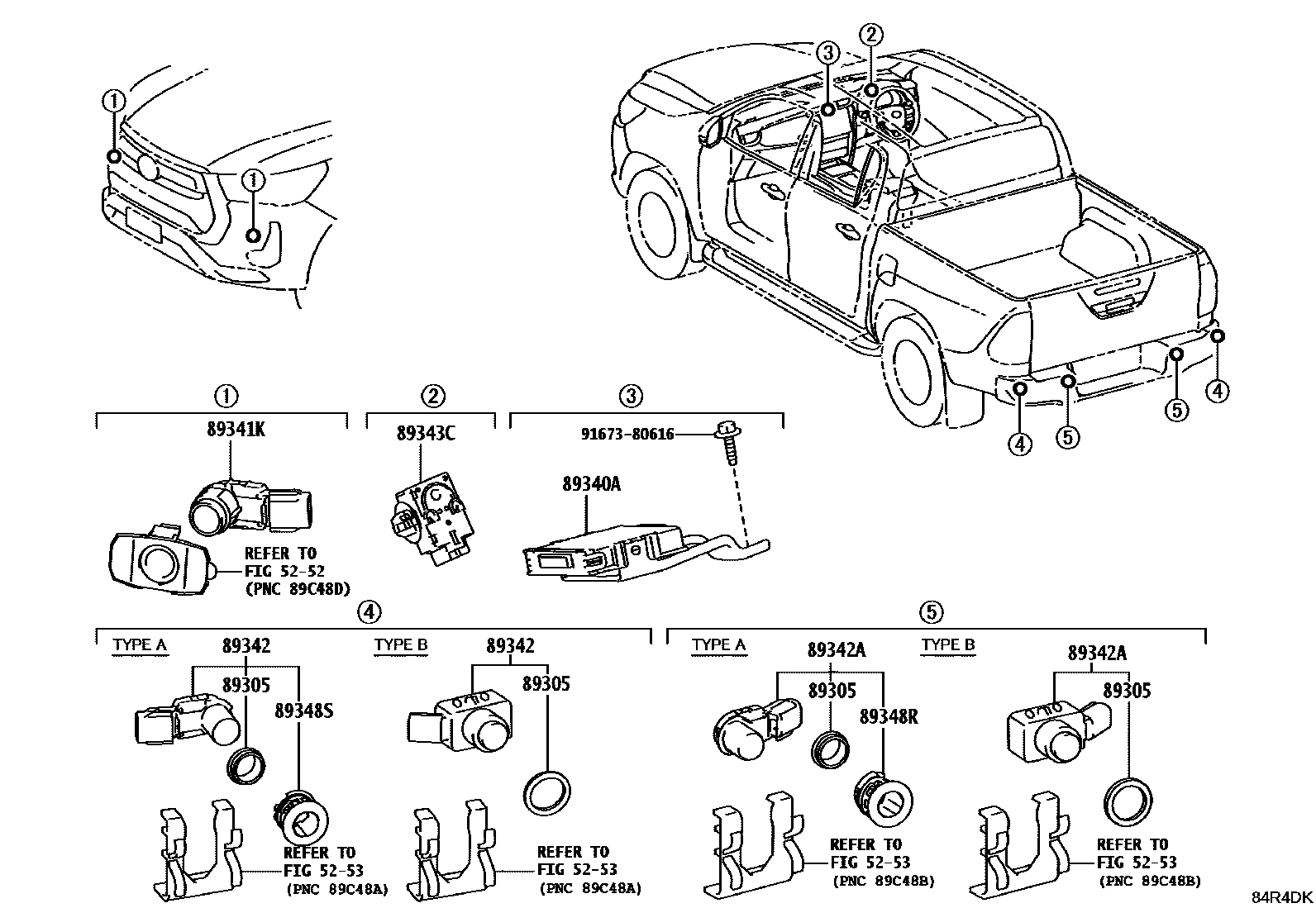

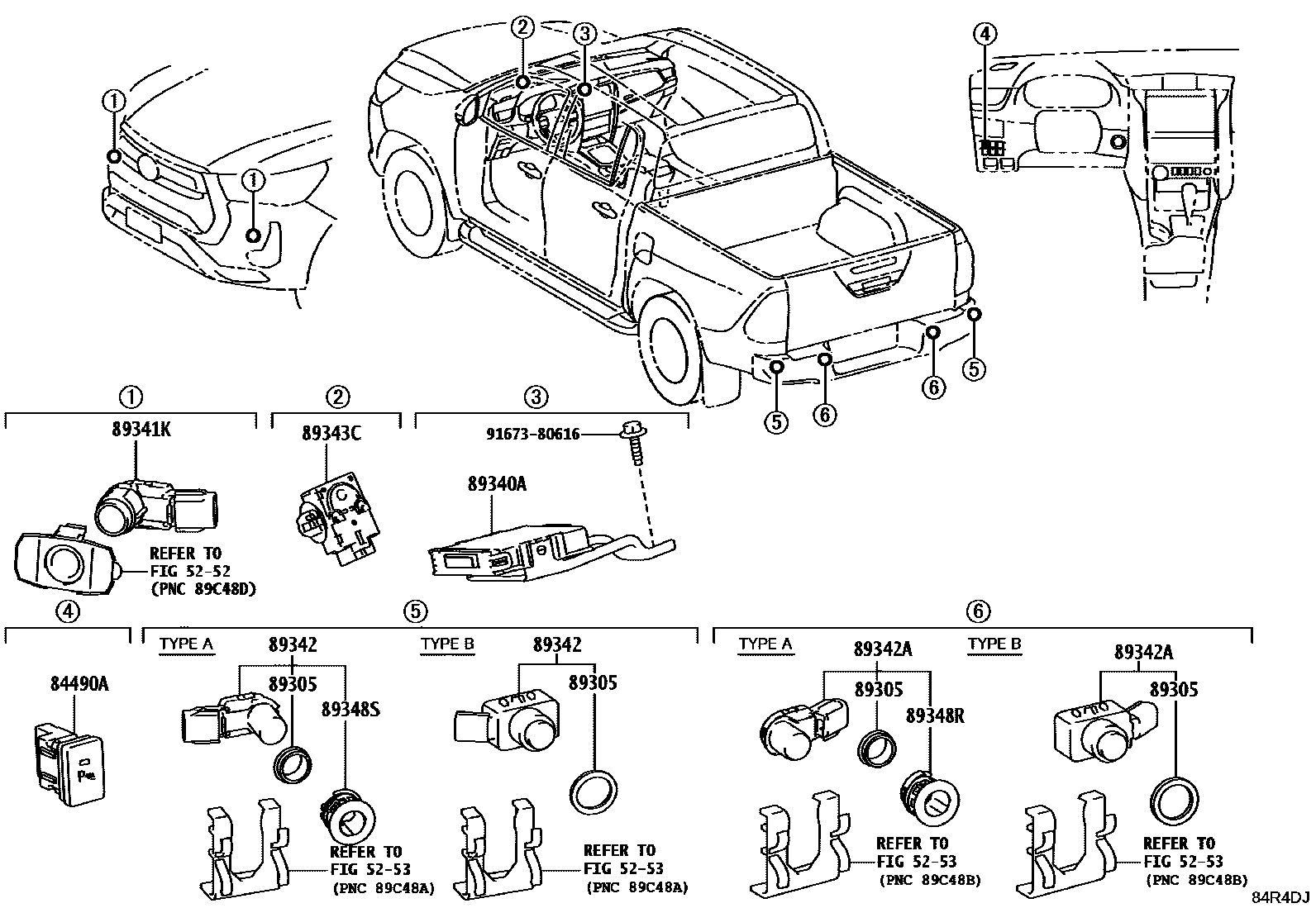

Toyota HILUX 测距雷达和倒车雷达 — Figure 8417
Toyota HILUX EPC diagram 8417, 测距雷达和倒车雷达, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 84490A | Reversing radar or ranging radar switch assembly | 84490-0K030 |
| 89305 | JEU COUSSIN, CAPTEUR ULTRASONS | 89305-33010 · 89305-52010 |
| 89340A | Distance warning ECU assembly | 89340-0K030 · 89340-71060 · 89340-71070 · 89340-71080 · 89340-71090 · 89340-71100 · 89340-71110 |
| 89342 | CAPTEUR, A ULTRASONS, D'ANGLE ARRIERE | 89341-71040 |
| 89342A | CAPTEUR, A ULTRASONS, CENTRAL ARRIERE | 89341-71030 |
| 89343C | No. 1 distance warning buzzer | 89343-48010 |
