Toyota HILUX 电子控制系统 — Figure 8407

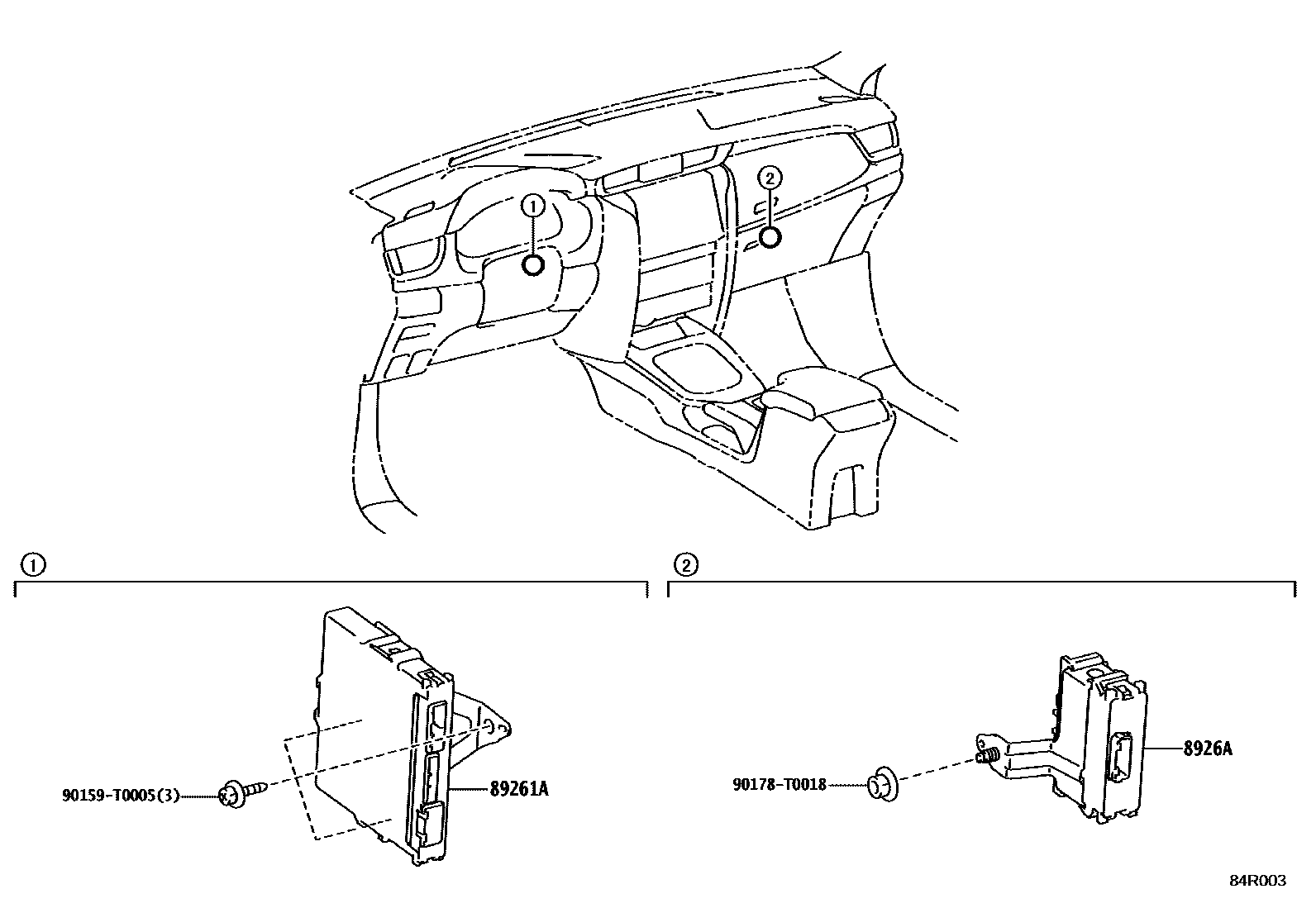

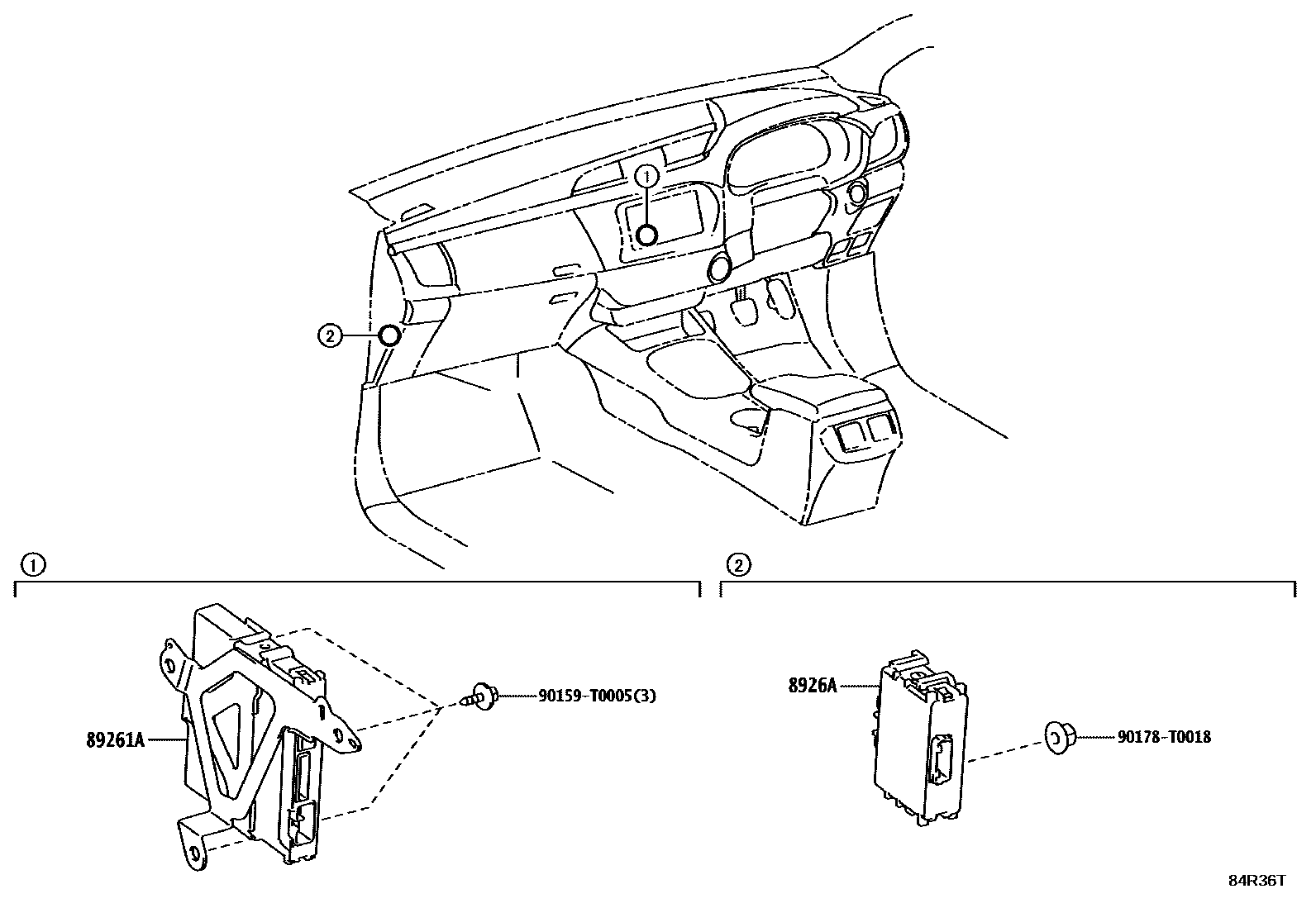

Toyota HILUX EPC diagram 8407, 电子控制系统, with 2 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89261A | Engine stop and start ECU | 89260-0K310 · 89260-0K320 · 89260-0K330 · 89260-0K340 |
| 8926A | FILTRE, SOLENOIDE ARRET & DEMARRAGE MOTEUR | 8926A-0K010 · 8926A-0K020 |
