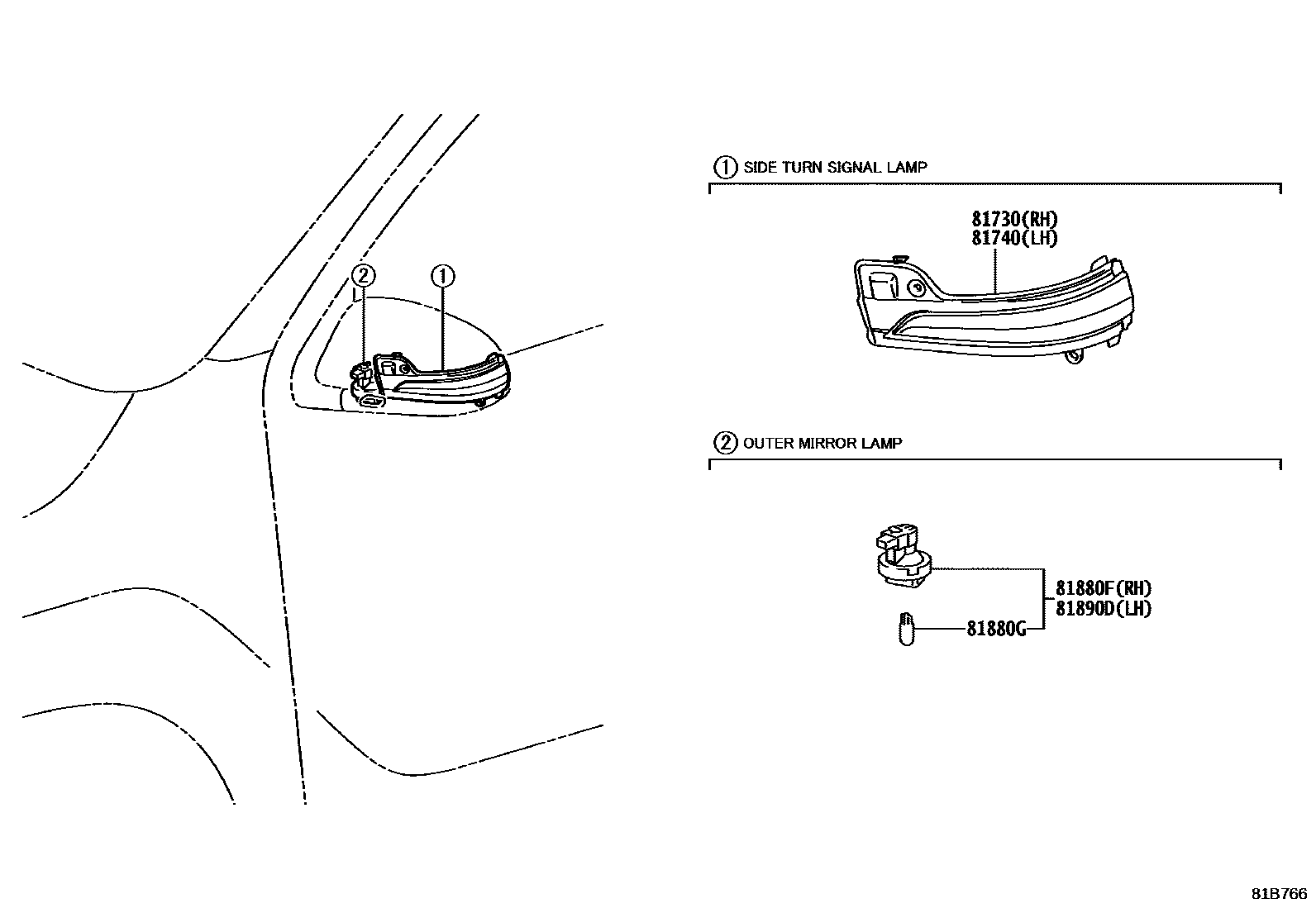

Toyota HILUX Side Turn Signal & Outer Mirror Lamp — Figure 8106
Toyota HILUX EPC diagram 8106, Side Turn Signal & Outer Mirror Lamp, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81730 | Right side turn signal light assembly | 81730-0K020 |
| 81740 | Left side turn signal light assembly | 81740-0K020 |
| 81880F | Right exterior rearview mirror light assembly | 81880-0K010 |
| 81880G | Exterior rearview mirror light bulb assembly | 99132-12050 |
| 81890D | Left exterior rearview mirror light assembly | 81890-0K010 |
