Toyota HILUX 徽标和铭牌 — Figure 7551

Toyota HILUX EPC diagram 7551, 徽标和铭牌, with 2 images and 9 PNC and OE references.

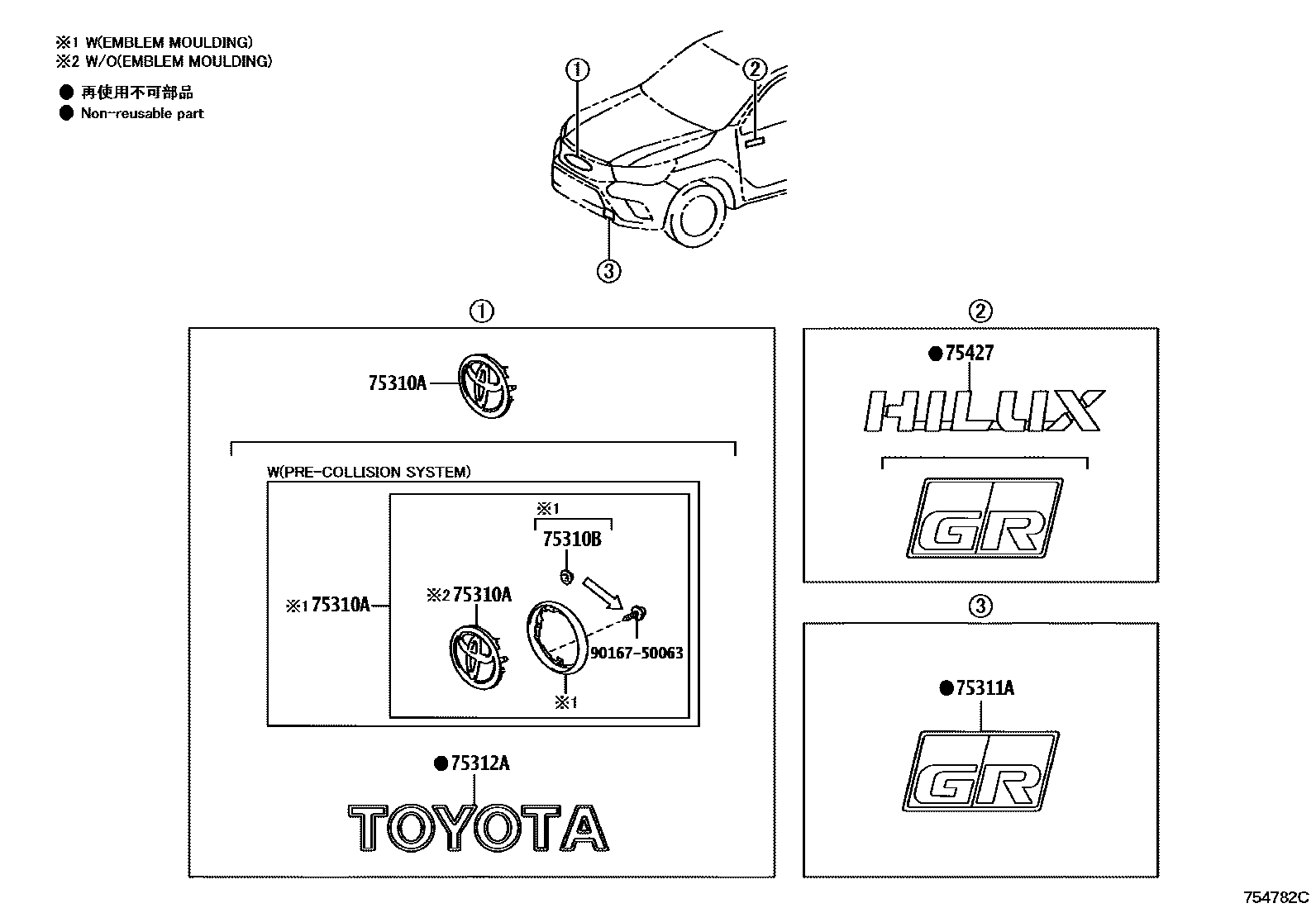

Toyota HILUX 徽标和铭牌 EPC diagram — 754782C
徽标和铭牌 — 754782C (202308 – 999999)

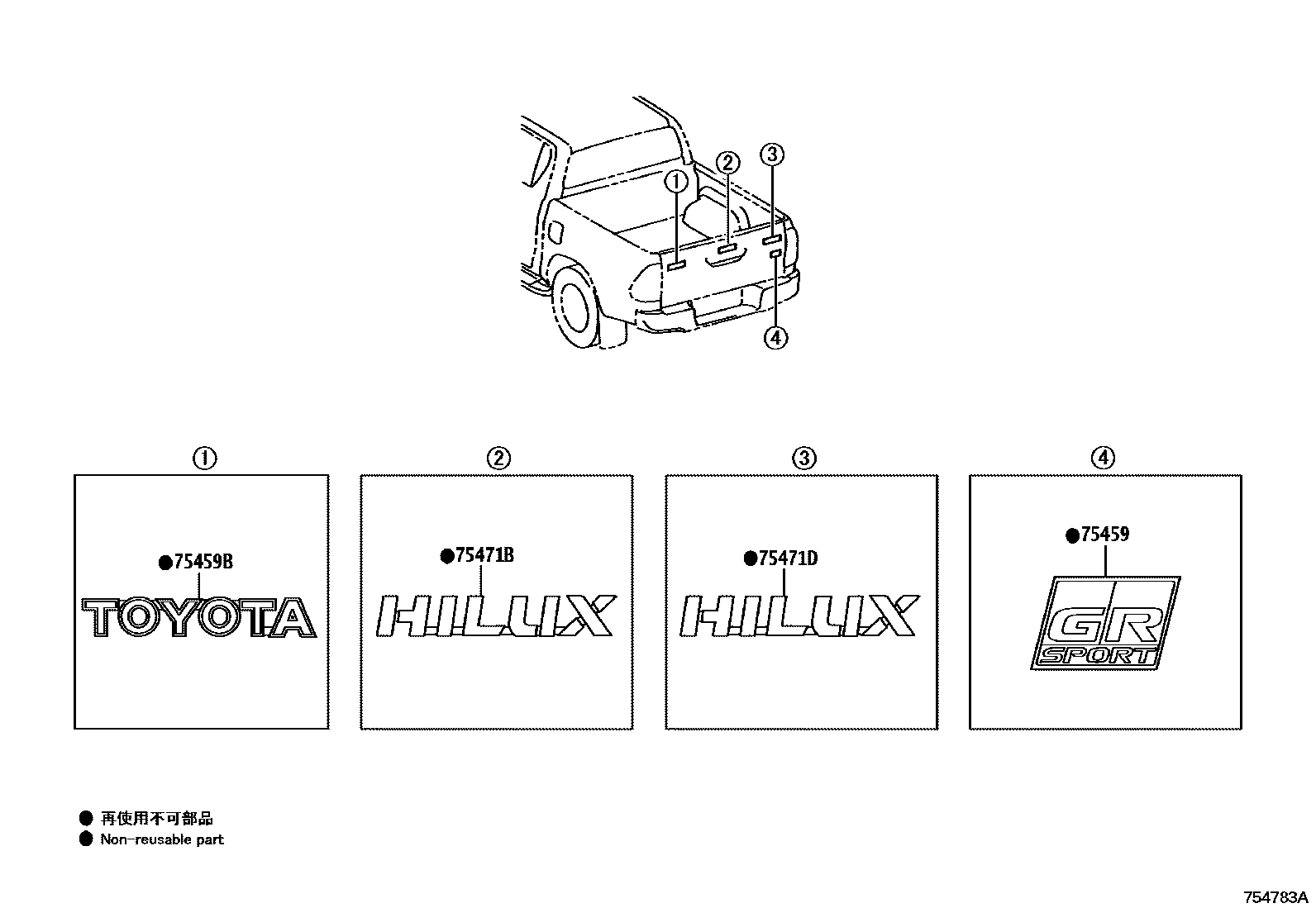

Toyota HILUX 徽标和铭牌 EPC diagram — 754783A
徽标和铭牌 — 754783A (202308 – 999999)

PNC and OE references

PNCPart nameOE numbers
75310ARadiator grille plate assembly53127-0K251 · 75310-0K040 · 75310-0K060 · 90975-T2030
75310BECROU, RESSORT90183-06044
75311AFront No. 1 nameplate75361-52070
75312AFront No. 2 nameplate75446-YP010 · 75446-YP020
75427front door nameplate75427-0K030 · 75427-0K080 · 75441-YP150
75459Back door mark75441-71010 · 75441-71020
75459BNo. 2 back door mark75446-YP130 · 75469-0K050 · 75469-0K060
75471BNo. 1 nameplate on rear body75427-0K130 · 75427-0K140
75471Drear nameplate75427-0K130 · 75427-0K140 · 75441-YP210
