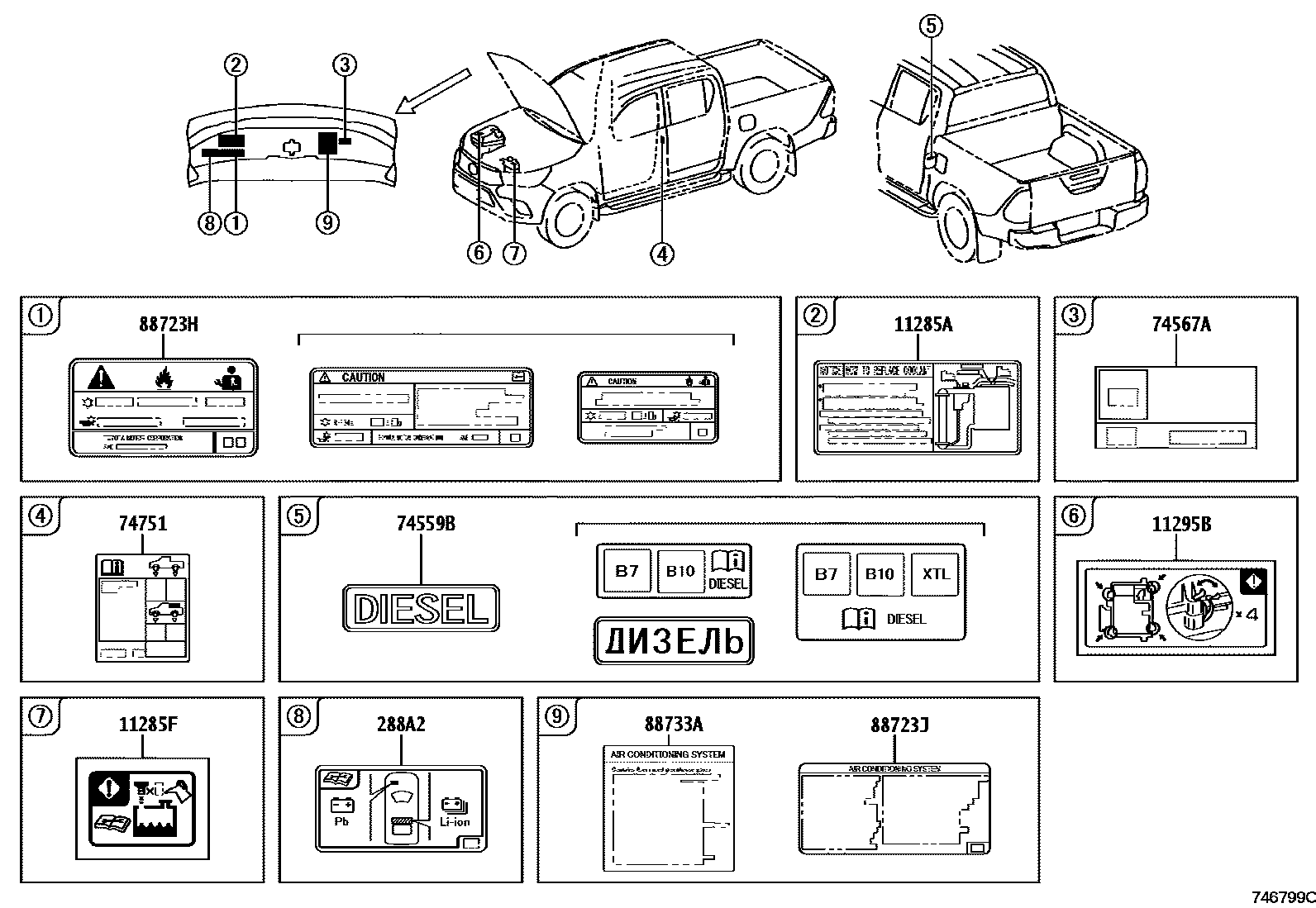

Toyota HILUX warning nameplate — Figure 7455
Toyota HILUX EPC diagram 7455, warning nameplate, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11285A | Coolant System Caution Labels | 11285-0E010 |
| 11285F | ETIQUETTE, AVERT.SUR LE SYSTEME DE LIQUIDE DE REFROID. | 11285-0E030 · 11285-0E040 |
| 11295B | ETIQUETTE, AVIS FONC MOTEUR NO.1 | 11295-0E010 |
| 17792D | Emission control device information label | 17792-11750 · 17792-11760 |
| 288A2 | ETIQUETTE, EMPLACEMENT BATT | 288A2-0E020 |
| 69339C | Child Restraint Information Label | 69339-06060 · 69339-0K080 |
| 74559B | fuel information label | 74559-60020 · 74559-71030 · 74559-89101 |
| 74567A | E.C.E approval number plate | 74567-25041 · 74567-60380 · 74567-71010 · 74567-71040 |
| 74751 | tire pressure information label | 42661-0KN40 · 42661-0KN70 · 42661-0KP00 · 42661-0KS00 · 42661-0KS30 · 42661-YP070 |
| 88723H | Cooler maintenance warning label | 88723-0K261 · 88723-0K450 · 88723-0K520 |
| 88723J | Cooler No. 2 maintenance warning label | 88733-52160 |
| 88733A | PLAQUETTE D'INSTRUCTIONS D'ENTRETIEN DE CLIMATISEUR | 88733-0K010 |
