Toyota HILUX 后门板和后门玻璃 — Figure 6755

Toyota HILUX EPC diagram 6755, 后门板和后门玻璃, with 4 images and 51 PNC and OE references.

Toyota HILUX 后门板和后门玻璃 EPC diagram — 67D078C
后门板和后门玻璃 — 67D078C (202308 – 999999)

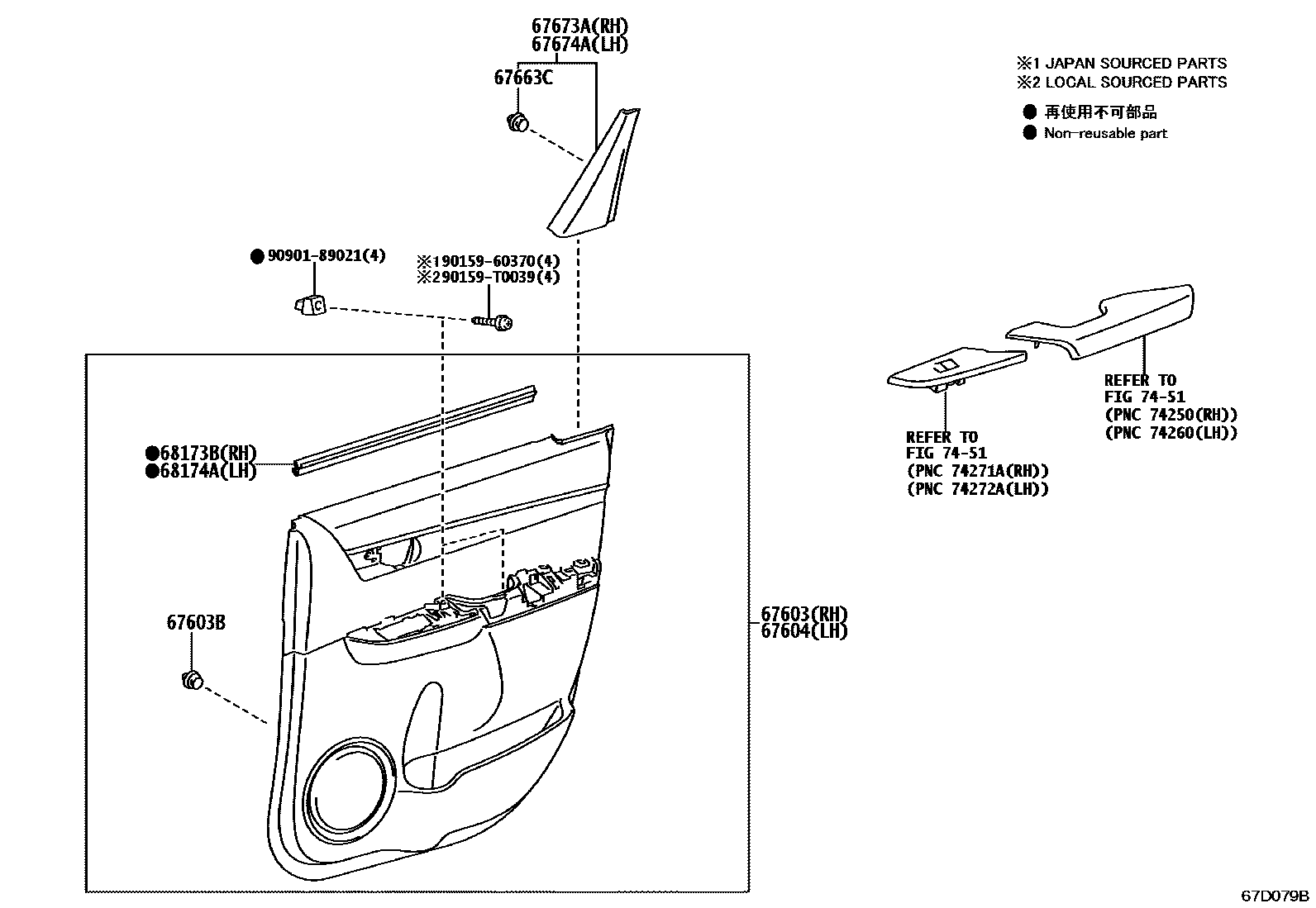

Toyota HILUX 后门板和后门玻璃 EPC diagram — 67D079B
后门板和后门玻璃 — 67D079B (202308 – 999999)

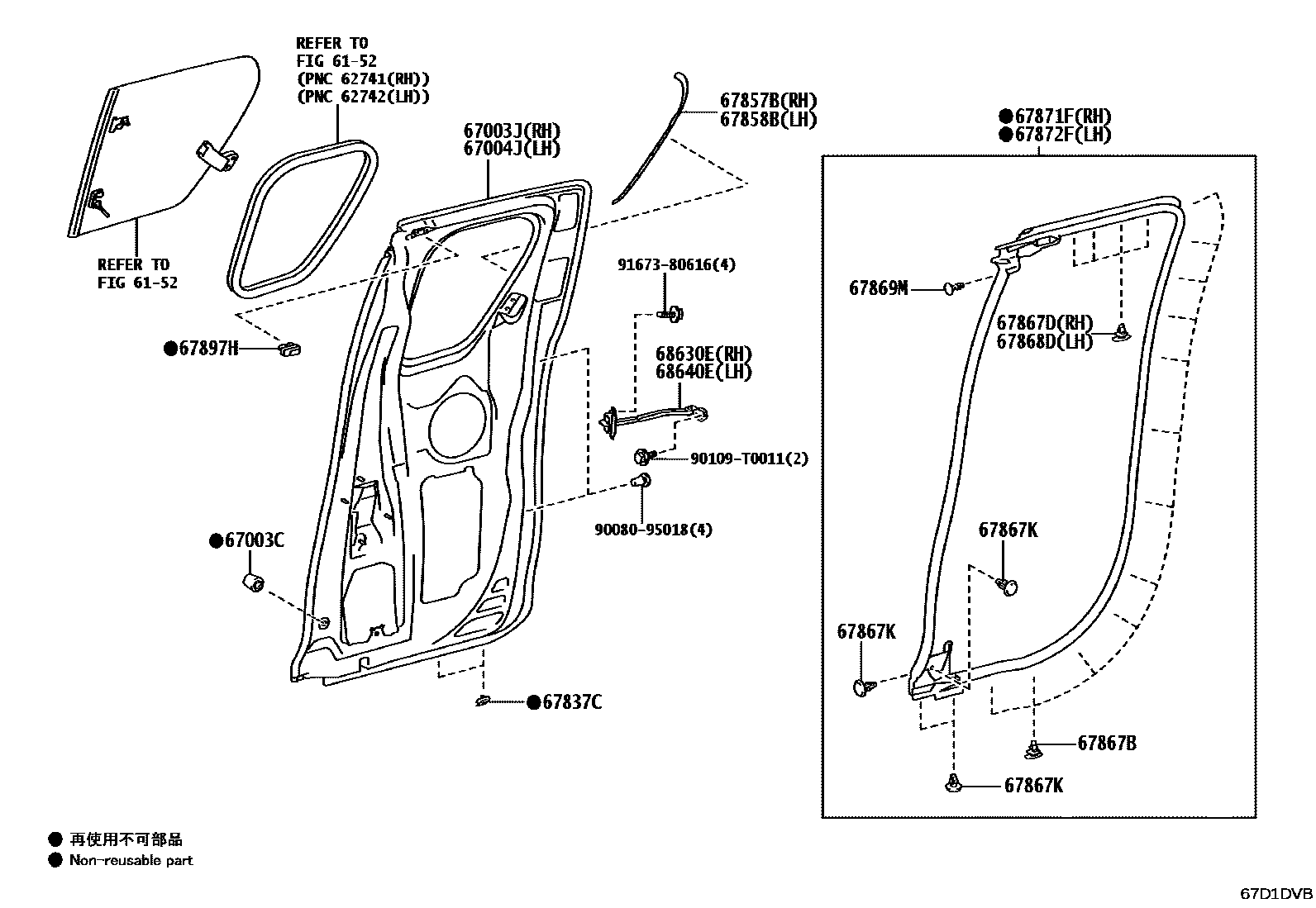

Toyota HILUX 后门板和后门玻璃 EPC diagram — 67D1DVB
后门板和后门玻璃 — 67D1DVB (202402 – 999999)

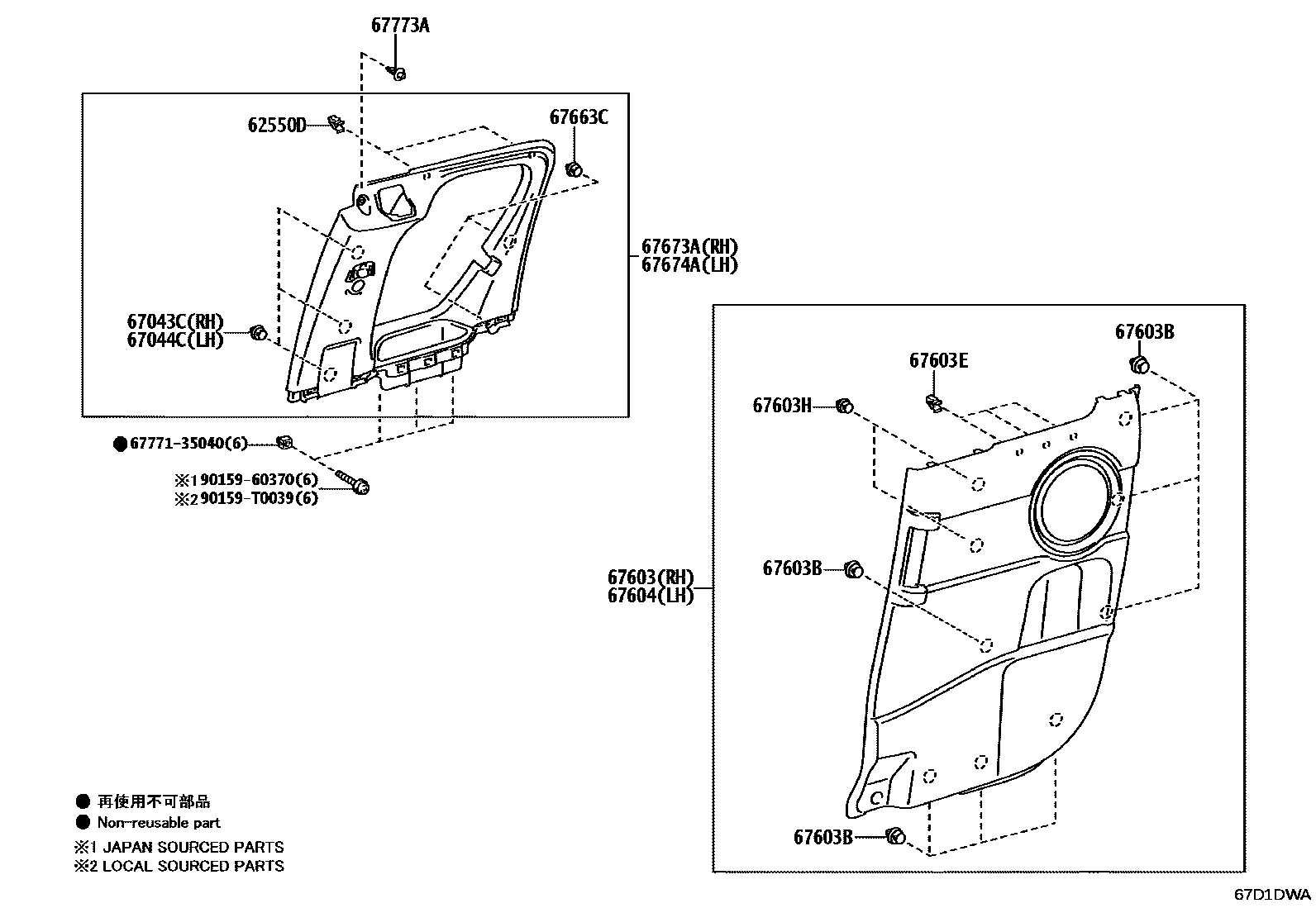

Toyota HILUX 后门板和后门玻璃 EPC diagram — 67D1DWA
后门板和后门玻璃 — 67D1DWA (202402 – 999999)

PNC and OE references

PNCPart nameOE numbers
62550DRear window side decorative panel clip90468-05125
67003Right rear door panel sub-assembly67003-KK011
67003CRear door panel cushion90541-09131
67003JRight entry door door panel sub-assembly67003-KK021
67004Left rear door panel sub-assembly67004-KK011
67004JLeft entry door door panel sub-assembly67004-KK021
67043CRight rear door window frame clip90467-09224
67044CLeft rear door window frame clip90467-09224
67113Right rear door outer panel67113-KK010
67114Left rear door outer panel67114-KK010
67407ERight rear door window divider sub-assembly67407-0K100
67408ELeft rear door window divider sub-assembly67408-0K100
67603BCatch (for rear door trim panel)90467-T0019
67603ECatch (for rear door trim panel)90467-10201
67603HCLIP (PLAQUETTE DE GARNITURE DE PORTIERE ARRIERE)90467-09224
67663CClips (for door frame decorative strips)90467-T0019
67673ARight rear door frame decorative strip67673-0K040 · 67673-KK010
67674ALeft rear door frame decorative strip67674-0K040 · 67674-KK010
67812Rear door silencer pad69759-0K030 · 69759-0K060
67837CRear door dust seal retainer67837-0K093 · 67837-0K103 · 67837-0K121
67841ERight rear door access hole cover67841-0K130
67842ELeft rear door access hole cover67842-0K010
67857BRight rear door panel protector67857-0K030 · 67857-0K080 · 67857-0K090
67858BLeft rear door panel protector67858-0K030 · 67858-0K080 · 67858-0K090
67867BDoor seal strip clip (for rear door)67867-12150
67867DRight rear door seal strip fixing67867-52010
67867KLeft door seal strip clip (for rear door)67869-26050
67868DLeft rear door seal strip fixing67867-52010 · 67867-52030
67869LRear door seal strip clip9004A-46317 · 90467-06084
67869MCar door seal strip clip67867-0K020 · 67867-50050 · 67869-20030
67871Right rear door sealing strip67871-0K081 · 67871-0K111
67871FEntry door door panel right seal strip67871-0K090
67872Left rear door sealing strip67872-0K081 · 67872-0K111
67872FEntry door panel left seal67872-0K090
67897Hrear door cushion67897-0K020
68103Right rear door glass sub-assembly68113-0K210 · 68113-0K220 · 68113-0K240 · 68113-0K250
68104Left rear door glass sub-assembly68114-0K210 · 68114-0K220 · 68114-0K240 · 68114-0K250
68123BRight rear door corner window glass68123-0K231 · 68123-0K241 · 68123-0K250 · 68123-0K260
68124CLeft rear door corner window glass68124-0K231 · 68124-0K241 · 68124-0K250 · 68124-0K260
68142CRight rear door glass lift slot68142-0K080 · 68142-0K100
68152CLeft rear door glass lift slot68152-0K080 · 68152-0K100
68173BRight rear door glass inner sealing strip68173-0K080 · 68173-0K090
68174ALeft rear door glass inner sealing strip68174-0K080 · 68174-0K090
68188Right rear door corner window seal68188-0K111
68189Left rear door corner window seal68189-0K111
68630DRight rear door opening limiter assembly68630-0K080 · 68630-0K091
68630EEntry door panel right opening limiter assembly68640-0K101
68640ALeft rear door opening limiter assembly68630-0K080 · 68630-0K091
68640EEntry door panel left opening limiter assembly68640-0K101
75923CNo. 2 right side light-shielding film75923-0K030 · 75923-0K090
75924CNo. 2 left shading film75924-0K030 · 75924-0K090
