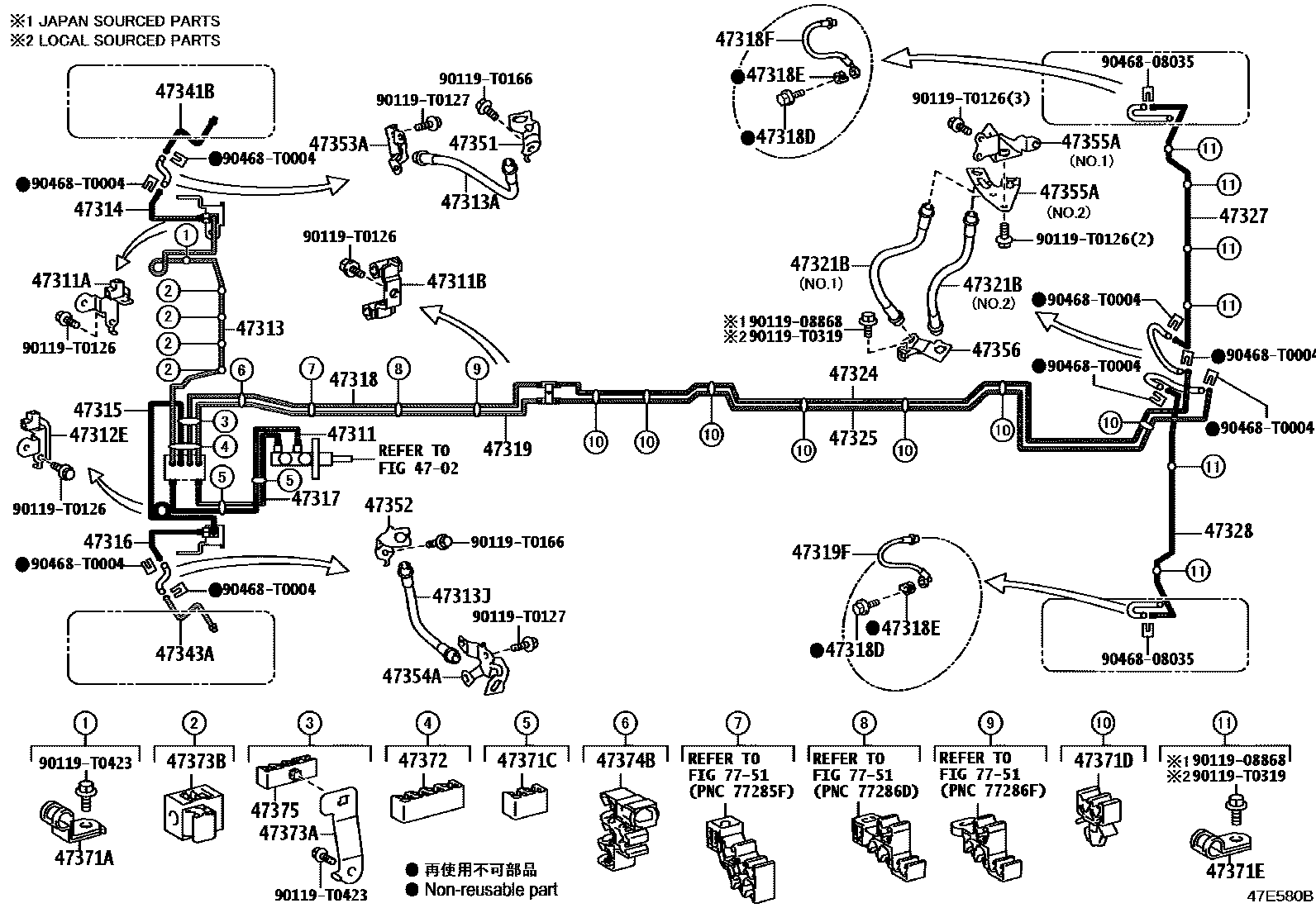

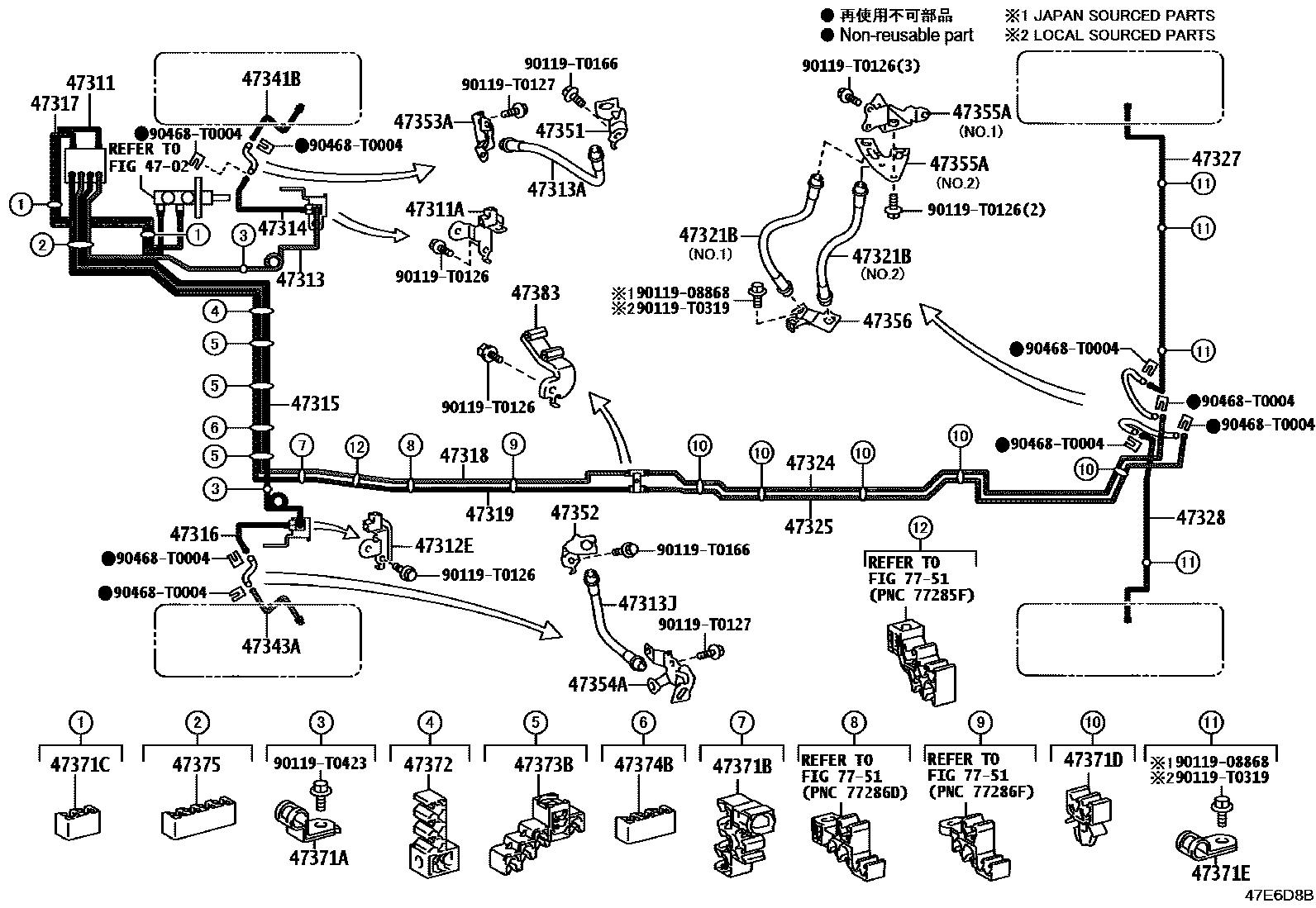

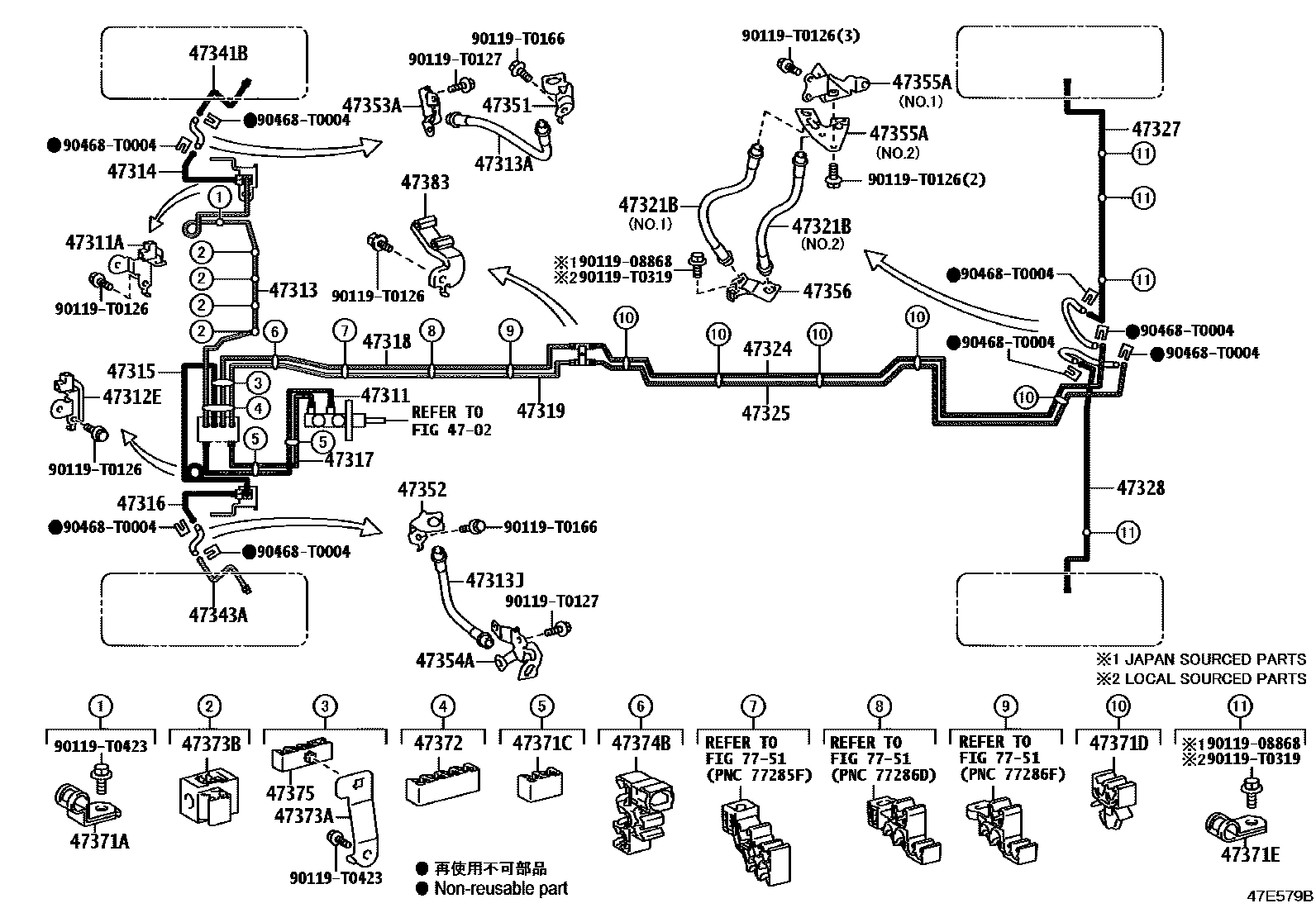

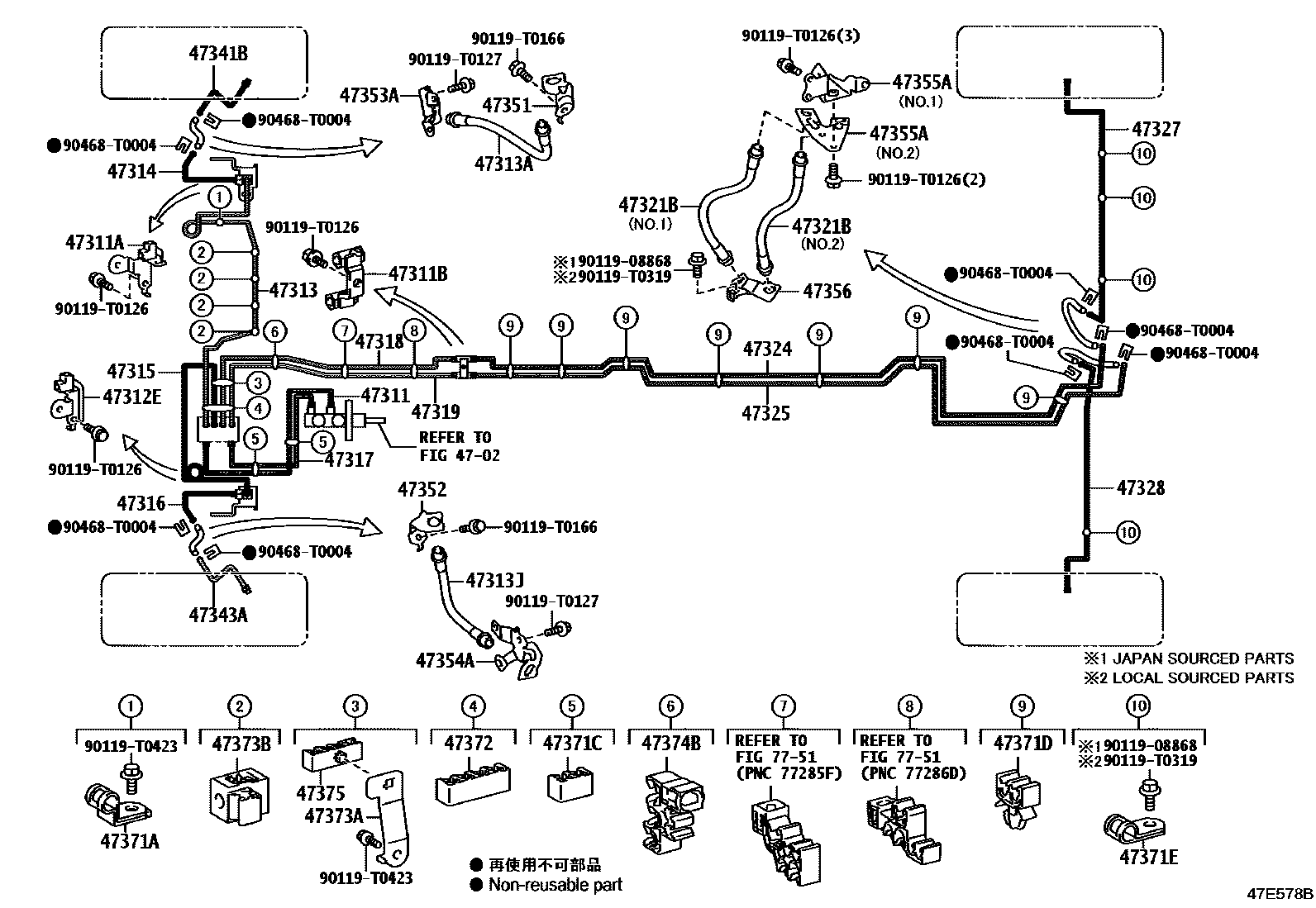

Toyota HILUX 制动配管和卡箍 — Figure 4708
Toyota HILUX EPC diagram 4708, 制动配管和卡箍, with 6 images and 44 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

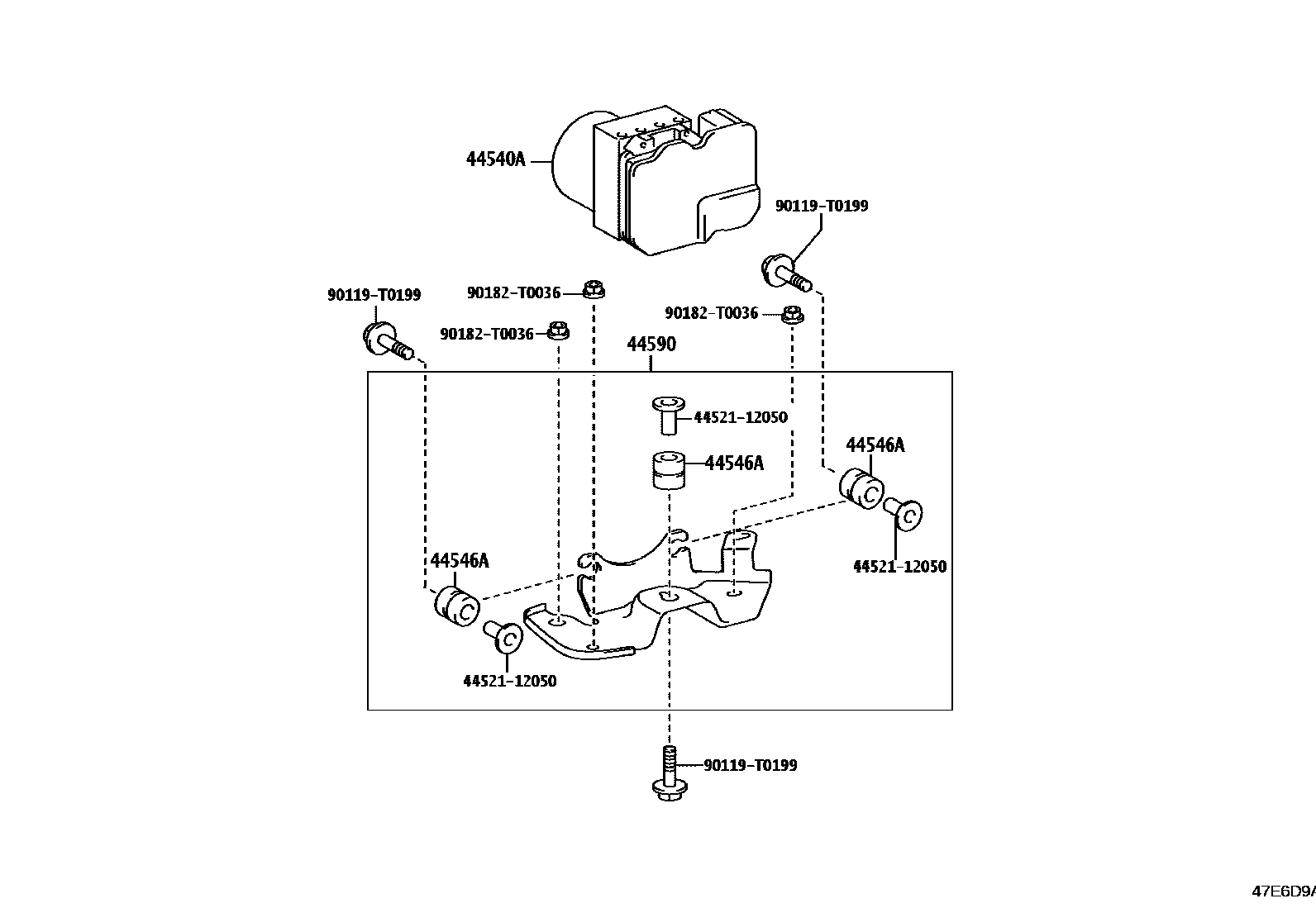

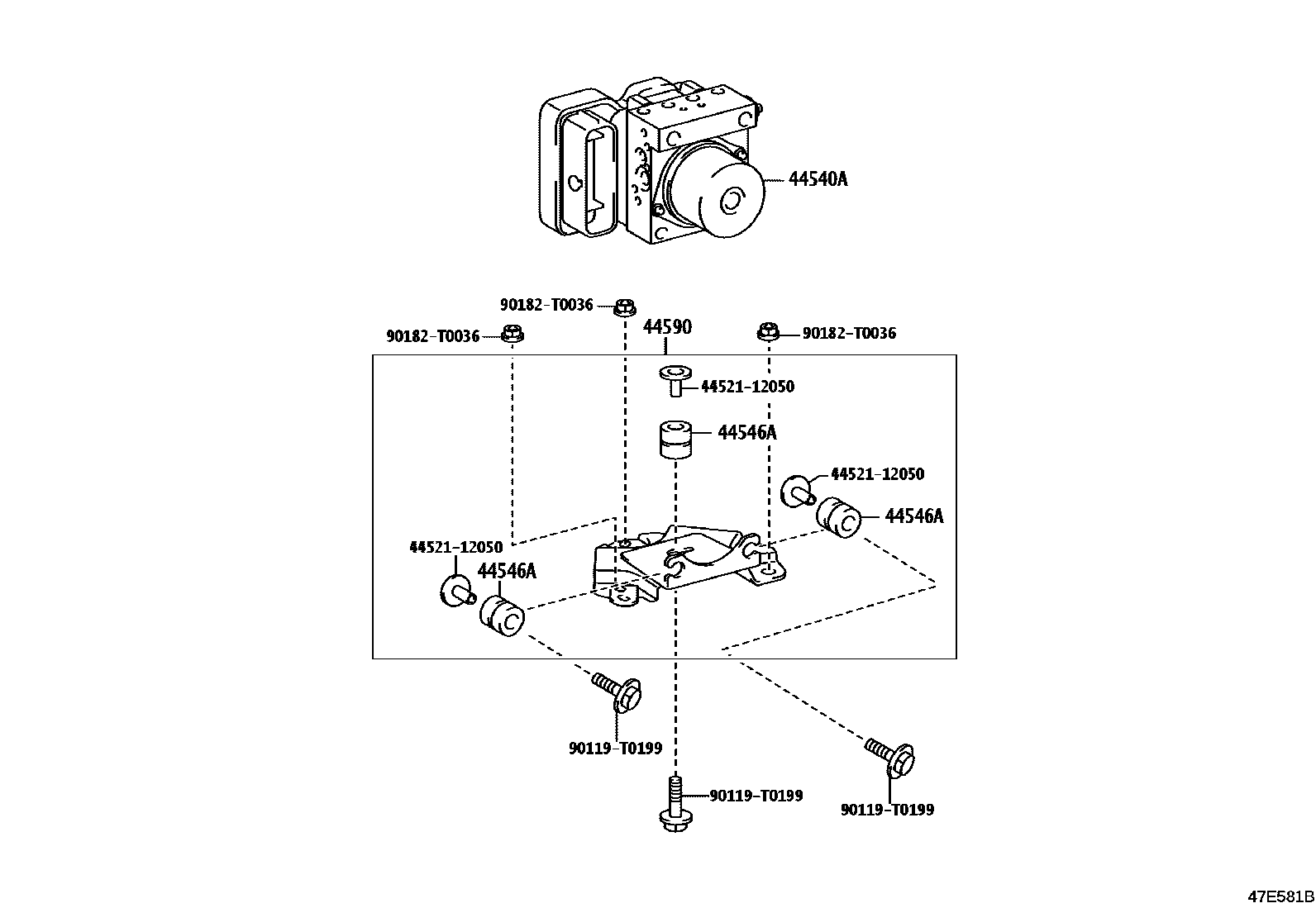

| 44540A | VSC actuator assembly | 44050-0KF10 · 44050-0KG20 · 44050-71M90 · 44050-71N00 · 44050-71N10 · 44050-71N20 · 44050-71N70 · 44050-71N80 · 44050-71N90 · 44050-71P00 · 44050-71P10 · 44050-71P20 · 44050-71P30 · 44050-71P40 · 44050-71Q30 · 44050-71Q40 · 44050-71Q50 · 44060-71010 |
| 44546A | Brake actuator bolt cushion | 44546-0K010 · 44546-12120 |
| 44590 | Brake actuator bracket assembly | 44590-0K170 · 44590-0K200 · 44590-0K220 |
| 47311 | No. 1 front brake pipe | 47311-KK020 · 47311-KK050 |
| 47311A | Pipe fitting (for front brake pipe) | 90412-10307 · 90412-T0009 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-T0007 |
| 47312E | No. 2 pipe joint (for front brake pipe) | 90412-10308 · 90412-T0010 |
| 47313 | No. 3 front brake pipe | 47313-KK030 · 47313-KK060 |
| 47313A | No. 1 front flexible hose | 90947-T2098 · 90947-T2183 |
| 47313J | No. 2 front flexible hose | 90947-T2098 · 90947-T2183 |
| 47314 | No. 4 front brake pipe | 47314-KK020 |
| 47315 | No. 5 front brake pipe | 47315-KK030 · 47315-KK060 |
| 47316 | No. 6 front brake pipe | 47316-KK020 |
| 47317 | No. 7 front brake pipe | 47321-KK020 · 47321-KK040 |
| 47318 | No. 8 front brake pipe | 47322-KK031 · 47322-KK040 · 47322-KK061 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10058 |
| 47318E | Gasket (for rear flex hose) | 47389-50021 |
| 47318F | Right rear flexible hose | 90947-T2115 |
| 47319 | No. 9 front brake pipe | 47323-KK051 · 47323-KK080 · 47323-KK101 |
| 47319F | Left rear flexible hose | 90947-T2116 |
| 47321B | Flexible hose (for rear brake pipe) | 90947-T2111 · 90947-T2184 |
| 47324 | No. 4 rear brake pipe | 47324-KK021 · 47324-KK060 |
| 47325 | No. 5 rear brake pipe | 47325-KK041 · 47325-KK090 |
| 47327 | No. 7 rear brake pipe | 47327-KK120 · 47327-KK130 · 47327-KK260 |
| 47328 | No. 8 rear brake pipe | 47328-KK080 · 47328-KK090 · 47328-KK260 |
| 47341B | No. 1 right front wheel cylinder brake pipe | 47341-0K080 · 47341-0K090 |
| 47343A | No. 1 left front wheel cylinder brake pipe | 47343-0K080 · 47343-0K090 |
| 47351 | Right front flex hose bracket | 47351-KK010 |
| 47352 | Left front flex hose bracket | 47352-KK010 |
| 47353A | No. 2 right front flexible hose bracket | 47353-KK010 · 47353-KK020 |
| 47354A | No. 2 Left Front Flexible Hose Bracket | 47354-KK010 · 47354-KK020 |
| 47355A | No. 5 Flexible Hose Bracket | 47355-KK010 · 47355-KK020 |
| 47356 | No. 6 Flexible Hose Bracket | 47356-KK010 |
| 47371A | No. 1 brake pipe clamp | 90461-T0007 |
| 47371B | No. 6 brake pipe clamp | 90949-T1032 |
| 47371C | No. 7 brake pipe clamp | 90949-T1033 |
| 47371D | No. 8 brake pipe clamp | 90949-T1006 |
| 47371E | No. 9 brake pipe clamp | 90461-T0001 |
| 47372 | No. 2 brake pipe clamp | 90949-T1003 · 90949-T1028 |
| 47373A | Pipe clamp bracket | 90949-T2003 |
| 47373B | No. 3 brake pipe clamp | 90949-T1016 · 90949-T1030 |
| 47374B | No. 4 brake pipe clamp | 90949-T1027 · 90949-T1032 |
| 47375 | No. 5 brake pipe clamp | 90949-T1028 · 90949-T1031 |
| 47383 | Connector bracket | 47383-71010 |
