Toyota HILUX Parking Brake & Cable — Figure 4601

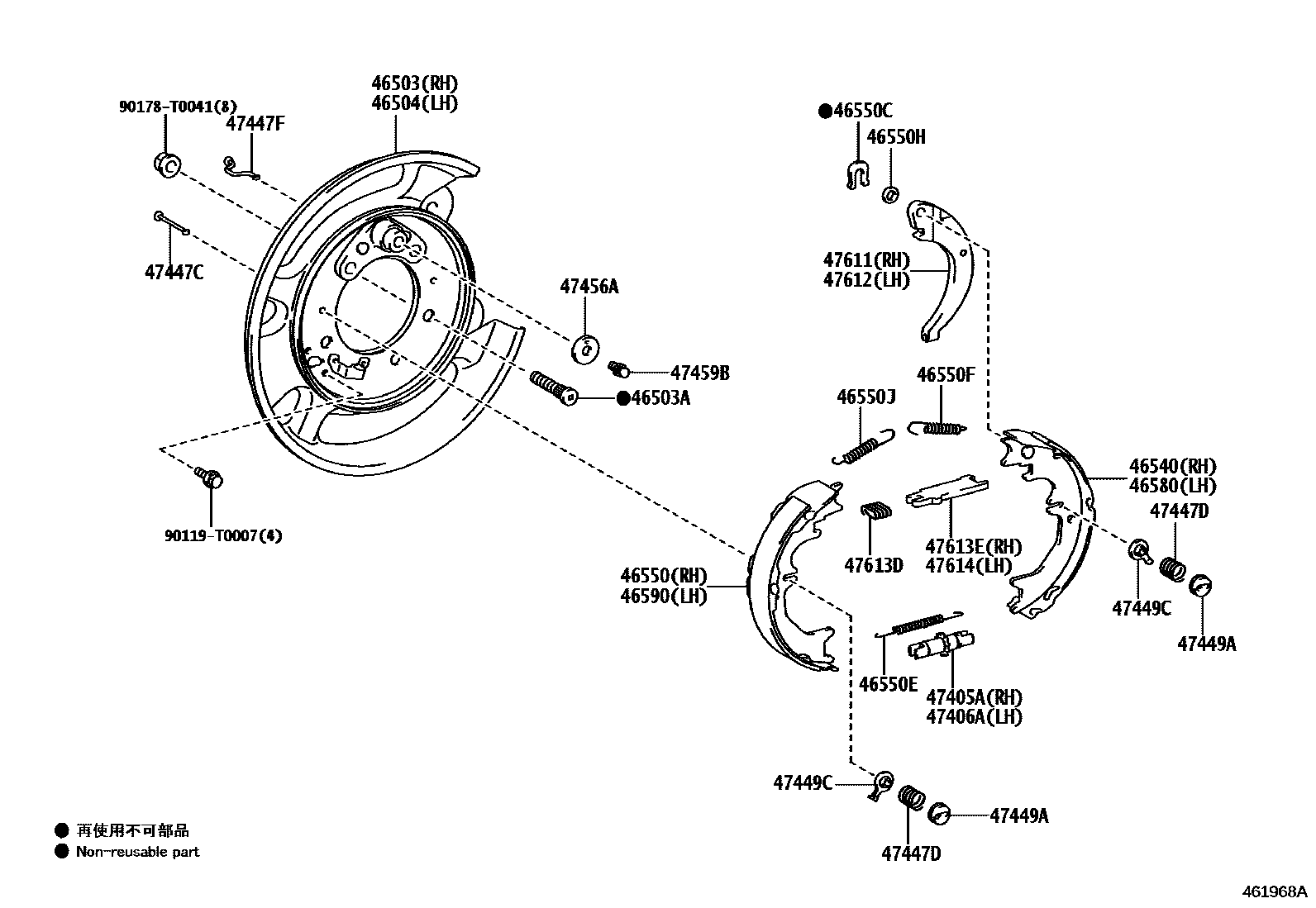

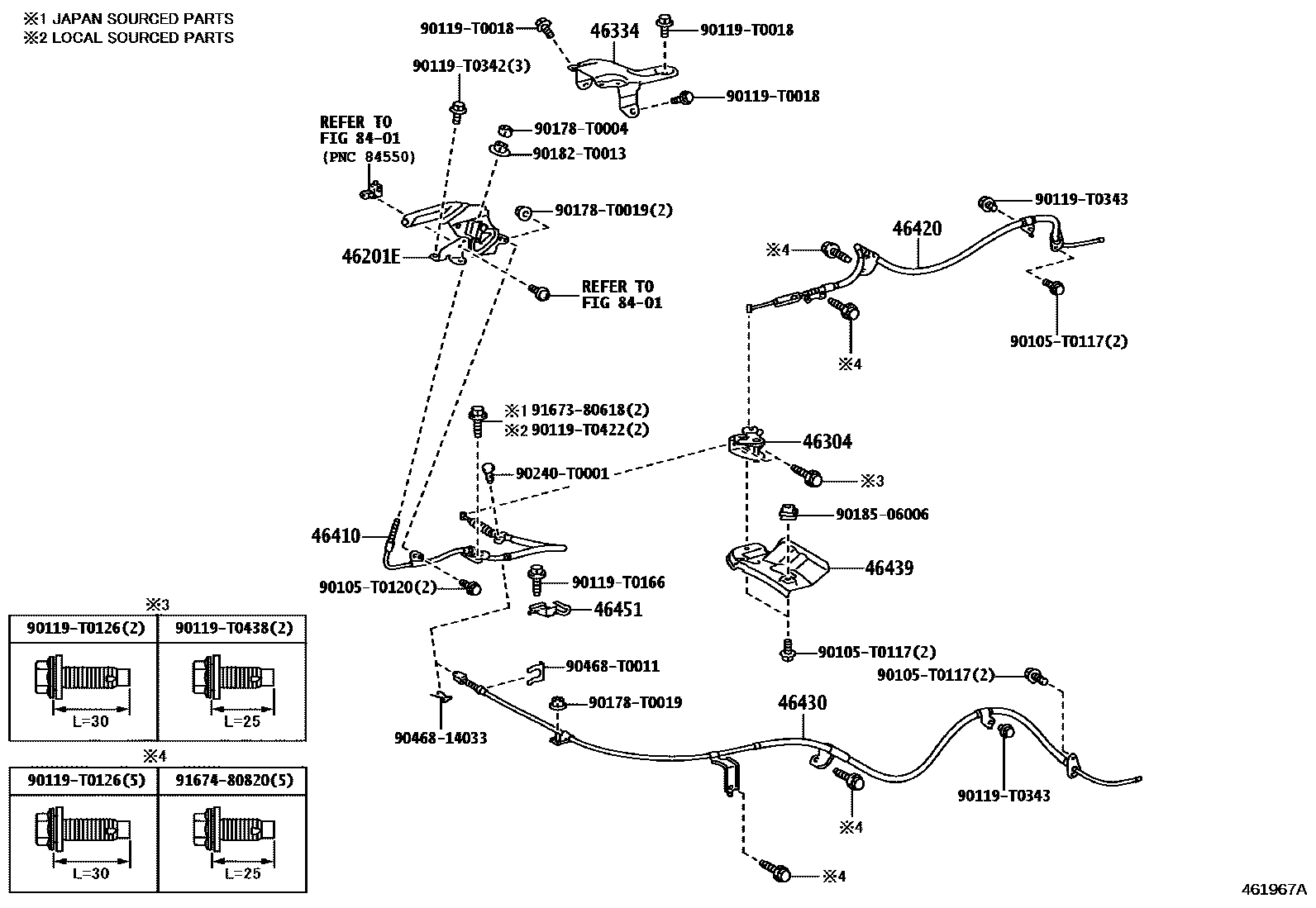

Toyota HILUX EPC diagram 4601, Parking Brake & Cable, with 2 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 46304 | Parking brake balancer sub-assembly | 46304-0K050 · 46304-0K090 |
| 46334 | Intermediate lever protector | 46334-0K020 · 46334-KK010 |
| 46410 | Parking brake cable assembly No. 1 | 46410-0K120 |
| 46420 | Parking brake No. 2 cable assembly | 46420-0K290 · 46420-0K310 · 46420-0K370 |
| 46430 | Parking brake No. 3 cable assembly | 46430-0K120 · 46430-0K230 · 46430-0K280 |
| 46439 | Parking brake cable insulation pad | 46439-0K060 · 46439-0K090 |
| 46451 | cable bracket | 46451-0K040 |
| 46503 | Right parking brake pad sub-assembly | 46503-0K011 |
| 46503A | Bolt (for parking brake pad to rear axle housing) | 90114-T0012 |
| 46504 | Left parking brake pad sub-assembly | 46504-0K011 |
| 46540 | No. 1 right or middle parking brake shoe assembly | 46550-0K010 |
| 46550 | No. 2 right or middle parking brake shoe assembly | 46540-0K010 |
| 46550C | C-shaped washer (for parking brake shoe) | 90213-07018 |
| 46550E | No. 2 tension spring (used for parking brake shoe return) | 90016-AY130 · 90506-12061 |
| 46550F | Tension spring (for front parking brake shoe return) | 90016-AY129 · 90507-20016 |
| 46550H | Spacer (for parking brake shoe) | 90564-09002 · 90564-09003 · 90564-09184 · 90564-09185 · 90564-09186 |
| 46550J | Tension spring (for rear parking brake shoe return) | 90016-AY128 · 90507-23014 |
| 46580 | No. 1 left parking brake shoe assembly | 46590-0K010 |
| 46590 | No. 2 left parking brake shoe assembly | 46540-0K010 |
| 47405A | Right brake shoe adjustment screw assembly (for parking brake) | 46605-0K012 |
| 47406A | Left brake shoe adjustment screw assembly (for parking brake) | 46606-0K012 |
| 47447C | Brake shoe limit spring pin (for parking brake) | 46556-0K012 |
| 47447D | Compression spring (for parking brake shoe limit) | 90016-AY017 · 90501-16053 |
| 47447F | No. 2 brake shoe limit spring pin (for parking brake) | 46559-0K012 |
| 47449A | No. 1 brake shoe limit spring seat (for parking brake) | 46557-0K012 |
| 47449C | No. 2 brake shoe limit spring seat (for parking brake) | 46519-0K012 |
| 47456A | Brake shoe guide (for parking brake) | 46553-0K012 |
| 47459B | Brake shoe guide fixing bolt (for parking brake) | 47459-30010 |
| 47611 | Right parking brake shoe lever | 47612-60020 |
| 47612 | Left parking brake shoe lever | 47611-60020 |
| 47613D | Compression spring (for parking brake shoe push rod) | 90016-AY018 · 90504-14002 |
| 47613E | Right parking brake shoe push rod | 46612-0K012 |
| 47614 | Left parking brake shoe push rod | 46612-0K012 |
