Toyota HILUX Steering Wheel — Figure 4504

Toyota HILUX EPC diagram 4504, Steering Wheel, with 1 images and 4 PNC and OE references.

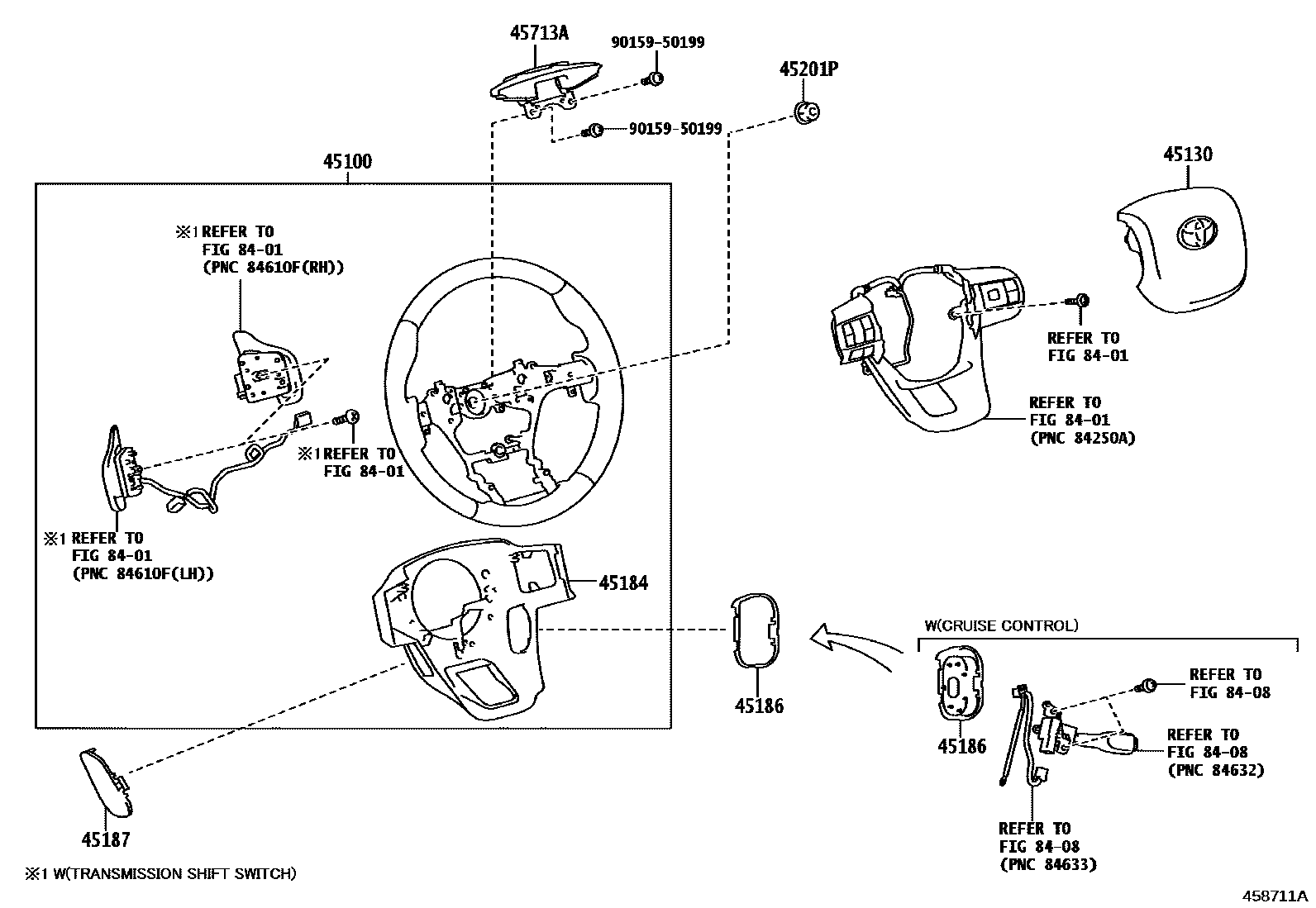

Toyota HILUX Steering Wheel EPC diagram — 458711A
Steering Wheel — 458711A (202308 – 999999)

PNC and OE references

PNCPart nameOE numbers
45100Steering wheel assembly45100-0KR60
45184Steering wheel boss lower cover45184-0K220
45201PSteering wheel fixing nut90179-12071
45713Asteering damper45713-0K030
