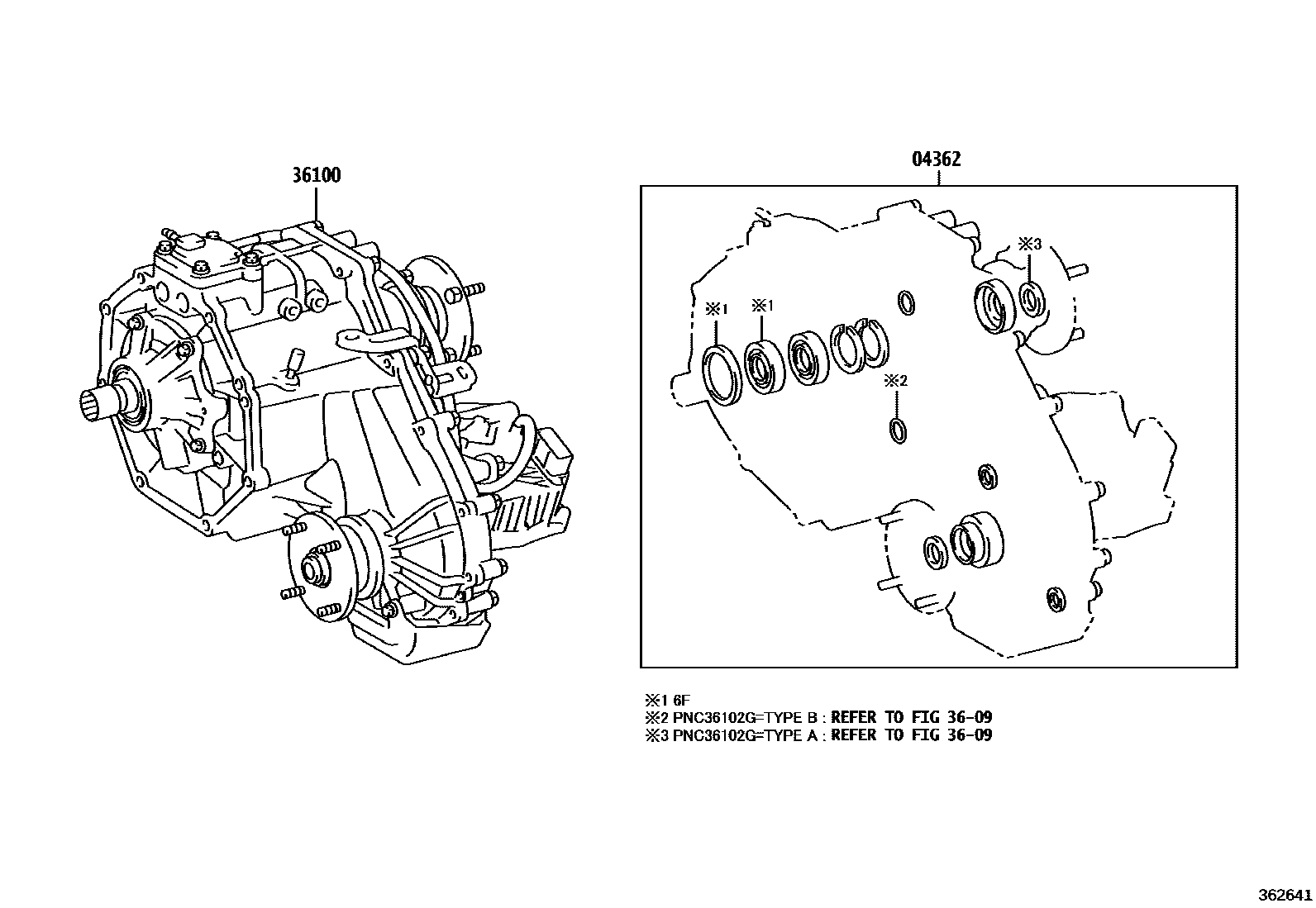

Toyota HILUX Transfer Assembly & Gasket Kit — Figure 3608
Toyota HILUX EPC diagram 3608, Transfer Assembly & Gasket Kit, with 1 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04362 | Transfer case overhaul gasket assembly | 04362-0K020 · 04362-0K030 · 04362-71170 · 04362-71180 |
| 36100 | Transfer case assembly | 36100-0K420 · 36100-0K460 · 36100-0K470 · 36100-0K471 · 36100-0K480 · 36100-71420 · 36100-71460 |
