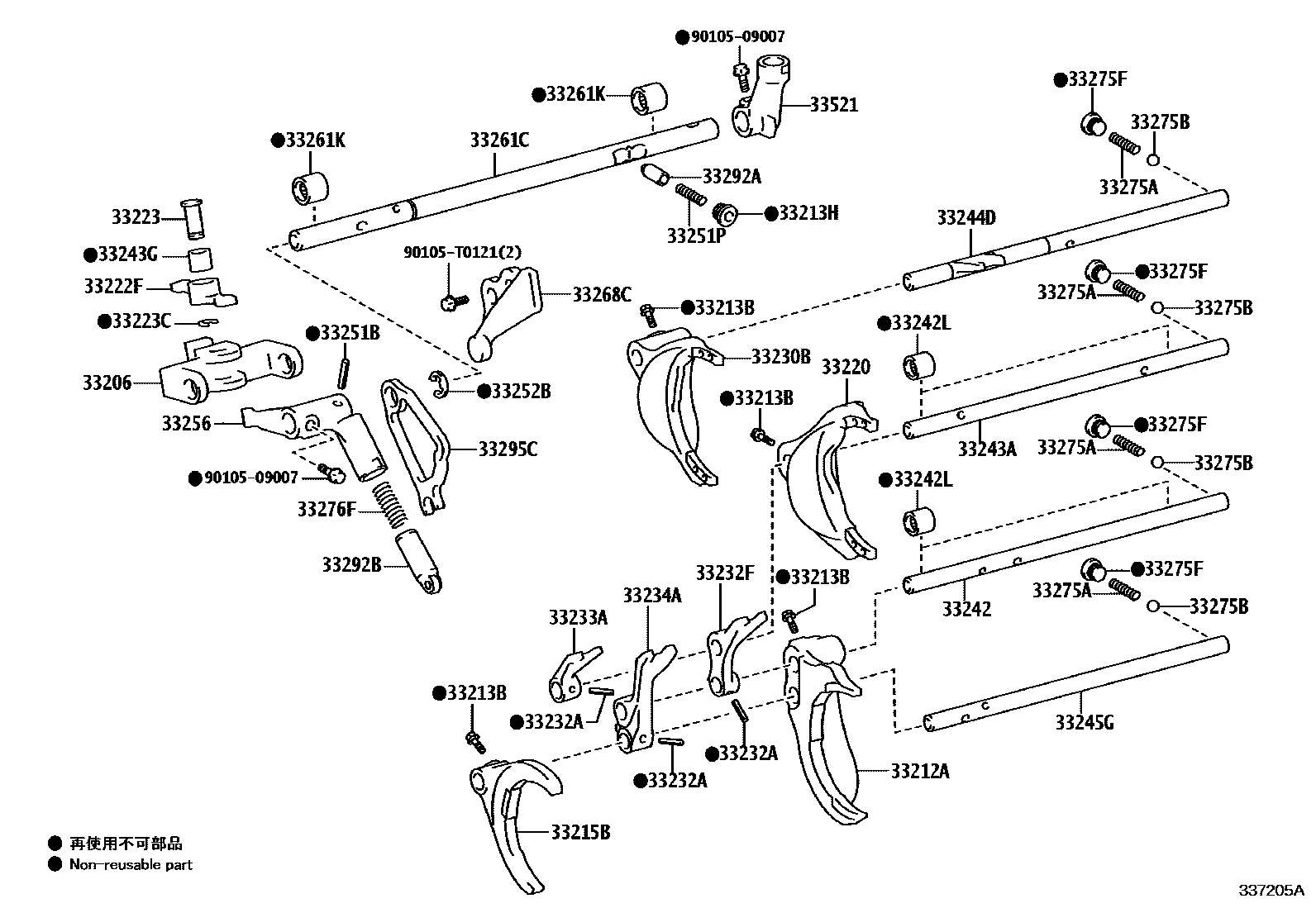

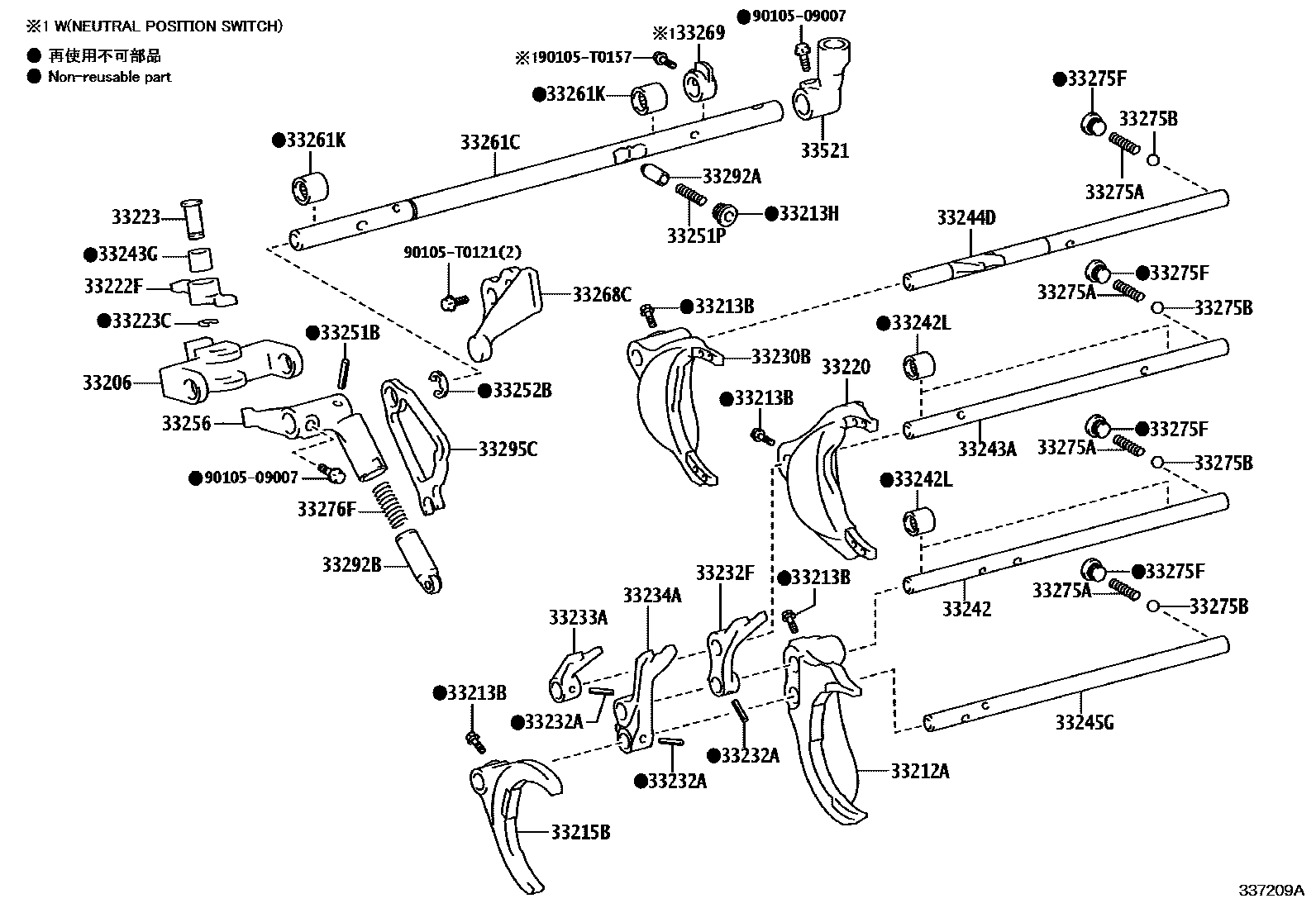

Toyota HILUX 换档拨叉和换档杆轴(MTM) — Figure 3307
Toyota HILUX EPC diagram 3307, 换档拨叉和换档杆轴(MTM), with 2 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33206 | Shift interlock plate sub-assembly | 33206-0K010 |
| 33212A | No. 1 shift fork | 33212-0K040 |
| 33213B | Bolt (for securing shift fork) | 90105-T0157 |
| 33213H | No. 2 headed straight thread plug | 90341-16013 · 90341-T0016 |
| 33215B | No. 4 shift fork | 33215-0K010 |
| 33220 | No. 2 shift fork assembly | 33220-0K010 |
| 33222F | shift arm | 33222-0K010 |
| 33223 | shift arm pivot | 33223-0K030 |
| 33223C | Shaft snap ring (for shift arm pivot) | 90520-14003 · 90520-T0238 |
| 33230B | No. 3 shift fork assembly | 33230-0K010 |
| 33232A | Slotted spring pin (for securing shift guide block) | 90254-05019 · 90254-T0006 |
| 33232F | No. 1 transmission guide block | 33232-0K012 · 33232-0K022 |
| 33233A | No. 2 speed change guide block | 33233-0K011 · 33233-0K021 |
| 33234A | No. 3 speed change guide block | 33235-0K011 · 33235-0K021 |
| 33242 | No. 1 shift fork shaft | 33242-0K083 · 33242-0K092 |
| 33242L | Bearings (for shift fork shaft) | 90369-T0010 |
| 33243A | No. 2 shift fork shaft | 33243-0K051 · 33243-0K061 |
| 33243G | Bearings (for shift fork shaft) | 90364-16010 · 90364-T0042 |
| 33244D | No. 3 shift fork shaft | 33244-0K090 |
| 33245G | No. 4 shift fork shaft | 33245-0K052 · 33245-0K061 |
| 33251B | Slotted spring pin (for inner shift lever) | 90254-05016 · 90254-T0004 |
| 33251P | Spring (for shift lever) | 90501-T0040 |
| 33252B | E-ring (for inner shift lever) | 90523-T0004 |
| 33256 | Internal gear selector | 33256-0K010 |
| 33261C | shift lever shaft | 33261-0K041 · 33261-0K060 · 33261-0K081 |
| 33261K | Needle roller bearing (for gear selector shaft) | 90364-T0044 · 90364-T0058 |
| 33268C | BUTOIR, PLAQUE INTERVERROUILLAGE LEVIER VITESSES | 33268-0K010 · 33268-0K030 |
| 33269 | Shift interlock plate cover | 33269-71010 |
| 33275A | Compression spring (for the lower side of the shift lock steel ball) | 90501-T0039 |
| 33275B | Gear shift lock steel ball | 90360-10003 · 90360-T0008 · 90360-T0013 |
| 33275F | Screw plug (for gear shift lock steel ball) | 90341-12014 · 90341-T0014 |
| 33276F | No. 1 compression spring (for gear selector return) | 90501-T0041 |
| 33292A | Locking steel ball pin | 33292-0K011 |
| 33292B | No. 2 locking steel ball pin | 33292-0K020 · 33292-71010 |
| 33295C | shift lever cam | 33295-0K010 |
| 33521 | shift lever housing | 33521-0K160 · 33521-0K170 · 33521-0K180 |
