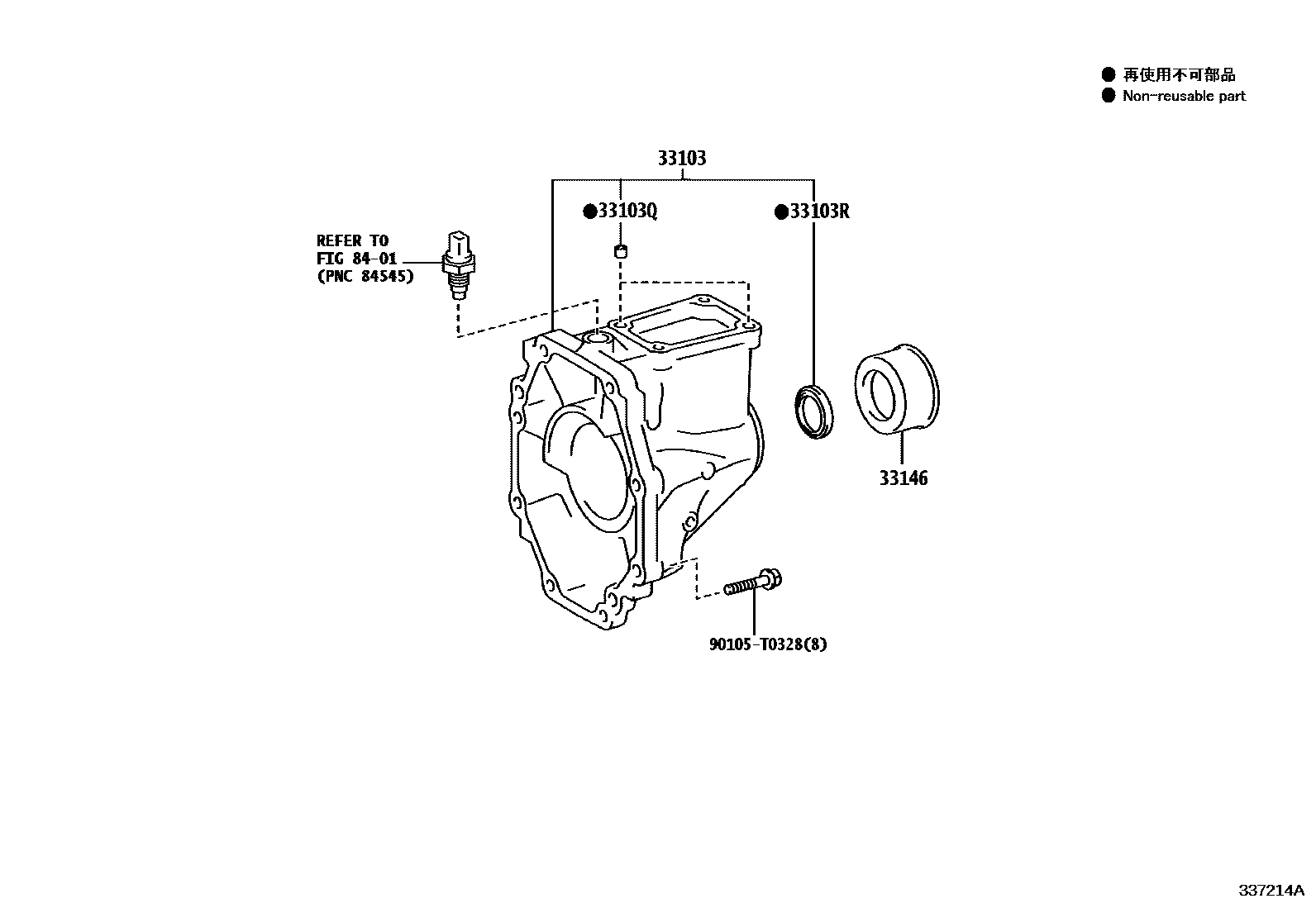

Toyota HILUX Extended shell (MTM) — Figure 3303
Toyota HILUX EPC diagram 3303, Extended shell (MTM), with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33103 | Extended shell sub-assembly (MTM) | 33103-0K110 |
| 33103Q | Ring pin (for extension housing) | 90253-11021 |
| 33103R | Oil seal (for manual transmission extension housing) | 90311-T0069 |
| 33146 | Extension housing dust cover (MTM) | 33146-0K020 · 33146-35020 |
