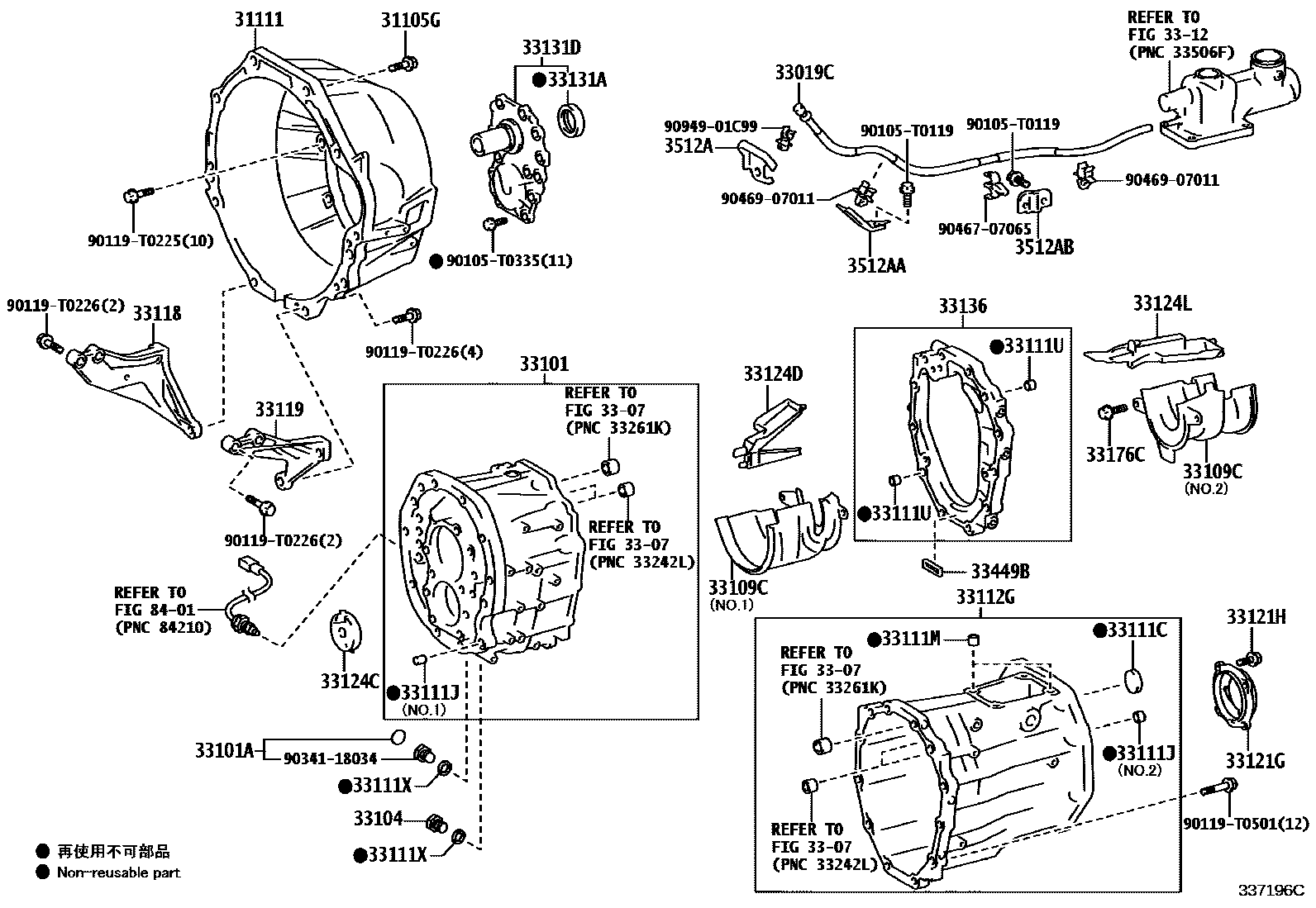

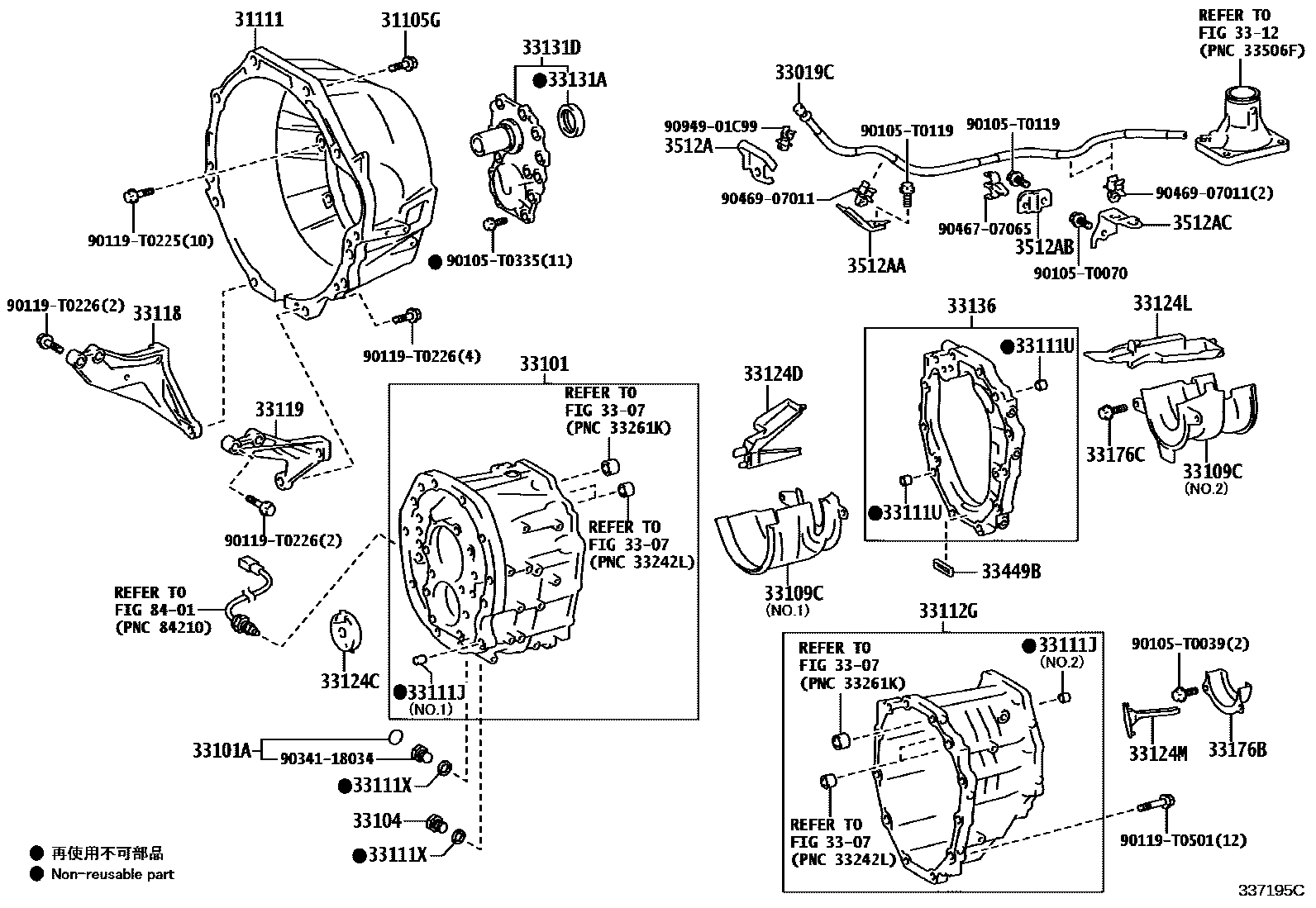

Toyota HILUX 离合器壳和变速器壳(MTM) — Figure 3302
Toyota HILUX EPC diagram 3302, 离合器壳和变速器壳(MTM), with 2 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31105G | Bolts (for securing transaxle housing and engine) | 90119-T0227 |
| 31111 | clutch housing | 31111-0K140 · 31111-0K150 |
| 33019C | Transmission breather sub-assembly | 33019-0K090 · 33019-0K100 |
| 33101 | Manual transmission housing sub-assembly | 33101-0K071 · 33101-0K081 · 33101-0K091 |
| 33101A | Screw plug (for manual transmission oil filler port) | 90341-18033 |
| 33104 | Drain plug sub-assembly (MTM) | 90341-18006 · 90341-18034 |
| 33109C | Manual transmission oil separator sub-assembly | 33109-0K010 · 33109-0K020 · 33109-0K030 · 33109-0K040 |
| 33111C | Screw plug (for gearbox) | 90331-30004 |
| 33111J | Direct sales (for manual transmission) | 90250-11003 · 90250-12002 · 90250-T0020 · 90250-T0029 |
| 33111M | Ring pin (for gearbox) | 90253-11021 |
| 33111U | Ring pin (for manual transmission) | 90253-15001 · 90253-T0011 |
| 33111X | Gearbox plug gasket | 90430-T0021 · 90430-T0025 |
| 33112G | Rear derailleur housing | 33102-0K010 · 33102-0K020 · 33102-0K030 · 33102-0K040 · 33102-0K050 |
| 33118 | Right reinforcement plate (MTM) | 33118-0K030 · 33118-0K040 |
| 33119 | Left reinforcement plate (MTM) | 33119-0K020 · 33119-0K040 |
| 33121G | manual gearbox cover | 33121-0K010 · 33121-0K030 |
| 33121H | Bolt with washer (for gearbox cover) | 90119-T0500 |
| 33124C | No. 1 oil collecting pipe (MTM) | 33124-0K070 |
| 33124D | No. 2 oil collecting pipe (MTM) | 33124-04010 · 33124-0K080 |
| 33124L | No. 3 oil collecting pipe (MTM) | 33124-0K090 |
| 33124M | No. 4 oil collecting pipe (MTM) | 33124-0K100 |
| 33131A | Oil seal (for transmission front bearing retainer) | 90311-T0066 |
| 33131D | front bearing retainer | 33108-0K010 · 33108-0K020 |
| 33136 | Transmission intermediate plate | 33106-0K020 · 33106-0K030 |
| 33176B | Transmission oil separator (MTM) | 33176-0K050 |
| 33176C | Bolt (for transmission oil separator) | 90105-T0334 |
| 33449B | derailleur magnet | 33449-60010 |
| 3512A | SUPPORT, RENIFLARD TRANSMISSION, NO.1 | 3512A-0K010 · 3512A-0K210 |
| 3512AA | SUPPORT, RENIFLARD TRANSMISSION, NO.2 | 3512A-0K030 · 3512A-0K180 |
| 3512AB | SUPPORT, RENIFLARD TRANSMISSION, NO.3 | 3512A-0K050 · 3512A-0K220 |
| 3512AC | SUPPORT, RENIFLARD TRANSMISSION, NO.4 | 3512A-0K170 |
