Toyota HILUX 起动机 — Figure 1904
Toyota HILUX EPC diagram 1904, 起动机, with 3 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

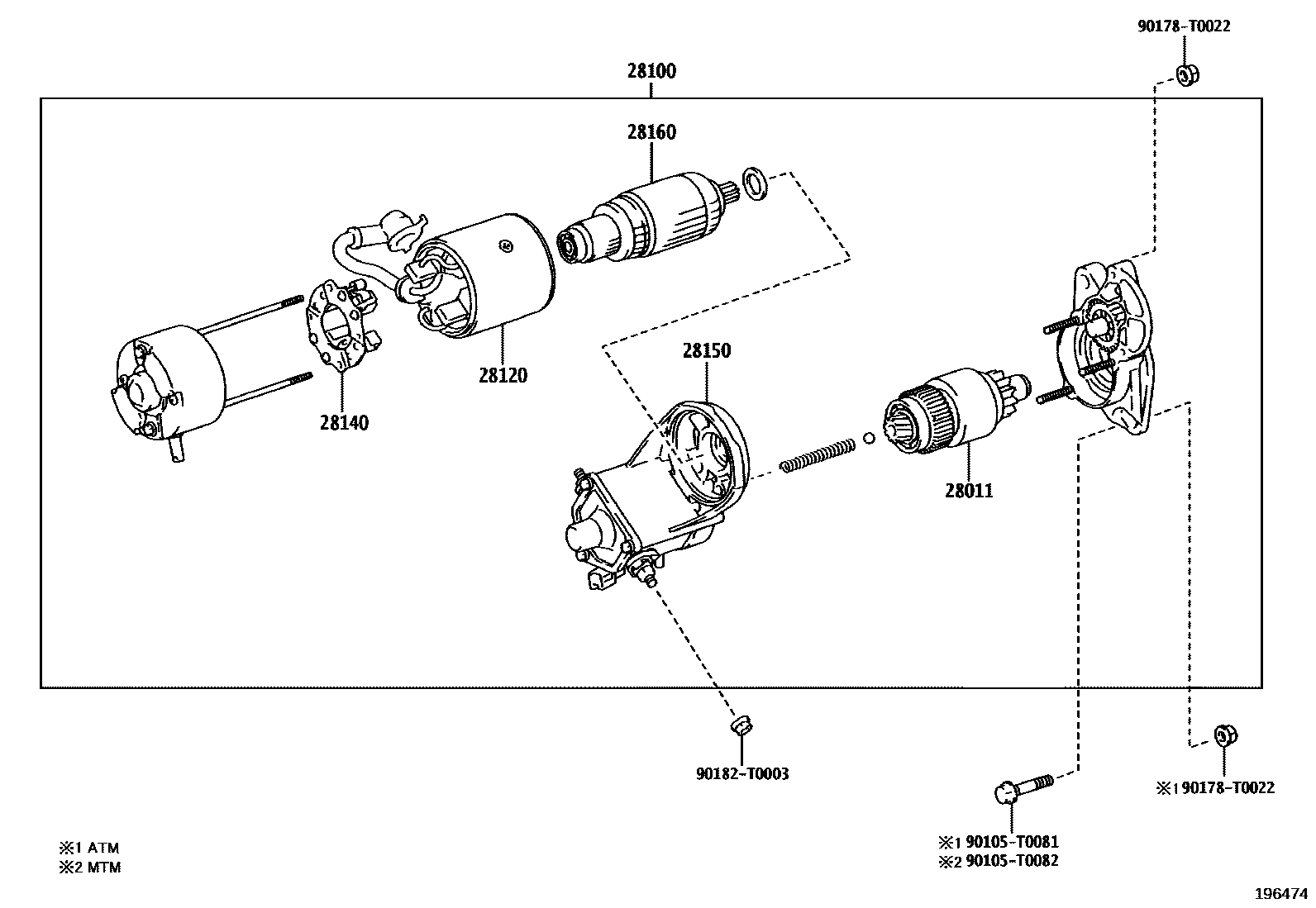

| 28011 | Starter clutch sub-assembly | 28011-30050 |

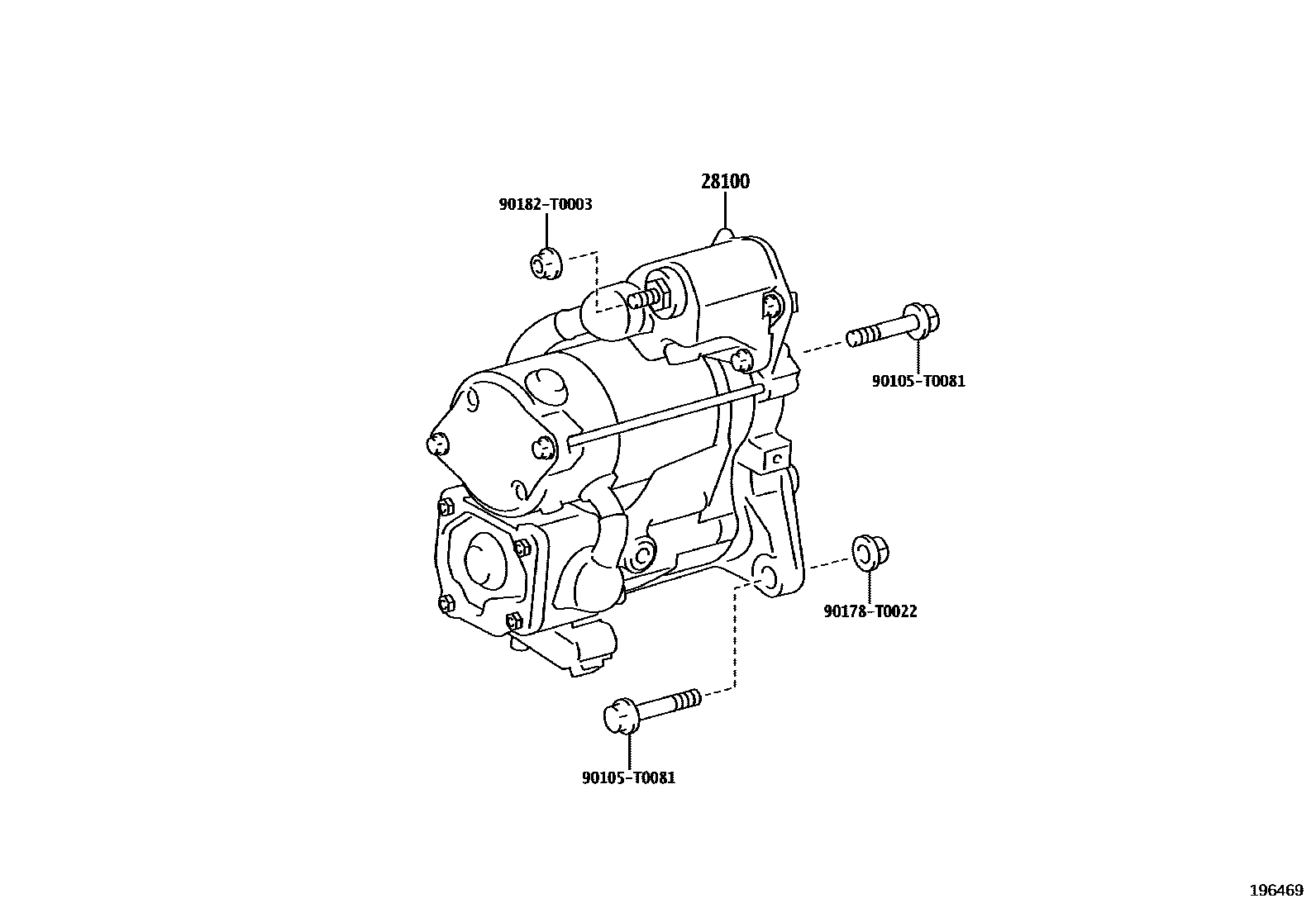

| 28100 | Starter assembly | 28100-0L052 · 28100-30110 |
| 28120 | Starter yoke assembly | 28120-0L050 |
| 28140 | Starter brush holder assembly | 28140-77090 |
| 28150 | Starter electromagnetic switch assembly | 28150-0L050 |
| 28160 | Starter armature assembly | 28160-54140 |

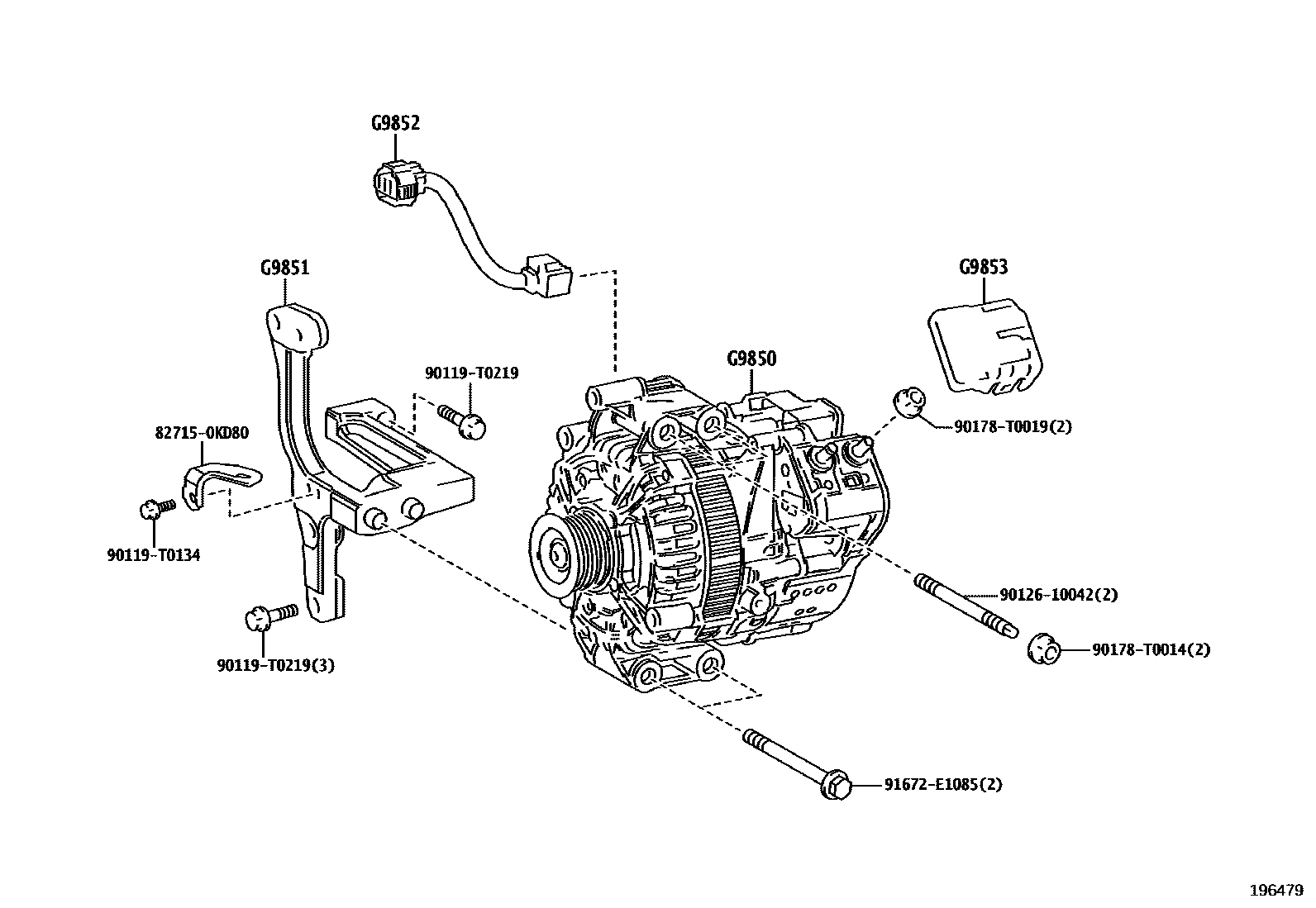

| G9850 | ENS MOTEUR, GENERATEUR DEMARREUR COMMANDE 48V | G9850-0K010 |
| G9851 | SUPPORT, GENERATEUR DEMARREUR COMMANDE 48V | G9851-0K010 |
| G9852 | CABLE, GENERATEUR DEMARREUR COMMANDE 48V | G9852-0K010 |
| G9853 | CACHE, GENERATEUR DEMARREUR COMMANDE 48V | G9853-0K020 |
