Toyota HILUX Exhaust Pipe — Figure 1702

Toyota HILUX EPC diagram 1702, Exhaust Pipe, with 2 images and 8 PNC and OE references.

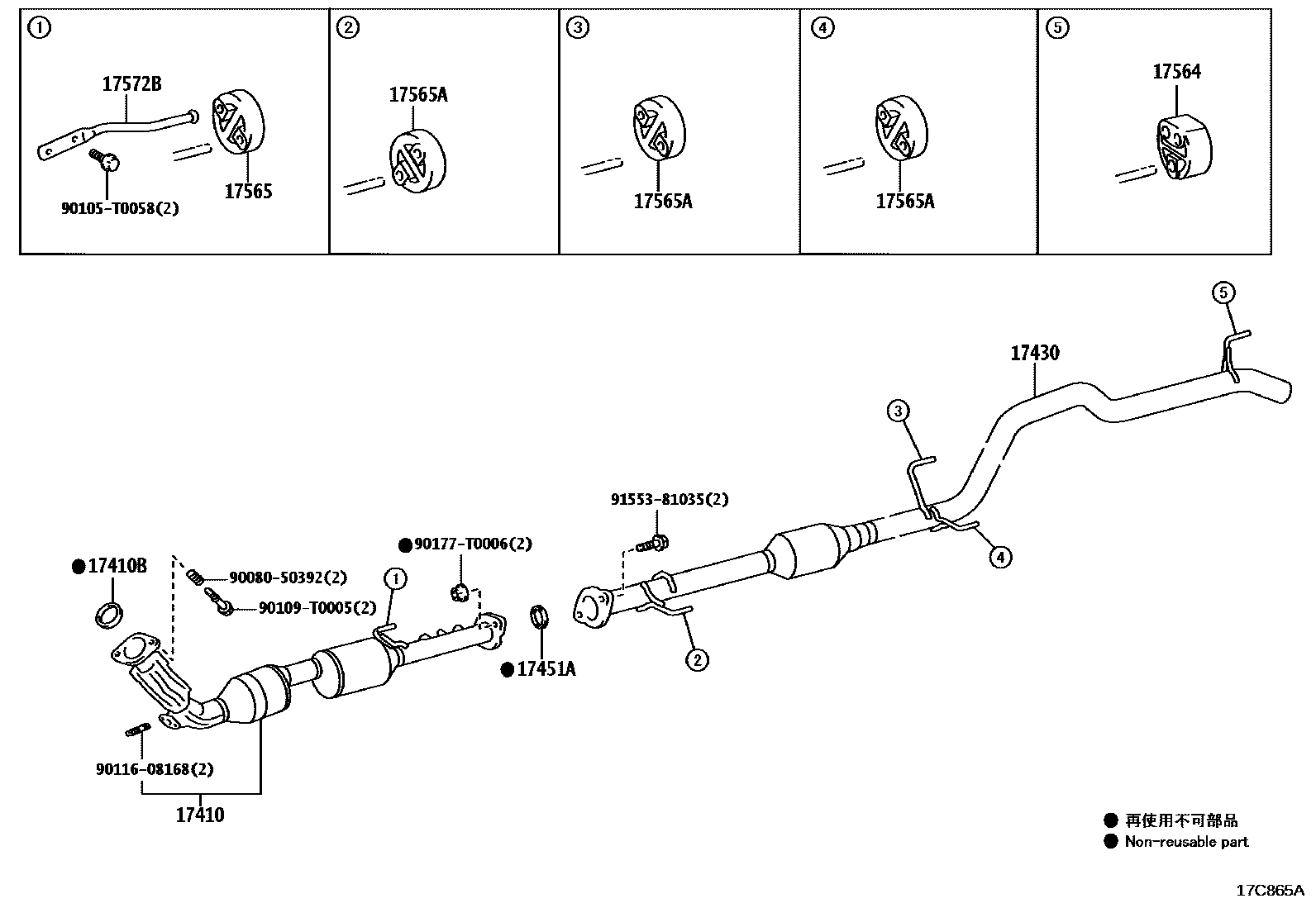

Toyota HILUX Exhaust Pipe EPC diagram — 17C865A
Exhaust Pipe — 17C865A (202308 – 999999)

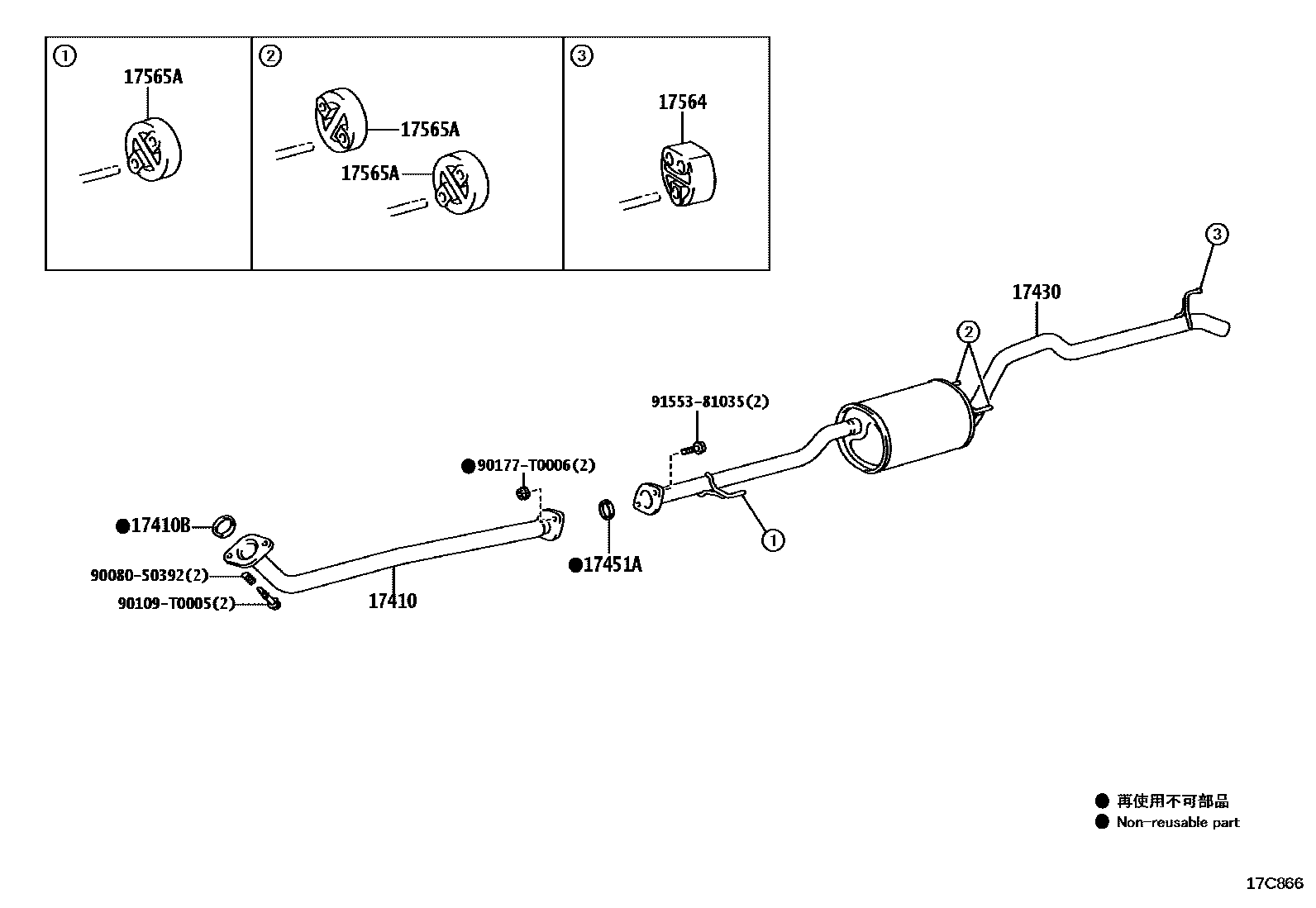

Toyota HILUX Exhaust Pipe EPC diagram — 17C866A
Exhaust Pipe — 17C866A (202308 – 999999)

PNC and OE references

PNCPart nameOE numbers
17410Front exhaust pipe assembly17401-0L210 · 17410-0E041 · 17410-0E051
17410BExhaust pipe gasket17451-0L050
17430Exhaust tailpipe assembly17430-0E040 · 17430-0L101 · 17430-0L130
17451ANo. 2 exhaust pipe gasket90917-06076 · 90917-T6002
17564No. 4 exhaust pipe lifting lug17565-0L100
17565No. 5 exhaust pipe lifting lug17565-0P240
17565ANo. 4 exhaust pipe lifting lug17565-0P240
17572BNo. 2 exhaust pipe bracket17572-0L040
