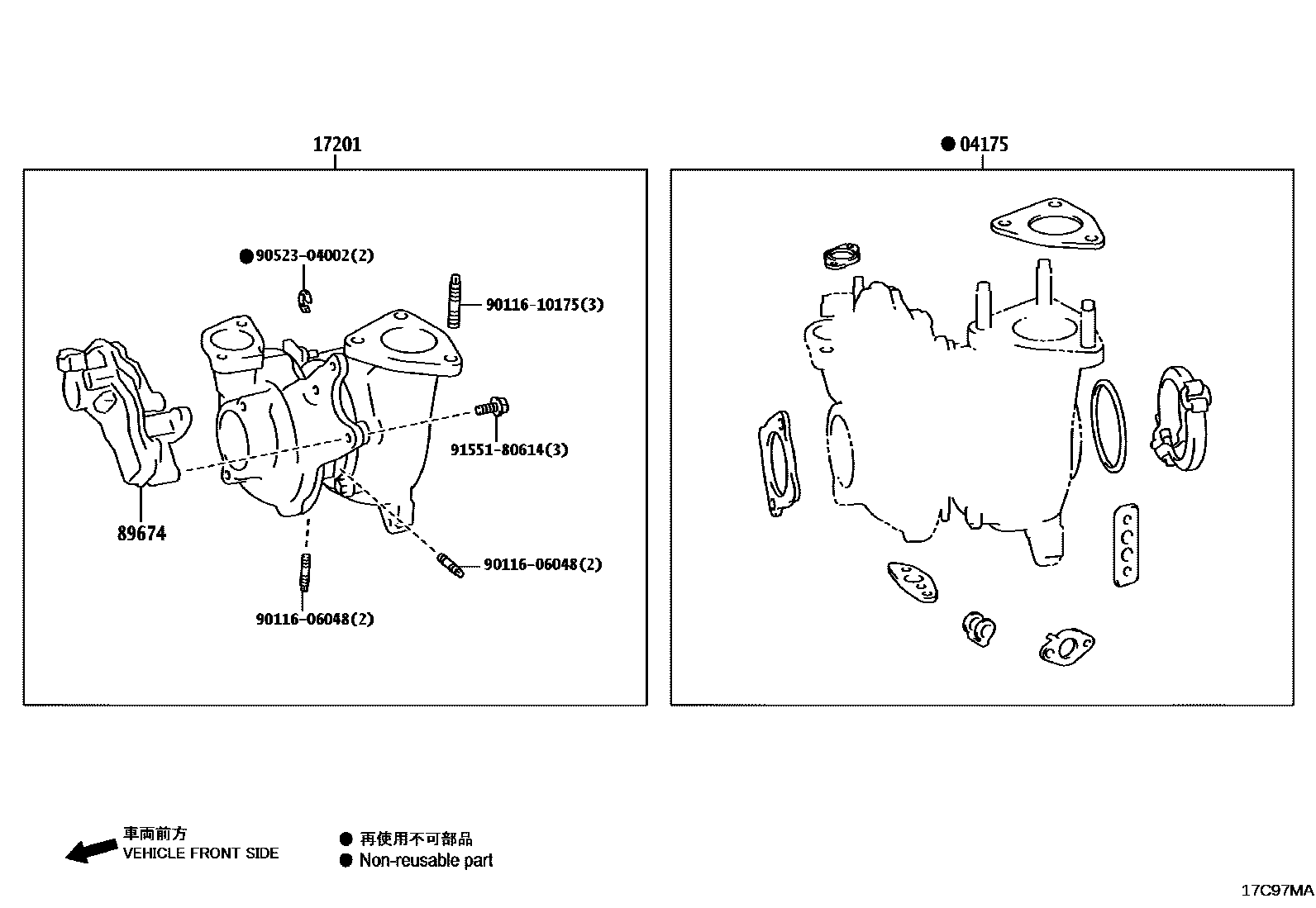

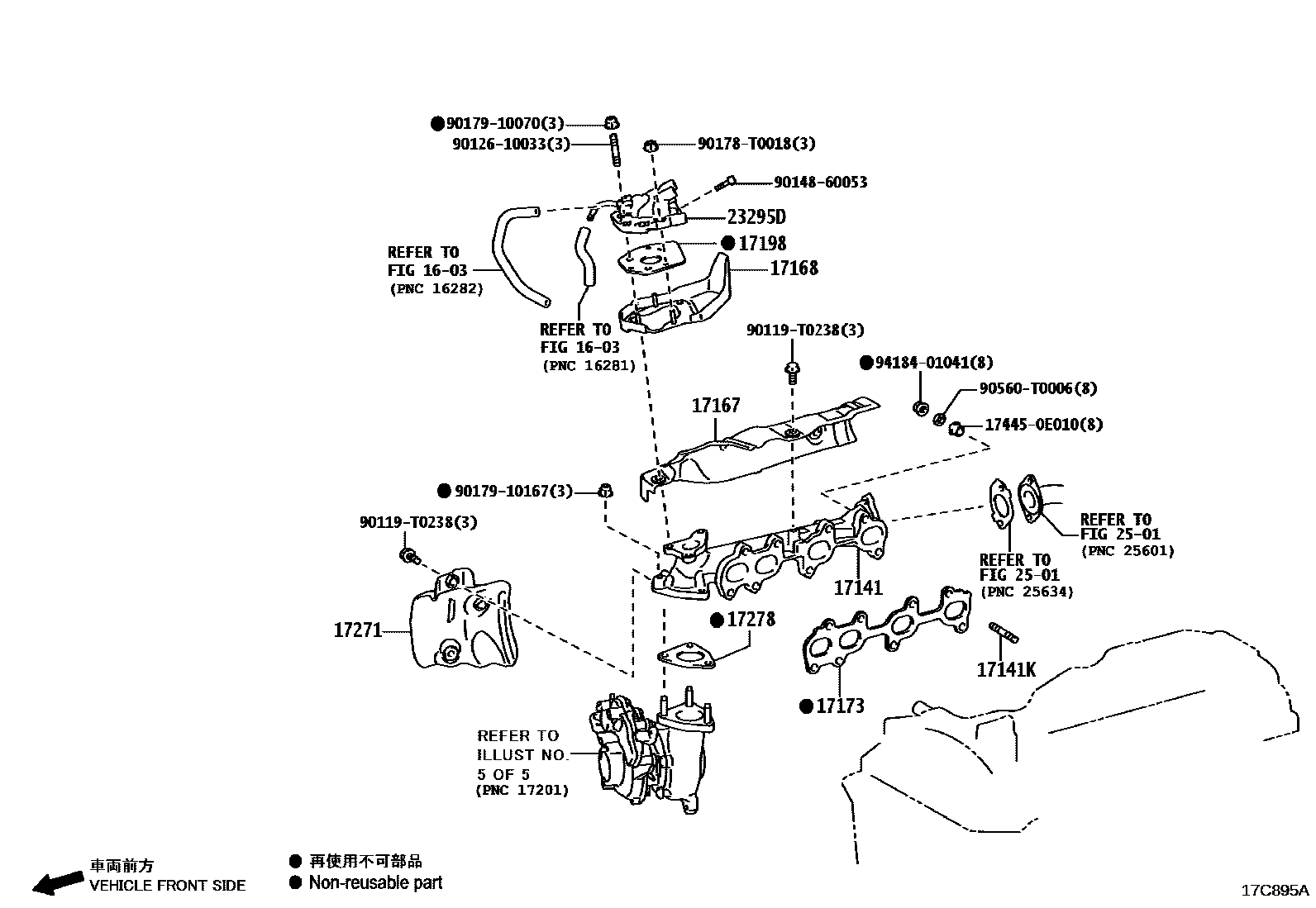

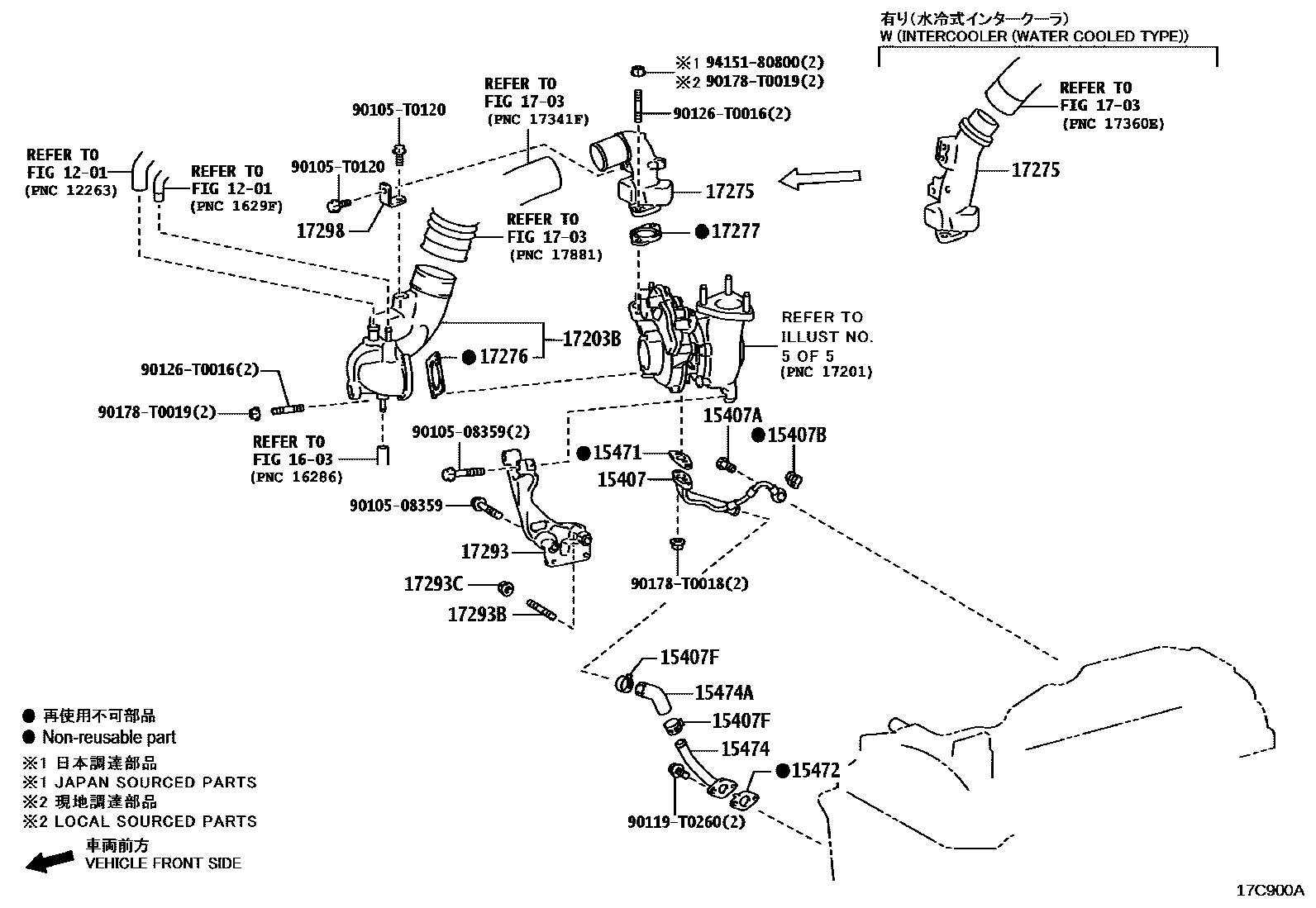

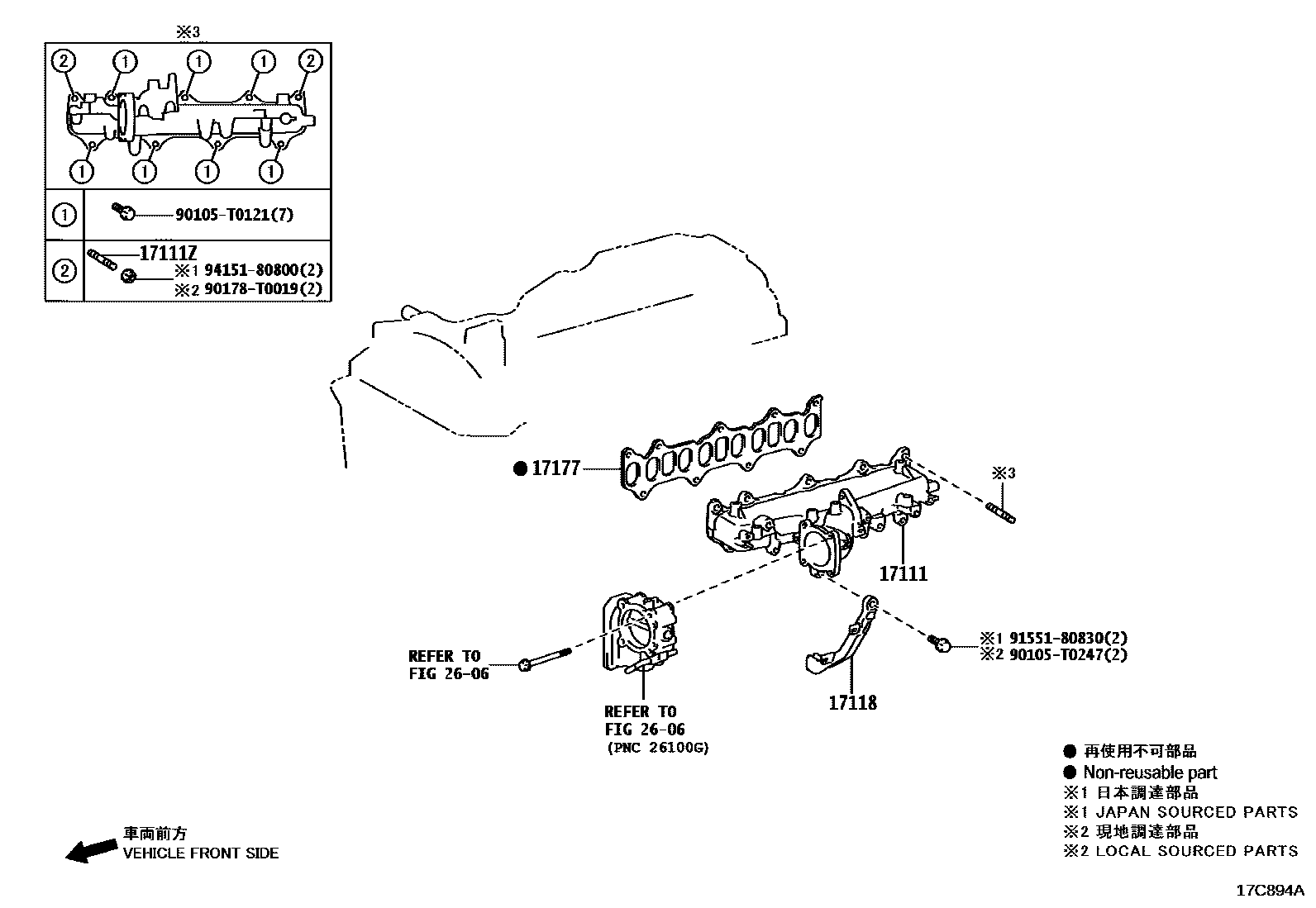

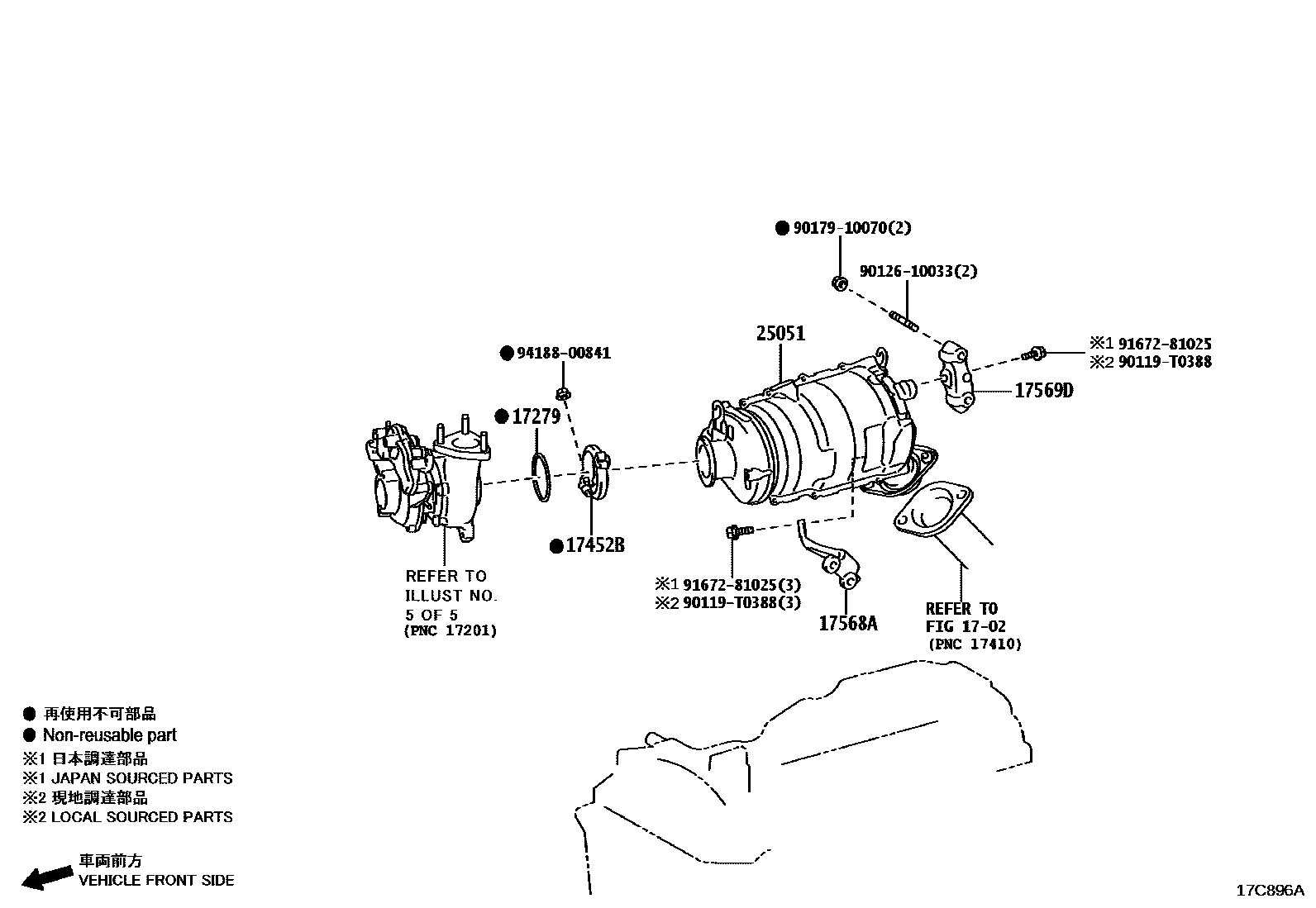

Toyota HILUX Manifold — Figure 1701
Toyota HILUX EPC diagram 1701, Manifold, with 5 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04175 | Turbocharger gasket assembly | 04175-0E050 · 04175-0E060 |
| 15407 | Turbine oil inlet pipe sub-assembly | 15407-0E020 |
| 15407A | Connector bolt (for turbine oil inlet pipe) | 90401-T0004 |
| 15407B | Gasket (for turbine oil inlet pipe) | 90430-T0006 |
| 15407F | Oil hose clamp or clamp | 96137-42501 |
| 15471 | Turbine oil inlet pipe gasket | 15471-0E010 · 15471-0E020 |
| 15472 | No. 1 turbine oil outlet pipe gasket | 15472-0E010 · 15472-0E020 |
| 15474 | Turbine oil outlet pipe | 15474-0E010 · 15474-0E020 |
| 15474A | Turbine oil outlet hose | 15491-0E010 · 15491-0E020 |
| 17111 | Intake Manifold | 17101-0E011 · 17101-0E040 · 17101-11391 |
| 17111Z | Stud bolts (for intake manifold to cylinder head) | 90116-T0011 · 92122-80822 |
| 17118 | Manifold stays | 17118-0E010 · 17118-0E040 |
| 17141 | exhaust manifold | 17141-0E020 · 17141-0E060 |
| 17141K | Stud bolts (for exhaust manifold to cylinder head) | 90126-10034 |
| 17167 | Exhaust manifold No. 1 heat shield | 17167-0E020 |
| 17168 | Exhaust manifold No.2 insulation pad | 17168-0E010 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-08010 · 17173-08020 · 17173-08030 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17177-0E010 · 17177-0E020 |
| 17198 | No. 2 exhaust manifold gasket | 17198-0E010 |
| 17201 | Turbocharger sub-assembly | 17201-11110 · 17201-11120 |
| 17203B | Compressor oil inlet elbow sub-assembly | 17203-0E010 · 17203-0E040 · 17203-0E080 |
| 17271 | No. 1 turbine vibration isolation pad | 17271-0E010 |
| 17275 | Compressor oil outlet elbow | 17275-0E040 · 17275-0E050 · 17275-0E060 |
| 17276 | Compressor oil inlet gasket | 17276-0E010 |
| 17277 | Compressor oil outlet gasket | 17277-0E010 · 17277-0E020 · 17277-0E030 |
| 17278 | Gasket (turbo to exhaust manifold) | 17278-0E011 |
| 17279 | Turbine outlet elbow gasket | 17279-11020 |
| 17293 | Turbocharger stay | 17293-0E040 · 17293-0E050 |
| 17293B | Bolt (for turbocharger stay) | 92122-80855 |
| 17293C | Nut (for turbocharger stay) | 90178-T0019 · 94151-80800 |
| 17298 | Compressor elbow brace | 17298-0E010 · 17298-0E020 |
| 17452B | BRIDE, TUYAU D'ECHAPPEMENT | 17452-0E010 |
| 17568A | ETAI, SUPPORT TUYAU ECHAPPEMENT | 17568-0E010 · 17568-0E030 |
| 17569D | ETAI, SUPPORT TUYAU ECHAPPEMENT, NO.2 | 17569-0E020 · 17569-0E050 |
| 23295D | SUPPORT DE INJECTEUR NO. 1 | 23295-0E030 · 23295-11040 |
| 25051 | Exhaust manifold three-way catalytic converter sub-assembly | 25051-0E140 · 25051-0E150 · 25051-0E200 · 25051-0E210 |
| 89674 | MOTEUR, BUSE VARIABLE TURBOCOMPRESSEUR | 89674-71021 |
