Toyota HILUX Timing Gear Cover & Rear End Plate — Figure 1106

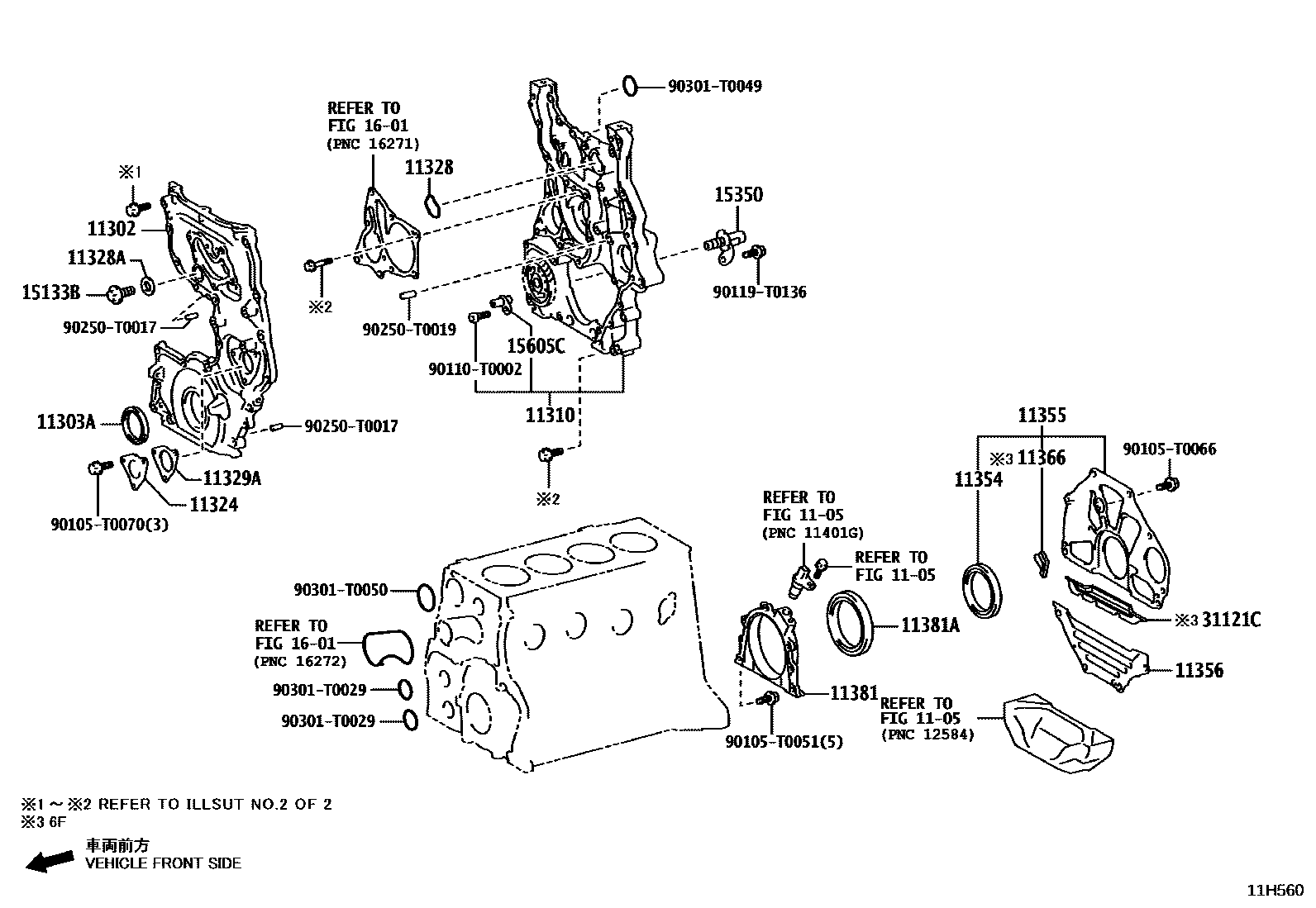

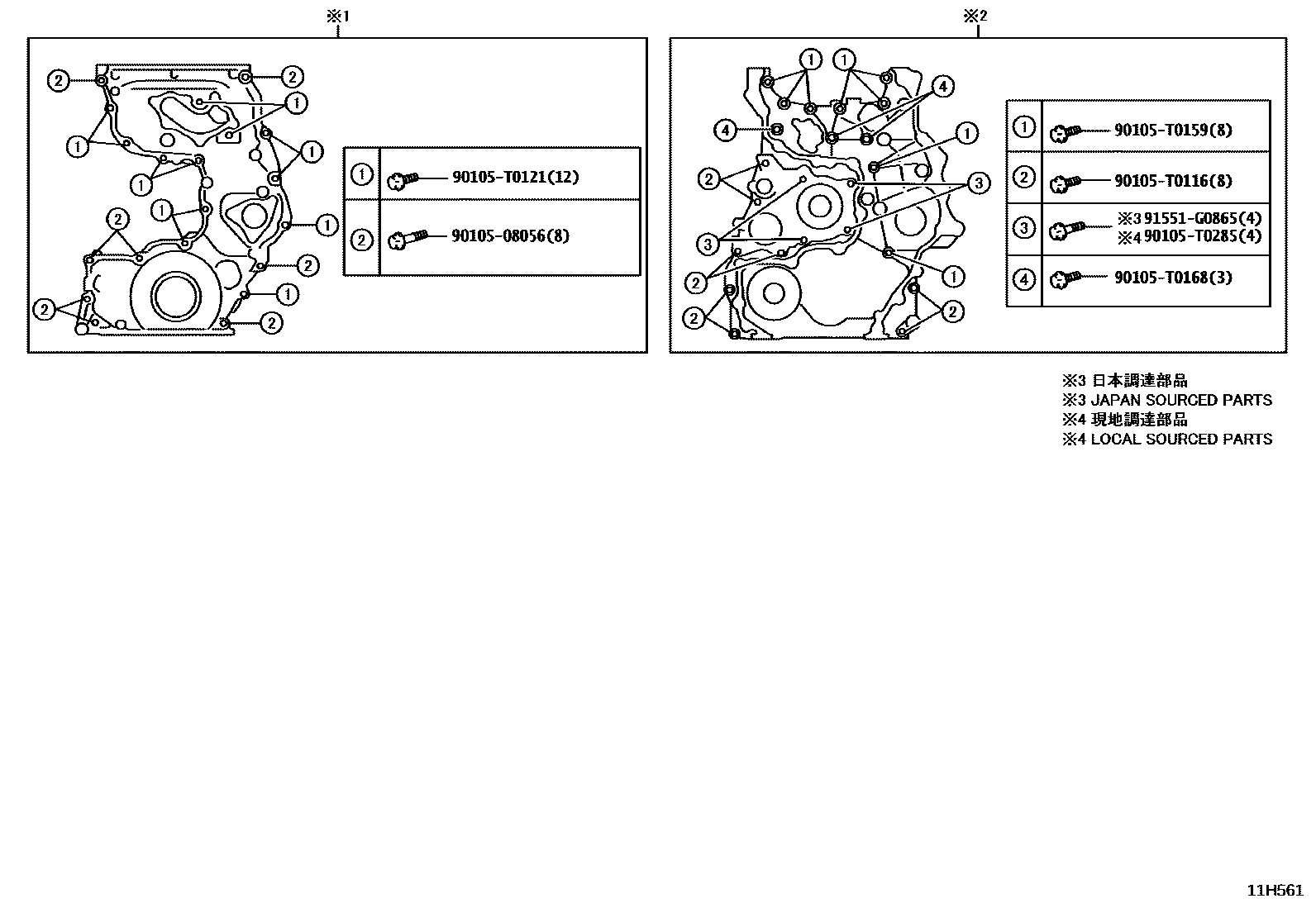

Toyota HILUX EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11302 | TIMING CHAIN OR BELT COVER SUB-ASSY | 11321-0E010 · 11321-0E020 · 11321-0E030 |
| 11303A | Front oil seal (for crankshaft) | 90311-T0054 |
| 11310 | ENSEMBLE COUVERCLE, CHAINE DE DISTRIBUTION | 11310-0E040 · 11310-0E050 |
| 11324 | Timing chain cover | 11324-0E010 · 11324-0E020 |
| 11328 | GASKET, TIMING GEAR OR CHAIN COVER | 11328-0E010 · 11328-0E020 |
| 11328A | No. 1 timing belt cover gasket | 11328-11080 |
| 11329A | No. 2 timing belt or chain cover gasket | 11329-0E010 · 11329-0E020 |
| 11354 | Flywheel housing dust seal | 11354-0L020 · 11354-30010 |
| 11355 | rear end plate | 11355-0E010 · 11355-0E020 · 11355-0E040 · 11355-0E050 |
| 11356 | No. 2 rear end plate | 11356-0L012 · 11356-0L022 |
| 11366 | Flywheel housing bottom cover dust seal | 11366-0E010 |
| 11381 | RETAINER, ENGINE REAR OIL SEAL | 11381-0E010 · 11381-0E040 |
| 11381A | SEAL, ENGINE REAR OIL | 90311-T0046 |
| 15133B | PLUG, OIL PUMP RELIEF VALVE | 15133-38071 |
| 15350 | Oil pressure switch valve assembly | 15350-11010 |
| 15605C | Oil check valve sub-assembly | 15605-30040 |
| 31121C | Clutch housing adapter plate cover | 31121-26030 |
