Toyota HILUX 后视镜 — Figure 8701

Toyota HILUX EPC diagram 8701, 后视镜, with 1 images and 11 PNC and OE references.

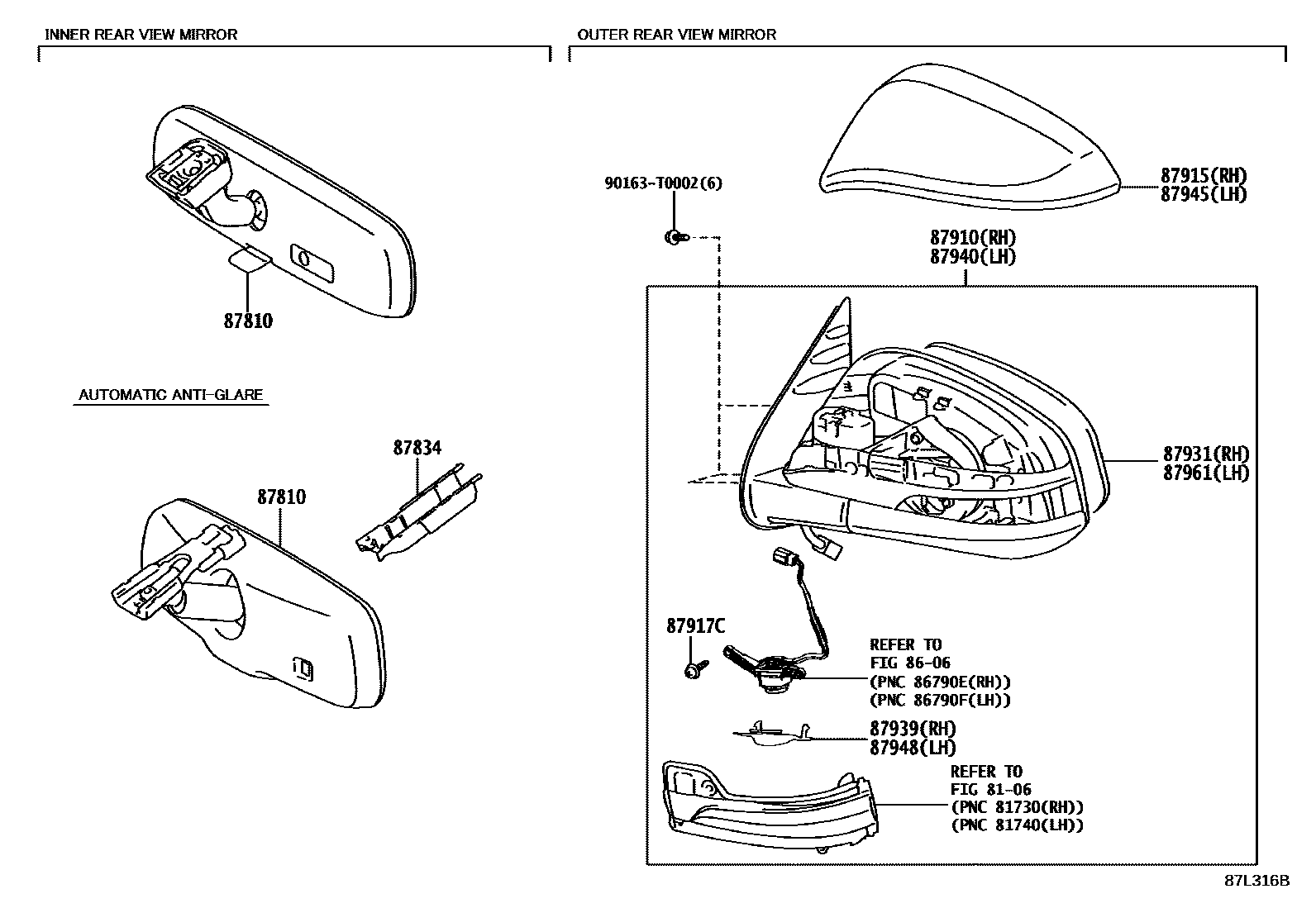

Toyota HILUX 后视镜 EPC diagram — 87L316B
后视镜 — 87L316B (202208 – 999999)

PNC and OE references

PNCPart nameOE numbers
87810Interior rearview mirror assembly87810-06041 · 87810-0WG30
87834Interior rearview mirror stay fixing cover87818-0K010
87910Right exterior rearview mirror assembly87910-0K722 · 87910-0K732 · 87910-0K810 · 87910-0K832 · 87910-0K842 · 87910-0KC41 · 87910-0KG22 · 87910-0KG72 · 87910-0KM00 · 87910-0KM10 · 87910-0KM50 · 87910-0KQ30
87915Right exterior rearview mirror cover87915-0K390 · 87915-0K540 · 87915-0K600 · 87915-0K620 · 87915-0K916 · 87915-0K918
87917CExterior rearview mirror screws87917-0KM00
87931Right exterior rearview mirror87931-0KC60 · 87931-0KC80 · 87931-0KP70
87939Right exterior rearview mirror hole cover87939-0KM00
87940Left exterior rearview mirror assembly87940-0K702 · 87940-0KB01 · 87940-0KE32 · 87940-0KF22 · 87940-0KF32 · 87940-0KF60 · 87940-0KF92 · 87940-0KG42 · 87940-0KM00 · 87940-0KM10 · 87940-0KM50 · 87940-0KQ30
87945Left exterior rearview mirror cap87945-0K390 · 87945-0K540 · 87945-0K600 · 87945-0K620 · 87945-0K916 · 87945-0K918
87948Left exterior rearview mirror hole cover87948-0KM00
87961Left exterior rearview mirror87961-0KB20 · 87961-0KB40 · 87961-0KP70
