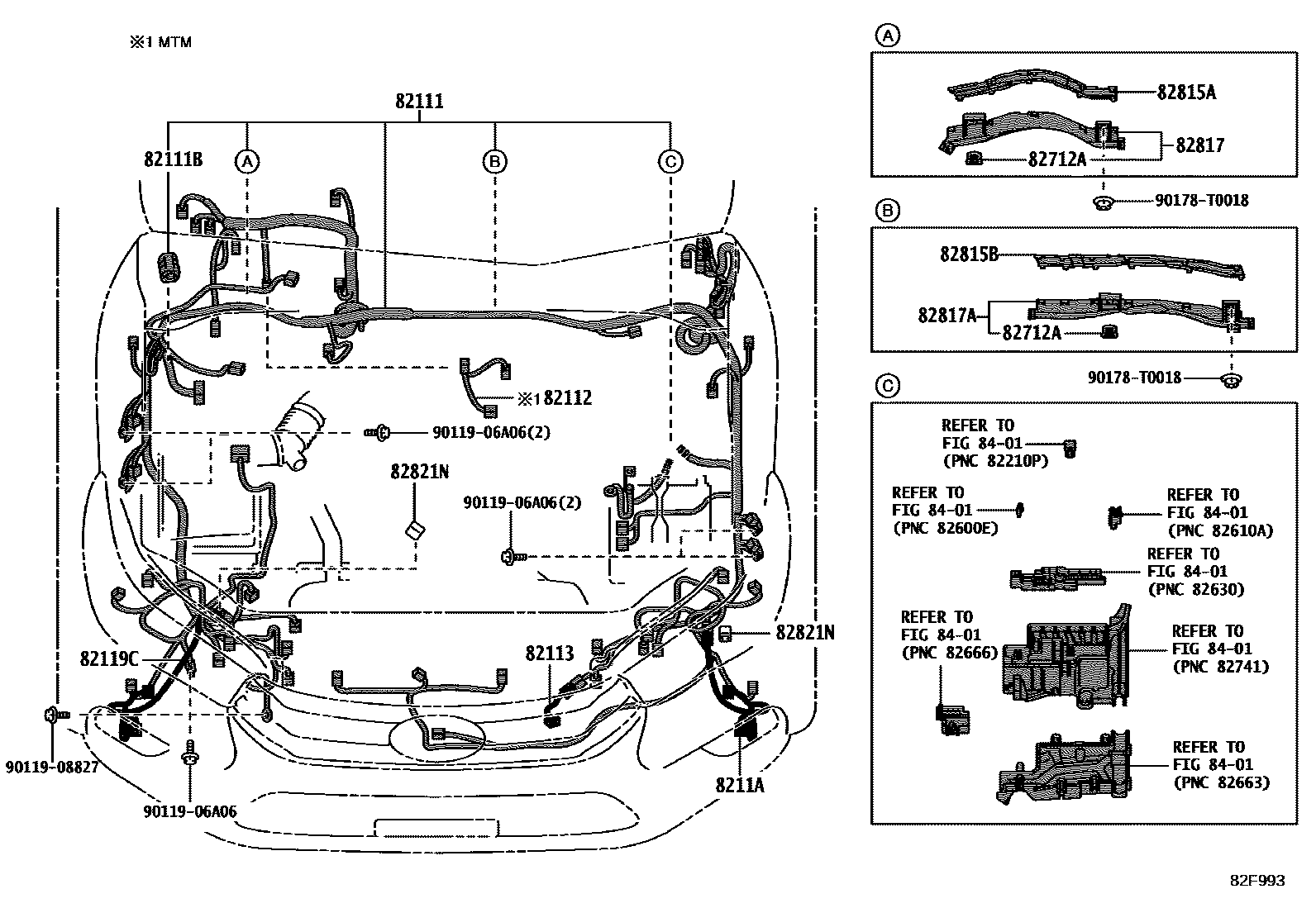

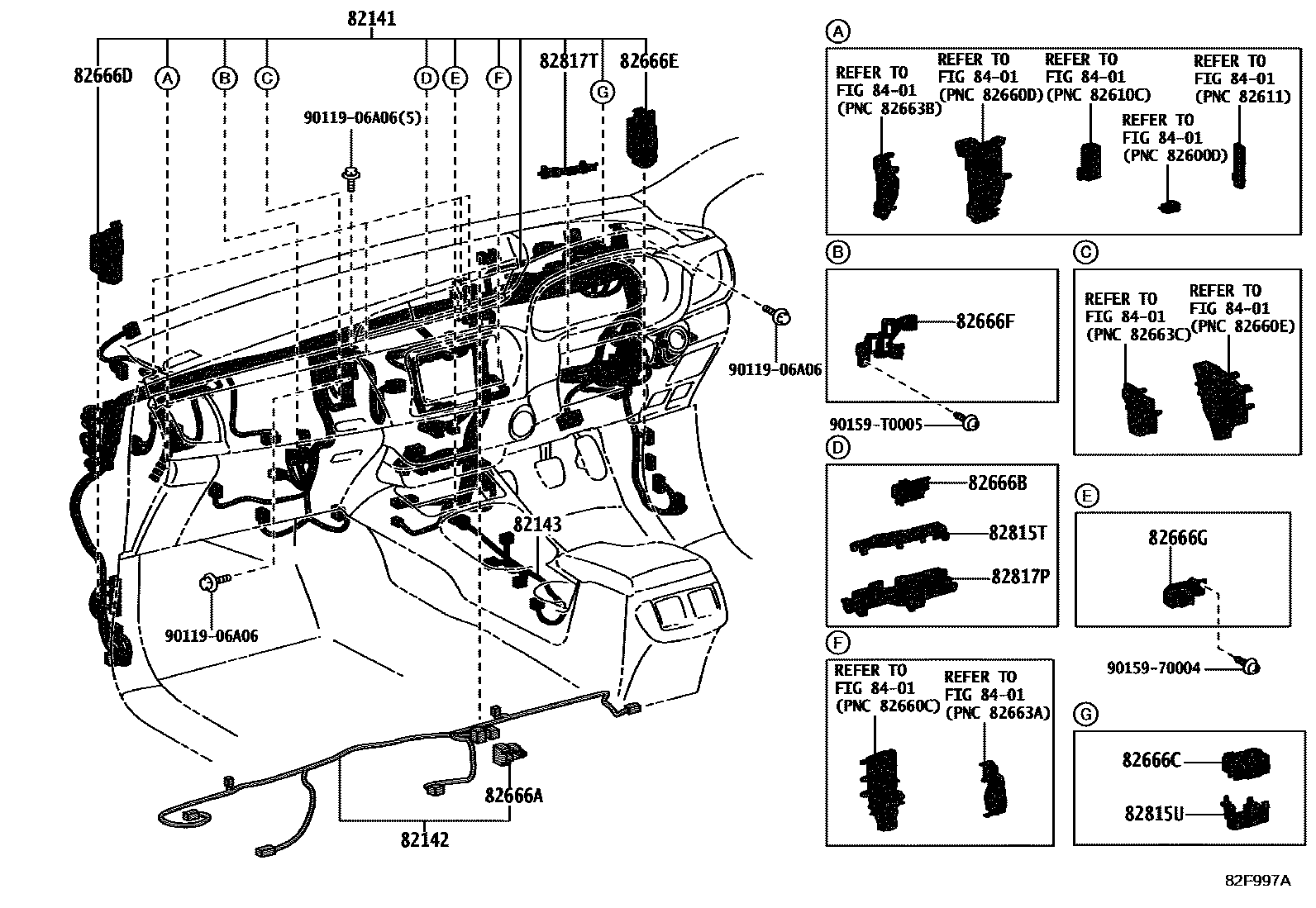

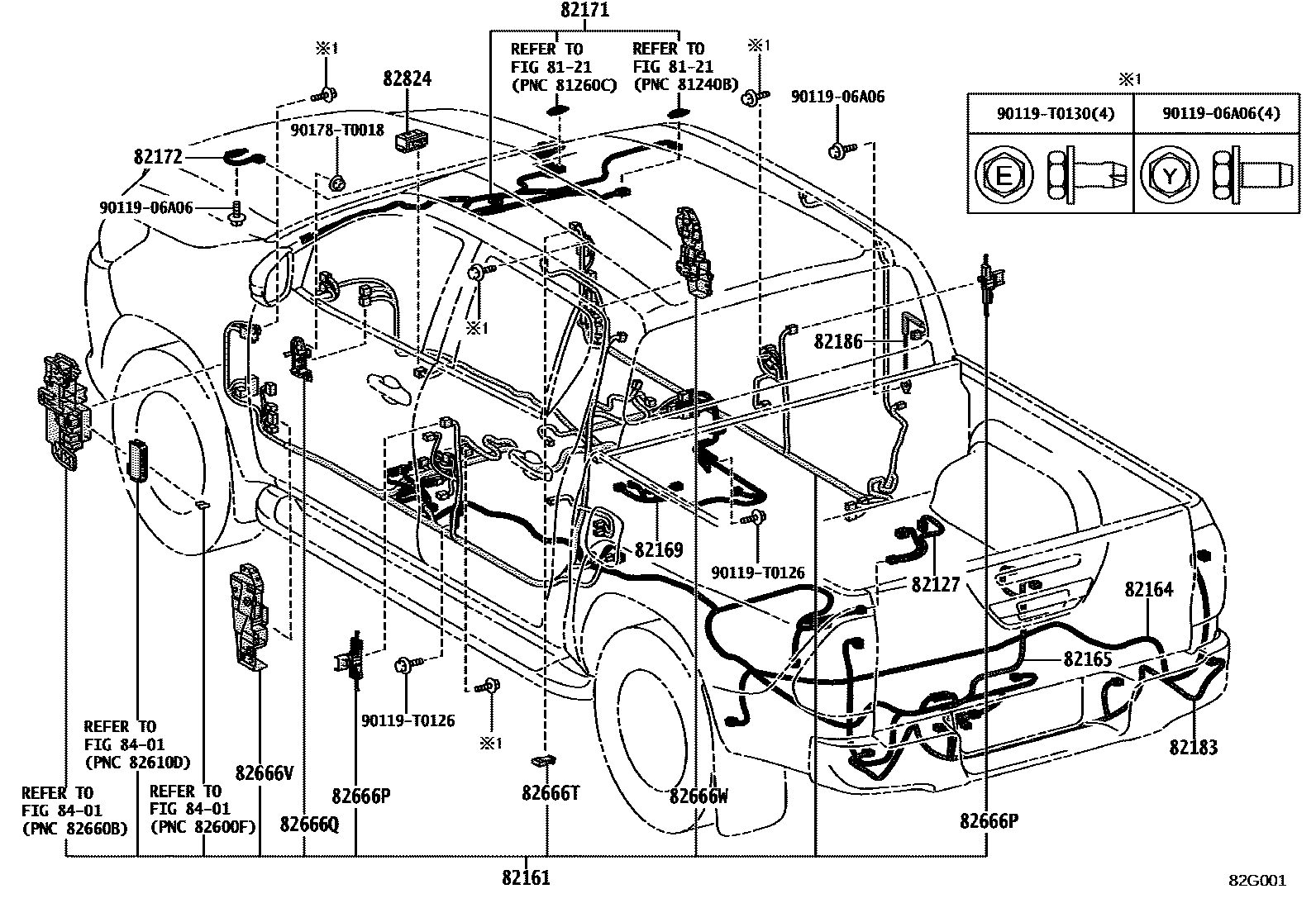

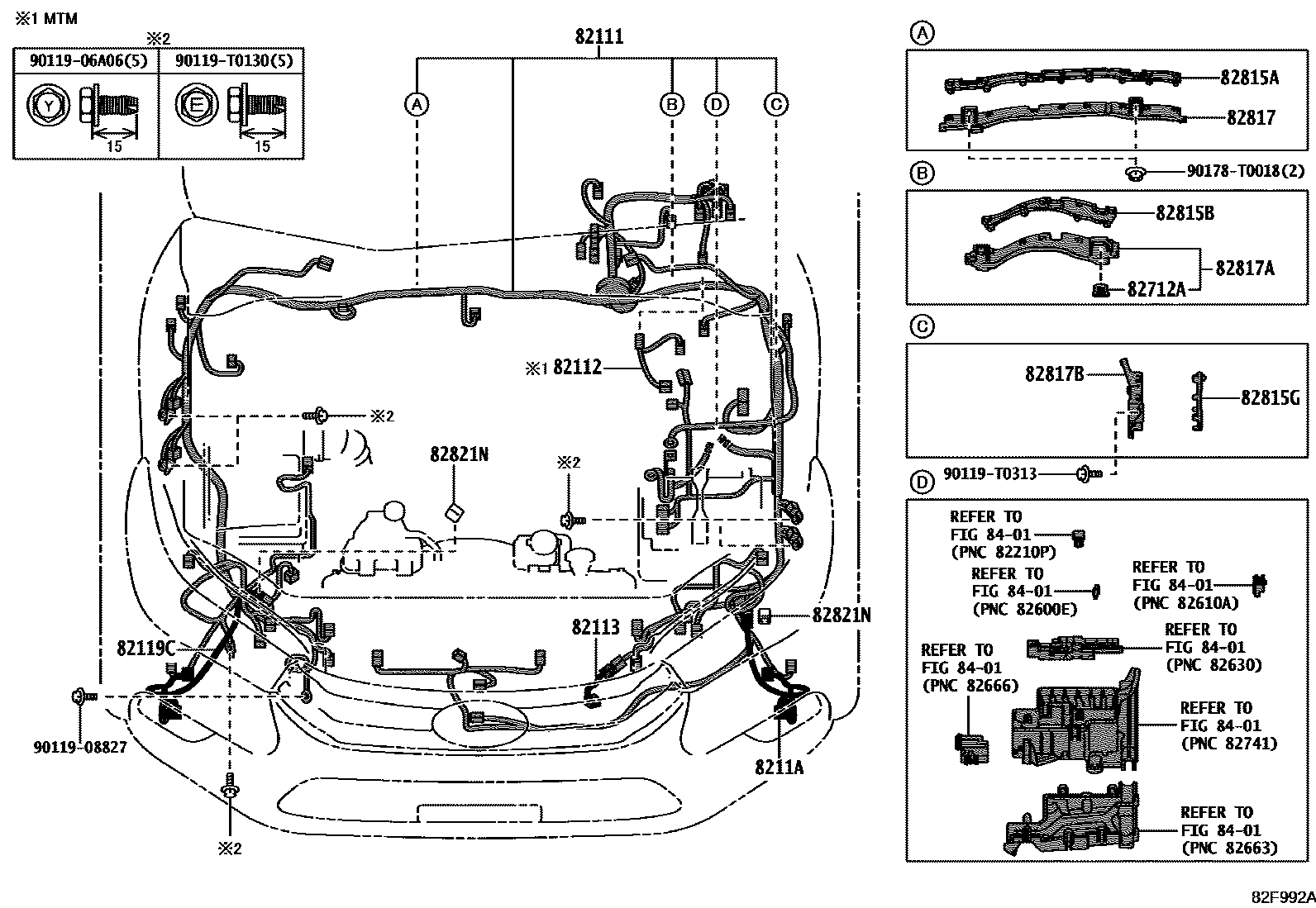

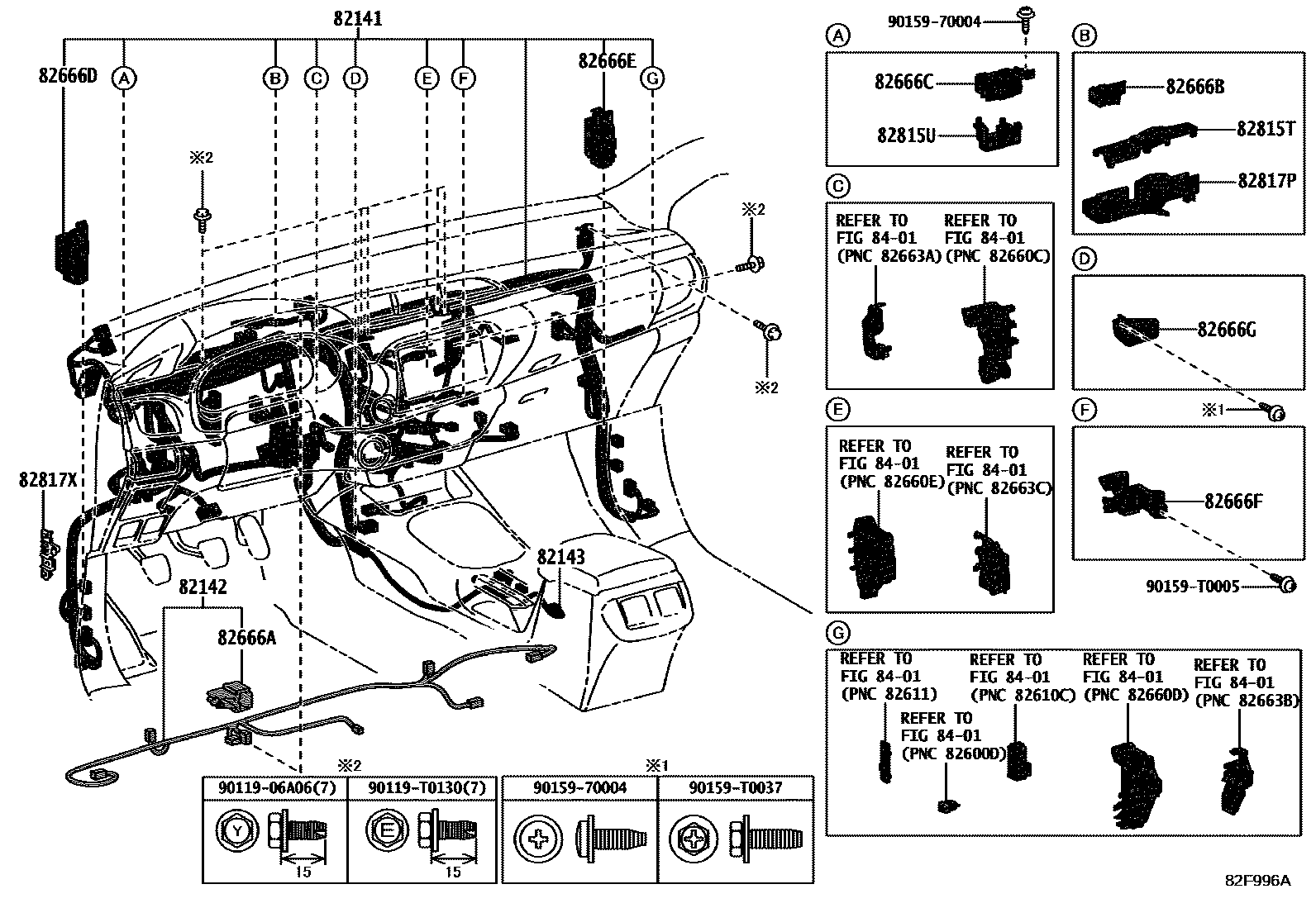

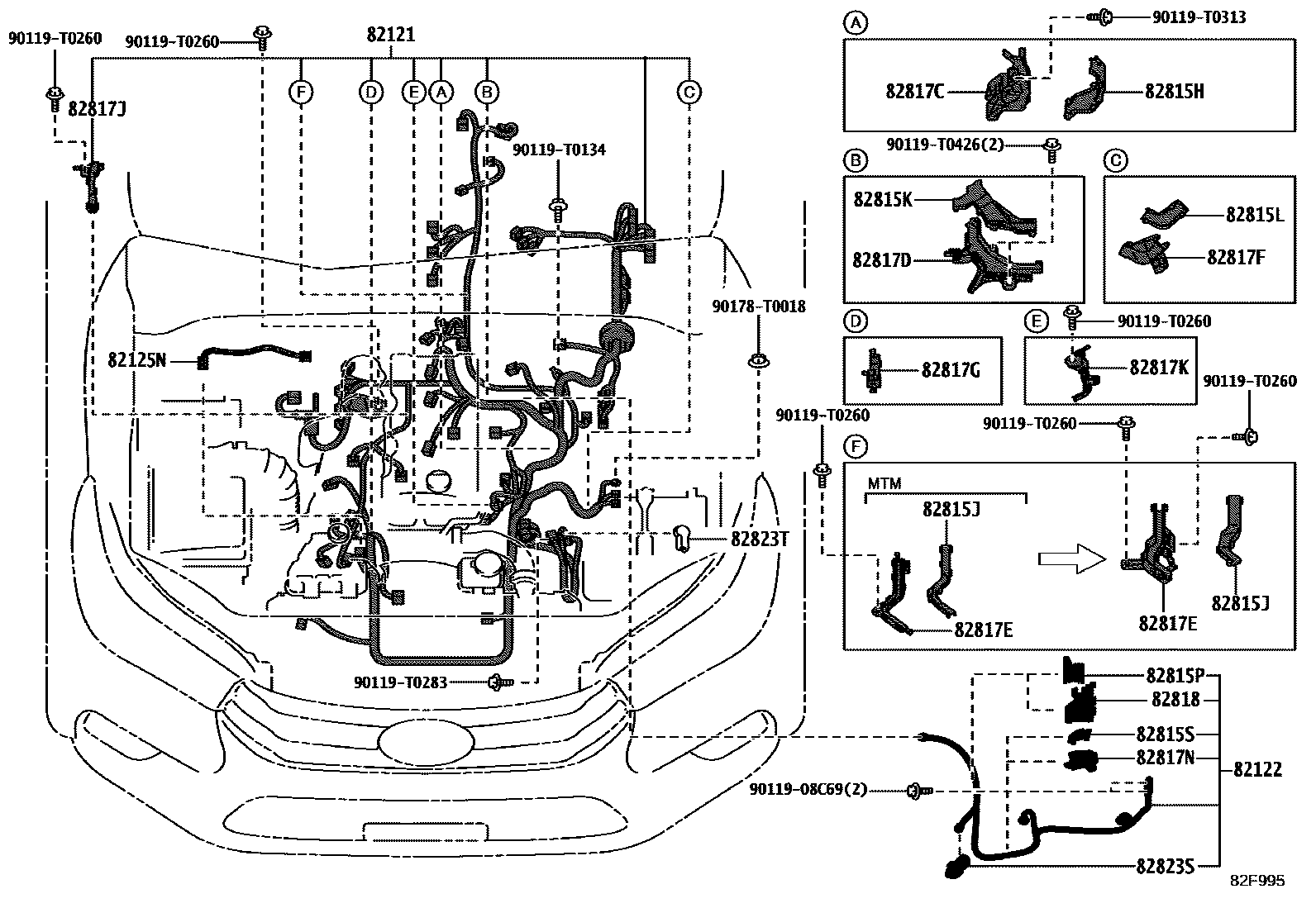

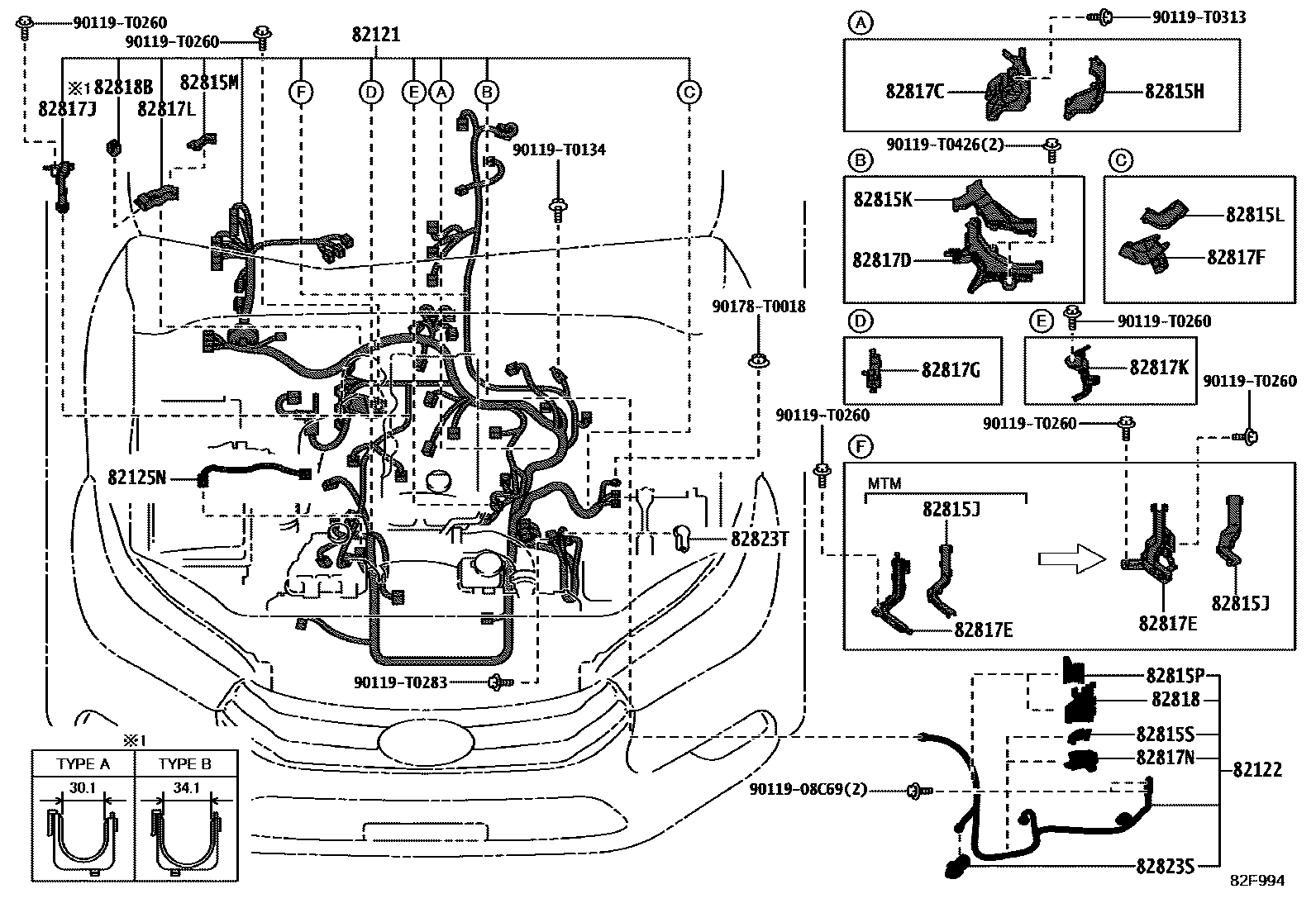

Toyota HILUX 线束和卡夹 — Figure 8202
Toyota HILUX EPC diagram 8202, 线束和卡夹, with 13 images and 77 PNC and OE references.
PNC and OE references

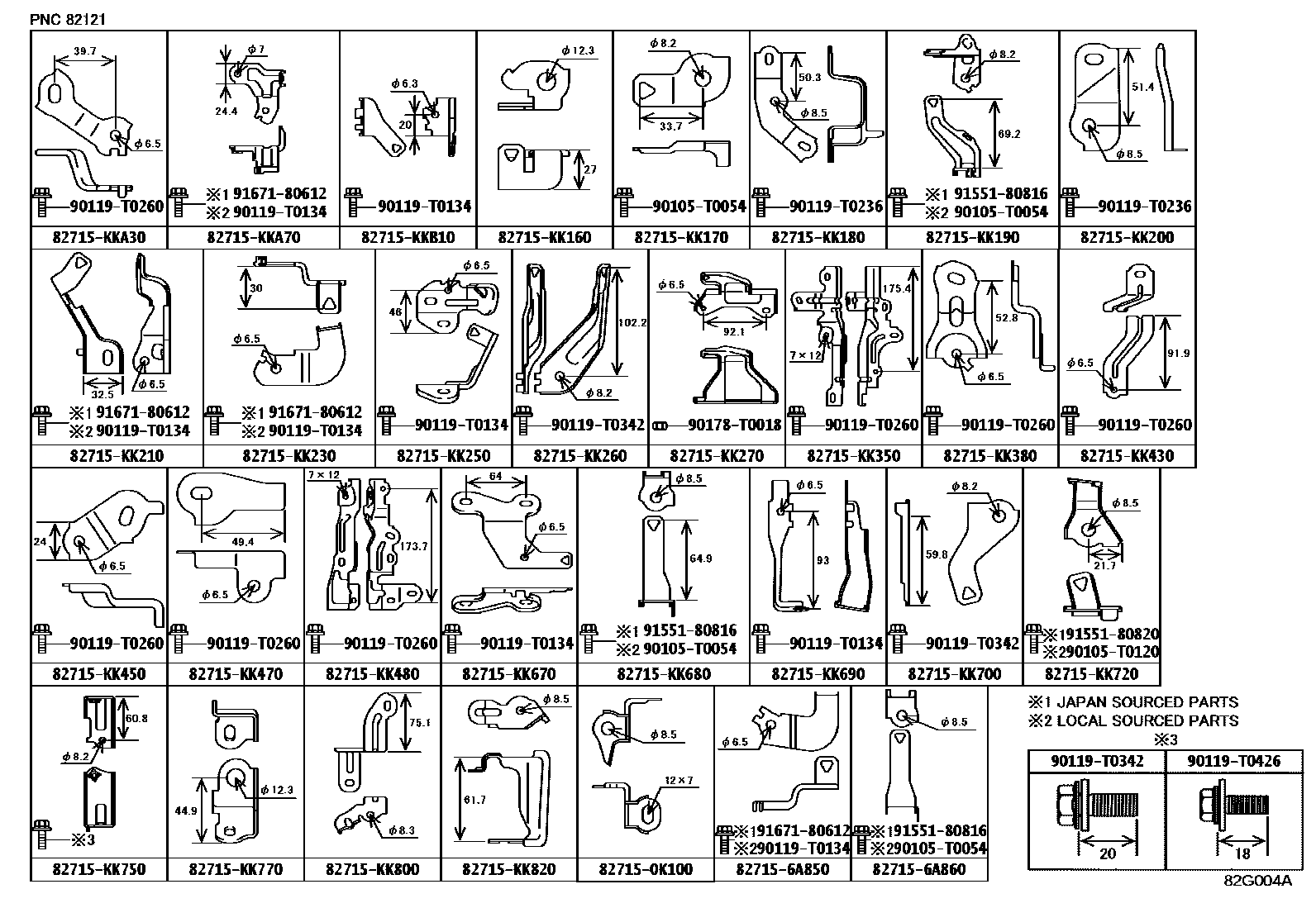

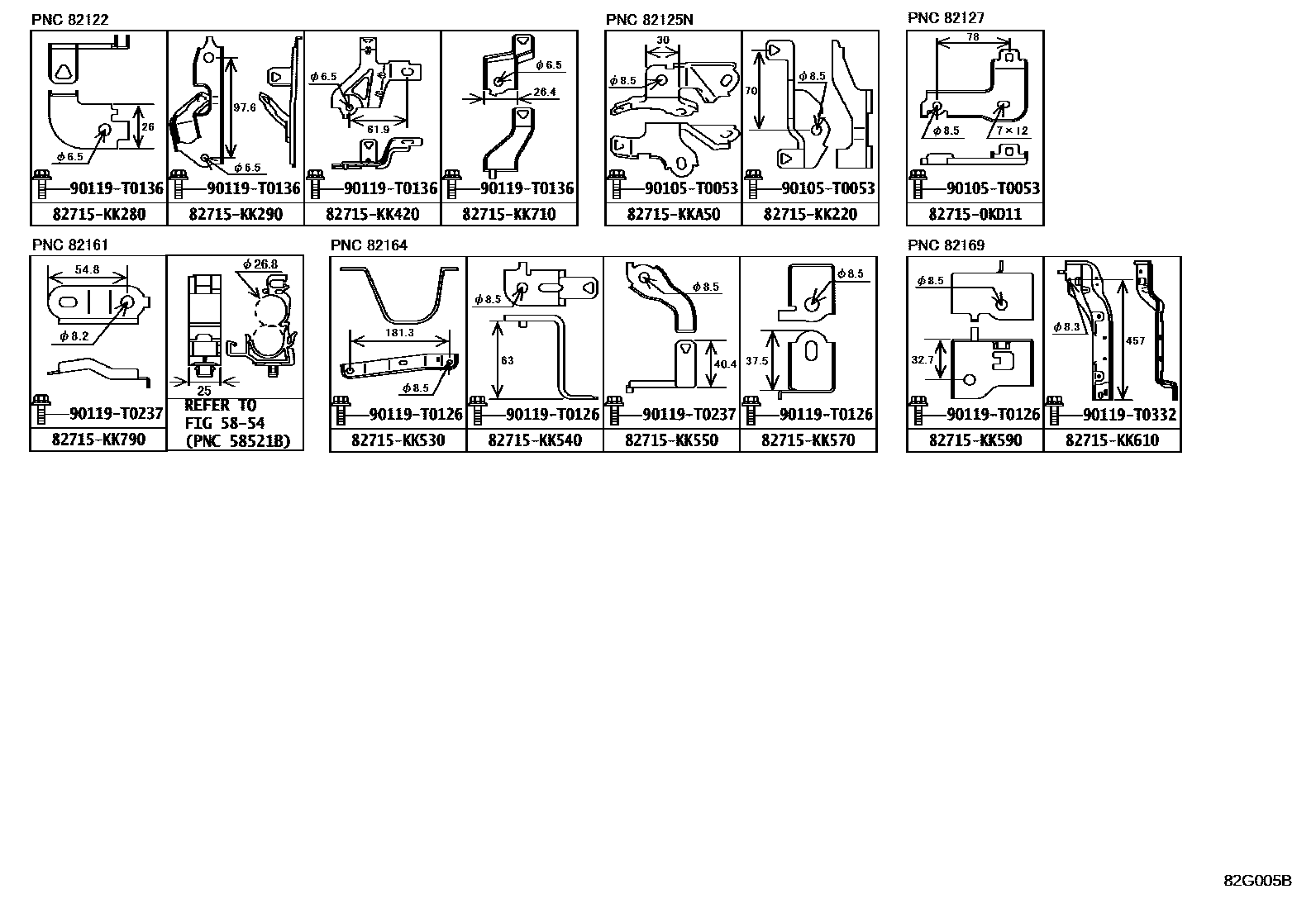

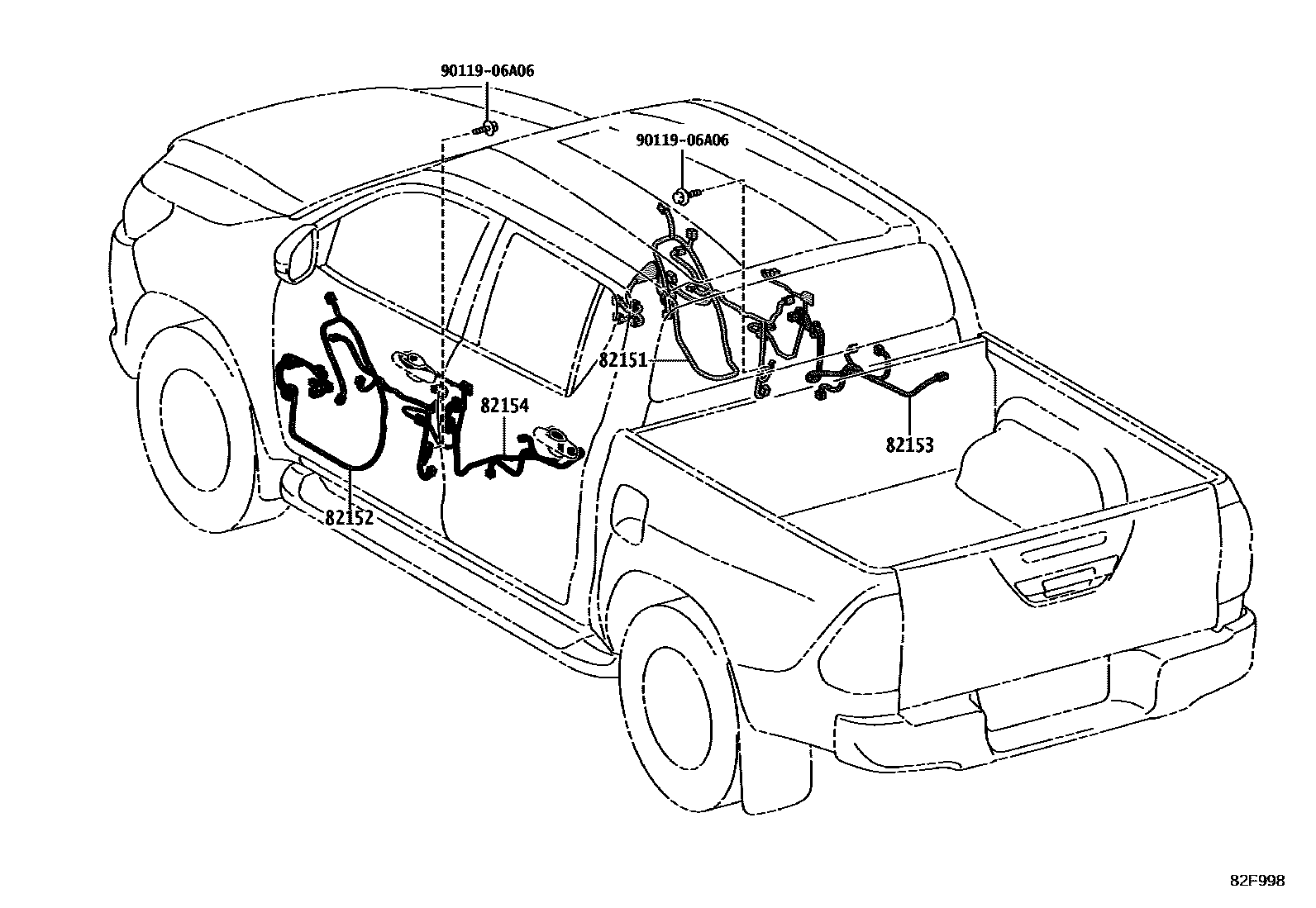

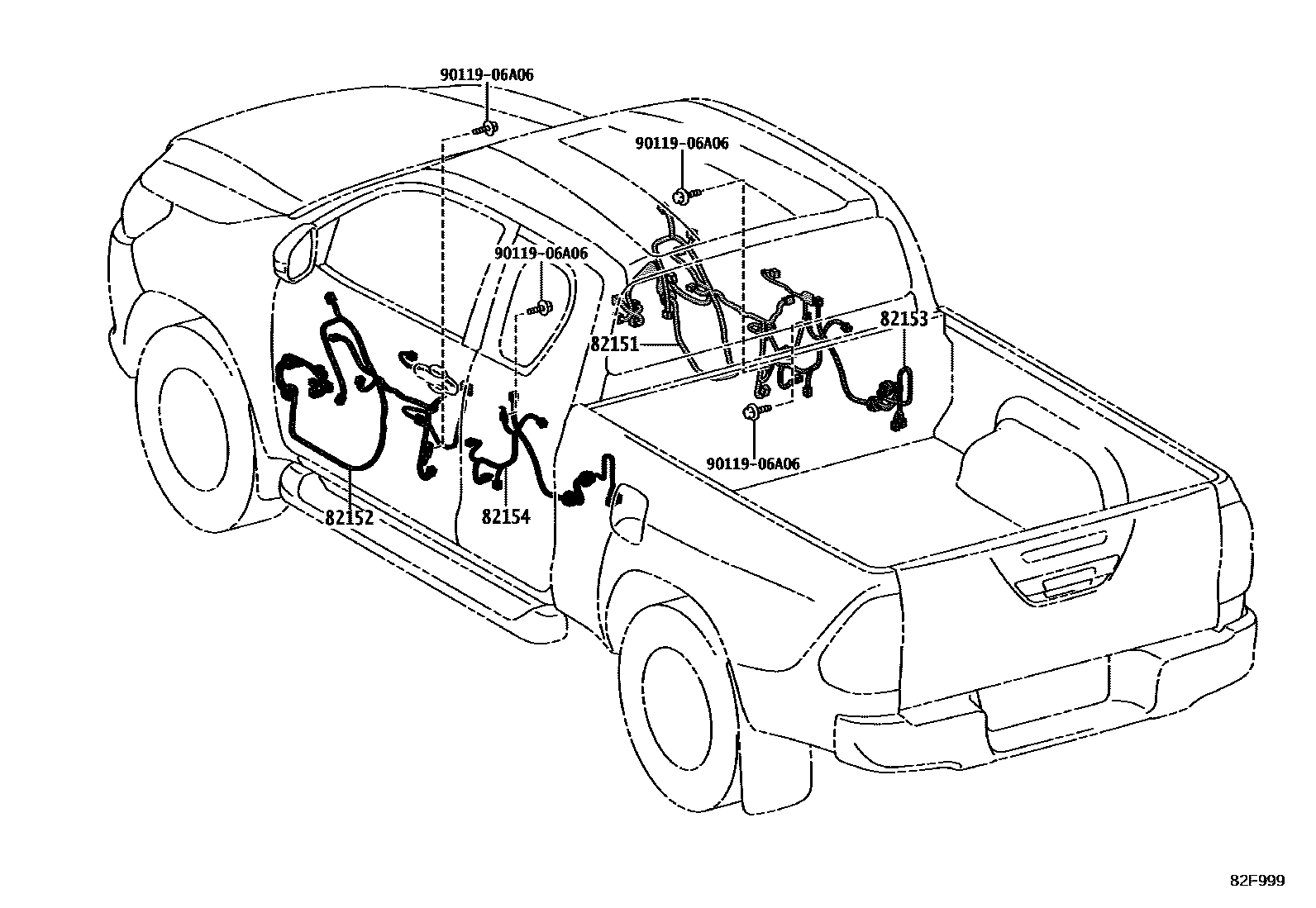

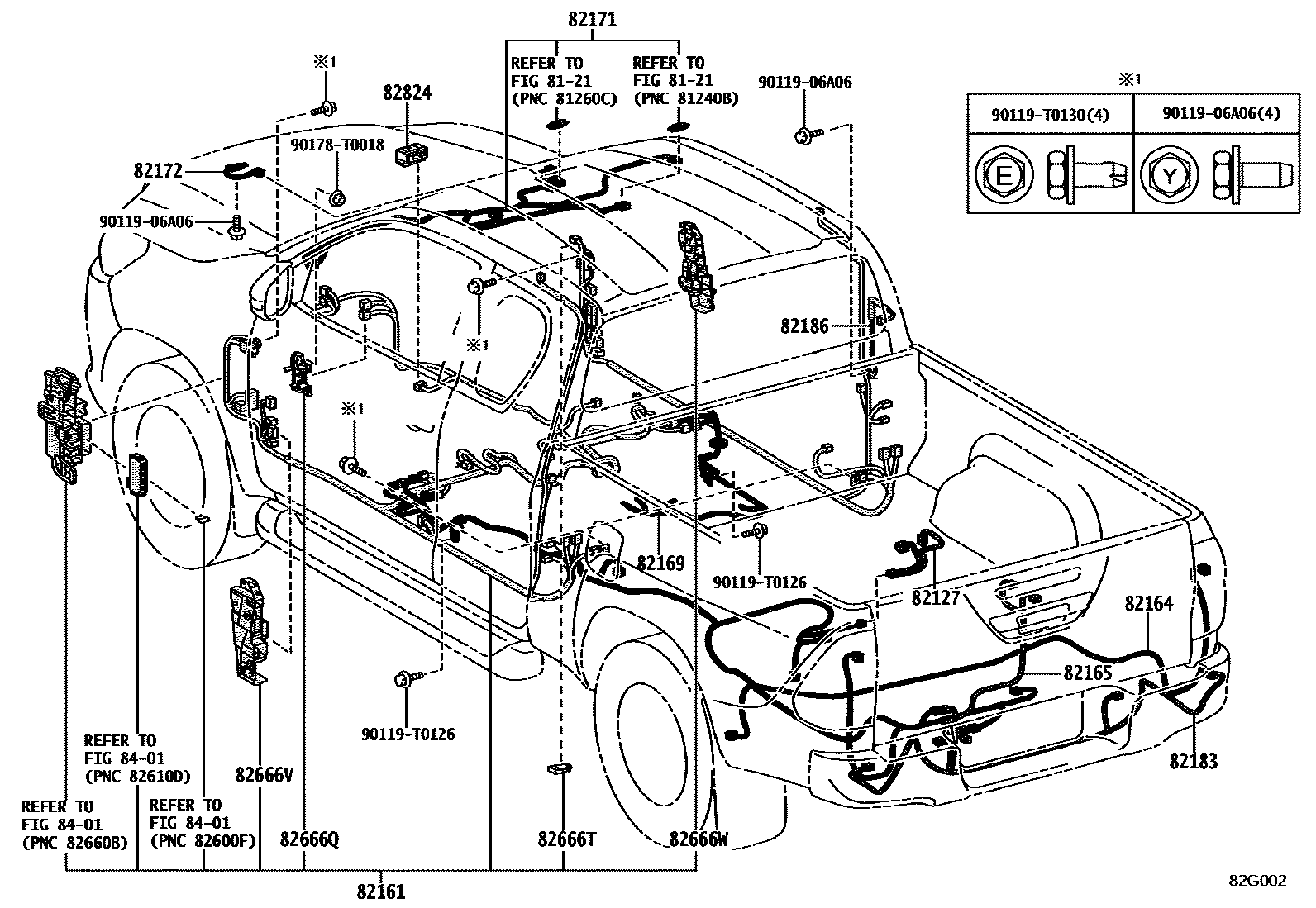

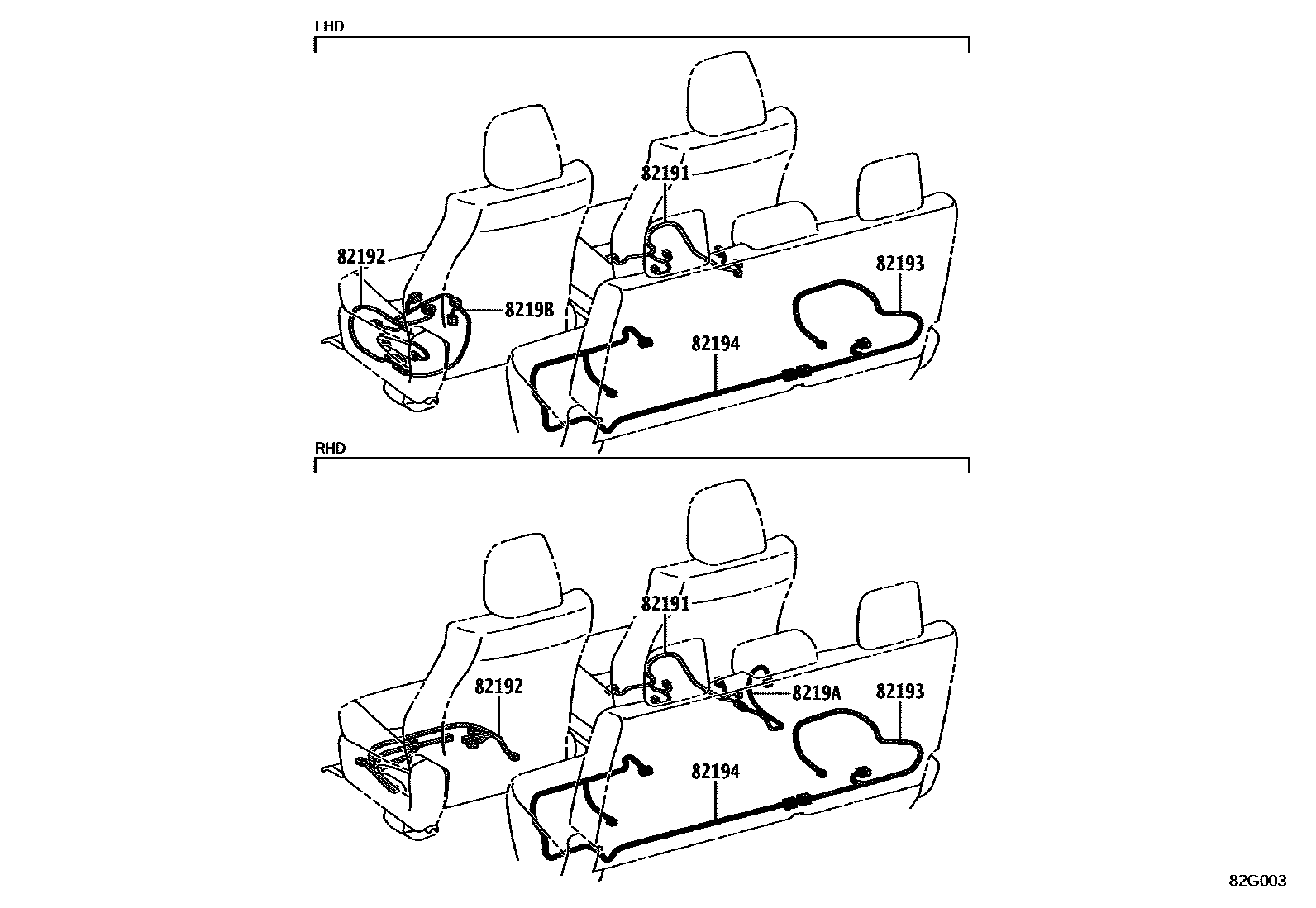

| PNC | Part name | OE numbers |
|---|---|---|
| 82111 | Engine room main wiring harness | 8211F-KKA40 · 8211F-KKA70 · 8211F-KKA80 · 8211F-KKA90 · 8211F-KKB00 · 8211F-KKB20 · 8211F-KKB30 · 8211F-KKB40 · 8211F-KKB50 · 8211F-KKB60 · 8211F-KKB80 · 8211F-KKB90 · 8211F-KKC20 · 8211F-KKC30 · 8211F-KKC70 · 8211F-KKD20 · 8211F-KKD40 · 8211F-KKD60 · 8211F-KKD70 · 8211F-KKE00 · 8211F-KKE20 · 8211F-KKE30 · 8211F-KKE60 · 8211F-KKE70 · 8211F-KKF20 · 8211F-KKF30 · 8211F-KKF40 · 8211F-KKF50 · 8211F-KKF60 · 8211F-KKF70 · 8211F-KKF80 · 8211F-KKF90 · 8211F-KKG10 · 8211F-KKG20 · 8211F-KKG40 · 8211F-KKG60 · 8211F-KKG70 · 8211F-KKG80 · 8211F-KKG90 · 8211F-KKJ00 · 8211F-KKJ10 · 8211F-KKJ20 · 8211F-KKJ30 · 8211F-KKJ40 · 8211F-KKJ50 · 8211F-KKJ60 · 8211F-KKJ70 · 8211F-KKJ80 · 8211F-KKJ90 · 8211F-KKK00 · 8211F-KKK10 · 8211F-KKK20 · 8211F-KKK30 · 8211F-KKL20 · 8211F-KKL40 · 8211F-KKM10 · 8211F-KKM30 · 8211F-KKQ20 · 8211F-KKQ50 · 8211F-KKR00 · 8211F-KKR10 · 8211F-KKR30 · 8211F-KKR40 · 8211F-KKR50 · 8211F-KKR80 · 8211F-KKS10 · 8211F-KKS30 · 8211F-KKT00 · 8211F-KKT10 · 8211F-KKT30 · 8211F-KKT40 · 8211F-KKT50 · 8211F-KKT60 · 8211F-KKU30 · 8211F-KKU60 · 8211F-KKU70 · 8211F-KKU80 · 8211F-KKU90 · 8211F-KKX20 · 8211F-KKX30 · 8211F-KKX40 · 8211F-KKX70 · 8211F-KKY60 · 8211F-KKZ40 · 8211F-KKZ50 · 8211F-KKZ60 · 8211F-KKZ70 · 8211F-KKZ80 · 8211G-KK010 · 8211G-KK030 · 8211G-KK050 · 8211G-KK060 · 8211G-KK110 · 8211G-KK130 · 8211G-KK280 · 8211G-KK290 · 8211G-KK320 · 8211G-KK330 · 8211G-KK360 · 8211G-KK370 · 8211G-KK420 · 8211G-KK430 · 8211G-KK450 · 8211G-KK480 · 8211G-KK490 · 8211G-KK500 · 8211G-KK510 · 8211G-KK560 · 8211G-KK570 · 8211G-KK580 · 8211G-KK590 · 8211G-KK880 · 8211G-KK890 · 8211G-KKA00 · 8211G-KKA10 · 8211G-KKA20 · 8211G-KKA30 · 8211G-KKA40 |
| 82111B | condenser | 90980-04206 |
| 82112 | Engine room wiring harness No. 2 | 82112-KK010 |
| 82113 | Engine room wiring harness No. 3 | 82113-KK020 |
| 82119C | FIL, COMPARTIMENT MOTEUR, NO.5 | 82119-KK040 · 82119-KK050 · 82119-KK060 · 82119-KK070 · 82119-KK130 · 82119-KK140 · 82119-KK250 |
| 8211A | FIL, COMPARTIMENT MOTEUR, NO.6 | 8211A-KK040 · 8211A-KK050 · 8211A-KK060 · 8211A-KK070 · 8211A-KK140 · 8211A-KK150 · 8211A-KK250 |
| 82121 | Engine wiring harness | 82126-KKU40 · 82126-KKV20 · 82126-KKX30 · 82126-KKZ70 · 8213C-KK060 · 8213C-KK230 · 8213C-KK240 · 8213C-KK250 · 8213C-KK260 · 8213C-KK360 · 8213C-KK370 · 8213C-KK390 · 8213C-KK410 · 8213C-KK420 · 8213C-KK430 · 8213C-KK660 · 8213C-KK670 · 8213C-KK720 · 8213C-KK730 · 8213C-KK740 · 8213C-KK830 · 8213C-KK840 · 8213C-KK850 · 8213C-KKC60 · 8213C-KKD10 · 8213C-KKF20 · 8213C-KKG40 · 8213C-KKG70 · 8213C-KKG80 · 8213C-KKJ50 · 8213C-KKJ60 |
| 82122 | Engine No. 2 wiring harness | 82122-KK100 · 82122-KK430 |
| 82125N | Engine No. 5 wiring harness | 82125-KK010 |
| 82127 | Differential harness | 82127-0K011 |
| 82141 | Dashboard wiring harness | 8214A-KKZ50 · 8214A-KKZ60 · 8214A-KKZ70 · 8214A-KKZ80 · 8214A-KKZ90 · 8214M-KK580 · 8214M-KK590 · 8214M-KK600 · 8214M-KK610 · 8214M-KK620 · 8214M-KK630 · 8214M-KK640 · 8214M-KK650 · 8214M-KK660 · 8214M-KK670 · 8214M-KK680 · 8214M-KK690 · 8214M-KK700 · 8214M-KK710 · 8214M-KK720 · 8214M-KK730 · 8214M-KK740 · 8214M-KK750 · 8214M-KK760 · 8214M-KK770 · 8214M-KK780 · 8214M-KK790 · 8214M-KK800 · 8214M-KK810 · 8214M-KK820 · 8214M-KK830 · 8214M-KK840 · 8214M-KK850 · 8214M-KK860 · 8214M-KK870 · 8214M-KK880 · 8214M-KK890 · 8214M-KKA00 · 8214M-KKA10 · 8214M-KKA20 · 8214M-KKA30 · 8214M-KKA40 · 8214M-KKA50 · 8214M-KKA60 · 8214M-KKA70 · 8214M-KKA80 · 8214M-KKA90 · 8214M-KKB00 · 8214M-KKB10 · 8214M-KKB20 · 8214M-KKB30 · 8214M-KKB40 · 8214M-KKB50 · 8214M-KKB60 · 8214M-KKB70 · 8214M-KKB80 · 8214M-KKB90 · 8214M-KKC00 · 8214M-KKC10 · 8214M-KKC20 · 8214M-KKC30 · 8214M-KKC40 · 8214M-KKC50 · 8214M-KKC60 · 8214M-KKC70 · 8214M-KKC80 · 8214M-KKC90 · 8214M-KKD00 · 8214M-KKD10 · 8214M-KKD20 · 8214M-KKD30 · 8214M-KKD40 · 8214M-KKD50 · 8214M-KKD60 · 8214M-KKD70 · 8214M-KKD80 · 8214M-KKD90 · 8214M-KKE00 · 8214M-KKE10 · 8214M-KKE20 · 8214M-KKE30 · 8214M-KKE40 · 8214M-KKE50 · 8214M-KKE60 · 8214M-KKE70 · 8214M-KKE80 · 8214M-KKE90 · 8214M-KKF00 · 8214M-KKF10 · 8214M-KKF20 · 8214M-KKF30 · 8214M-KKF40 · 8214M-KKF50 · 8214M-KKF60 · 8214M-KKF70 · 8214M-KKF80 · 8214M-KKF90 · 8214M-KKG00 · 8214M-KKG10 · 8214M-KKG20 · 8214M-KKG30 · 8214M-KKG40 · 8214M-KKG50 · 8214M-KKG60 · 8214M-KKG70 · 8214M-KKG80 · 8214M-KKG90 · 8214M-KKJ00 · 8214M-KKJ10 · 8214M-KKJ20 · 8214M-KKJ30 · 8214M-KKJ40 · 8214M-KKJ50 · 8214M-KKJ60 · 8214M-KKJ70 · 8214M-KKJ80 · 8214M-KKJ90 · 8214M-KKK00 · 8214M-KKK10 · 8214M-KKK20 · 8214M-KKK30 · 8214M-KKK40 · 8214M-KKK50 · 8214M-KKK60 · 8214M-KKK70 · 8214M-KKK80 · 8214M-KKK90 · 8214M-KKL00 · 8214M-KKL10 · 8214M-KKL20 · 8214M-KKL30 · 8214M-KKL40 · 8214M-KKW80 · 8214M-KKW90 · 8214M-KKX20 · 8214M-KKX30 · 8214M-KKX60 · 8214M-KKX70 · 8214M-KKX90 · 8214M-KKY00 · 8214M-KKY20 · 8214M-KKY30 · 8214M-KKY40 · 8214M-KKY50 · 8214M-KKY60 · 8214M-KKY70 · 8214M-KKY80 · 8214M-KKY90 · 8214M-KKZ20 · 8214M-KKZ40 · 8214M-KKZ50 · 8214M-KKZ60 · 8214M-KKZ70 · 8214M-KKZ80 · 8214M-KKZ90 · 8214N-KK010 · 8214N-KK020 · 8214N-KK030 · 8214N-KK040 · 8214N-KK050 · 8214N-KK060 · 8214N-KK070 · 8214N-KK130 · 8214N-KK140 · 8214N-KK150 · 8214N-KK160 · 8214N-KK170 · 8214N-KK180 · 8214N-KK190 · 8214N-KK200 · 8214N-KK210 · 8214N-KK220 · 8214N-KK230 · 8214N-KK240 · 8214N-KK250 · 8214N-KK260 · 8214N-KK270 · 8214N-KK460 · 8214N-KK470 · 8214N-KK480 · 8214N-KK490 · 8214N-KK500 · 8214N-KK510 · 8214N-KK520 · 8214N-KK530 · 8214N-KK540 · 8214N-KK550 · 8214N-KK560 · 8214N-KK570 · 8214N-KK580 · 8214N-KK590 · 8214N-KK600 · 8214N-KK610 · 8214N-KK620 · 8214N-KK630 · 8214N-KK640 · 8214N-KK650 · 8214N-KK660 · 8214N-KK670 · 8214N-KK680 · 8214N-KK690 · 8214N-KK700 · 8214N-KKD70 · 8214N-KKD80 · 8214N-KKD90 · 8214N-KKE00 · 8214N-KKE10 · 8214N-KKE20 · 8214N-KKE30 · 8214N-KKE40 · 8214N-KKE50 · 8214N-KKE90 · 8214N-KKF00 · 8214N-KKF10 · 8214N-KKF20 · 8214N-KKF30 · 8214N-KKF40 · 8214N-KKF50 · 8214N-KKF60 · 8214N-KKF70 · 8214N-KKF90 · 8214N-KKG00 · 8214N-KKG10 · 8214N-KKG20 · 8214N-KKG30 · 8214N-KKG40 · 8214N-KKG50 · 8214N-KKG60 · 8214N-KKG70 · 8214N-KKW50 · 8214N-KKW70 · 8214N-KKX20 · 8214N-KKY10 · 8214N-KKY20 · 8214N-KKY30 · 8214N-KKY40 · 8214N-KKY50 · 8214N-KKY60 · 8214N-KKY70 · 8214N-KKZ70 · 8214N-KKZ80 · 8214N-KKZ90 · 8214P-KK010 · 8214P-KK020 · 8214P-KK130 · 8214P-KK140 · 8214P-KK150 · 8214P-KK160 · 8214P-KK170 · 8214P-KK180 · 8214P-KK290 · 8214P-KK300 · 8214P-KK310 · 8214P-KK320 · 8214P-KK330 · 8214P-KK340 · 8214P-KKF90 · 8214Q-KKQ00 · 8214Q-KKQ10 · 8214Q-KKQ20 · 8214Q-KKQ30 · 8214Q-KKQ40 · 8214Q-KKQ50 · 8214Q-KKQ60 · 8214Q-KKQ70 · 8214Q-KKQ80 · 8214Q-KKQ90 · 8214Q-KKR00 · 8214Q-KKR10 · 8214Q-KKR20 · 8214Q-KKR30 · 8214Q-KKR40 · 8214Q-KKR50 · 8214Q-KKR60 · 8214Q-KKR70 · 8214Q-KKR80 · 8214Q-KKV30 · 8214Q-KKV40 · 8214Q-KKV70 · 8214Q-KKV80 |
| 82142 | Instrument panel wiring harness No. 2 | 82142-KKA70 · 82142-KKB20 · 82142-KKB40 · 82142-KKB50 · 82142-KKB60 · 82142-KKB70 |
| 82143 | Instrument panel wiring harness No. 3 | 82143-KKB90 · 82143-KKC00 · 82143-KKC10 · 82143-KKC30 · 82143-KKC40 · 82143-KKC50 |
| 82151 | Right front door wiring harness | 82151-KKK80 · 82151-KKL10 · 82151-KKL30 · 82151-KKL50 · 82151-KKU80 · 82151-KKU90 · 82151-KKV40 · 82151-KKV90 · 82151-KKW10 · 82197-KKE90 · 82197-KKF00 · 82197-KKM80 · 82197-KKM90 · 82197-KKR30 · 82197-KKS90 · 82197-KKT10 · 82197-KKV60 · 82197-KKV90 · 82197-KKW00 · 82197-KKW10 · 82197-KKW40 · 82197-KKW90 · 821A7-KK500 · 821A7-KK510 · 821A7-KK520 · 821A7-KK530 · 821A7-KK560 · 821A7-KK570 |
| 82152 | Left front door wiring harness | 821A8-KK320 · 821A8-KK340 · 821A8-KK360 · 821A8-KK370 · 821A8-KK390 · 821A8-KK430 · 821A8-KK440 · 821A8-KK470 · 821A8-KK480 · 821A8-KK500 · 821A8-KK510 · 821A8-KK540 · 821A8-KK550 · 821A8-KK580 · 821A8-KK590 · 821A8-KK680 · 821A8-KK820 · 821A8-KK830 · 821A8-KKB70 · 821A8-KKC00 · 821A8-KKC10 · 821A8-KKC30 · 821A8-KKC50 · 821A8-KKE60 · 821A8-KKG80 · 821A8-KKG90 · 821A8-KKK10 · 821A8-KKK20 |
| 82153 | Rear door wiring harness No. 1 | 82153-KK260 · 82153-KK360 · 82153-KK390 · 82153-KK400 · 82153-KK650 · 82153-KK680 |
| 82154 | Rear door wiring harness No. 2 | 82154-KK390 · 82154-KK400 · 82154-KK430 · 82154-KK440 · 82154-KK630 · 82154-KK660 |
| 82161 | floor wiring harness | 8219H-KKX00 · 8219H-KKX10 · 8219H-KKX20 · 8219H-KKX30 · 8219H-KKY30 · 8219J-KK120 · 8219J-KK130 · 8219J-KK140 · 8219J-KK150 · 8219J-KK160 · 8219J-KK170 · 8219J-KK180 · 8219J-KK190 · 8219J-KK200 · 8219J-KK210 · 8219J-KK220 · 8219J-KK230 · 8219J-KK240 · 8219J-KK250 · 8219J-KK260 · 8219J-KK280 · 8219J-KK290 · 8219J-KK300 · 8219J-KK330 · 8219J-KK340 · 8219J-KK350 · 8219J-KK360 · 8219J-KK370 · 8219J-KK380 · 8219J-KK390 · 8219J-KK400 · 8219J-KK410 · 8219J-KK760 · 8219J-KK770 · 8219J-KK780 · 8219J-KKA40 · 8219J-KKA50 · 8219J-KKA60 · 8219J-KKQ50 · 8219J-KKQ60 · 8219J-KKQ70 |
| 82164 | Frame wiring harness set | 82164-KKG60 · 82164-KKJ60 · 82164-KKJ70 · 82164-KKJ80 · 82164-KKJ90 · 82164-KKK00 · 82164-KKK10 · 82164-KKK20 · 82164-KKL20 · 82164-KKL70 · 82164-KKL90 · 82164-KKM10 · 82164-KKM30 · 82164-KKM50 · 82164-KKM70 · 82164-KKM90 · 82164-KKN10 · 82164-KKS70 · 82164-KKS90 · 82164-KKT00 · 82164-KKT10 · 82164-KKT20 · 82164-KKT30 · 82164-KKT70 |
| 82165 | No. 2 frame wiring harness | 82165-KK070 · 82165-KK080 · 82165-KK100 · 82165-KK200 |
| 82169 | No. 3 frame wiring harness | 82169-KK090 |
| 82171 | Roof No. 1 wiring harness | 82171-KKE50 · 82171-KKE60 · 82171-KKE70 · 82171-KKE80 · 82171-KKF20 · 82171-KKF40 · 82171-KKF60 · 82171-KKF80 · 82171-KKG10 · 82171-KKG20 · 82171-KKJ50 · 82171-KKJ60 · 82171-KKJ70 · 82171-KKJ80 · 82171-KKM70 · 82171-KKM80 · 82171-KKN00 · 82171-KKR70 |
| 82172 | Roof No. 2 wiring harness | 82172-KK010 |
| 82183 | Luggage No. 3 wiring harness | 82183-KK090 |
| 82186 | Rear window wiring harness No. 1 | 82186-KK030 · 82186-KK060 |
| 82191 | Front right seat wiring harness | 82191-0K070 · 82191-0K150 · 82191-0K190 |
| 82192 | Front left seat wiring harness | 82192-0K060 · 82192-0K080 · 82192-0K090 · 82192-0K100 · 82192-0K140 |
| 82193 | Rear right seat wiring harness | 82193-0K010 · 82193-0K040 · 82193-0K080 |
| 82194 | Rear left seat wiring harness | 82194-0K010 · 82194-0K040 · 82194-0K080 |
| 8219A | Wire harness No. 2, right side of front seat | 8219A-0K070 |
| 8219B | Wire harness No. 2, left side of front seat | 8219B-0K050 · 8219B-0K060 |
| 82666A | Connector holder No. 2 | 82666-0K200 |
| 82666B | No. 3 connector holder | 82666-0K160 · 82666-0K290 |
| 82666C | No. 4 connector holder | 82666-0K170 · 82666-0K180 |
| 82666D | No. 5 connector holder | 82666-0K210 |
| 82666E | No. 6 connector holder | 82666-0K220 |
| 82666F | No. 7 connector holder | 82666-0K230 · 82666-0K240 |
| 82666G | No. 8 connector holder | 82666-0K300 · 82666-0K310 |
| 82666P | No. 11 Connector Block | 82666-0K280 |
| 82666Q | No. 12 connector holder | 82666-0K410 |
| 82666T | No. 14 connector socket | 82666-20270 |
| 82666V | No. 15 connector holder | 82666-0K470 |
| 82666W | No. 16 connector socket | 82666-0K480 |
| 82712A | Wire harness bracket | 82712-33190 |
| 82815A | Wiring harness protector cover | 82815-0K530 · 82815-0K560 |
| 82815B | Wiring harness protector cover | 82815-0K520 · 82815-0K550 |
| 82815G | Wiring harness protector cover | 82815-0K540 |
| 82815H | Wiring harness protector cover | 82815-0K270 |
| 82815J | No. 7 wire harness protector cover | 82815-0K340 · 82815-0K350 |
| 82815K | No. 8 wire harness protector cover | 82815-0K250 · 82815-0K280 |
| 82815L | No. 9 wire harness protector cover | 82815-0K510 |
| 82815M | No. 10 wire harness protector cover | 82815-0K240 |
| 82815P | No. 12 wire harness protector cover | 82815-0K070 |
| 82815S | No. 15 wire harness protector cover | 82815-0K400 |
| 82815T | No. 16 wire harness protector cover | 82815-0K410 · 82815-0K420 |
| 82815U | No. 17 wire harness protector cover | 82815-0K470 · 82815-0K480 |
| 82817 | No. 1 wire harness protection device | 82817-0K530 · 82817-0K560 |
| 82817A | No. 2 wire harness protection device | 82817-0K520 · 82817-0K550 |
| 82817B | No. 3 wire harness protection device | 82817-0K540 |
| 82817C | No. 4 wire harness protection device | 82817-0K270 |
| 82817D | No. 5 wire harness protection device | 82817-0K280 · 82817-0KB50 |
| 82817E | No. 6 wire harness protection device | 82817-0K340 · 82817-0K350 |
| 82817F | No. 7 wire harness protection device | 82817-0K510 |
| 82817G | No. 8 wire harness protection device | 82817-0K300 |
| 82817J | No. 9 wire harness protection device | 82817-60W20 |
| 82817K | No. 10 wire harness protection device | 82817-0K310 · 82817-60U70 |
| 82817L | No. 11 wire harness protection device | 82817-0KB40 |
| 82817N | No. 13 wire harness protection device | 82817-0K400 |
| 82817P | No. 14 wire harness protection device | 82817-0K410 · 82817-0K420 |
| 82817T | No. 15 wire harness protection device | 82817-0K800 |
| 82817X | No. 17 wire harness protection device | 82817-0K240 · 82817-0K840 · 82817-0K860 · 82817-0KA40 |
| 82818 | No. 2 wire harness protection device | 82817-0K290 |
| 82818B | No. 3 wire harness protection device | 82818-0K010 · 82818-0K020 |
| 82821N | COUVERCLE, CONNECTEUR | 82821-KK030 |
| 82823S | BOUCHON, BORNE DEMARREUR | 82823-30100 |
| 82823T | BOUCHON, BORNE ALTERNATEUR | 82823-22050 |
| 82824 | Harness connector | 90980-12393 · 90980-12448 |
