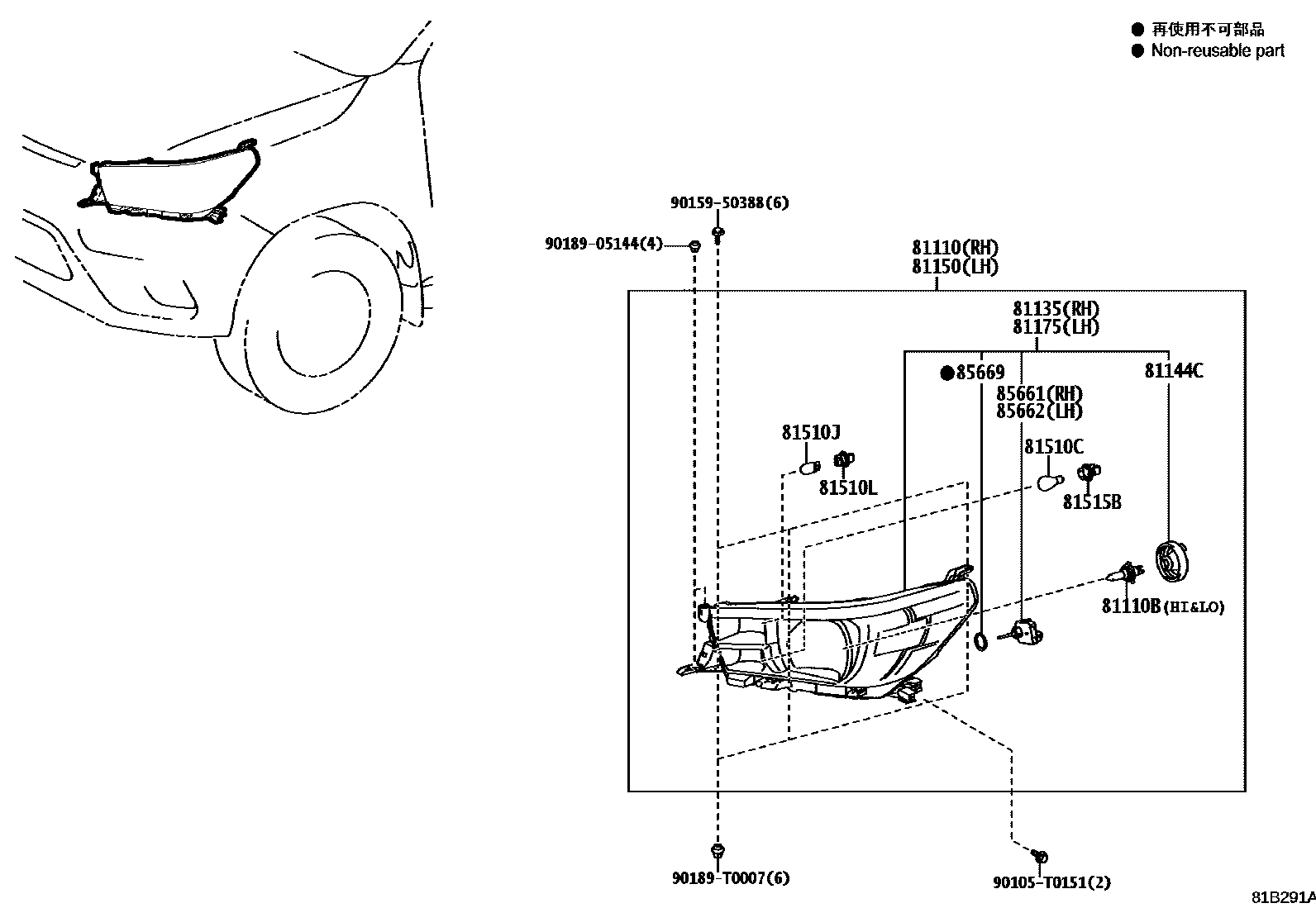

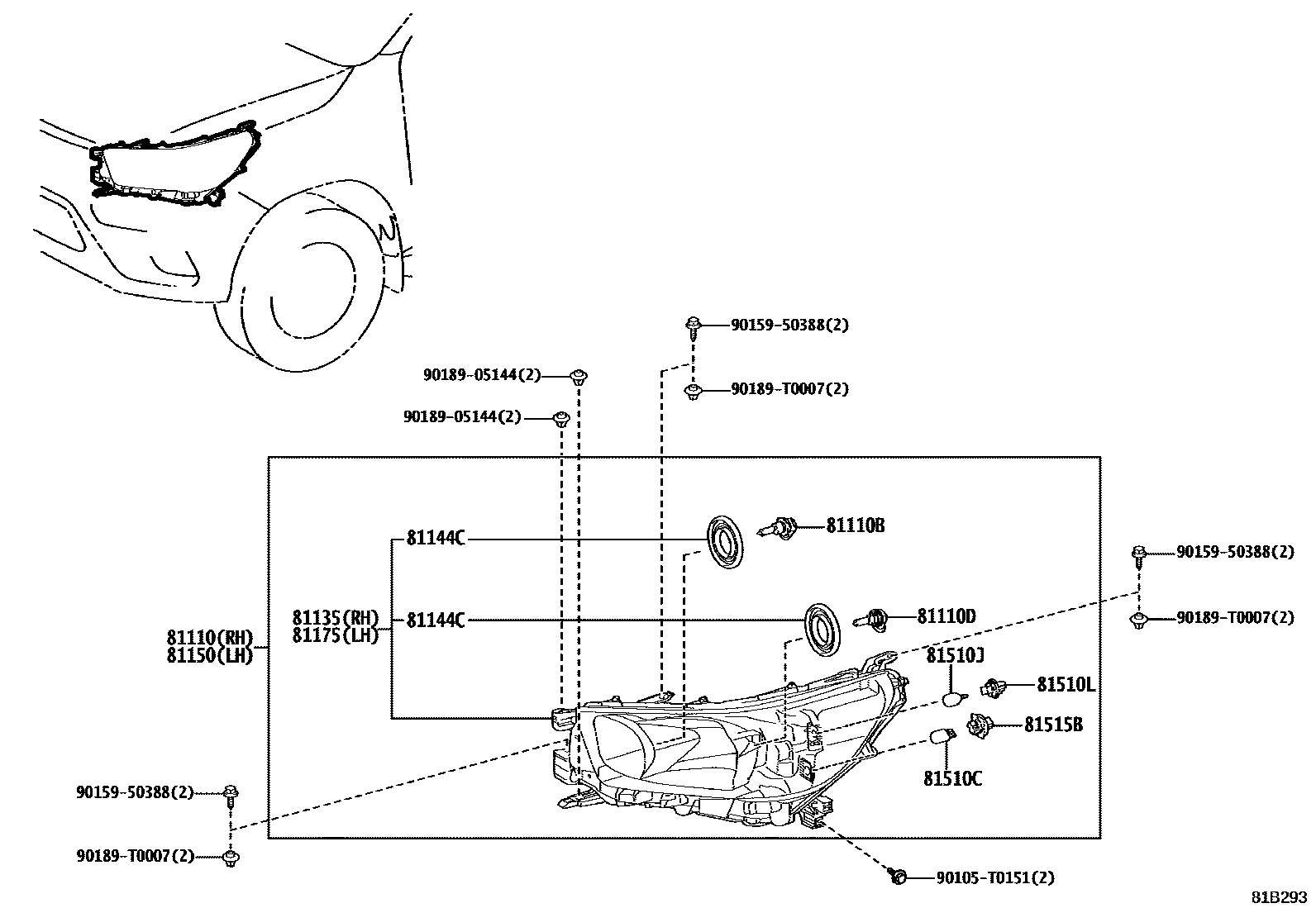

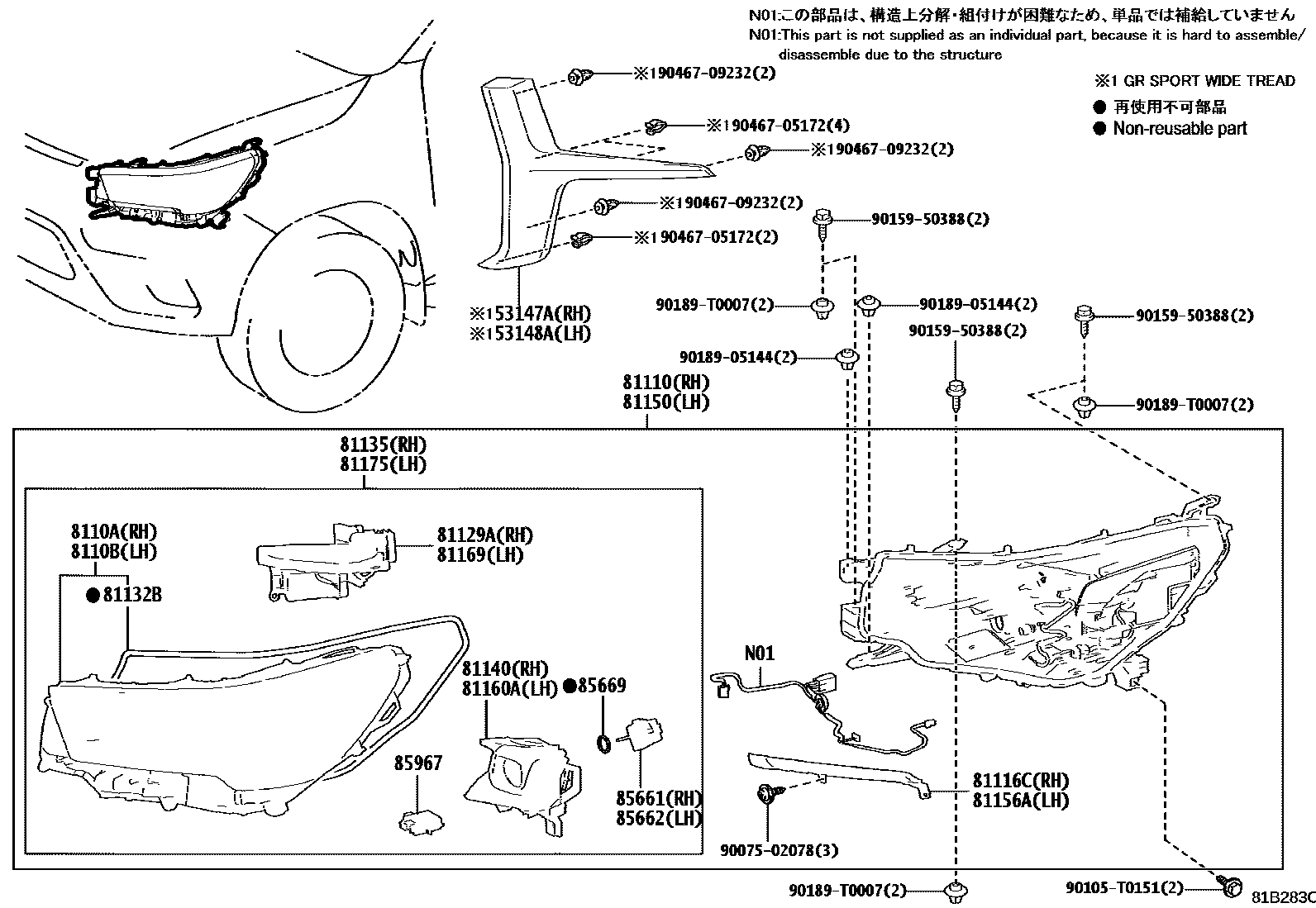

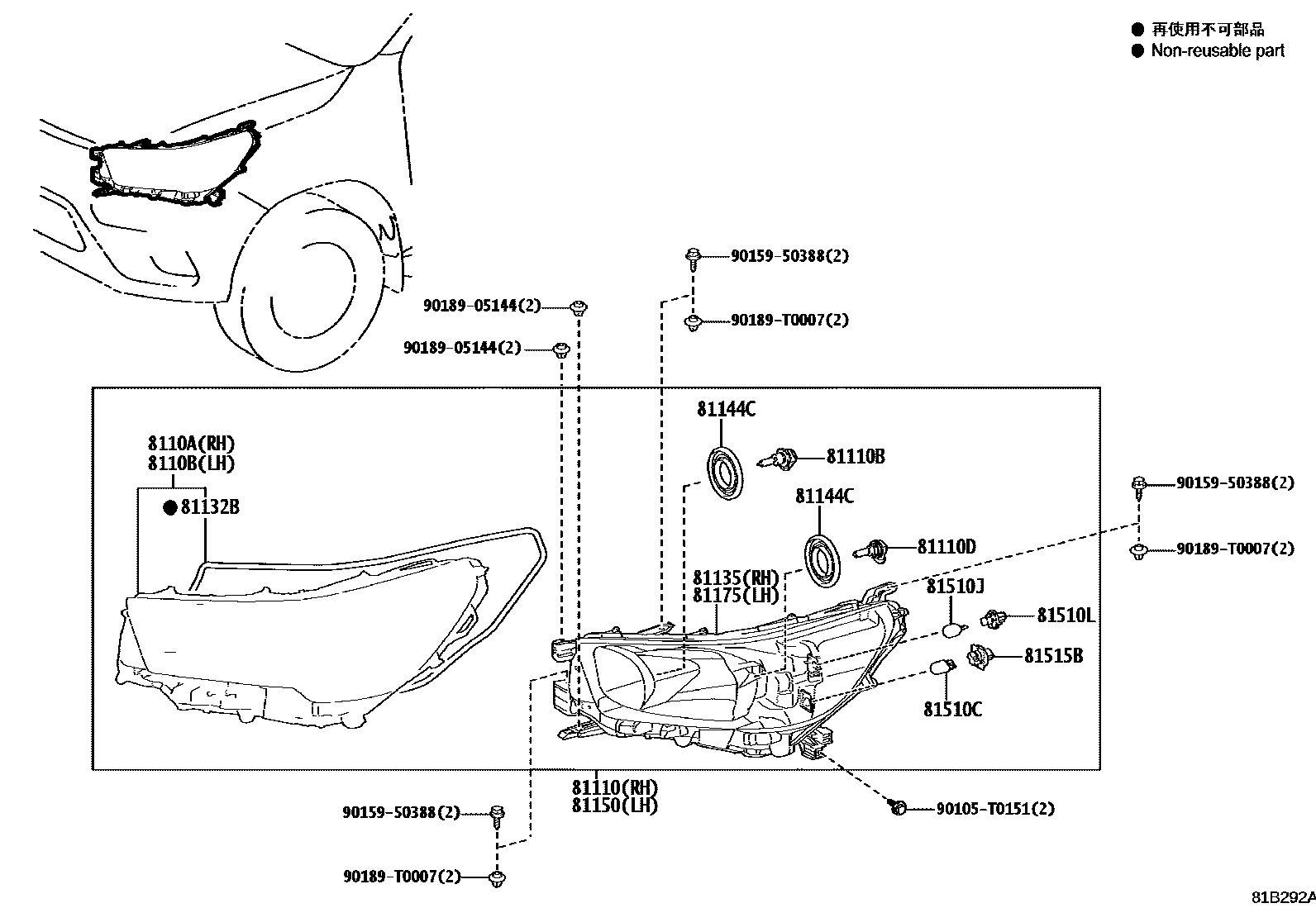

Toyota HILUX Headlamp — Figure 8101
Toyota HILUX EPC diagram 8101, Headlamp, with 5 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53147A | GARNITURE, ORNEMENT PHARE, MD | 53147-YP060 |
| 53148A | GARNITURE, ORNEMENT PHARE, MG | 53148-YP060 |
| 8110A | SOUS-ENS. OPTIQUE, PHARE, MD | 8110A-0KE80 · 8110A-0KJ80 · 8110A-YP090 |
| 8110B | SOUS-ENS. OPTIQUE, PHARE, MG | 8110B-0KE80 · 8110B-0KJ80 · 8110B-YP090 |
| 81110 | Right headlight assembly | 81110-0K782 · 81110-0K792 · 81110-0KJ71 · 81110-0KK60 · 81110-0KK80 · 81110-0KT90 · 81110-0KU80 · 81110-0KV00 · 81110-YP380 · 81110-YP430 · 81110-YP450 · 81110-YP510 |
| 81110B | Bulb (for headlight No. 1) | 90981-13058 · 90981-13099 |
| 81110D | Bulb (for headlight No. 2) | 90981-13075 |
| 81116C | Right headlight bracket | 81116-0KE80 · 81116-0KP30 · 81116-YP500 |
| 81129A | Right headlight reflector | 81129-0KE80 |
| 81132B | Headlight cover gasket | 81132-48C30 |
| 81135 | Right headlight assembly | 81130-0K782 · 81130-0K792 · 81130-0KJ70 · 81130-0KK60 · 81130-0KK80 · 81145-0KT90 · 81145-YP380 · 81145-YP510 |
| 81140 | Right headlight LED assembly assembly | 81140-0KK90 |
| 81144C | Headlight lamp holder cover | 90075-65002 · 90075-65006 |
| 81150 | Left headlight assembly | 81150-0K782 · 81150-0K792 · 81150-0KJ71 · 81150-0KK60 · 81150-0KK80 · 81150-0KT90 · 81150-0KU80 · 81150-0KV00 · 81150-YP380 · 81150-YP430 · 81150-YP450 · 81150-YP510 |
| 81156A | Left headlight bracket | 81156-0KE80 · 81156-0KP30 · 81156-YP500 |
| 81160A | Left headlight LED assembly assembly | 81160-0KK90 |
| 81169 | Left headlight reflector | 81169-0KE80 |
| 81175 | Left headlight assembly | 81170-0K782 · 81170-0K792 · 81170-0KJ70 · 81170-0KK60 · 81170-0KK80 · 81185-0KT90 · 81185-YP380 · 81185-YP510 |
| 81510C | Bulb (for front turn signal lamp) | 90981-15021 · 90981-15028 |
| 81510J | AMPOULE(POUR FEU DE CIRCULATION DIURNE) | 90981-13088 |
| 81510L | PRISES FEMELLE, FEU DE CIRCULATION DIURNE | 90075-60086 |
| 81515B | Front turn signal lamp holder | 90075-60028 · 90075-60069 |
| 85661 | Right headlight beam height adjustment motor | 85661-02040 · 85661-0D020 |
| 85662 | Left headlight beam height adjustment motor | 85661-02040 · 85661-0D020 |
| 85669 | Headlight beam height adjustment motor base seal | 90075-99120 |
| 85967 | Light control ECU | 85967-12050 |
