Toyota HILUX 锁芯组件 — Figure 6765

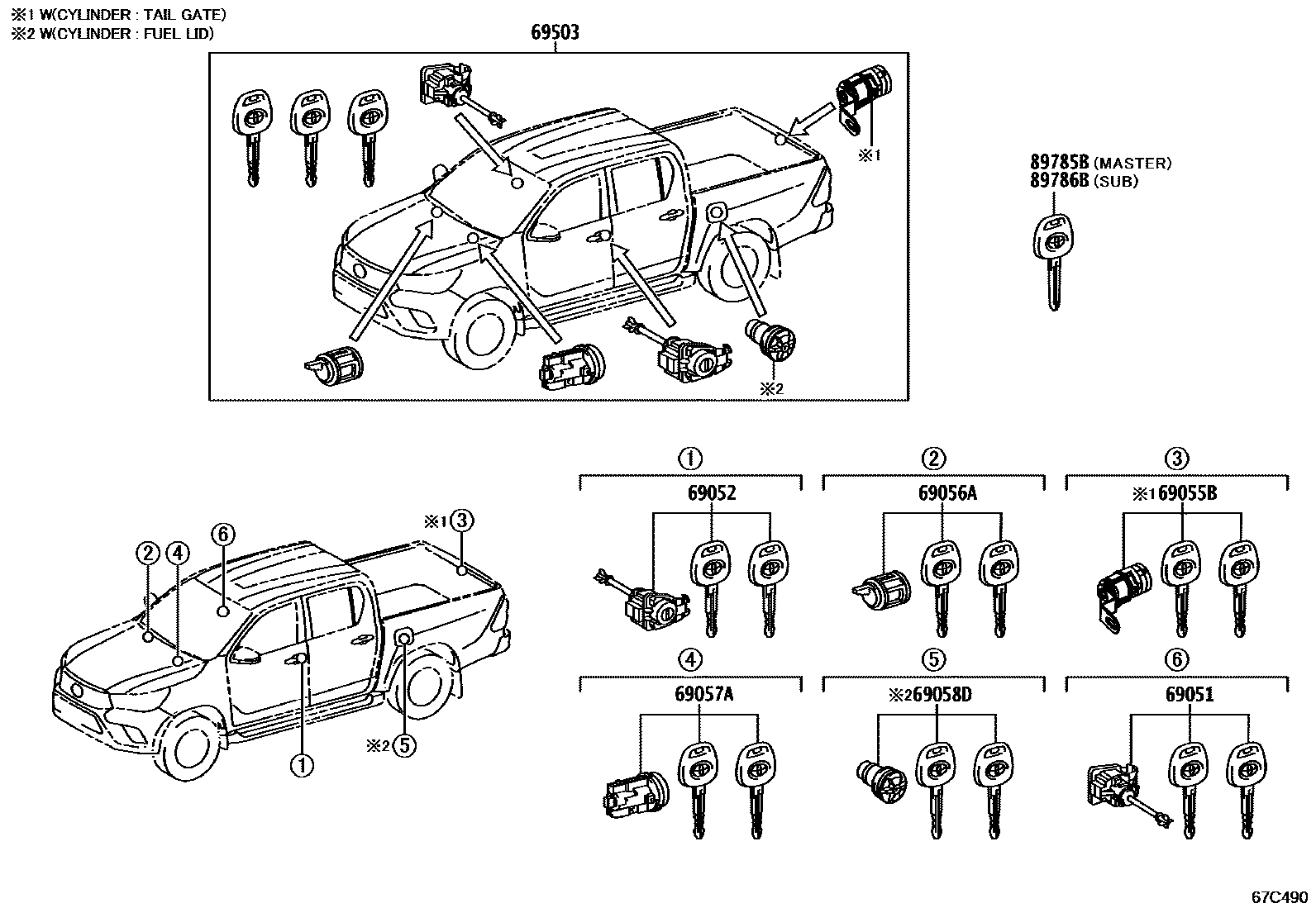

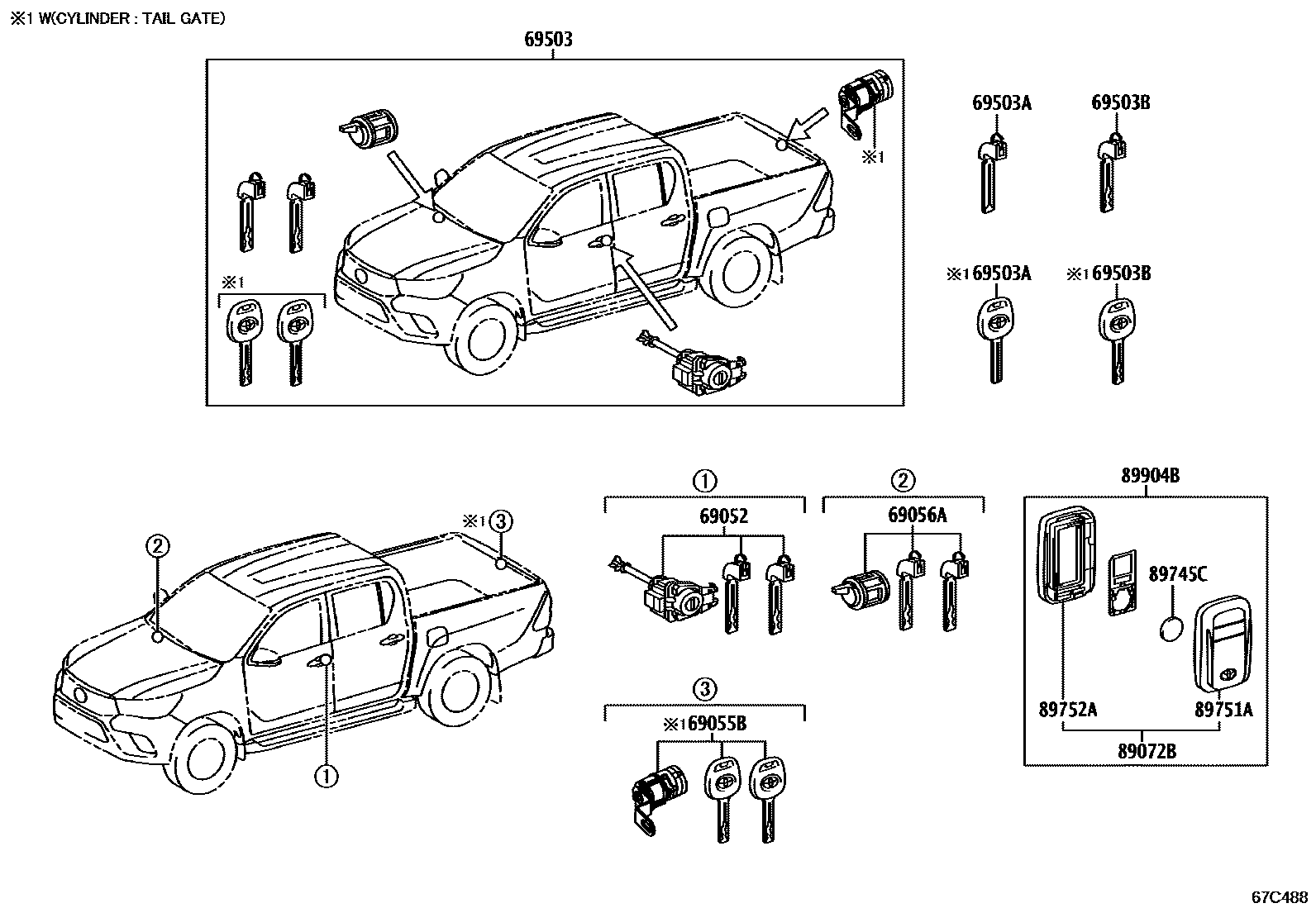

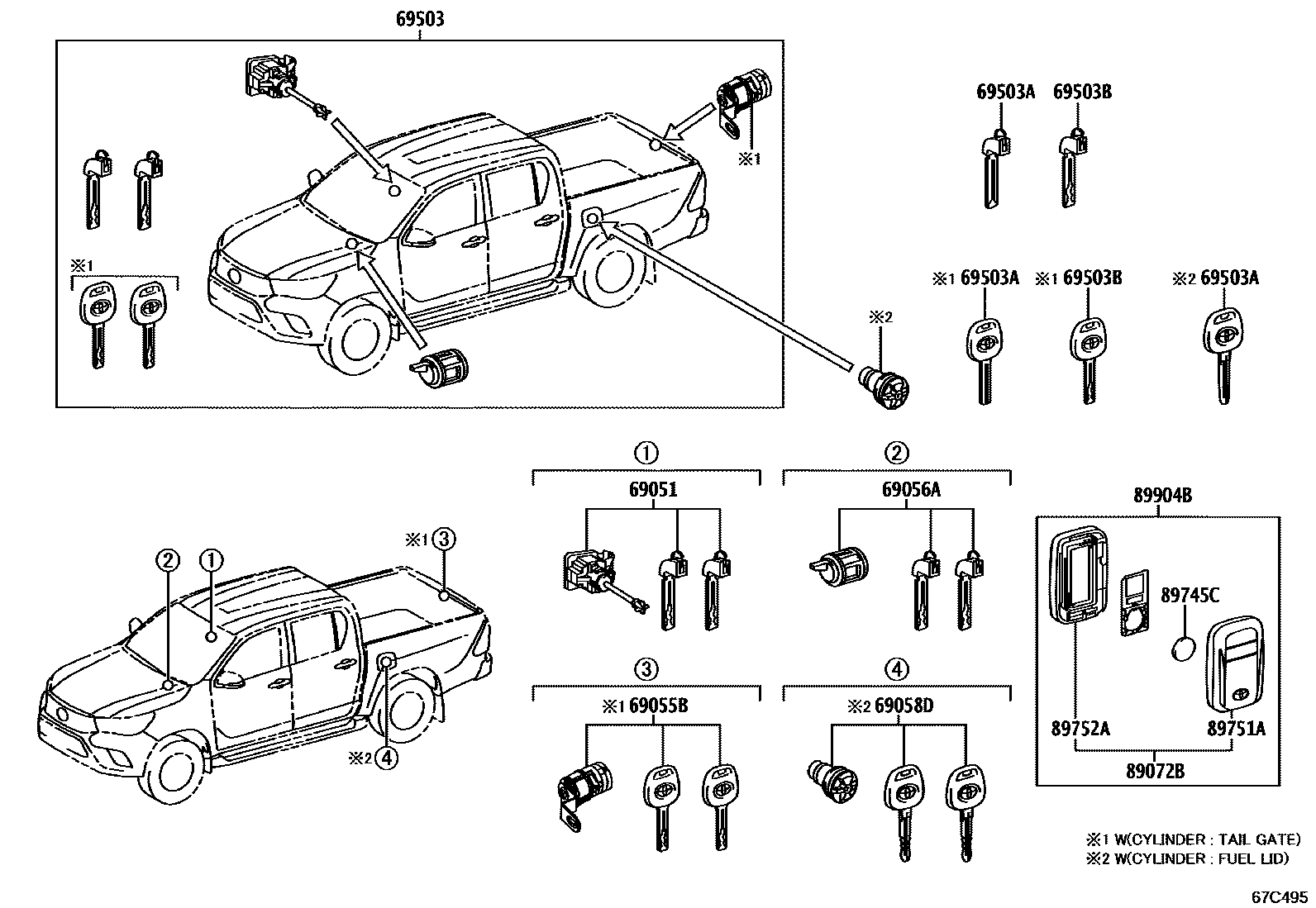

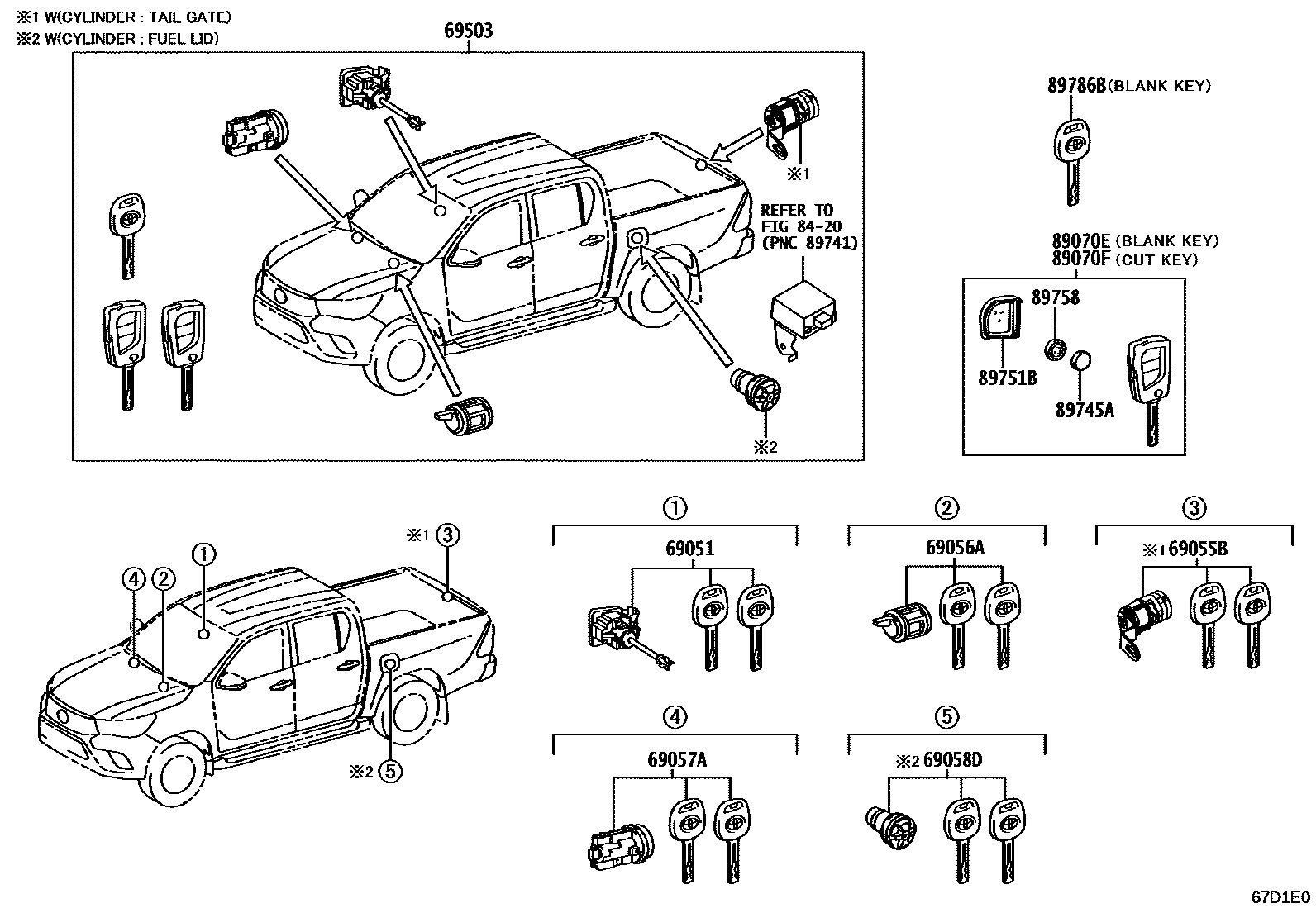

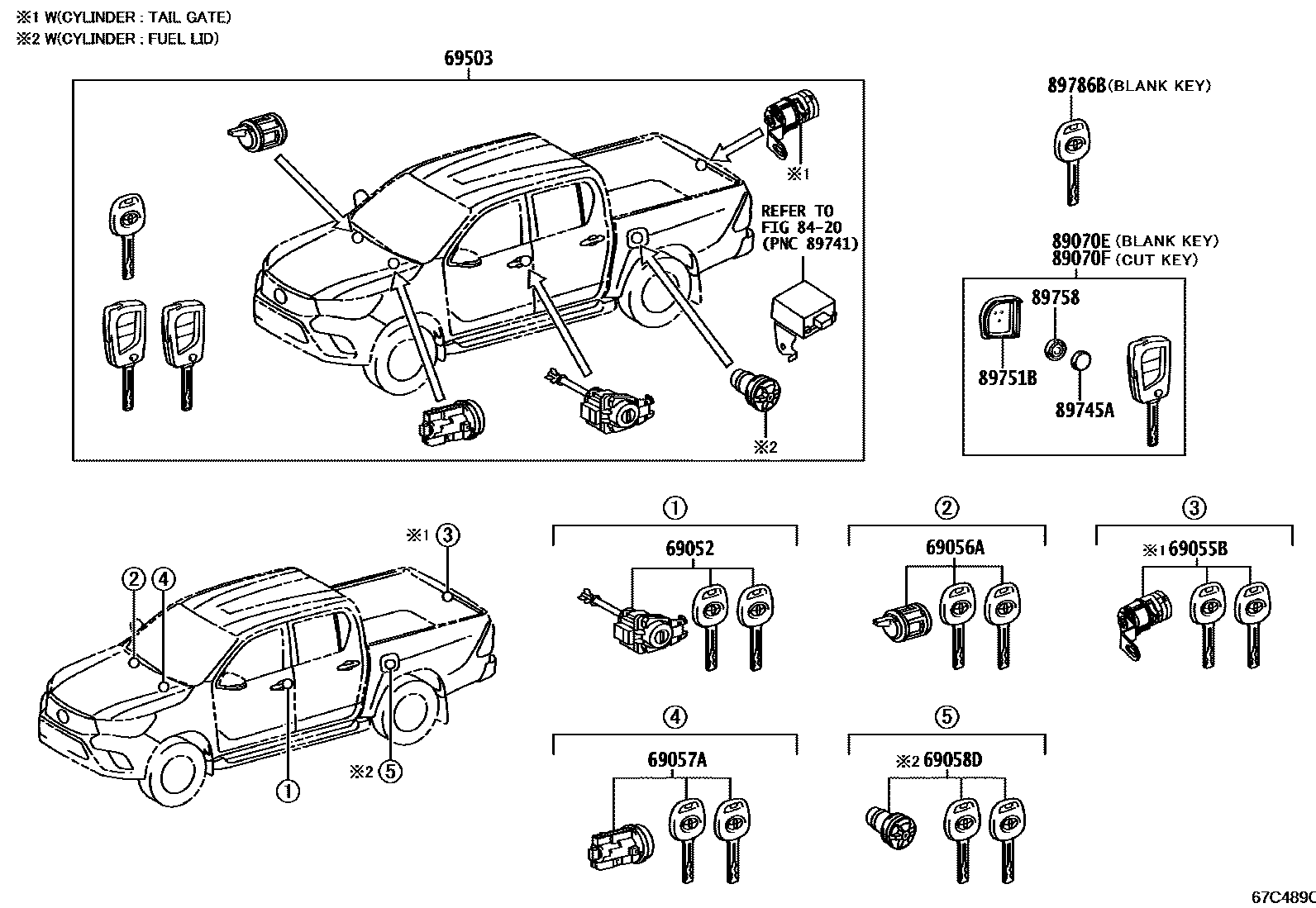

Toyota HILUX EPC diagram 6765, 锁芯组件, with 5 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-0K060 · 69051-0K070 · 69051-0K080 |
| 69052 | Left door lock cylinder and key assembly | 69052-0K050 · 69052-0K060 · 69052-0K070 |
| 69055B | Rear door lock cylinder and key assembly | 69055-0K060 · 69055-0K070 · 69055-0K080 |
| 69056A | Glove box lock cylinder and key assembly | 69056-0K040 · 69056-0K050 · 69056-0K060 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-0K210 · 69057-0K220 |
| 69058D | Fuel tank filler cap lock cylinder and key assembly | 69058-0K030 · 69058-0K040 |
| 69503 | Door lock cylinder components | 69005-0KB50 · 69005-0KB70 · 69005-0KC50 · 69005-0KD10 · 89704-0KS20 · 89704-0KU20 · 89704-0KU30 · 89704-0KV00 · 89704-0KV80 · 89704-0KW00 |
| 69503A | external tooth key | 69515-0K100 · 69515-0K130 |
| 69503B | internal tooth key | 69515-0K070 · 69515-0K120 |
| 89070E | Remote key assembly | 89070-0KE10 |
| 89070F | Remote key assembly (internal tooth key) | 89070-0KE00 |
| 89072B | Remote key shell assembly (for smart key) | 89072-0K871 · 89072-0KG11 · 89072-0KJ11 |
| 89745A | Transmitter battery | 89745-0D040 |
| 89745C | Transmitter battery | 89745-0K010 |
| 89751A | Transmitter housing cover | 89751-0K120 · 89751-0K370 |
| 89751B | Transmitter housing cover | 89751-0K191 · 89751-0K510 |
| 89752A | transmitter housing | 89752-0K811 · 89752-0K831 · 89752-0K871 |
| 89758 | Remote key seal | 89758-02010 |
| 89785B | transceiver key master transmitter | 89785-0D170 |
| 89786B | transceiver key secondary transmitter | 89786-0K070 · 89786-0K150 · 89786-0R020 |
| 89904B | Electronic key transmitter sub-assembly | 89904-0K841 · 89904-0KM41 · 89904-0KN51 |
