Toyota HILUX 前地板和前地板梁 — Figure 5851
Toyota HILUX EPC diagram 5851, 前地板和前地板梁, with 6 images and 42 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

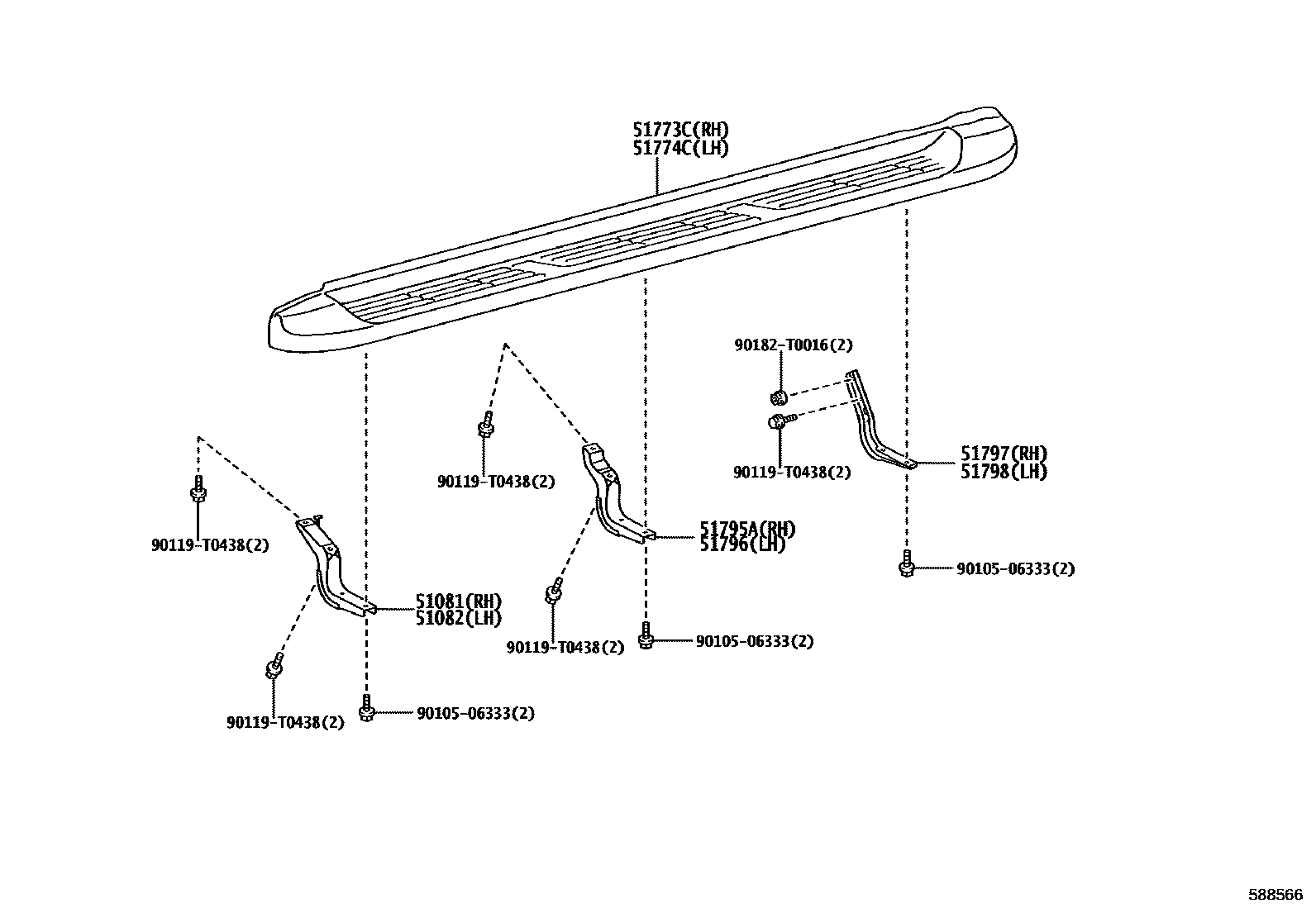

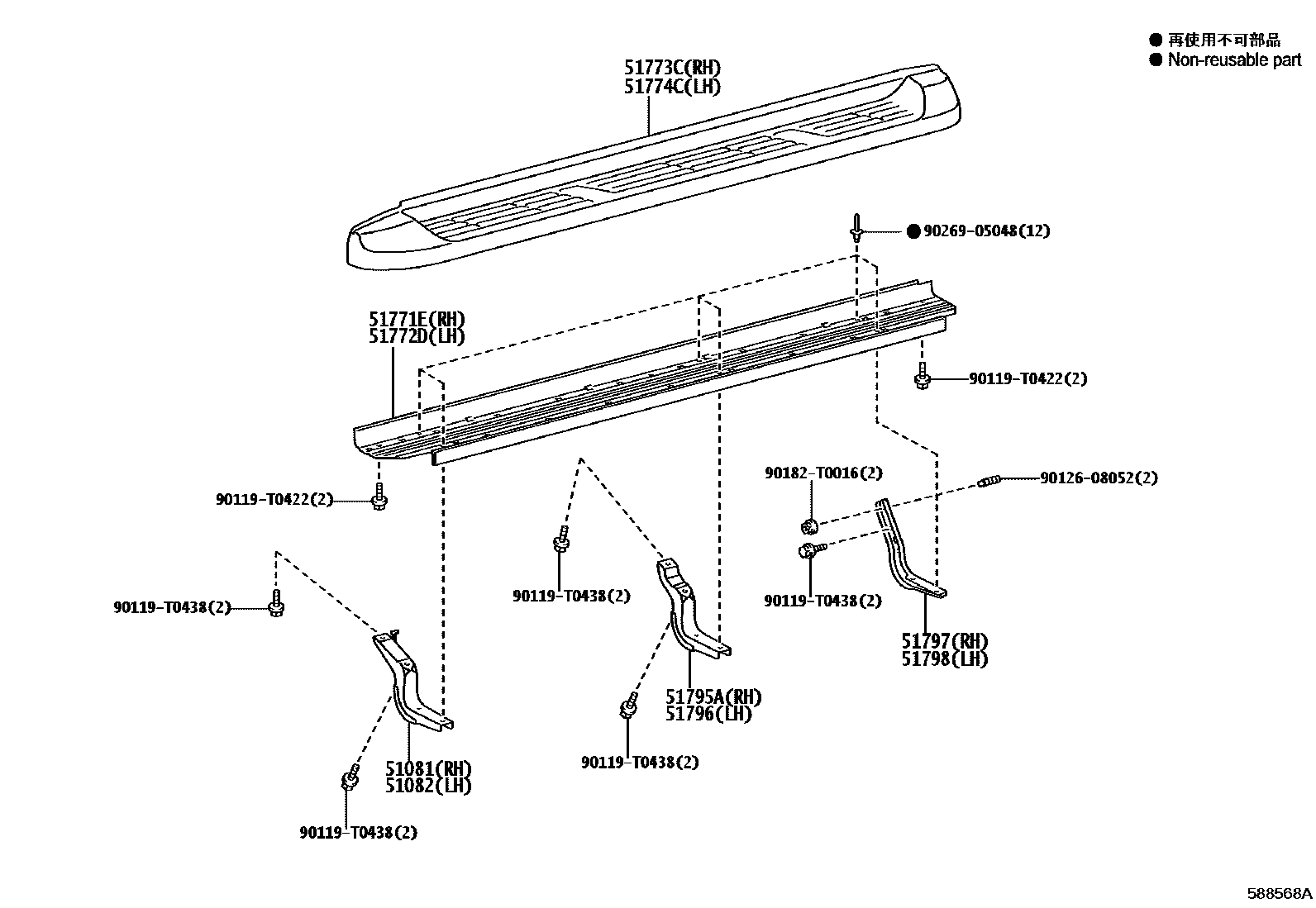

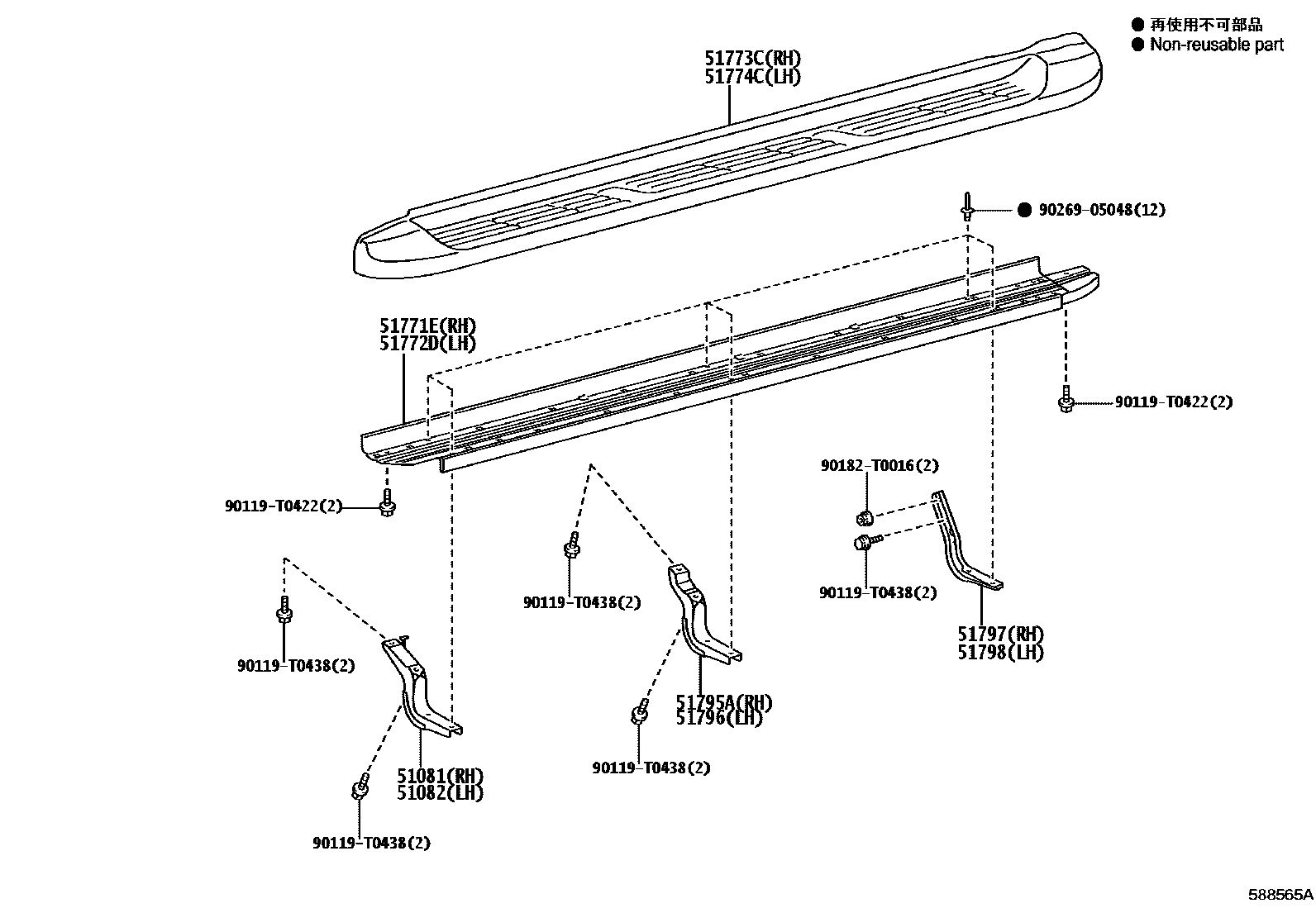

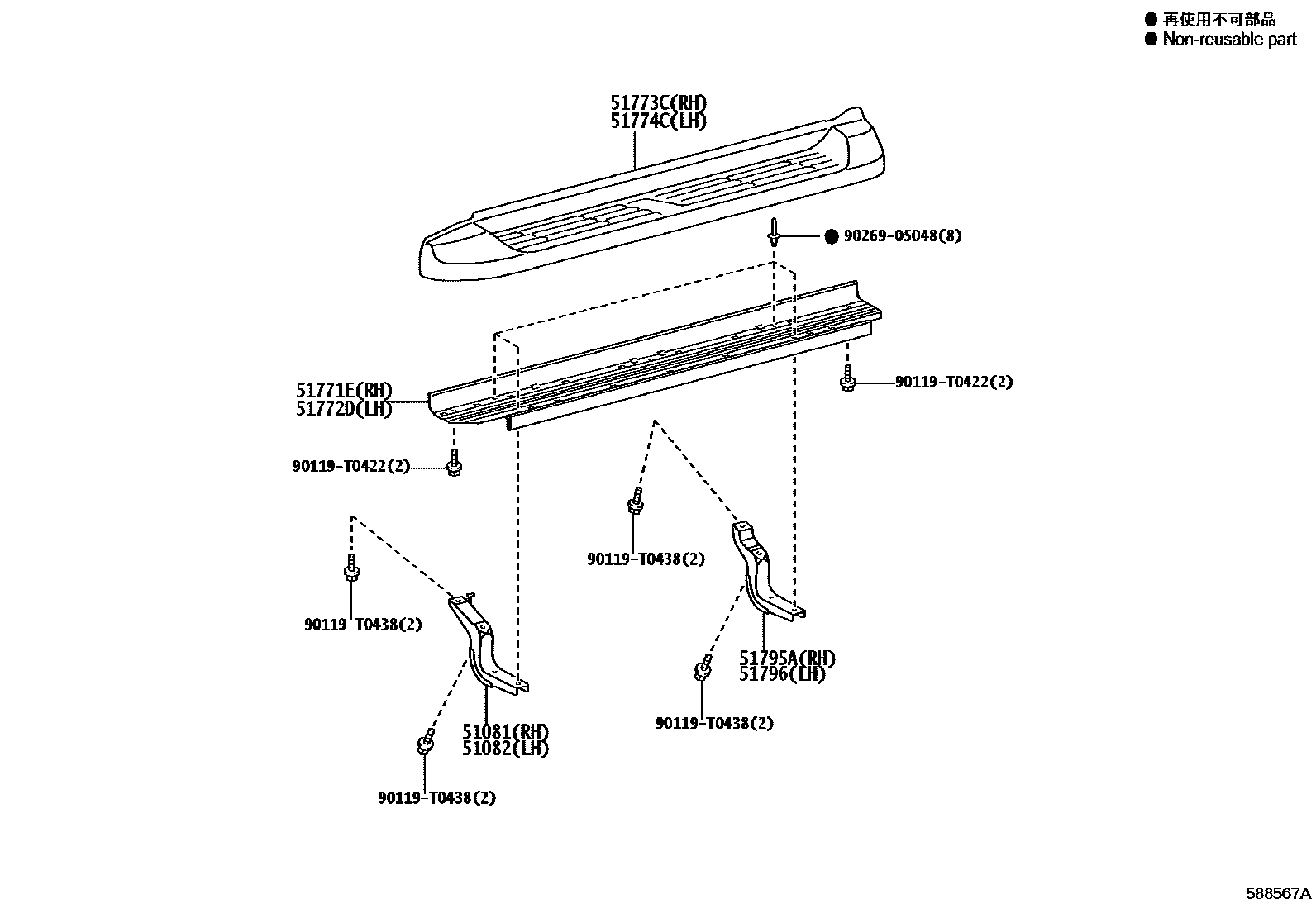

| 51081 | Right foot plate No. 1 stay sub-assembly | 51081-0K070 · 51081-0K160 |
| 51082 | Left foot plate No. 1 stay sub-assembly | 51082-0K070 · 51082-0K160 |
| 51771E | Right pedal | 51771-0K260 · 51771-0K300 · 51771-0K360 |
| 51772D | Left running board lining | 51772-0K260 · 51772-0K300 · 51772-0K360 |
| 51773C | Right pedal lining cover | 51701-0K040 · 51701-0K060 · 51701-0K090 · 51701-0K210 |
| 51774C | Left pedal lining cover | 51702-0K040 · 51702-0K060 · 51702-0K090 · 51702-0K200 |
| 51795A | Right footboard bracket No. 2 | 51795-0K140 · 51795-0K160 · 51795-0K200 |
| 51796 | Left side step plate No. 2 bracket | 51795-0K140 · 51795-0K160 · 51795-0K200 |
| 51797 | Right footboard bracket No. 3 | 51797-0K130 · 51797-0K200 |
| 51798 | Left footboard No. 3 bracket | 51798-0K200 · 51798-0K210 |

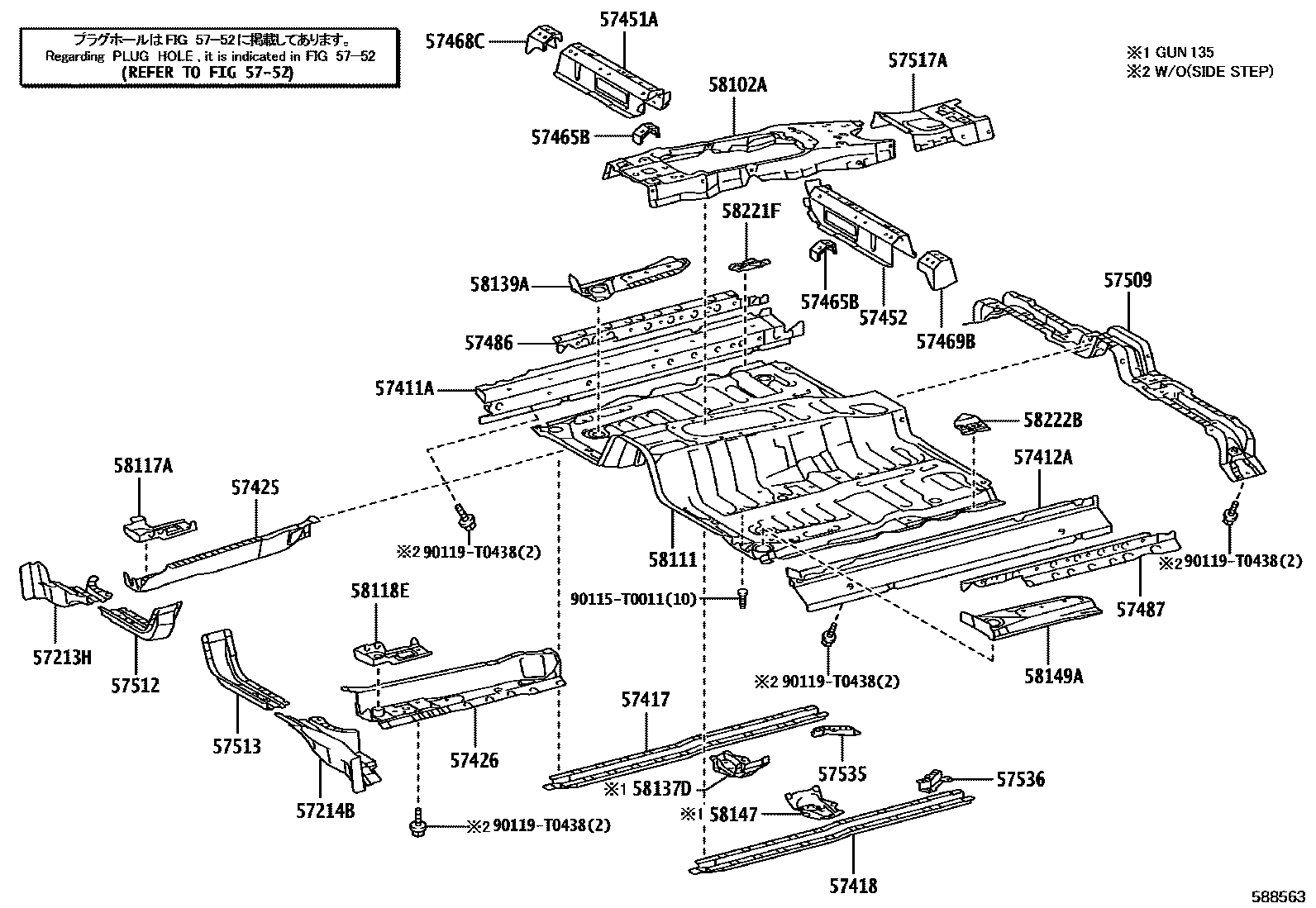

| 57213H | Right body No. 2 mounting bracket | 57213-KK010 |
| 57214B | Left body No. 2 mounting bracket | 57214-KK010 |
| 57411A | Floor right inner longitudinal beam | 57411-KK020 |
| 57412A | Floor left inner longitudinal beam | 57412-KK020 |
| 57417 | Front floor lower right reinforcement | 57417-0K010 |
| 57418 | Front floor lower left reinforcement | 57418-0K011 |
| 57425 | Front floor No. 2 right reinforcement | 57425-KK010 |
| 57426 | Front floor No. 2 left reinforcement | 57426-KK010 |
| 57451A | Front floor right cross member | 57451-KK010 · 57451-KK030 |
| 57452 | Front floor left cross member | 57452-KK010 · 57452-KK020 |
| 57465B | Front seat inner bracket | 57465-KK010 |
| 57468C | Front right seat outer bracket | 57468-KK010 |
| 57469B | Front seat left outer bracket | 57469-KK010 |
| 57486 | Floor No. 1 right longitudinal beam reinforcement | 57486-KK010 |
| 57487 | Floor No. 1 left longitudinal beam reinforcement | 57487-KK010 |
| 57509 | Front floor center reinforcement sub-assembly | 57509-KK010 · 57509-KK020 |
| 57512 | Front floor right reinforcement | 57512-0K030 |
| 57513 | Front floor left reinforcement | 57513-0K010 |
| 57517A | Front floor and rear reinforcement fixings | 57517-KK010 · 57517-KK020 · 57517-KK030 · 57517-KK040 |
| 57535 | Front floor right bracket | 57535-KK010 |
| 57536 | Front floor left bracket | 57536-KK010 |
| 58102A | Front floor reinforcement sub-assembly | 58102-KK010 · 58102-KK020 · 58102-KK030 · 58102-KK040 |
| 58111 | front floor pan | 58111-KK120 · 58111-KK130 · 58111-KK140 · 58111-KK150 · 58111-KK160 · 58111-KK170 |
| 58117A | Front floor right reinforcement | 58117-KK010 · 58117-KK020 |
| 58118E | Jack fixed bracket | 58118-KK010 · 58118-KK020 |
| 58137D | Front floor shell right front bracket | 58137-KK010 |
| 58139A | Front floor right rear side panel | 58139-KK010 |
| 58147 | Front floor shell left front bracket | 58147-KK010 |
| 58149A | Front floor left rear side panel | 58149-KK010 |
| 58221F | Front floor right front reinforcement | 58221-KK010 · 58221-KK020 |
| 58222B | Front floor left front reinforcement | 58222-KK010 · 58222-KK020 |

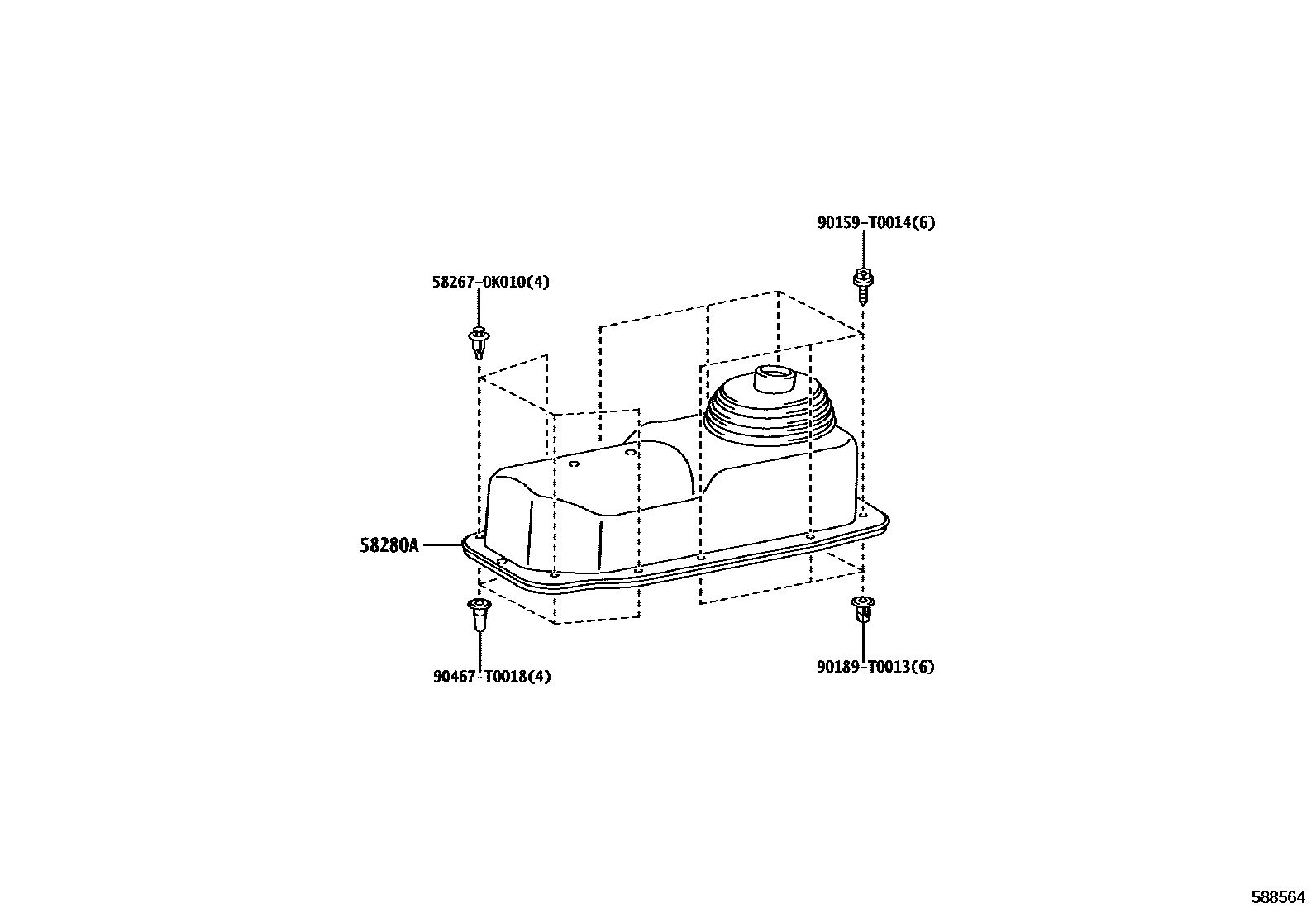

| 58280A | Shift lever dust cover assembly | 58280-KK010 · 58280-KK020 |
