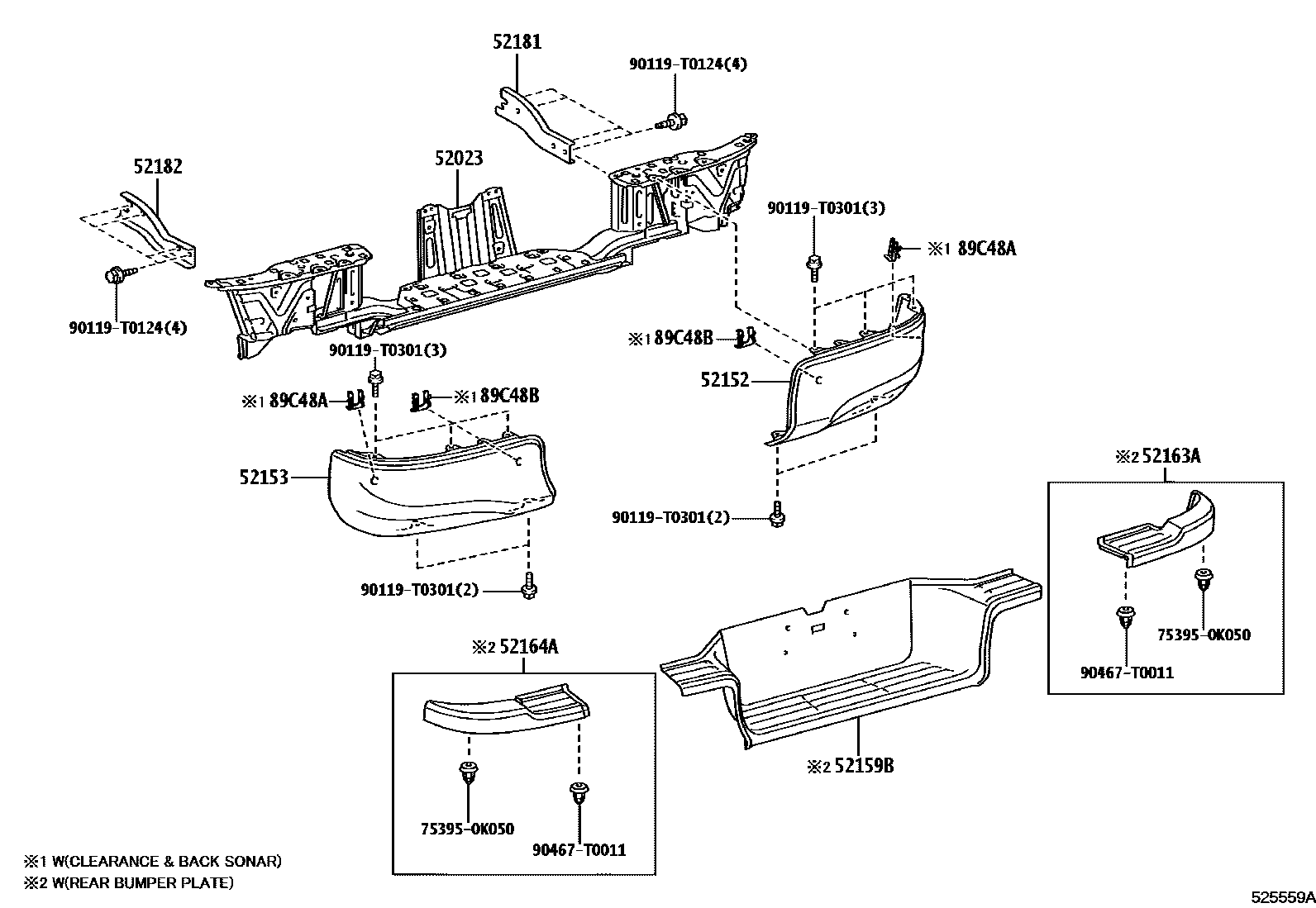

Toyota HILUX 后保险杠及附件 — Figure 5253
Toyota HILUX EPC diagram 5253, 后保险杠及附件, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52023 | Rear bumper reinforcement sub-assembly | 52023-0K041 · 52023-0K061 · 52023-0K120 |
| 52152 | Rear bumper right side stay | 52150-0K750 · 52151-0K060 · 52151-0K070 · 52151-0K090 · 52151-0K100 · 52151-0K210 · 52151-0K230 · 52151-0K240 · 52151-0K270 · 52151-YY120 · 52151-YY140 |
| 52153 | Rear bumper left support | 52152-0K060 · 52152-0K070 · 52152-0K090 · 52152-0K100 · 52152-0K210 · 52152-0K230 · 52152-0K240 · 52152-0K270 · 52152-YY060 · 52152-YY080 · 52160-0K750 |
| 52159B | rear bumper bezel | 52159-0K291 · 52159-0K301 |
| 52163A | Rear bumper right side fender | 52163-0K030 · 52163-0K040 |
| 52164A | Rear bumper left fender | 52164-0K030 · 52164-0K040 |
| 52181 | Rear bumper right arm | 52181-0K060 · 52181-0K070 |
| 52182 | Rear bumper left arm | 52182-0K060 · 52182-0K070 |
| 89C48A | ARRETOIR, CAPTEUR A ULTRASONS, D'ANGLE ARRIERE | 89348-71020 |
| 89C48B | ARRETOIR, CAPTEUR A ULTRASONS, CENTRAL ARRIERE | 89348-71030 |
