Toyota HILUX 后桥壳和差速器 — Figure 4101

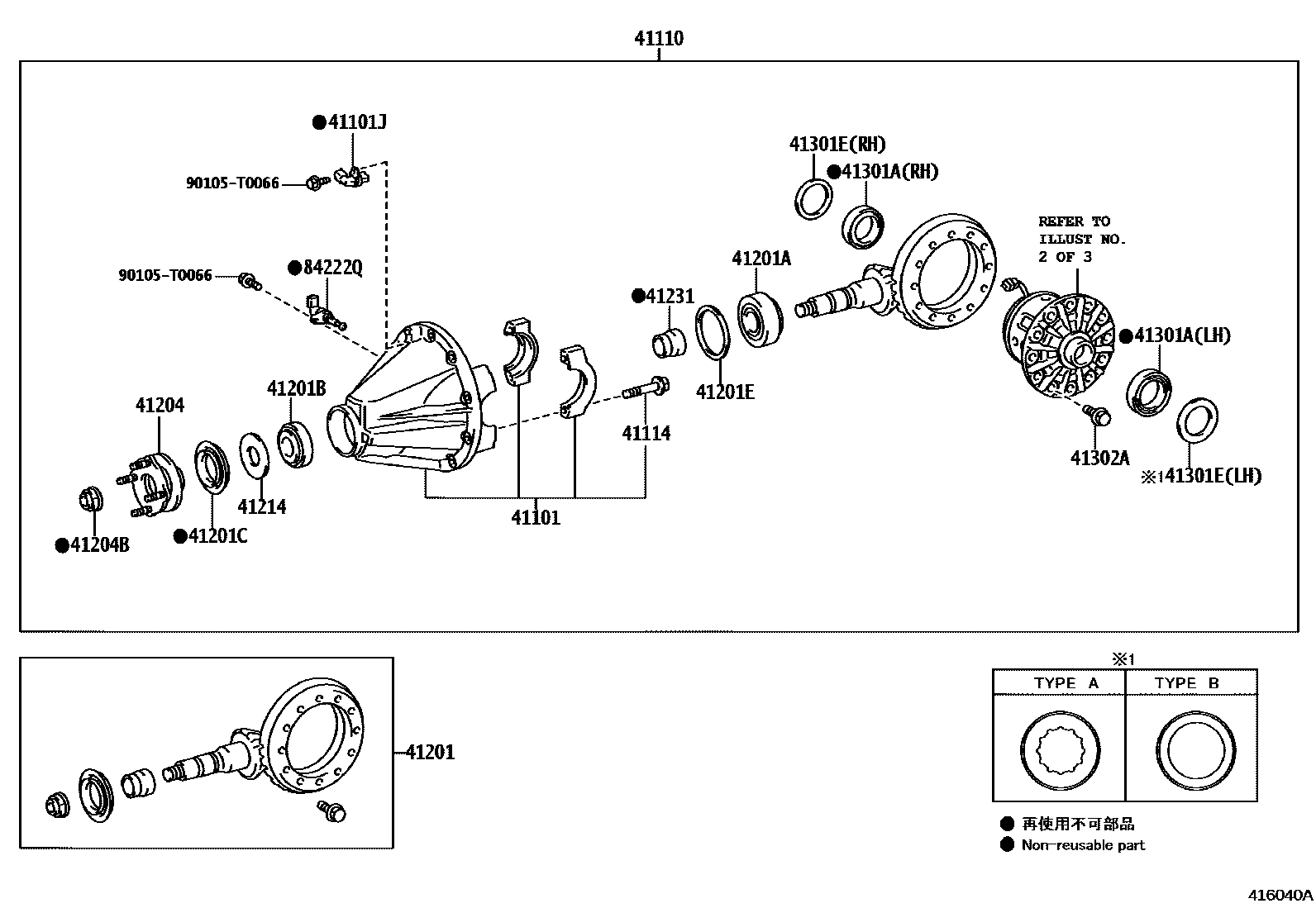

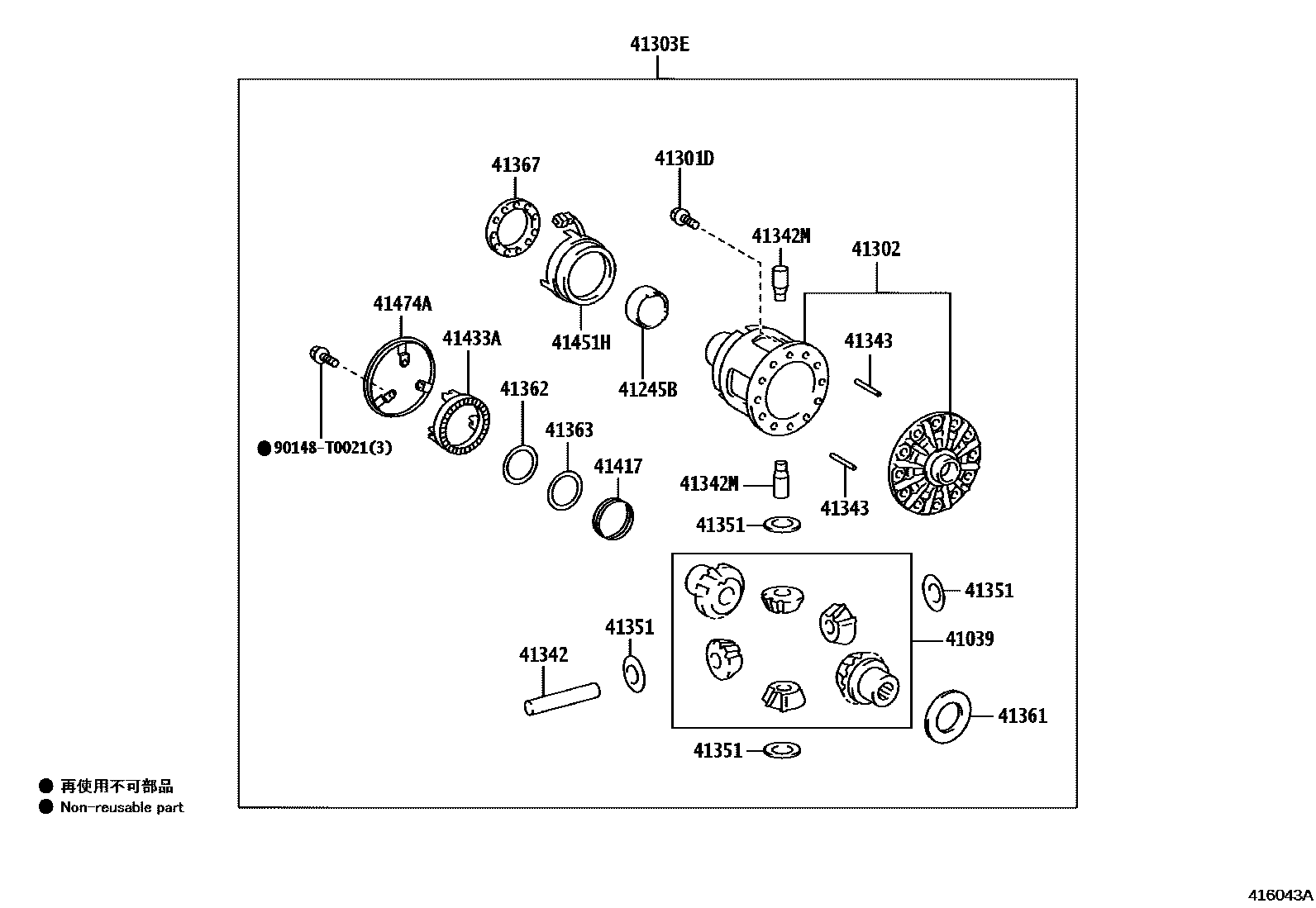

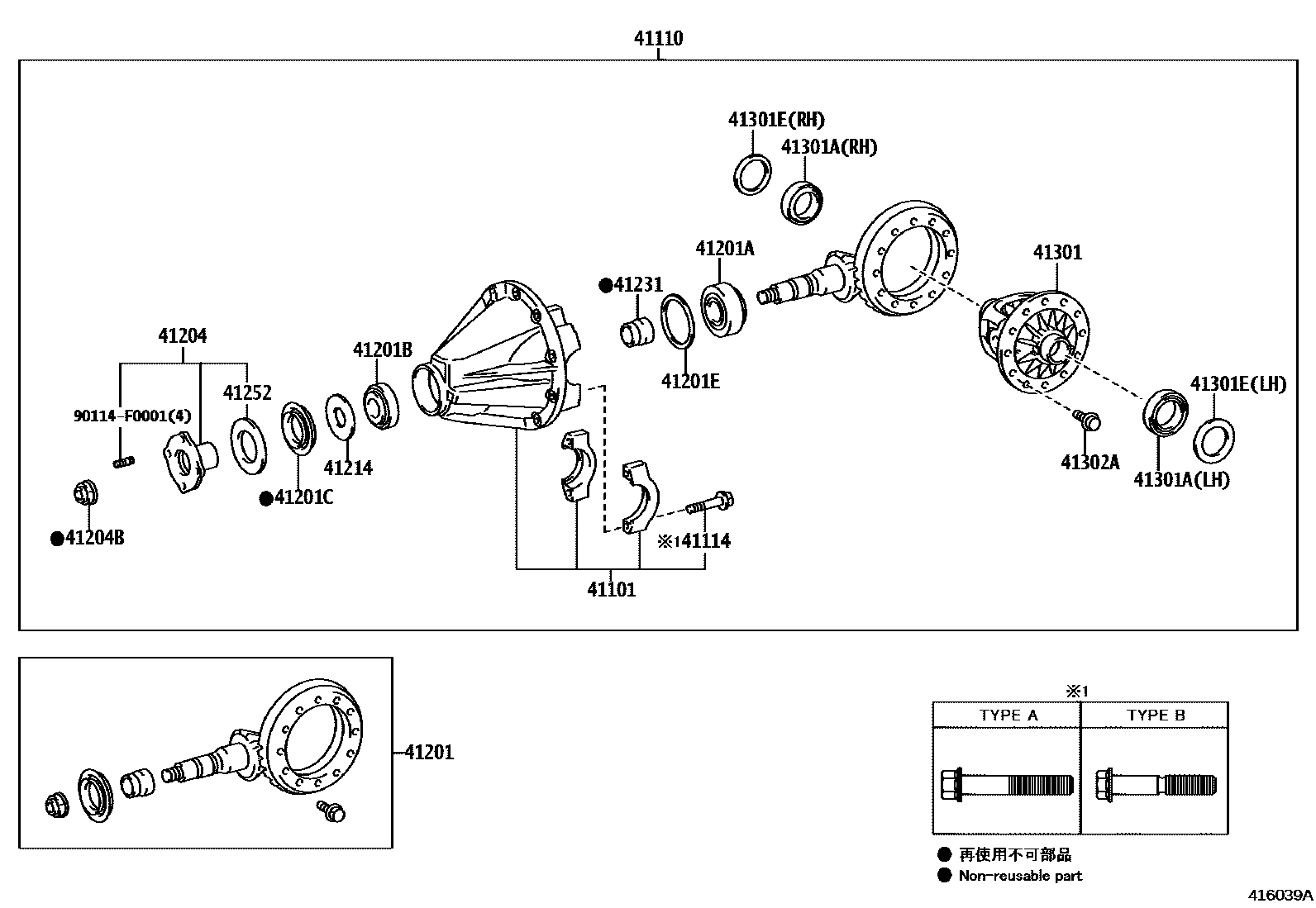

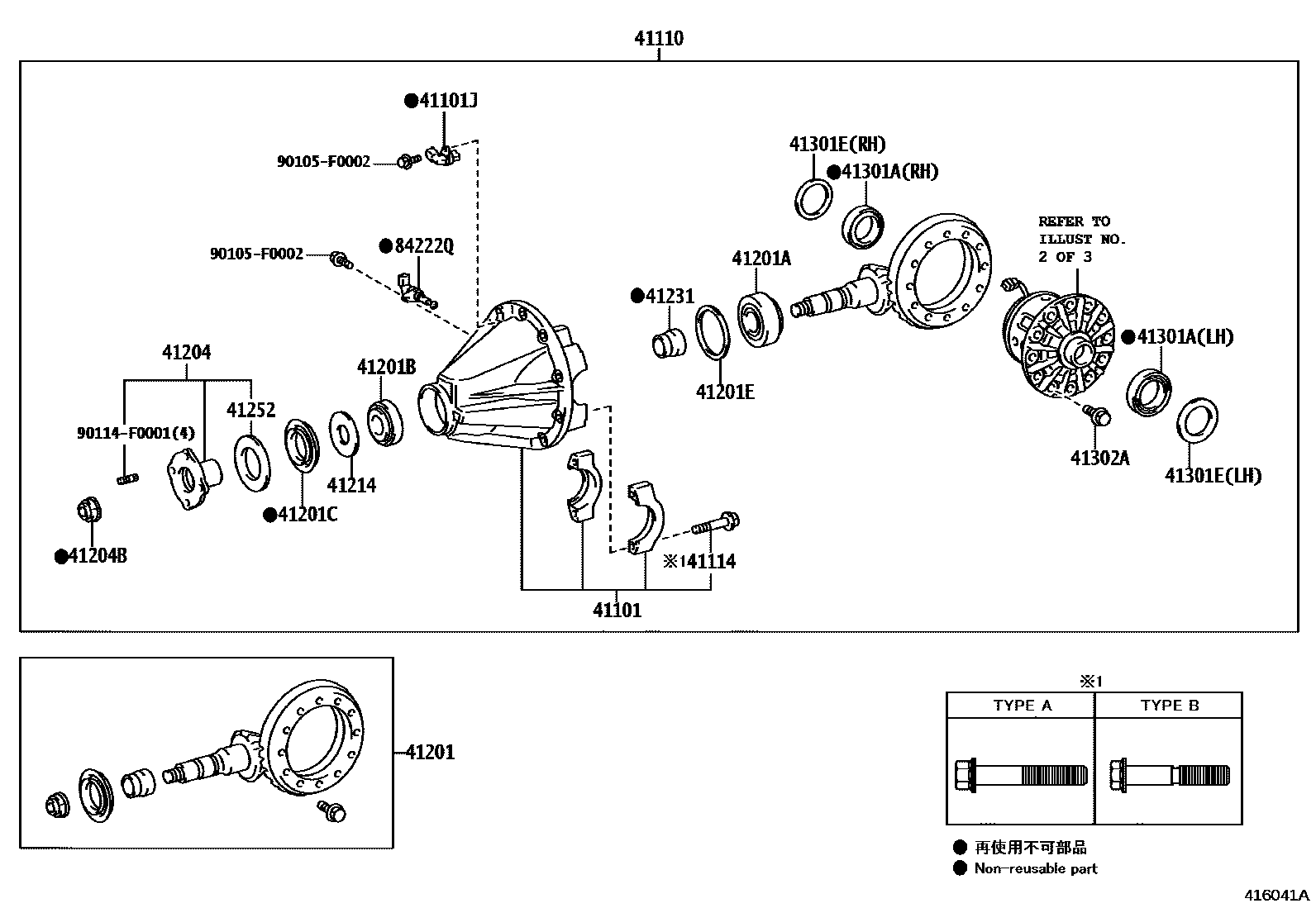

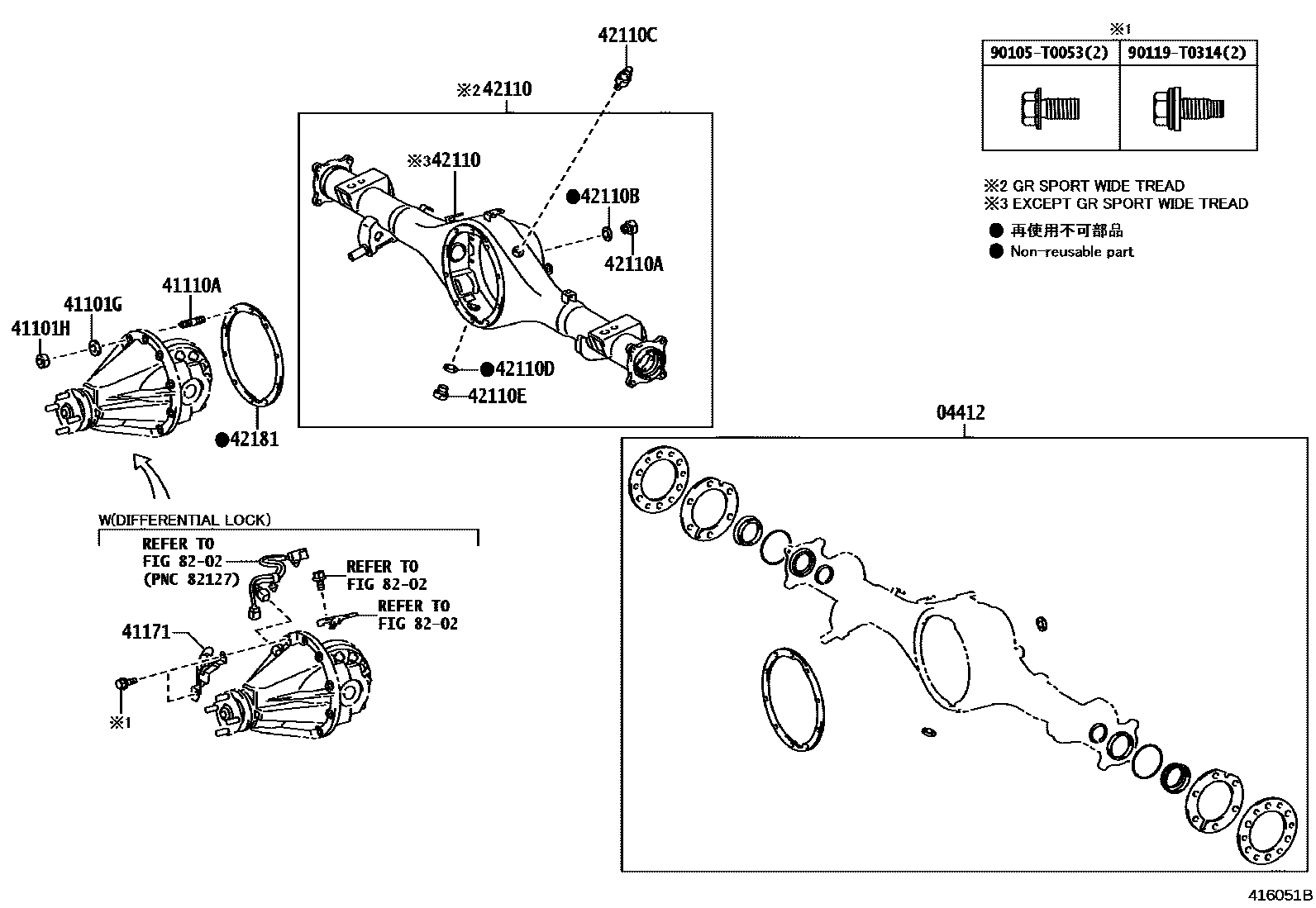

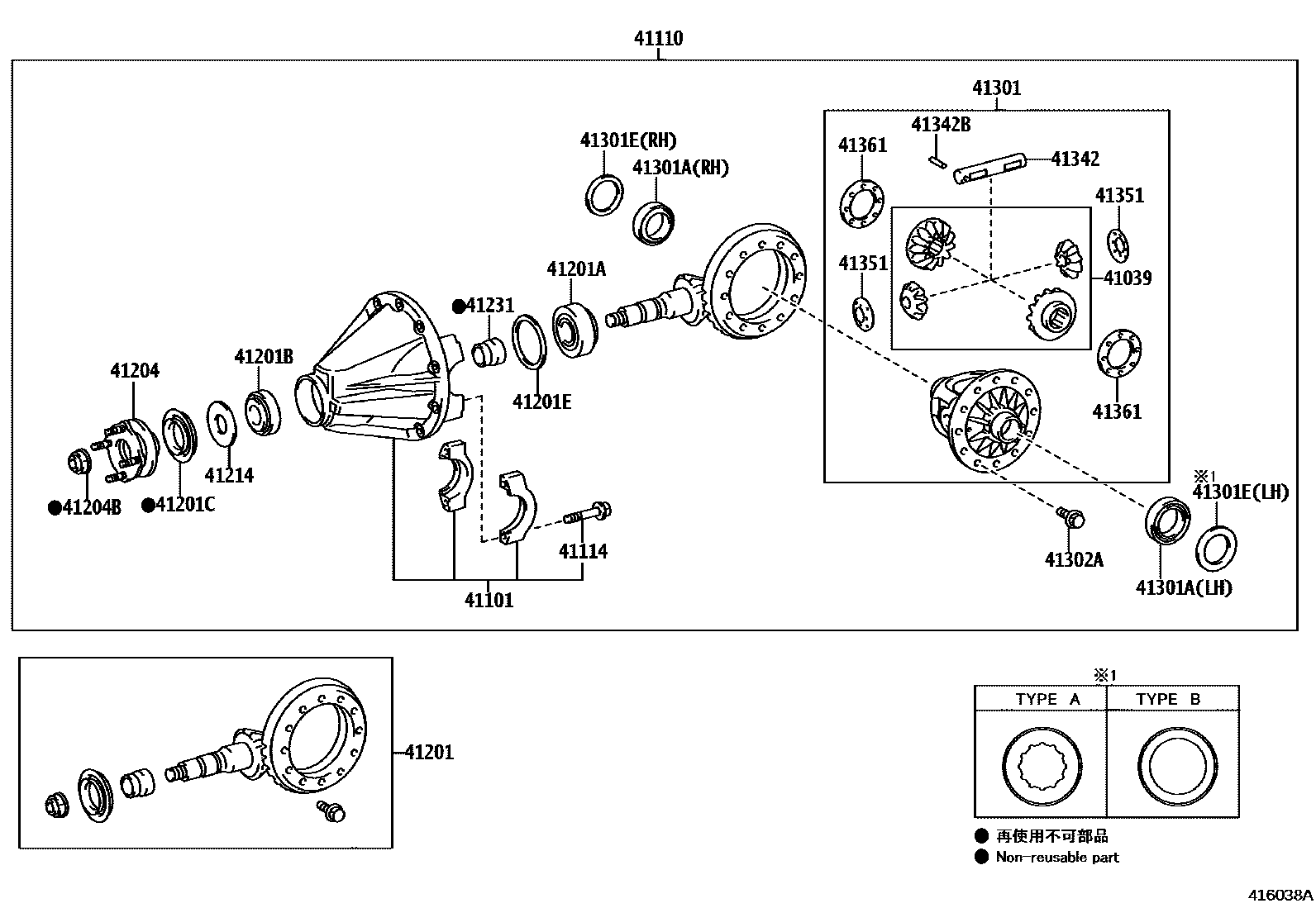

Toyota HILUX EPC diagram 4101, 后桥壳和差速器, with 6 images and 49 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04412 | Rear differential carrier gasket assembly | 04412-0K540 · 04412-0K570 |
| 41039 | rear differential gear assembly | 41039-0K010 · 41039-71070 |
| 41101 | Rear differential bracket sub-assembly | 41101-0K070 · 41101-0K080 · 41101-0K110 · 41101-0K120 |
| 41101G | RONDELLE, RESSORT(POUR JEU SUPPORTS DIFFERENTIEL ARR) | 94621-11000 |
| 41101H | ECROU, HEXAGONAL(POUR JEU SUPPORTS DIFFERENTIEL ARR) | 90170-T0017 |
| 41101J | CONNECTEUR DE FAISCEAU DE FILS | 82824-0K060 · 82824-0K080 |
| 41110 | Rear differential bracket assembly | 41110-0K570 · 41110-0K590 · 41110-0K620 · 41110-0K630 · 41110-0K640 · 41110-0K770 · 41110-0K771 · 41110-0K820 · 41110-0K821 · 41110-0K830 · 41110-0K831 · 41110-0K840 · 41110-0K841 |
| 41110A | Bolt No. 1 (for rear differential case assembly) | 90116-10074 |
| 41114 | Rear differential bearing cap bolts | 90105-F0001 · 90109-F0001 · 90109-T0030 |
| 41171 | Rear differential protector | 41171-0K010 · 41171-0K030 |
| 41201 | Rear differential final drive gear assembly | 41201-09B60 · 41201-09B70 · 41201-09B80 · 41201-09E41 · 41201-09E42 · 41201-09F70 · 41201-09F71 · 41201-09F80 · 41201-09F81 |
| 41201A | Rear tapered bearing (for rear driving pinion) | 90366-S0016 · 90366-T0065 |
| 41201B | Front roller tapered bearing (for rear drive pinion) | 90366-S0013 · 90366-T0062 |
| 41201C | Oil seal (for rear differential case) | 90311-53001 · 90311-S0001 · 90311-T0065 |
| 41201E | Front adjustment shim (for rear differential drive pinion spacer) | 90564-78001 · 90564-78002 · 90564-78003 · 90564-78004 · 90564-78005 · 90564-78006 · 90564-78007 · 90564-78008 · 90564-78009 · 90564-78010 · 90564-78011 · 90564-78012 · 90564-78013 · 90564-78014 · 90564-78015 · 90564-78016 · 90564-78017 · 90564-78018 · 90564-78019 · 90564-78020 · 90564-78021 · 90564-78022 · 90564-78023 · 90564-78024 · 90564-S0001 · 90564-S0002 · 90564-S0003 · 90564-S0004 · 90564-S0005 · 90564-S0006 · 90564-S0007 · 90564-S0008 · 90564-S0009 · 90564-S0010 · 90564-S0011 · 90564-S0012 · 90564-S0013 · 90564-S0014 · 90564-S0015 · 90564-S0016 · 90564-S0017 · 90564-S0018 · 90564-S0019 |
| 41204 | Rear driving pinion rear coupling flange sub-assembly | 41204-0K110 · 41204-0K131 |
| 41204B | Nut (for rear driving pinion) | 90178-F0001 · 90179-22029 |
| 41214 | Rear differential drive pinion oil retaining ring | 41214-0K040 · 41214-0K050 |
| 41231 | Rear differential drive pinion bearing spacer | 41231-0K030 · 41231-71010 |
| 41245B | PLONGEUR, VERR DIFFERENTIEL | 41245-0K010 · 41245-0K020 |
| 41252 | Dust cover (for rear differential) | 41252-0K111 |
| 41301 | Rear differential housing sub-assembly | 41301-0K100 · 41301-0K120 |
| 41301A | Bearings (for rear differential housing) | 90366-S0019 · 90366-S0022 · 90366-T0068 · 90366-T0071 |
| 41301D | Screws (for rear differential case) | 90151-A0006 · 90151-T0004 |
| 41301E | Gasket (for differential case) | 90201-52001 · 90201-52003 · 90564-46014 · 90564-46015 · 90564-46016 · 90564-46017 · 90564-46044 · 90564-46045 · 90564-46046 · 90564-46047 · 90564-46048 · 90564-46049 · 90564-46050 · 90564-46051 · 90564-46053 · 90564-46054 · 90564-46055 · 90564-46056 · 90564-46057 · 90564-46058 · 90564-46059 · 90564-46060 · 90564-46061 · 90564-46062 · 90564-46063 · 90564-46064 · 90564-46065 · 90564-46066 · 90564-46067 · 90564-46068 · 90564-46069 · 90564-59044 · 90564-59045 · 90564-59046 · 90564-59047 · 90564-59048 · 90564-59049 · 90564-59050 · 90564-59051 · 90564-59052 · 90564-59053 · 90564-59054 · 90564-59055 · 90564-59056 · 90564-59057 · 90564-59058 · 90564-59059 · 90564-59060 · 90564-59061 · 90564-59062 · 90564-59063 · 90564-59064 · 90564-59065 · 90564-59066 · 90564-59067 · 90564-59068 · 90564-59069 · 90564-59070 · 90564-59071 · 90564-59072 · 90564-59073 · 90564-59074 · 90564-59075 · 90564-59076 · 90564-59077 · 90564-59078 · 90564-59079 · 90564-59080 · 90564-59081 · 90564-59082 · 90564-59083 · 90564-59084 · 90564-59085 · 90564-59086 · 90564-59087 · 90564-59088 · 90564-59089 · 90564-59090 · 90564-59091 · 90564-59092 · 90564-59093 · 90564-59094 · 90564-59095 · 90564-59096 · 90564-59097 · 90564-59098 · 90564-59099 · 90564-59100 · 90564-59101 · 90564-59102 · 90564-59103 · 90564-59104 · 90564-59105 · 90564-59106 · 90564-S0025 · 90564-S0026 · 90564-S0027 · 90564-S0028 · 90564-S0029 · 90564-S0030 · 90564-S0031 · 90564-S0032 · 90564-S0033 · 90564-S0034 · 90564-S0035 · 90564-S0036 · 90564-S0037 · 90564-S0038 · 90564-S0039 · 90564-S0040 · 90564-S0041 · 90564-S0042 · 90564-S0043 · 90564-S0044 · 90564-S0045 · 90564-S0046 · 90564-S0047 · 90564-S0048 · 90564-S0049 · 90564-S0050 · 90564-S0051 · 90564-S0052 · 90564-S0053 · 90564-S0054 · 90564-S0055 · 90564-S0056 · 90564-S0057 · 90564-S0058 · 90564-S0059 · 90564-S0060 · 90564-S0061 · 90564-S0062 · 90564-S0063 · 90564-S0064 · 90564-S0065 · 90564-S0066 · 90564-S0067 · 90564-S0068 · 90564-S0069 · 90564-S0070 · 90564-S0071 · 90564-S0072 · 90564-S0073 · 90564-S0074 · 90564-S0075 · 90564-S0076 · 90564-S0077 · 90564-S0078 · 90564-S0079 · 90564-S0080 · 90564-S0081 · 90564-S0082 · 90564-S0083 · 90564-S0084 · 90564-S0085 · 90564-S0086 · 90564-S0087 · 90564-S0088 · 90564-S0089 · 90564-S0090 · 90564-S0091 · 90564-S0092 · 90564-S0093 · 90564-S0094 · 90564-S0095 · 90564-S0096 · 90564-S0097 · 90564-S0098 · 90564-S0099 · 90564-S0100 · 90564-S0101 · 90564-S0102 · 90564-S0103 · 90564-S0104 · 90564-S0105 · 90564-S0106 · 90564-S0107 · 90564-S0108 · 90564-S0109 · 90564-S0110 · 90564-S0111 · 90564-S0112 · 90564-S0113 · 90564-S0114 · 90564-S0115 · 90564-S0116 · 90564-S0117 · 90564-S0118 · 90564-S0119 · 90564-S0120 · 90564-S0121 · 90564-S0122 · 90564-S0123 · 90564-S0124 · 90564-S0125 |
| 41302 | Rear differential housing sub-assembly | 41302-0K020 · 41302-0K030 |
| 41302A | Bolt (for rear differential case) | 90105-F0003 · 90105-T0268 |
| 41303E | SS-ENS. BOITIER, VERROUILLAGE DIFFERENTIEL ELECTRONIQUE | 41303-0K010 · 41303-0K030 |
| 41342 | Rear differential planetary gear shaft | 41342-0K070 · 41342-0K080 |
| 41342B | Direct sales (for rear differential planetary gear shaft) | 90250-T0006 |
| 41342M | No. 2 rear differential planetary gear shaft | 41342-0K090 |
| 41343 | Rear differential planetary gear pin | 41343-0K010 · 41343-0K020 |
| 41351 | Rear differential planetary gear thrust washer | 41351-0K040 · 41351-0K050 · 41351-0K060 |
| 41361 | No. 1 rear differential half gear thrust washer | 41361-0K110 · 41361-0K300 · 41361-0K310 · 41361-0K320 · 41361-0K330 · 41361-0K340 · 41361-0K350 · 41361-0K360 · 41361-0K370 · 41361-0K380 · 41361-0K390 · 41361-0K400 · 41361-0K410 · 41361-0K460 · 41361-0K470 · 41361-0K480 · 41361-0K490 |
| 41362 | No. 2 rear differential half gear thrust washer | 41361-0K420 · 41361-0K430 · 41361-0K440 · 41361-0K450 · 41361-0K500 · 41361-0K510 · 41361-0K520 · 41361-0K530 |
| 41363 | No. 3 rear differential half gear thrust washer | 41361-0K450 · 41361-0K530 |
| 41367 | RONDELLE, SOLENOIDE DIFFERENTIEL | 41367-0K010 · 41367-0K020 |
| 41417 | RESSORT, VERROUILLAGE DIFFERENTIEL | 41417-0K020 |
| 41433A | BAGUE, A CAMES VERROUILLAGE DIFFERENTIEL | 41433-0K010 |
| 41451H | BOBINE, VERROUILLAGE DIFFERENTIEL | 41451-0K010 · 41451-0K020 |
| 41474A | PLAQUE, POSITION VERROUILLAGE DIFFERENTIEL | 41474-0K010 |
| 42110 | Rear axle housing assembly | 42110-0K561 · 42110-KK110 · 42110-KK190 |
| 42110A | Screw plug (for rear axle housing oil filling port) | 90341-18006 |
| 42110B | Gasket (for rear axle housing oil filling plug) | 12157-10010 |
| 42110C | Breather plug (for rear axle housing) | 90930-03031 |
| 42110D | Gasket (for rear axle housing drain plug) | 12157-10010 |
| 42110E | Screw plug (for rear axle housing oil drain port) | 90341-18057 |
| 42181 | Rear differential case gasket | 42181-KK010 |
| 84222Q | CONTACTEUR, INFICATEUR DE VERROU DE DIFFERENTIEL | 84222-0K010 · 84222-0K030 |
