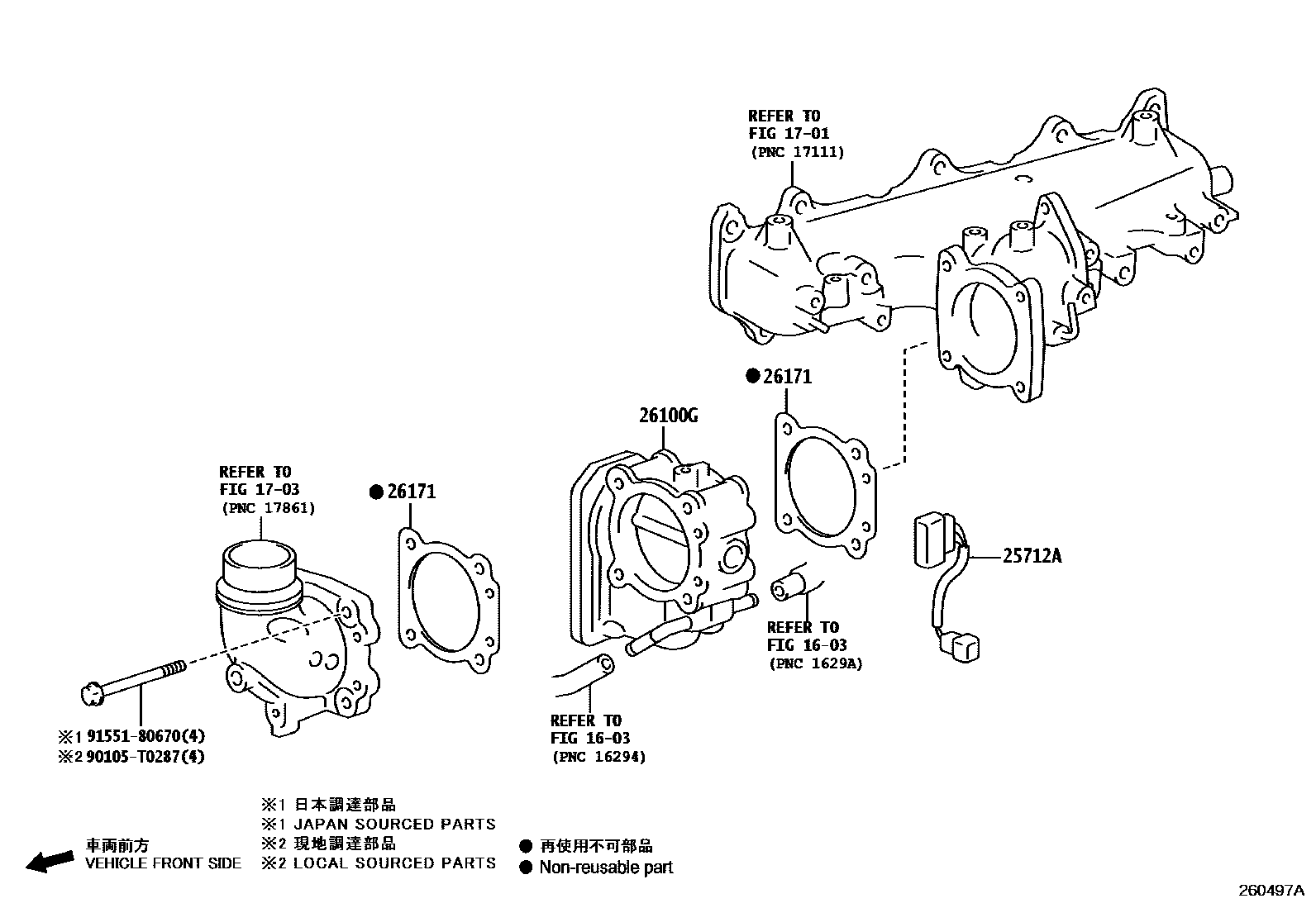

Toyota HILUX 文氏管 — Figure 2606
Toyota HILUX EPC diagram 2606, 文氏管, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 25712A | CABLE, SOUP COMM EMISSIONS | 25712-0E010 · 25712-0E020 |
| 26100G | Diesel engine throttle body assembly | 26100-0E040 |
| 26171 | Venturi gasket | 26171-0E030 · 26171-0E040 |
