Toyota HILUX 尿素罐和管 — Figure 2502

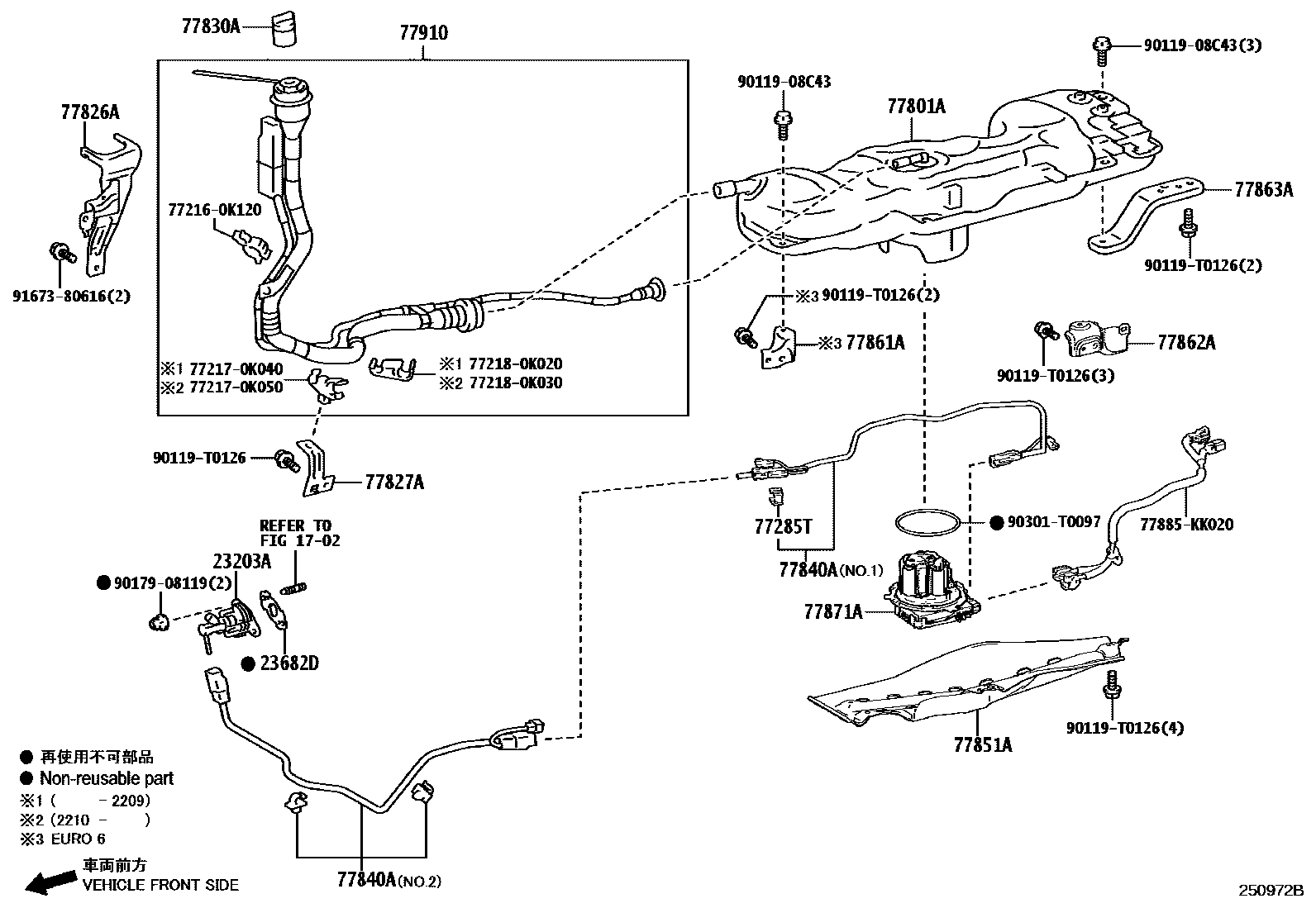

Toyota HILUX EPC diagram 2502, 尿素罐和管, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23203A | JEU D'INJECTEURS, UREE | 23203-11021 |
| 23682D | JOINT ETANCH., SUPPORT GICLEUR | 23682-11010 |
| 77285T | COLLIER, TUYAU D'UREE, NO.1 | 77285-0K140 |
| 77801A | SS-ENS. RESERVOIR, UREE | 77801-0K120 · 77801-0K130 · 77801-0K150 · 77801-0K160 · 77801-0K170 |
| 77826A | SUPPORT, TUYAU REMPLISSAGE RESERVOIR UREE, NO.1 | 77826-KK010 |
| 77827A | SUPPORT, TUYAU REMPLISSAGE RESERVOIR UREE, NO.2 | 77827-KK010 |
| 77830A | ENS. BOUCHON, RESERVOIR UREE | 77830-0K040 · 77830-0K050 |
| 77840A | ENS. TUYAU, UREE AVEC CHAUFFAGE | 77840-0K011 · 77840-0K021 · 77841-0K030 |
| 77851A | PROTECTION, RESERVOIR UREE | 77851-KK050 |
| 77861A | SUPPORT, RESERVOIR UREE, NO.1 | 77861-KK030 |
| 77862A | SUPPORT, RESERVOIR UREE, NO.2 | 77862-KK030 |
| 77863A | SUPPORT, RESERVOIR UREE, NO.3 | 77863-KK050 |
| 77871A | POMPE, UREE | 77870-0K010 |
| 77910 | ENS. TUYAU, REMPLISSAGE RESERVOIR UREE | 77910-0K050 · 77910-0K060 |
