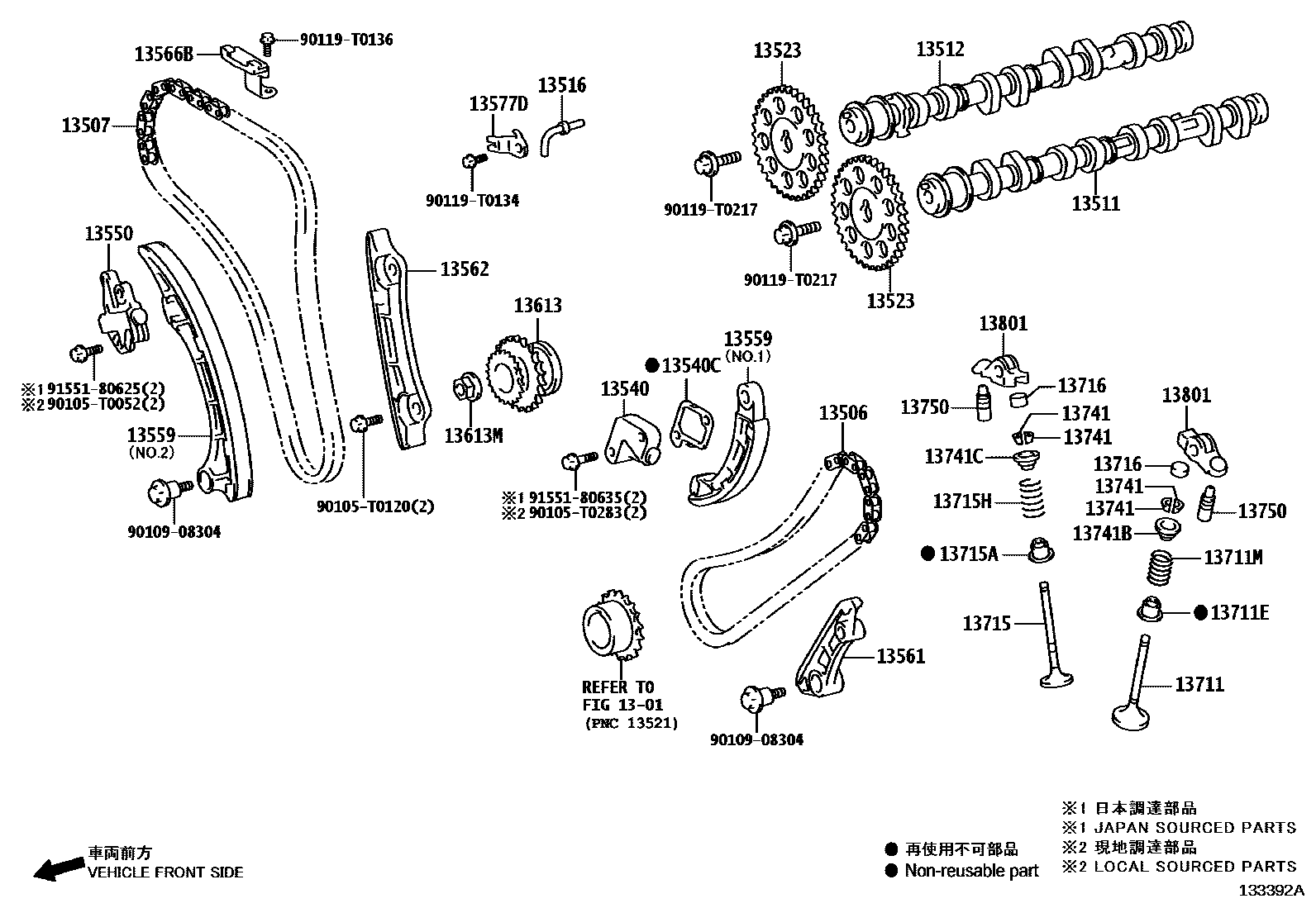

Toyota HILUX Camshaft & Valve — Figure 1302
Toyota HILUX EPC diagram 1302, Camshaft & Valve, with 1 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 13506 | Chain sub-assembly | 13506-0E011 |
| 13507 | No. 2 chain sub-assembly | 13507-0E011 |
| 13511 | camshaft | 13501-0E010 · 13501-0E020 |
| 13512 | Camshaft No. 2 | 13502-0E010 · 13502-0E020 |
| 13516 | oil nozzle | 13516-0E010 · 13516-11010 |
| 13523 | Camshaft timing gear or sprocket | 13523-0E010 · 13523-0E030 |
| 13540 | No. 1 chain tensioner assembly | 13540-0E010 |
| 13540C | Pad (for chain tensioner) | 13552-0E010 · 13552-0E020 |
| 13550 | No. 2 chain tensioner assembly | 13550-0E010 |
| 13559 | chain tensioner guide plate | 13559-0E010 · 13559-0E020 |
| 13561 | No. 1 chain shock absorber | 13561-0E011 |
| 13562 | No. 2 chain shock absorber | 13562-0E010 |
| 13566B | Timing chain guide plate | 13566-0E010 |
| 13577D | Locking plate | 13577-0E010 · 13577-0E020 |
| 13613 | Fuel injection pump driving gear | 13616-0E011 · 13616-0E021 |
| 13613M | ECROU(POUR PIGNON ENTRAIN POMPE INJECTION) | 90179-T0009 |
| 13711 | intake valve | 13711-0E010 · 13711-0E020 |
| 13711E | Intake valve stem oil seal | 90913-T2006 |
| 13711M | RESSORT, COMPRESSION(POUR SOUPAPE ADMISSION) | 90501-T0043 |
| 13715 | exhaust valve | 13715-0E010 · 13715-0E020 |
| 13715A | Exhaust valve stem oil seal | 90913-T2006 |
| 13715H | RESSORT, COMPRESSION(POUR SOUPAPE ECHAPPEMENT) | 90501-T0043 |
| 13716 | valve stem cover | 13716-0E010 |
| 13741 | Valve spring seat ring | 90913-03021 |
| 13741B | Intake valve spring seat ring | 13741-0E010 · 13741-33020 |
| 13741C | Exhaust valve spring seat ring | 13741-0E010 · 13741-33020 |
| 13750 | Valve lash adjuster assembly | 13750-0E010 |
| 13801 | No. 1 valve rocker arm sub-assembly | 13801-0E012 |
