Toyota HILUX Partial Engine Assembly — Figure 1101

Toyota HILUX EPC diagram 1101, Partial Engine Assembly, with 1 images and 1 PNC and OE references.

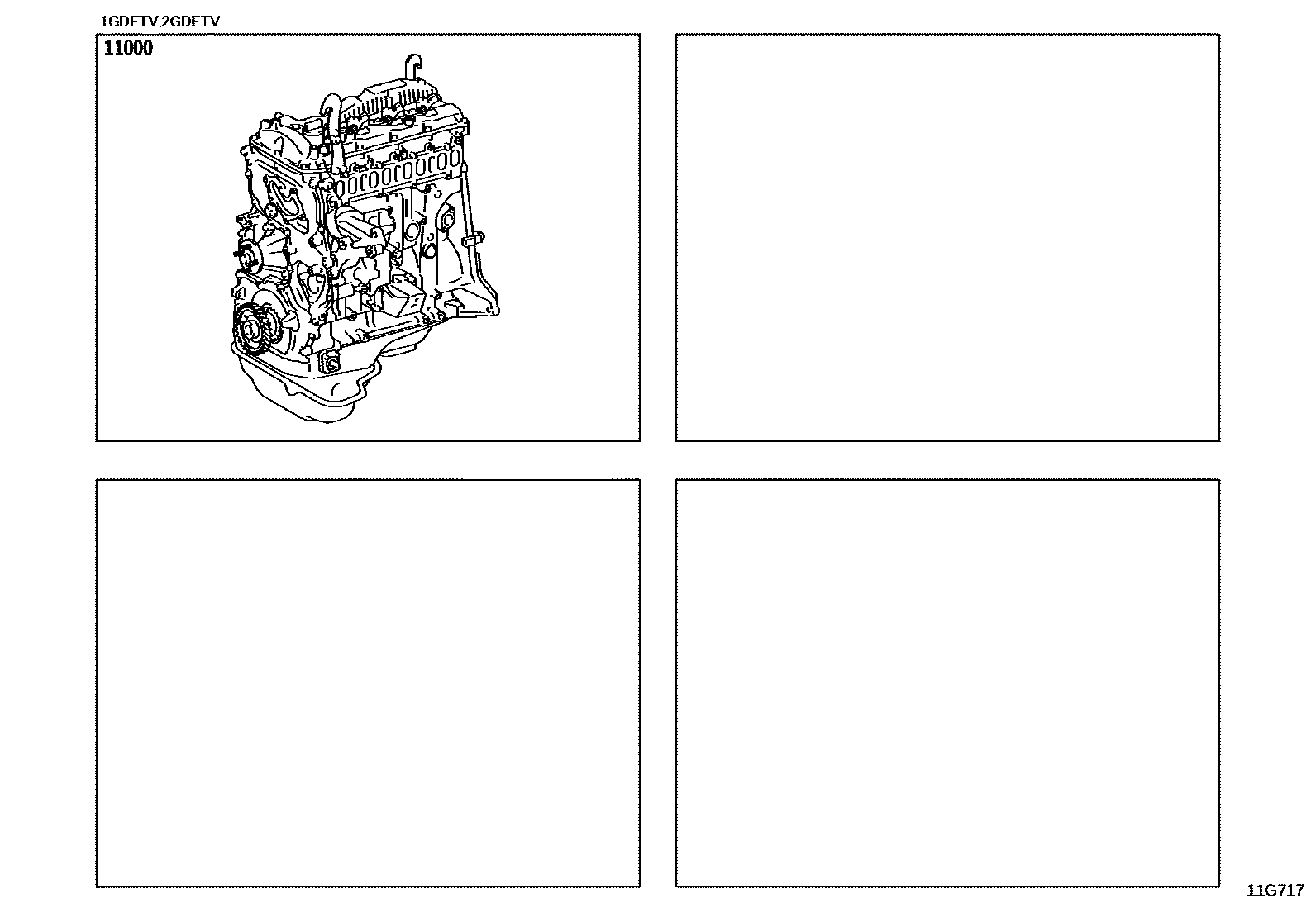

Toyota HILUX Partial Engine Assembly EPC diagram — 11G717
Partial Engine Assembly — 11G717 (202208 – 999999)

PNC and OE references

PNCPart nameOE numbers
11000Partial Engine Assembly19000-0E400 · 19000-0E430 · 19000-0E700 · 19000-0E730 · 19000-0E740 · 19000-0E830
