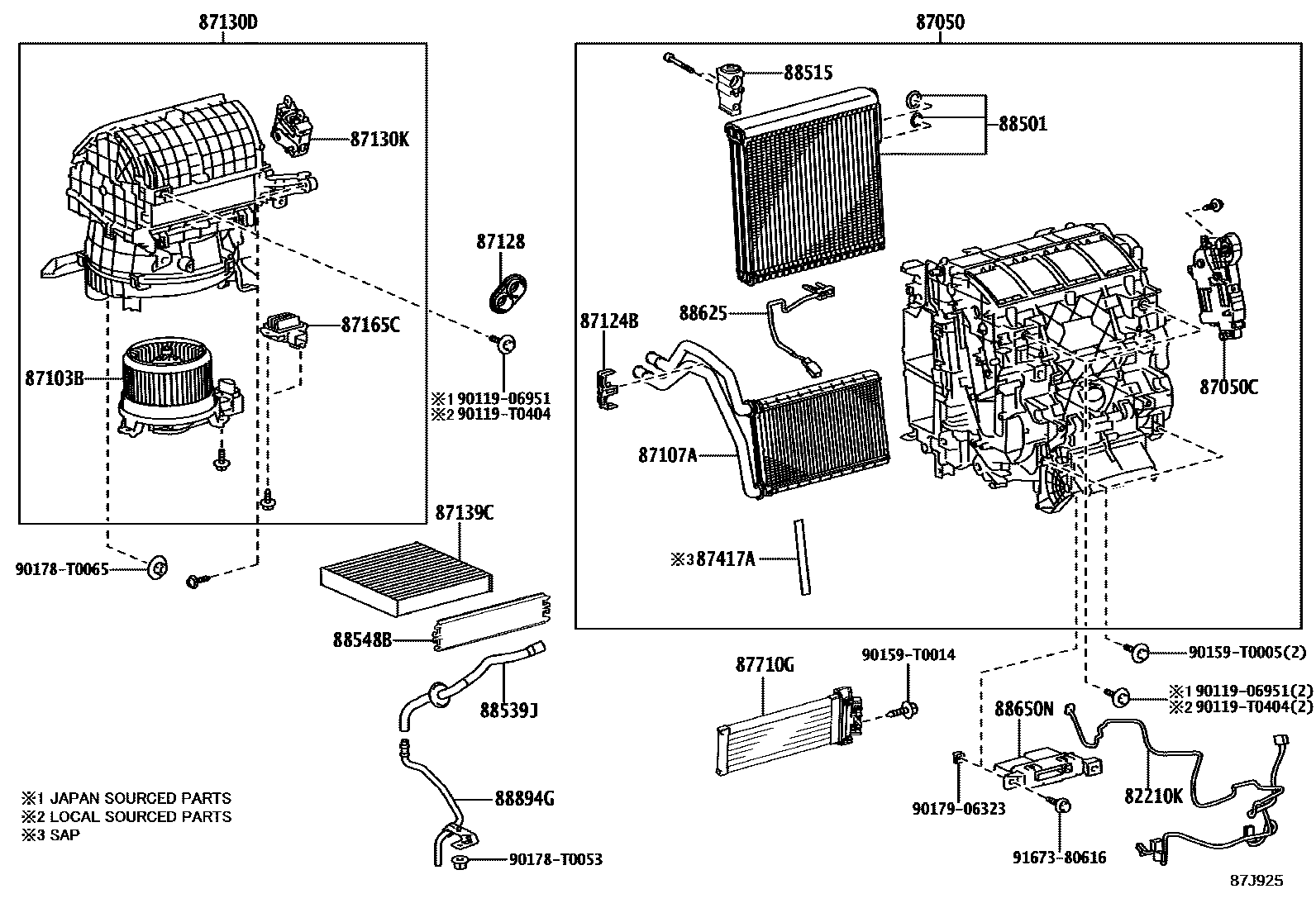

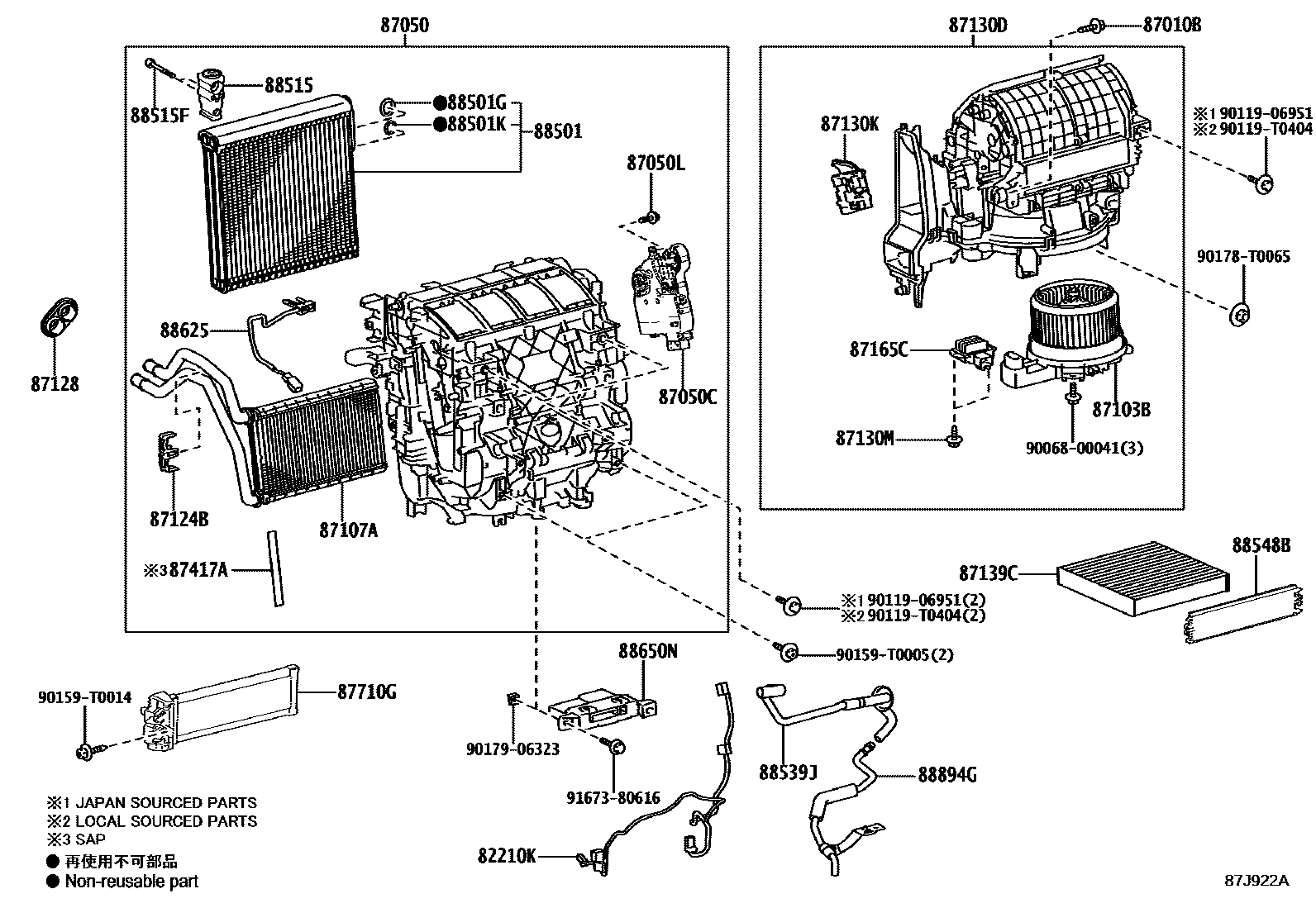

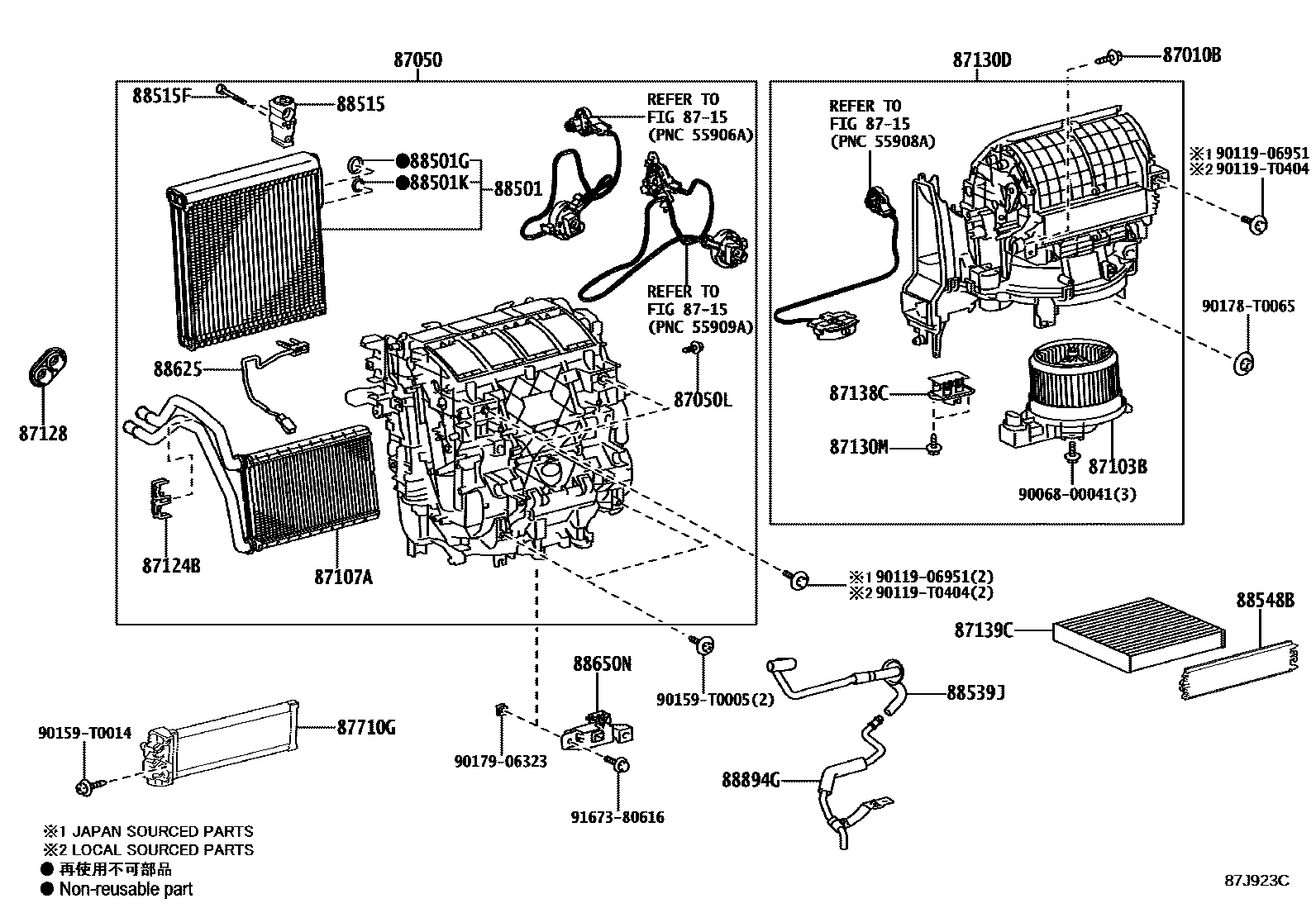

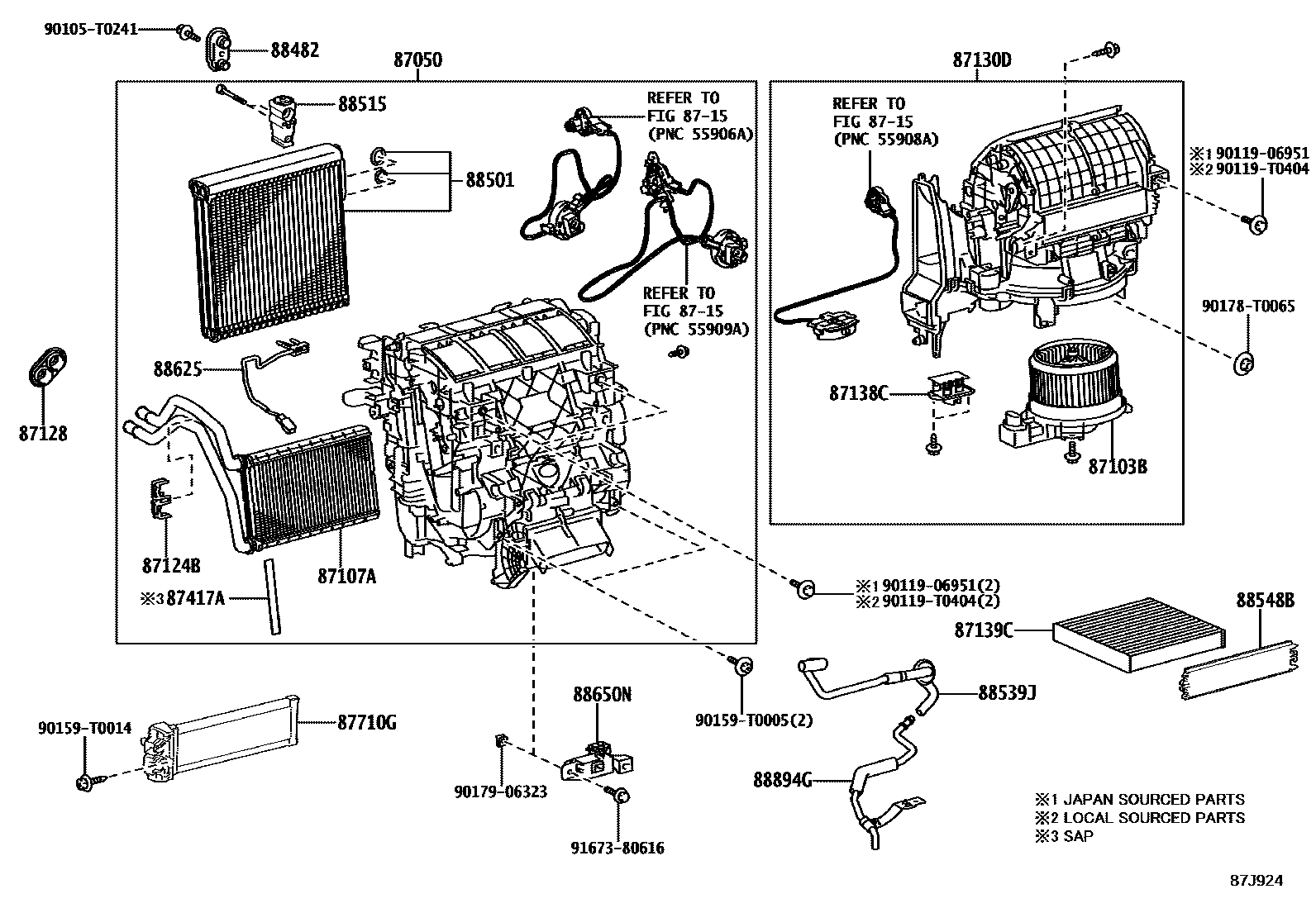

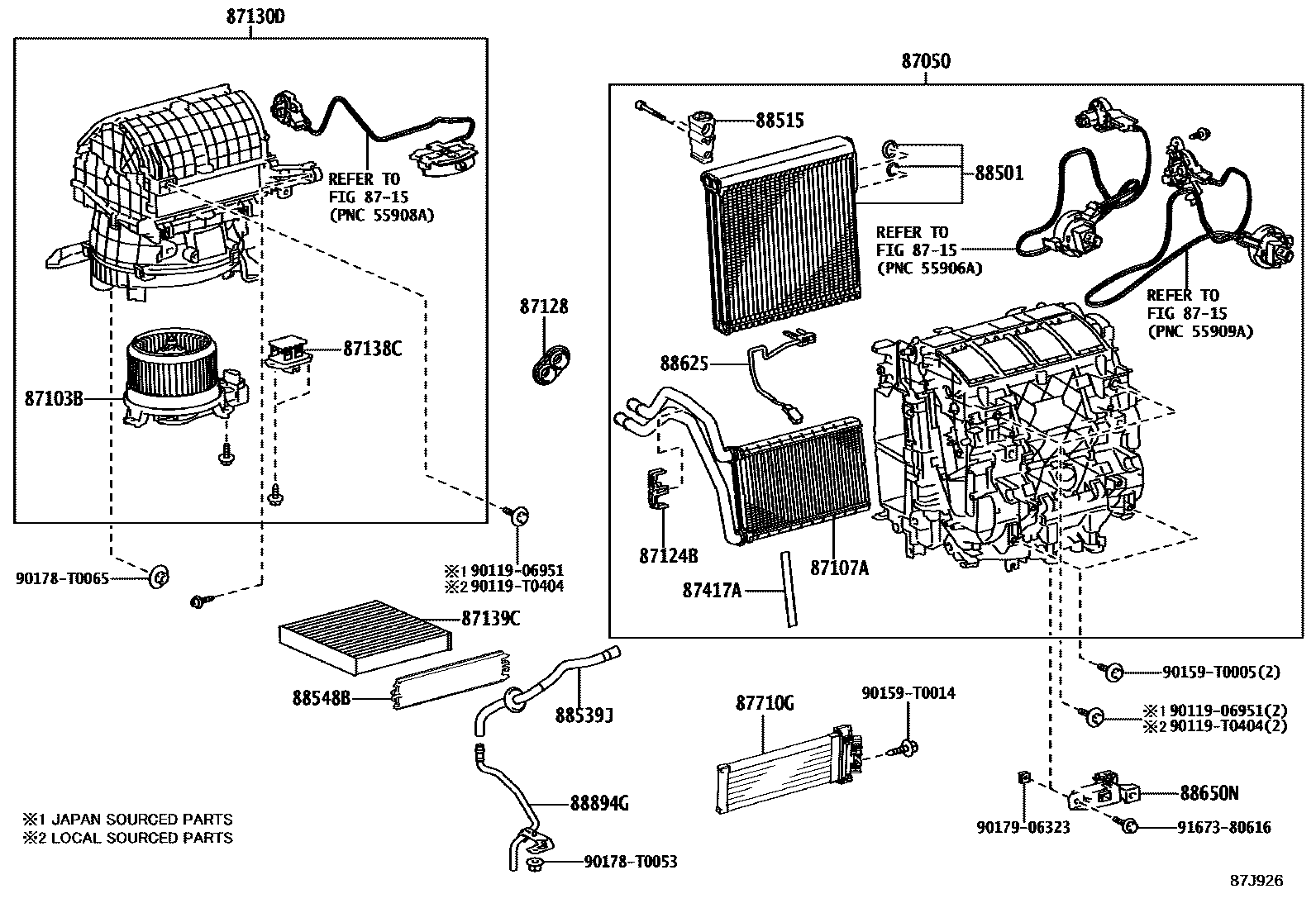

Toyota HILUX 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota HILUX EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 5 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82210K | Air conditioning wiring harness assembly | 82212-0K050 · 82212-0K060 |
| 87010B | VIS(POUR BOITIER DE CLIMATISATION) | 90068-00042 |
| 87050 | Air conditioning radiator assembly | 87050-0KB60 · 87050-0KB80 · 87050-0KC50 · 87050-0KC61 · 87050-0KD20 · 87050-0KG00 · 87050-0KL21 · 87050-0KP50 · 87050-0KR70 · 87050-0KR80 · 87050-0KR90 · 87050-0KS00 |
| 87050C | No. 1 air conditioner radiator damper servo mechanism sub-assembly | 87106-F4060 |
| 87050L | VIS(POUR RADIATEUR DE CLIMATISATION) | 90068-00042 |
| 87103B | Blower motor sub-assembly with fan | 87103-0K391 · 87103-0K491 · 87103-0K501 |
| 87107A | Heater radiator device sub-assembly | 87107-0K110 · 87107-0K170 |
| 87124B | heater clip | 87124-06140 · 87124-0K230 |
| 87128 | heater seal | 87128-0K180 · 87128-0K200 |
| 87130D | Blower assembly | 87130-0K581 · 87130-0K601 · 87130-0K631 · 87130-0K761 · 87130-0K791 · 87130-0K811 |
| 87130K | No. 1 blower damper servo mechanism sub-assembly | 87106-0K241 · 87106-0K251 |
| 87130M | VIS(POUR SOUFFLERIE) | 90068-00042 |
| 87138C | Blower resistor | 87138-0K350 · 87138-0K360 |
| 87139C | air purification filter | 87139-0K070 · 87139-0K090 · 87139-58010 |
| 87165C | Blower motor control device | 87165-0K060 |
| 87417A | Air duct seals | 87417-0K050 |
| 87710G | Rapid heater assembly | 87710-0K100 · 87710-0K110 |
| 88482 | cooler cover | 88482-0K030 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-0K390 · 88501-0K400 · 88501-0K420 · 88501-0K430 · 88501-0K500 |
| 88501G | JOINT TORIQUE, EVAPORATEUR REFROIDISSEUR NO.1(ASPIRATION) | 90068-14044 |
| 88501K | JOINT TORIQUE, EVAPORATEUR REFROIDISSEUR NO.1(LIQUIDE) | 90068-14043 |
| 88515 | Cooler expansion valve | 88515-0K580 · 88515-0K600 · 88515-0K680 |
| 88515F | BOULON(POUR DETENDEUR DU REFROIDISSEUR) | 90068-04062 |
| 88539J | Cooler drain hose | 88539-0K380 · 88539-0K420 · 88539-0K430 |
| 88548B | air filter housing | 88548-0K121 · 88899-06330 |
| 88625 | Cooler No. 1 Thermistor | 88620-0K010 · 88620-0K020 |
| 88650N | Air conditioning amplifier assembly | 88650-0K520 · 88650-0K740 · 88650-0K830 |
| 88894G | Drain hose connector | 88894-0K010 · 88894-0K100 · 88894-0K110 · 88894-0K190 |
