Toyota HILUX 收音机、放大器和冷凝器 — Figure 8601

Toyota HILUX EPC diagram 8601, 收音机、放大器和冷凝器, with 2 images and 13 PNC and OE references.

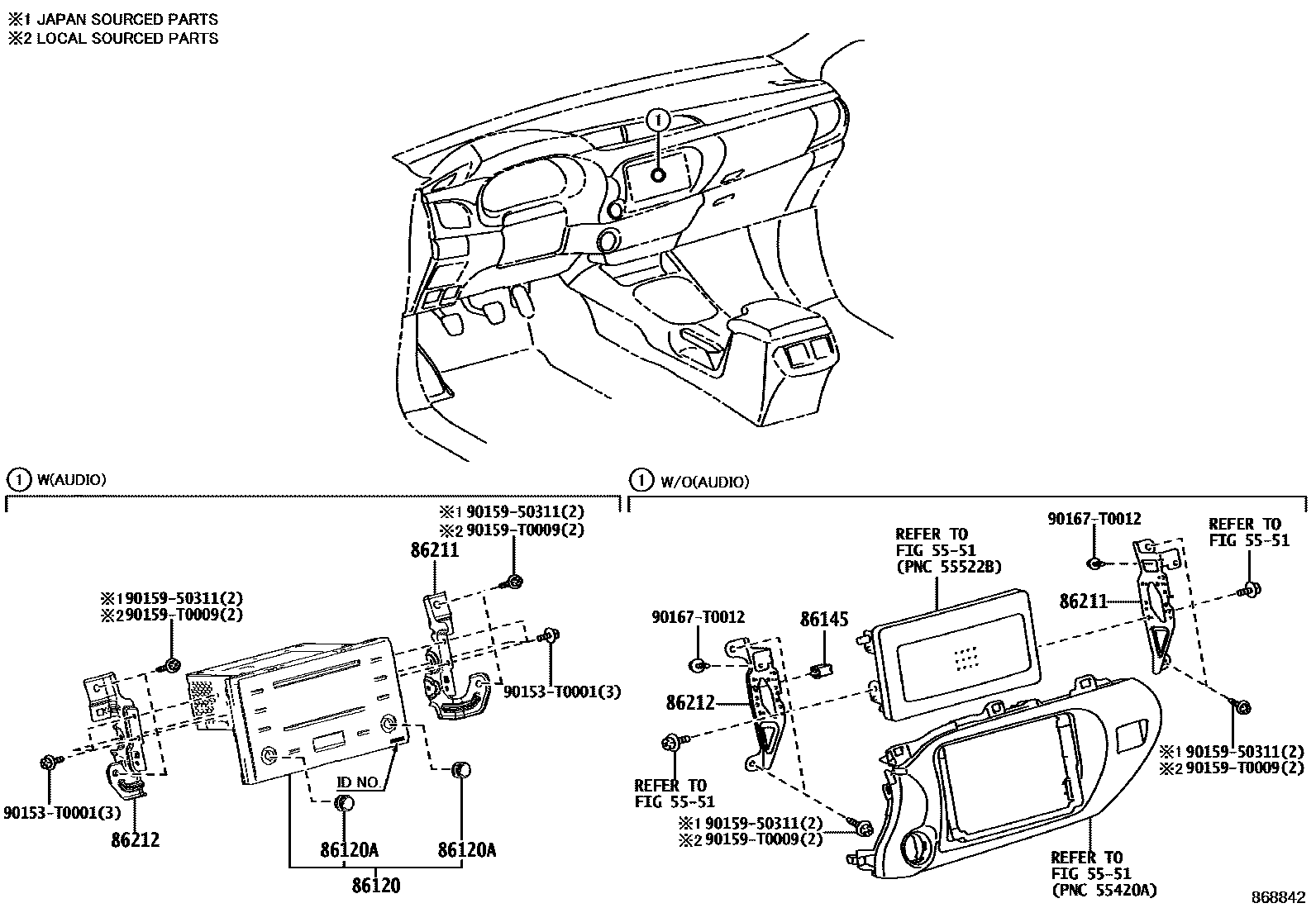

Toyota HILUX 收音机、放大器和冷凝器 EPC diagram — 868842
收音机、放大器和冷凝器 — 868842 (202108 – 999999)
Toyota HILUX 收音机、放大器和冷凝器 EPC diagram — 868843
收音机、放大器和冷凝器 — 868843 (202108 – 999999)

PNC and OE references

PNCPart nameOE numbers
86120Radio assembly86120-0KE90 · 86120-0KE91
86120ARadio switch knob90010-23060
86145Antenna connector86145-52010
86183Daudio amplifier cover86183-0K020
86190CStereo socket connector assembly No. 186190-0K100
86203radio wiring harness86203-71180 · 86203-71190
86211No. 1 radio bracket86211-KK050 · 86211-KK100 · 86211-KK130
86212No. 2 radio bracket86212-KK050 · 86212-KK100 · 86212-KK130
86280Stereo parts amplifier assembly86280-0K050 · 86280-0K070
86285Amplifier Stand No. 186285-KK010
86286Amplifier Stand No. 286286-KK010
F1334SUPPORT, COMMANDE CONVERTISSEUR, NO.1F1334-KK010 · F1334-KK030
G92C0AENS. CONVERTISSEUR, VEHICULE ECO-RUNG92C0-30020
