Toyota HILUX 挡风玻璃刮水器 — Figure 8501

Toyota HILUX EPC diagram 8501, 挡风玻璃刮水器, with 2 images and 9 PNC and OE references.

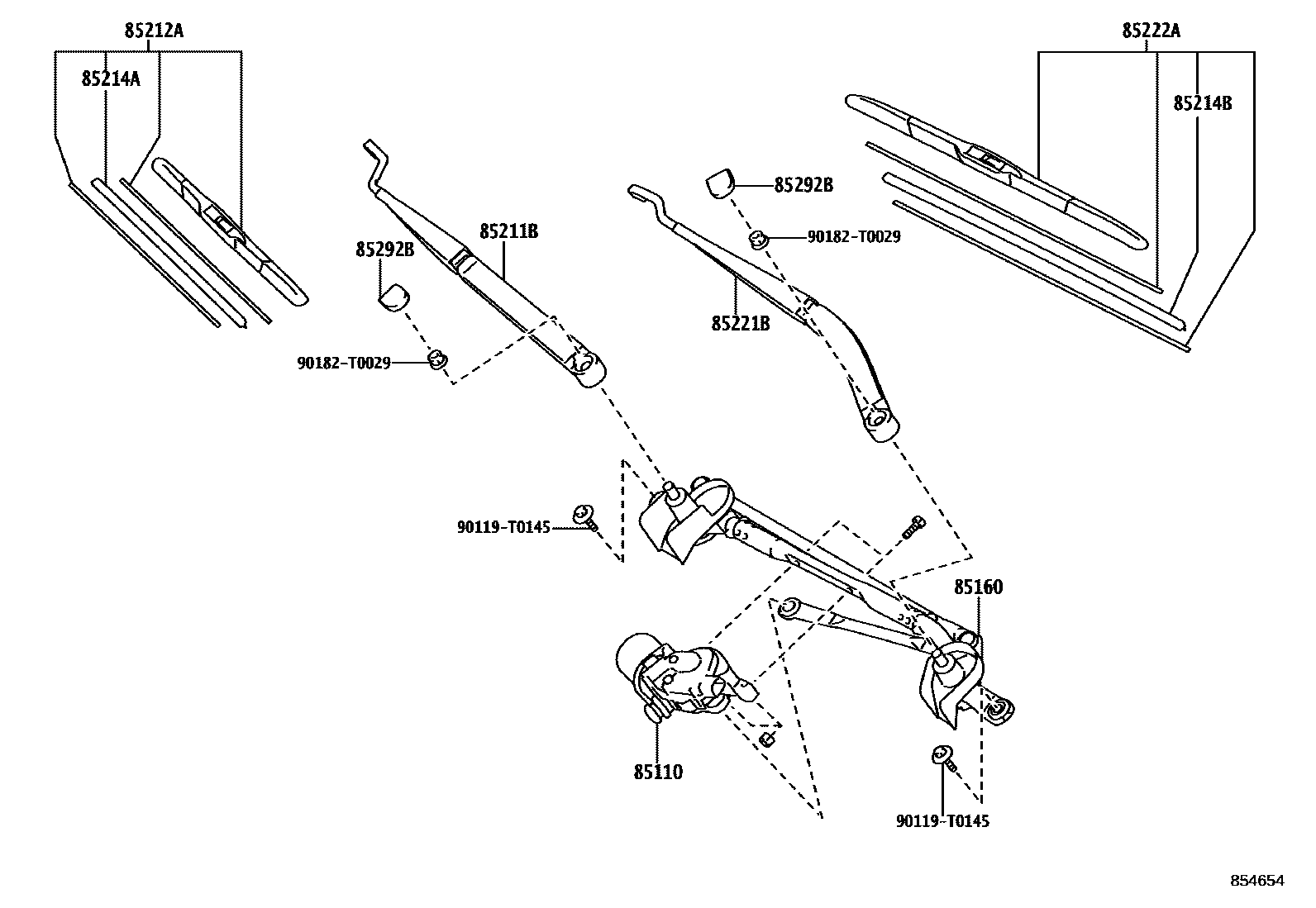

Toyota HILUX 挡风玻璃刮水器 EPC diagram — 854654
挡风玻璃刮水器 — 854654 (202108 – 999999)

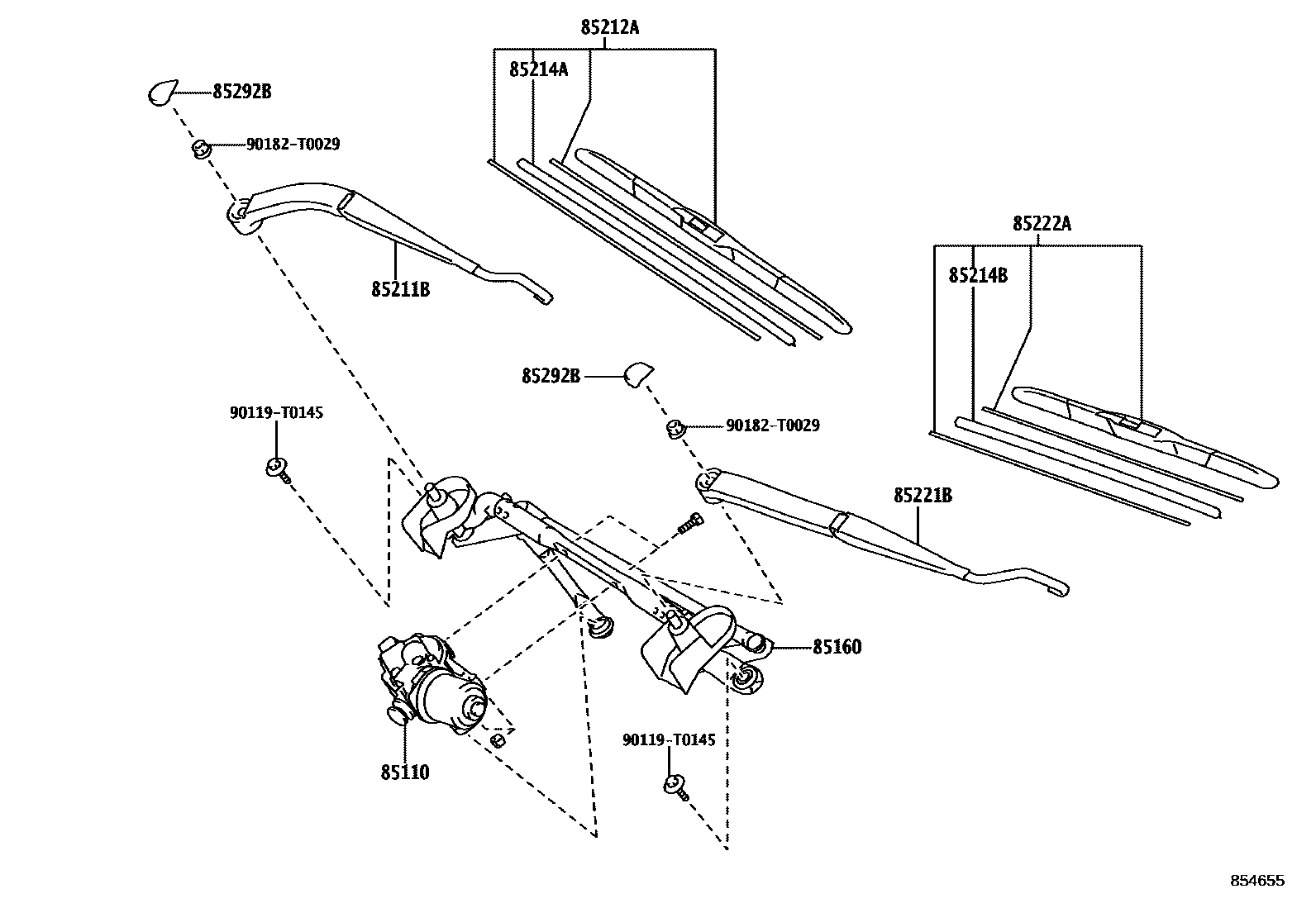

Toyota HILUX 挡风玻璃刮水器 EPC diagram — 854655
挡风玻璃刮水器 — 854655 (202108 – 999999)

PNC and OE references

PNCPart nameOE numbers
85110Windshield wiper motor assembly85110-0K171 · 85110-0K201
85160Windshield wiper connecting rod assembly85150-0K150 · 85150-0K180 · 85150-0K190
85211BRight front wiper arm85211-0K180 · 85211-0K230
85212ARight front wiper blade85212-42130 · 85212-71010
85214ARight wiper rubber strip85214-28090 · 85214-53080
85214BLeft wiper rubber strip85214-28090 · 85214-53080
85221BLeft front wiper arm85221-0K150 · 85221-0K230
85222ALeft front wiper blade85222-42130 · 85222-71010
85292BFront wiper arm cap85292-0D030
