Toyota HILUX 徽标和铭牌 — Figure 7551

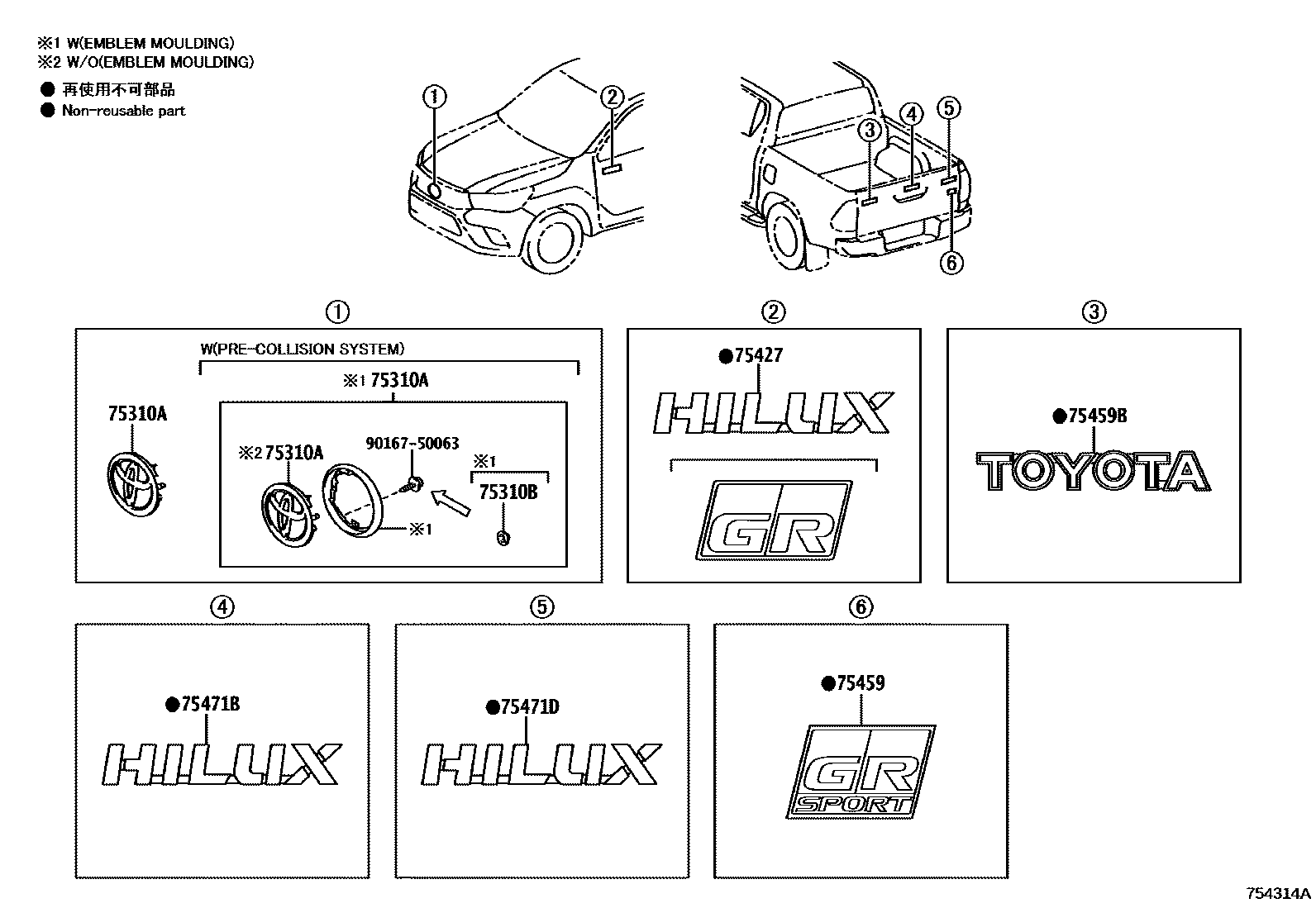

Toyota HILUX EPC diagram 7551, 徽标和铭牌, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75310A | Radiator grille plate assembly | 53127-0K251 · 75310-0K040 · 75310-0K060 · 90975-T2030 |
| 75310B | ECROU, RESSORT | 90183-06044 |
| 75427 | front door nameplate | 75361-71010 · 75427-0K030 · 75427-0K080 |
| 75459 | Back door mark | 75441-71010 |
| 75459B | No. 2 back door mark | 75469-0K050 · 75469-0K060 · 75469-YY020 |
| 75471B | No. 1 nameplate on rear body | 75427-0K130 · 75427-0K140 |
| 75471D | rear nameplate | 75427-0K130 · 75427-0K140 · 75427-YY020 |
