Toyota HILUX 后保险杠及附件 — Figure 5253

Toyota HILUX EPC diagram 5253, 后保险杠及附件, with 1 images and 8 PNC and OE references.

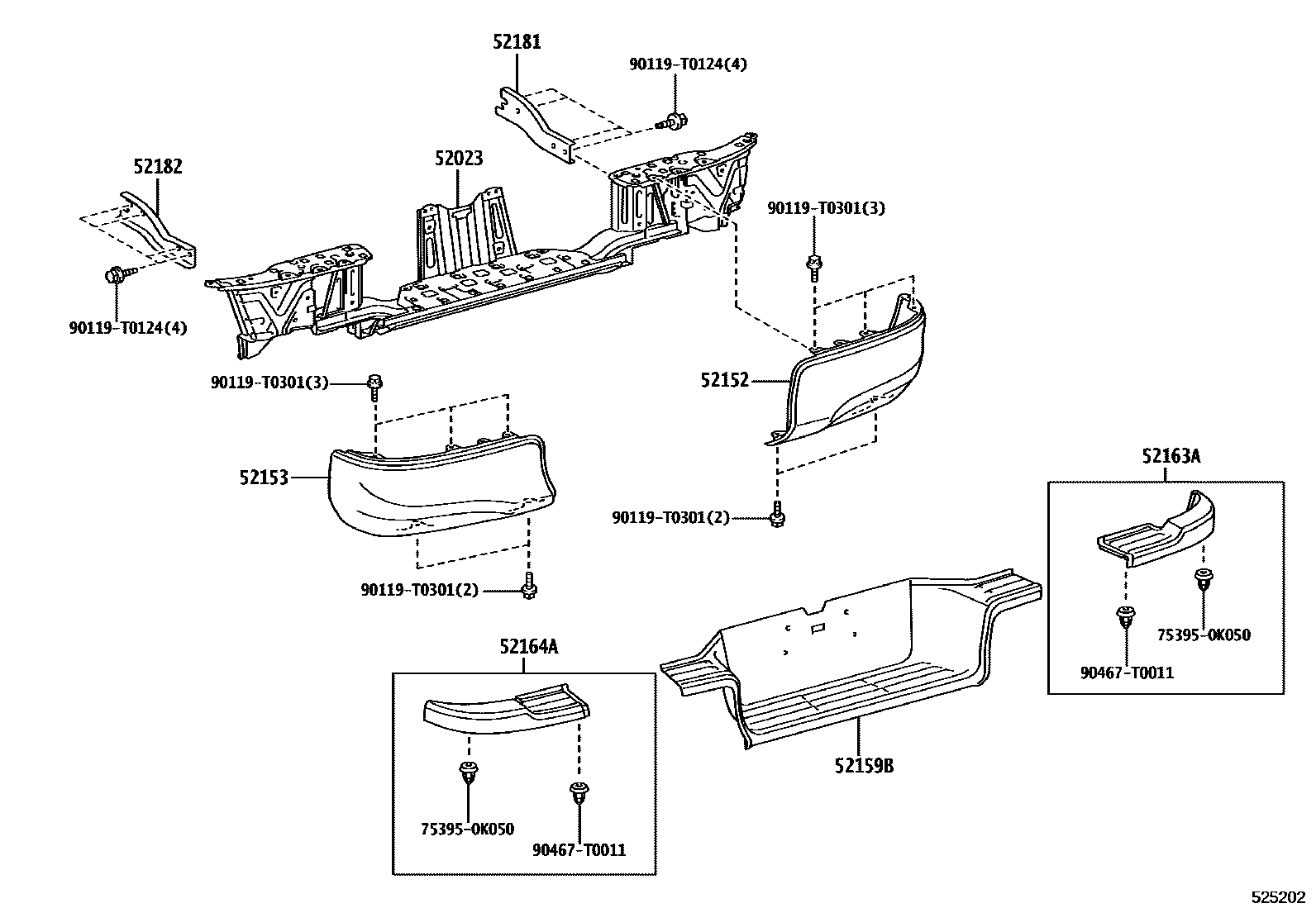

Toyota HILUX 后保险杠及附件 EPC diagram — 525202
后保险杠及附件 — 525202 (202108 – 999999)

PNC and OE references

PNCPart nameOE numbers
52023Rear bumper reinforcement sub-assembly52023-0K041 · 52023-0K061
52152Rear bumper right side stay52151-0K060 · 52151-0K070 · 52151-0K090 · 52151-0K100 · 52151-0K210 · 52151-0K230 · 52151-0K240 · 52151-0K270 · 52151-YY120 · 52151-YY140
52153Rear bumper left support52152-0K060 · 52152-0K070 · 52152-0K090 · 52152-0K100 · 52152-0K210 · 52152-0K230 · 52152-0K240 · 52152-0K270 · 52152-YY060 · 52152-YY080
52159Brear bumper bezel52159-0K291 · 52159-0K301
52163ARear bumper right side fender52163-0K030 · 52163-0K040
52164ARear bumper left fender52164-0K030 · 52164-0K040
52181Rear bumper right arm52181-0K060 · 52181-0K070
52182Rear bumper left arm52182-0K060 · 52182-0K070
