Toyota HILUX 前保险杠及附件 — Figure 5252

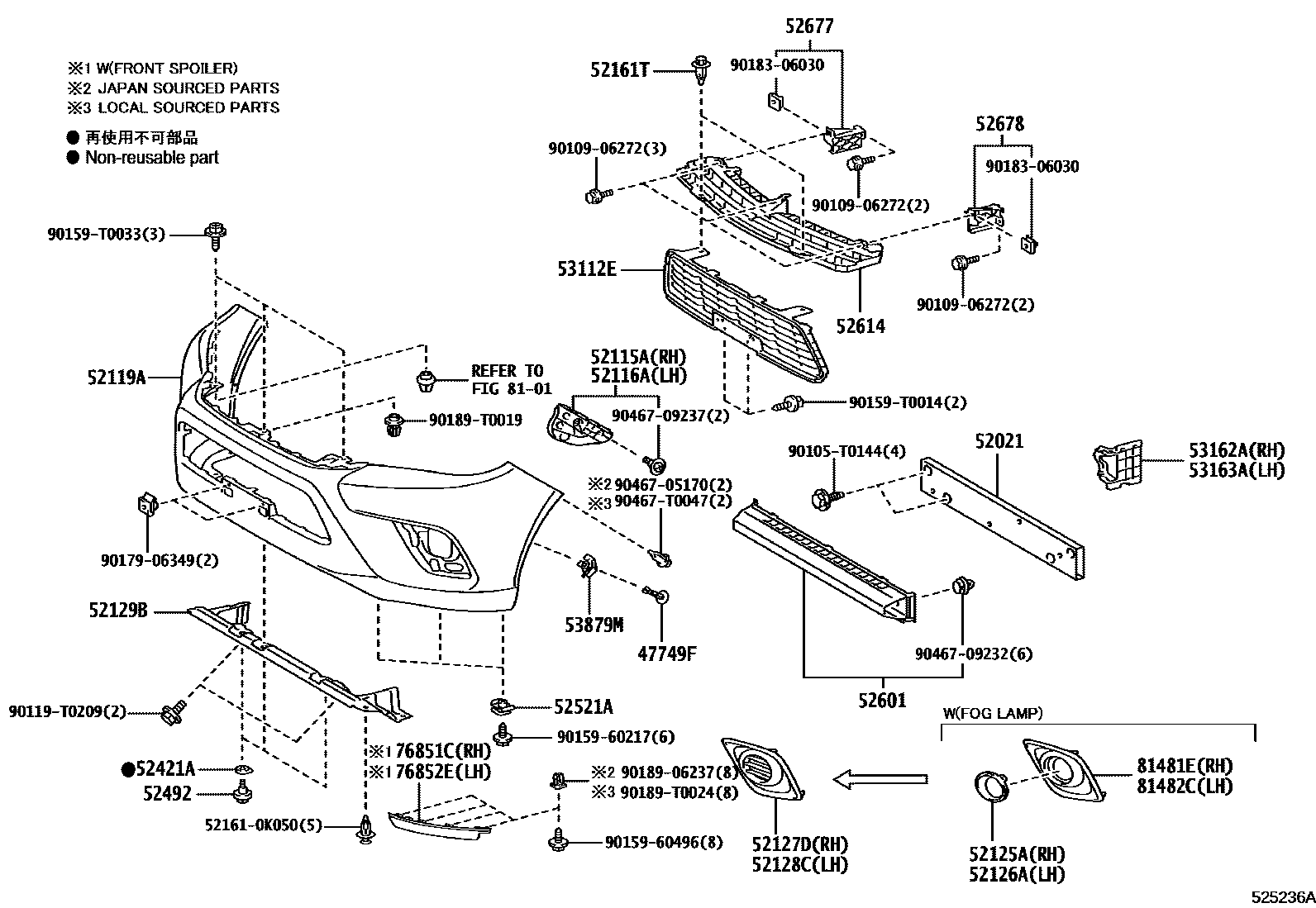

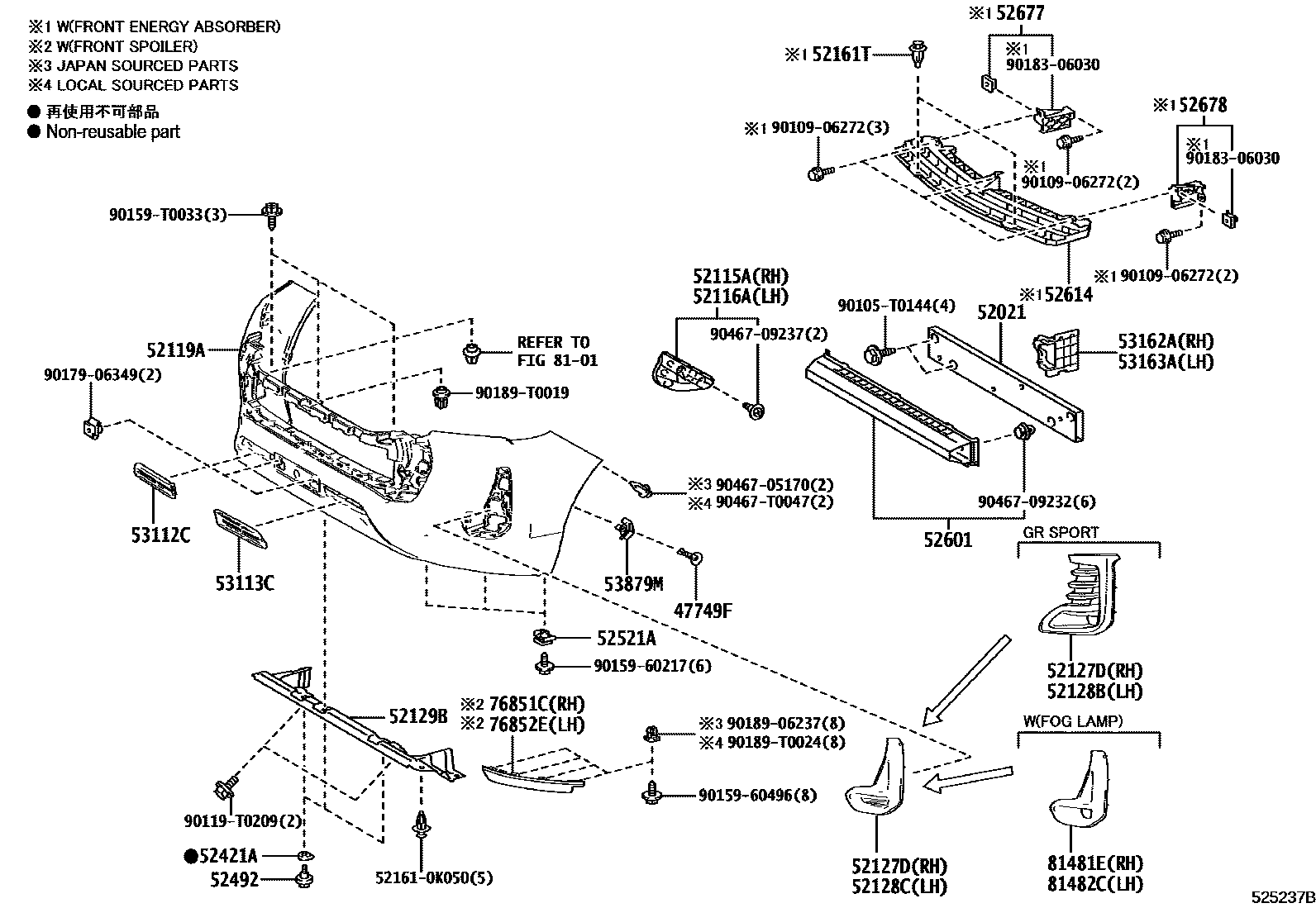

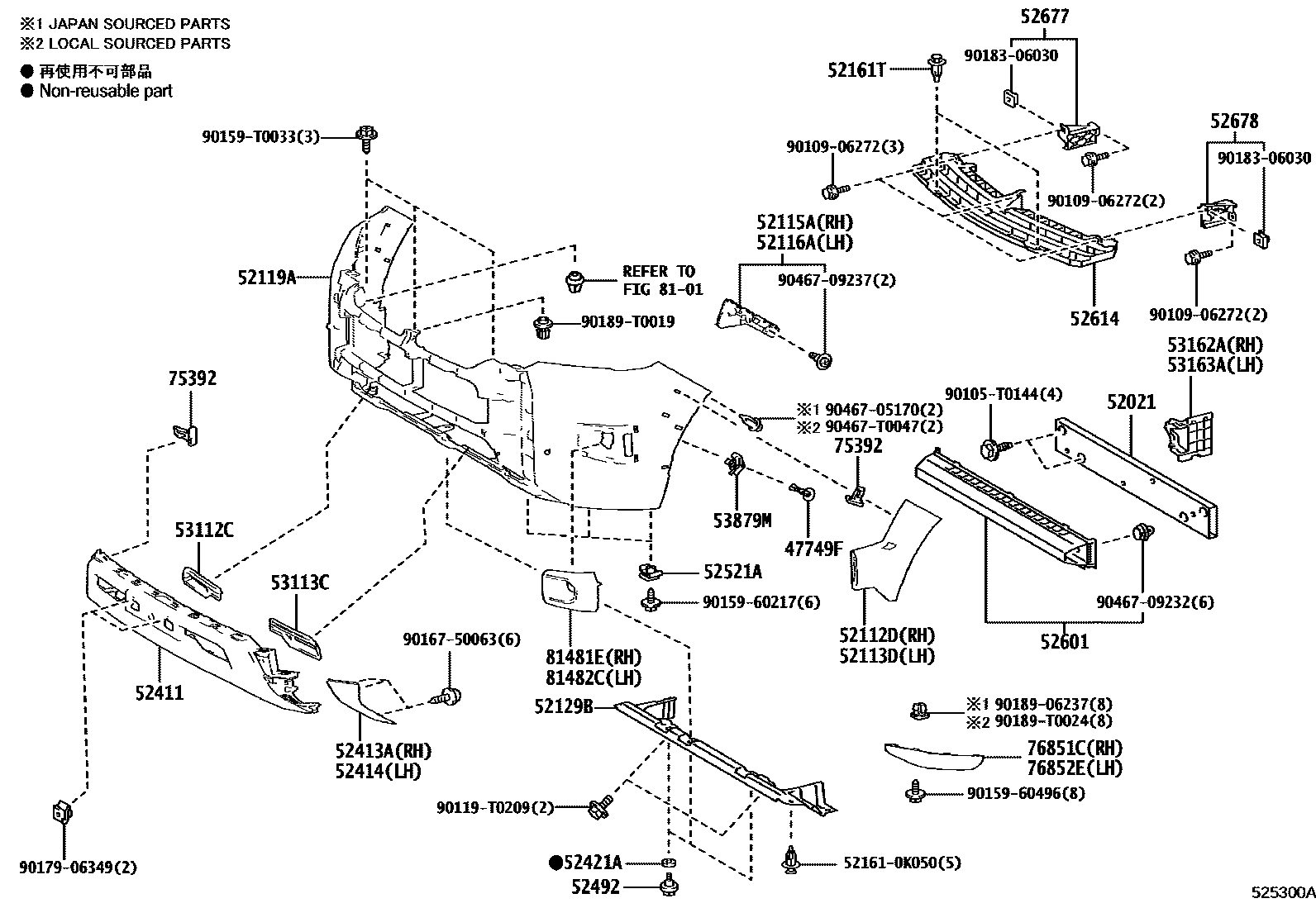

Toyota HILUX EPC diagram 5252, 前保险杠及附件, with 3 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47749F | ATTACHE, BROCHE FIXATION | 47749-50090 |
| 52021 | Front bumper reinforcement sub-assembly | 52021-KK010 |
| 52112D | Front bumper right extension | 52112-YP010 · 52112-YP020 |
| 52113D | Front bumper left extension | 52113-YP010 · 52113-YP020 |
| 52115A | Front bumper right side bracket | 52115-0K120 · 52115-0K180 · 52115-0K190 · 52115-YP040 · 52115-YP050 |
| 52116A | Front bumper left bracket | 52116-0K120 · 52116-0K180 · 52116-0K190 · 52116-YP040 · 52116-YP050 |
| 52119A | front bumper cover | 52119-0K860 · 52119-0M991 · 52119-0M992 · 52119-0M993 · 52119-0M994 · 52119-0M995 · 52119-0M996 · 52119-0M997 · 52119-0M998 · 52119-F0907 · 52119-F0908 · 52119-YP909 · 52119-YP910 · 52119-YP911 · 52119-YP912 · 52119-YP918 |
| 52125A | Right fog light mounting bracket | 52125-0K070 |
| 52126A | Left fog light mounting bracket | 52126-0K070 |
| 52127D | Front bumper right hole cover | 52127-0K210 · 52127-0K850 · 52127-0K880 · 52127-YY070 |
| 52128B | Front bumper left hole cover | 52128-YY080 |
| 52128C | Front bumper left hole cover | 52128-0K210 · 52128-0K850 · 52128-0K880 |
| 52129B | Front bumper lower cover | 52129-KK010 |
| 52161T | front bumper insert | 52161-0K040 |
| 52411 | Front bumper anti-collision bar | 52411-YP050 · 52411-YP060 |
| 52413A | Front bumper right bumper pad | 52413-YP010 · 52413-YP020 |
| 52414 | Front bumper left bumper pad | 52414-YP010 · 52414-YP020 |
| 52421A | front bumper lining | 52421-60191 |
| 52492 | Bumper lining bolt No. 2 | 52491-60010 |
| 52521A | Clip (for front bumper mount) | 90467-05114 |
| 52601 | Front bumper energy absorber sub-assembly | 52601-0K050 · 52601-0K100 · 52601-0K140 · 52601-0K150 |
| 52614 | No. 2 energy absorber for front bumper | 52614-0K020 |
| 52677 | Front bumper No. 2 right side bracket | 52675-0K020 |
| 52678 | Front bumper No. 2 left side bracket | 52676-0K020 |
| 53112C | Lower right radiator grille | 53112-0K350 · 53112-0K360 · 53112-YP110 · 53112-YP120 |
| 53112E | No. 1 radiator lower grille | 53112-0K130 |
| 53113C | Lower left radiator grille | 53113-0K010 · 53113-0K020 · 53113-YP110 · 53113-YP120 |
| 53162A | BOUCLIER, PARE-CHOCS AVANT, MD | 53162-KK010 |
| 53163A | BOUCLIER, PARE-CHOCS AVANT, MG | 53163-KK010 |
| 53879M | Front fender lining fixing parts | 53879-50020 |
| 75392 | External protective strip fixings | 75392-0K010 |
| 76851C | front spoiler | 76851-0K080 · 76851-YP030 |
| 76852E | SPOILER AVANT GAUCHE | 76852-0K080 · 76852-YP030 |
| 81481E | Right fog light cover | 52127-0K180 · 52127-0K860 · 52127-0K870 · 52127-0K890 · 52127-0KA00 · 52127-YP120 · 52127-YP130 |
| 81482C | Left fog light cover | 52128-0K180 · 52128-0K860 · 52128-0K870 · 52128-0K890 · 52128-0KA00 · 52128-YP120 · 52128-YP130 |
