Toyota HILUX 车轮和车轮盖 — Figure 4103
Toyota HILUX EPC diagram 4103, 车轮和车轮盖, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

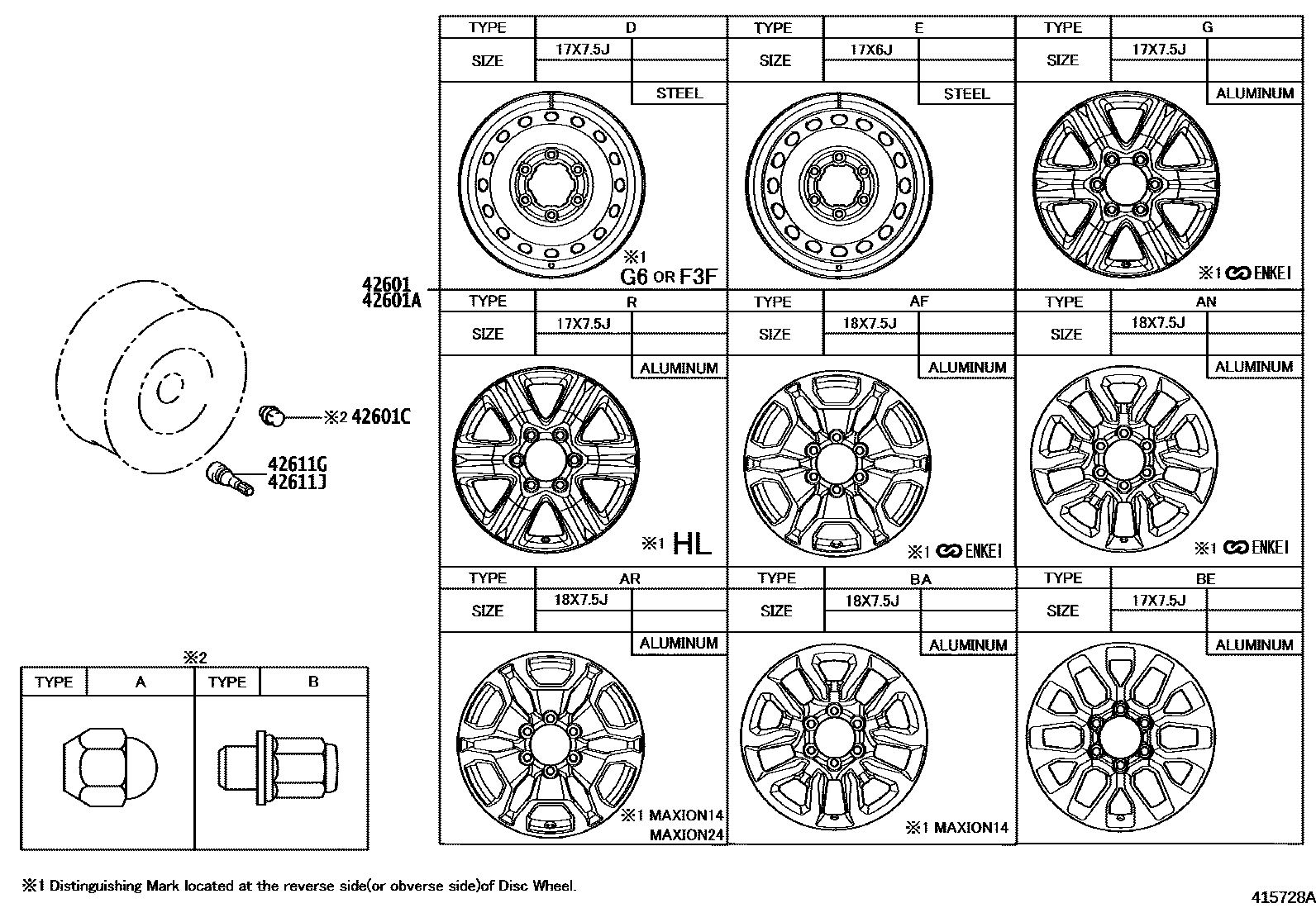

| 42601 | spoke wheel | 42611-0KG60 · 42611-0KJ01 · 42611-0KQ20 · 42611-0KT40 · 42611-0KT80 · 42611-0KV60 · 42611-0KV80 · 42611-0KX40 · 42611-YP080 · 42611-YP100 · 42611-YYC70 |
| 42601A | Spoke wheel (for spare tire) | 42611-0KG60 · 42611-0KJ01 · 42611-0KQ20 · 42611-0KT40 · 42611-0KT80 · 42611-0KV60 · 42611-0KV80 · 42611-0KX40 · 42611-YP080 · 42611-YP100 · 42611-YYC70 |
| 42601C | Hub nut (for axle) | 90942-01082 · 90942-01109 · 90942-T1005 |

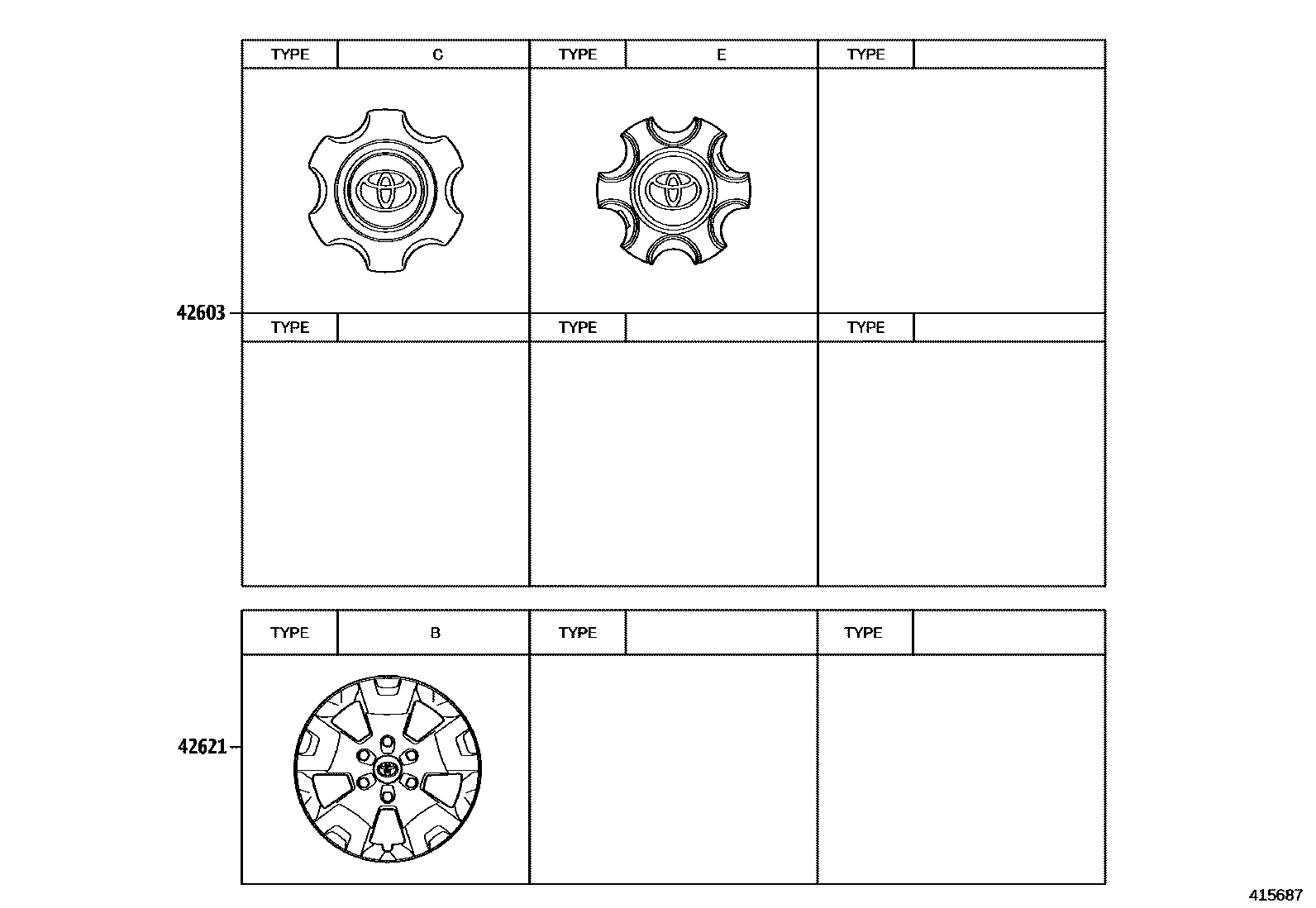

| 42603 | Wheel hub decorative parts sub-assembly | 4260B-0K100 · 4260B-0K350 · 4260B-0K360 |
| 42611G | Valve (for tubeless tires) | 90080-94031 · 90080-94180 |
| 42611J | Valve (for tubeless spare tire) | 90080-94031 · 90080-94180 |
| 42621 | wheel cover | 42602-0K090 |
