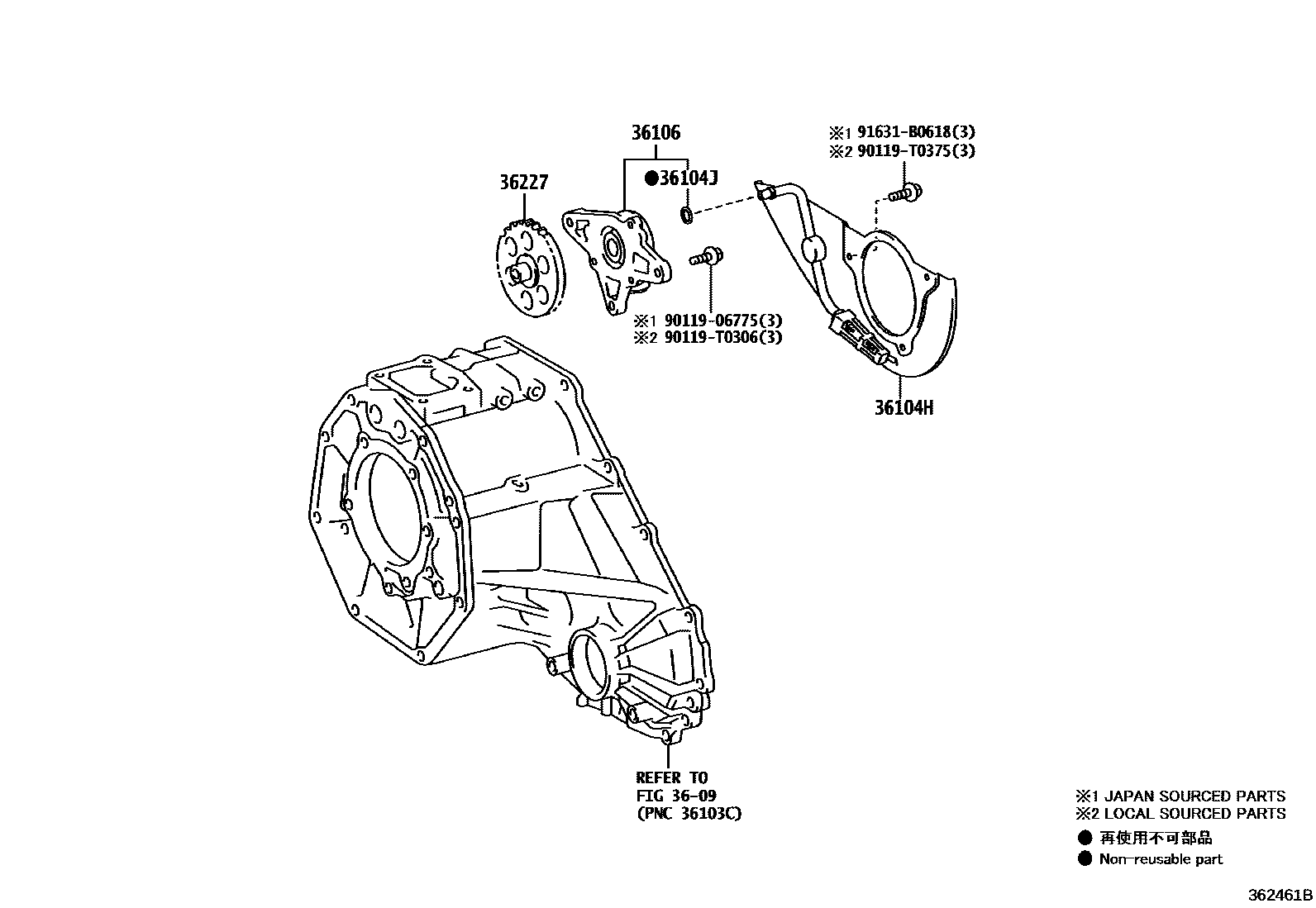

Toyota HILUX 分动器油泵 — Figure 3617
Toyota HILUX EPC diagram 3617, 分动器油泵, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 36104H | Transfer case oil separator sub-assembly | 36104-35021 |
| 36104J | O-ring (for transfer case oil pump body) | 96721-19009 |
| 36106 | Transfer case oil pump body sub-assembly | 36106-0K010 · 36106-35031 |
| 36227 | Transfer case oil pump gear | 36227-0K010 · 36227-35020 |
