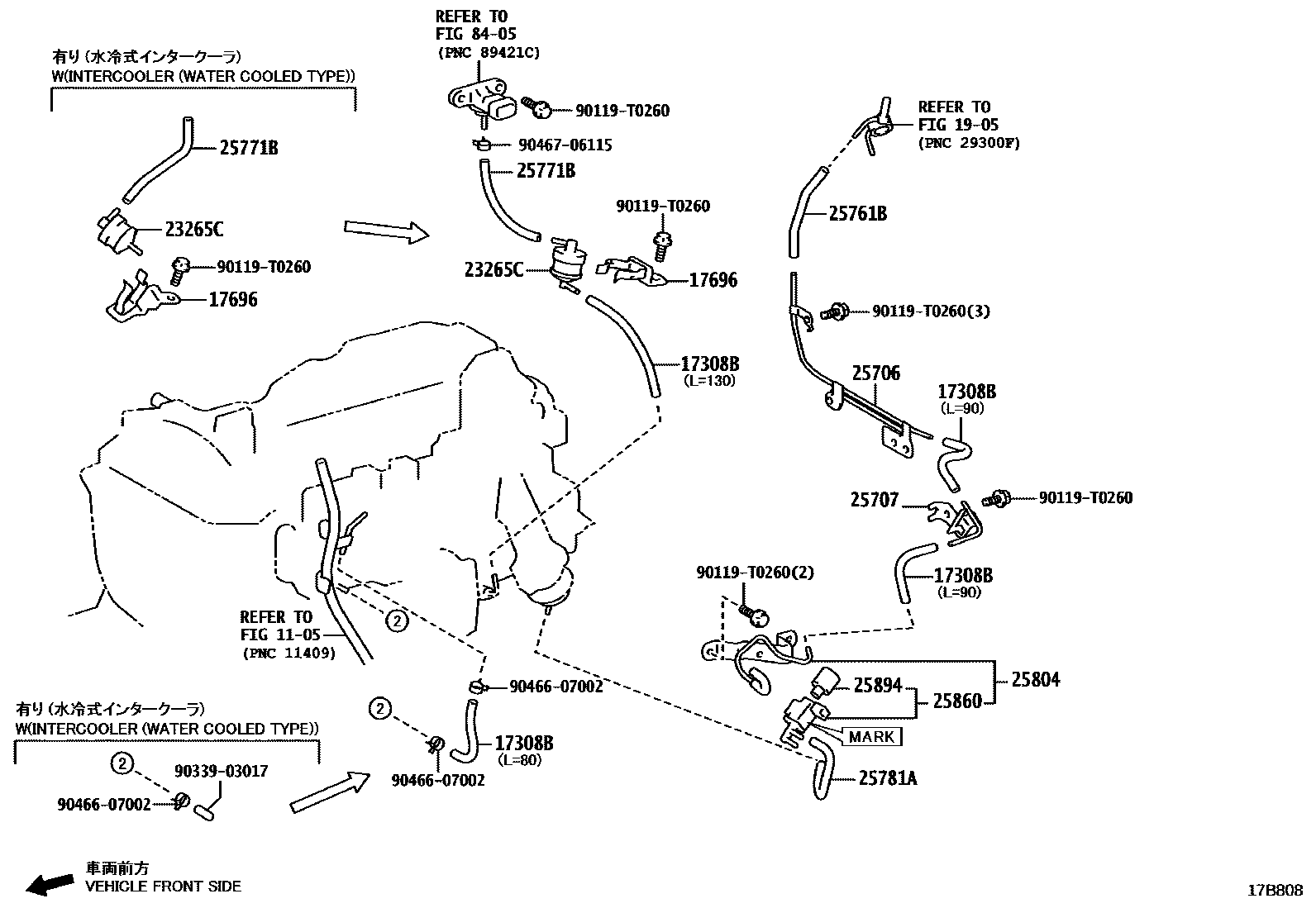

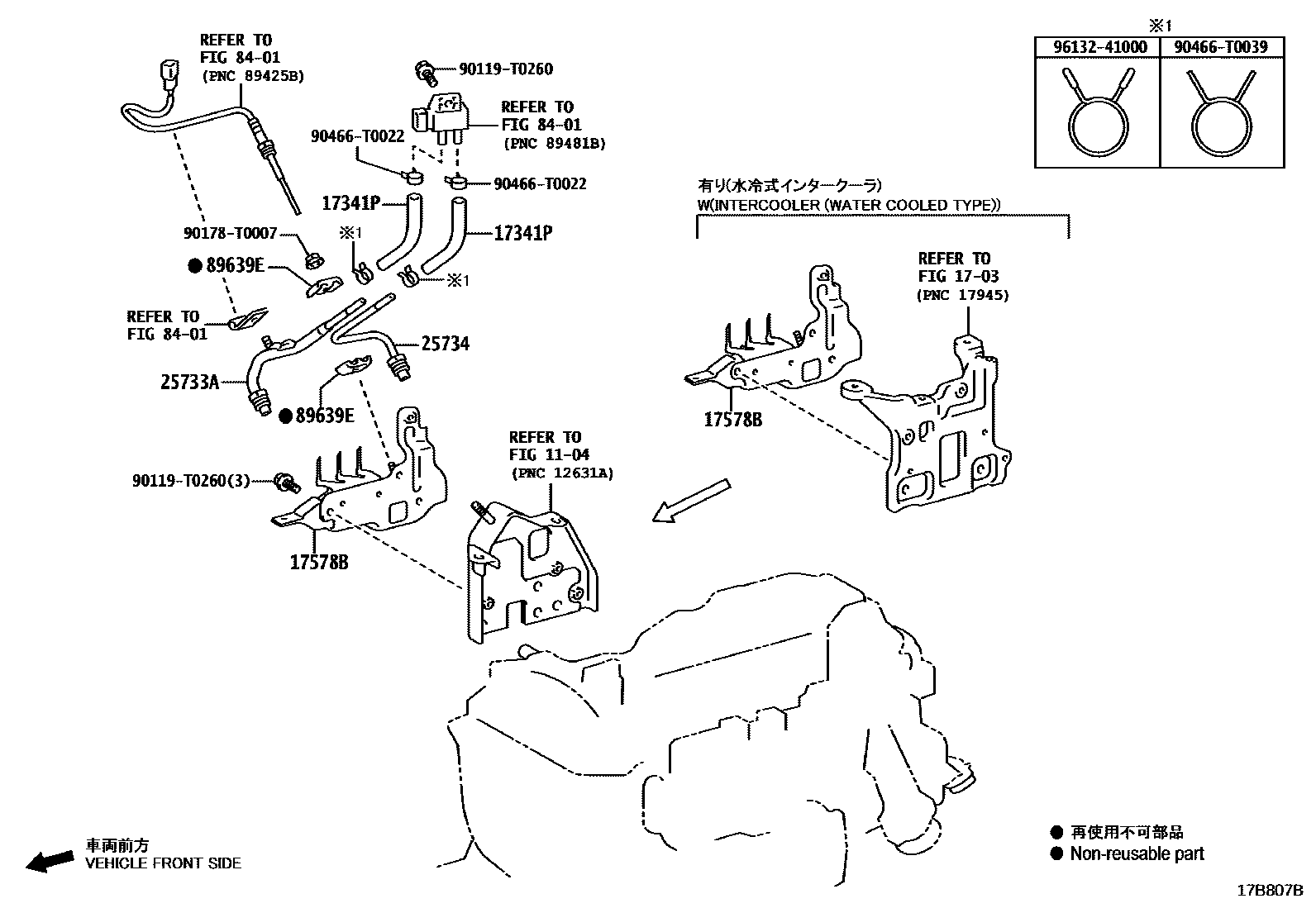

Toyota HILUX vacuum tube — Figure 1708
Toyota HILUX EPC diagram 1708, vacuum tube, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17308B | Vacuum hose sub-assembly | 90999-92002 |
| 17341P | air hose | 17341-0E010 · 17341-0E030 |
| 17578B | Pipe clamp | 17578-0E020 · 17578-0E030 |
| 17696 | Gas filter bracket | 17696-0E010 · 17696-0E020 · 17696-0E030 |
| 23265C | gas filter | 90917-11038 · 90917-11044 |
| 25706 | No. 1 vacuum transfer tube sub-assembly | 25706-0E010 · 25706-0E040 |
| 25707 | No. 2 vacuum transfer pipe sub-assembly | 25707-0E010 · 25707-0E020 |
| 25733A | No. 1 vacuum tube | 25733-0E010 |
| 25734 | No. 2 vacuum tube | 25734-0E010 |
| 25761B | No. 1 Vacuum Transfer Hose | 25761-0E010 · 25761-0E020 |
| 25771B | No. 2 vacuum transfer hose | 25771-0E020 · 25771-0E030 · 25771-0E040 |
| 25781A | No. 3 vacuum transfer hose | 25781-0E010 · 25781-0E020 |
| 25804 | Vacuum control valve assembly | 25804-0E010 · 25804-11010 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-0E010 · 25860-30070 |
| 25894 | FILTRE, NO.1 | 25894-0E010 · 25894-11010 |
| 89639E | COLLIER | 89639-0K010 |
