Toyota HILUX RADIATOR & WATER OUTLET — Figure 1603

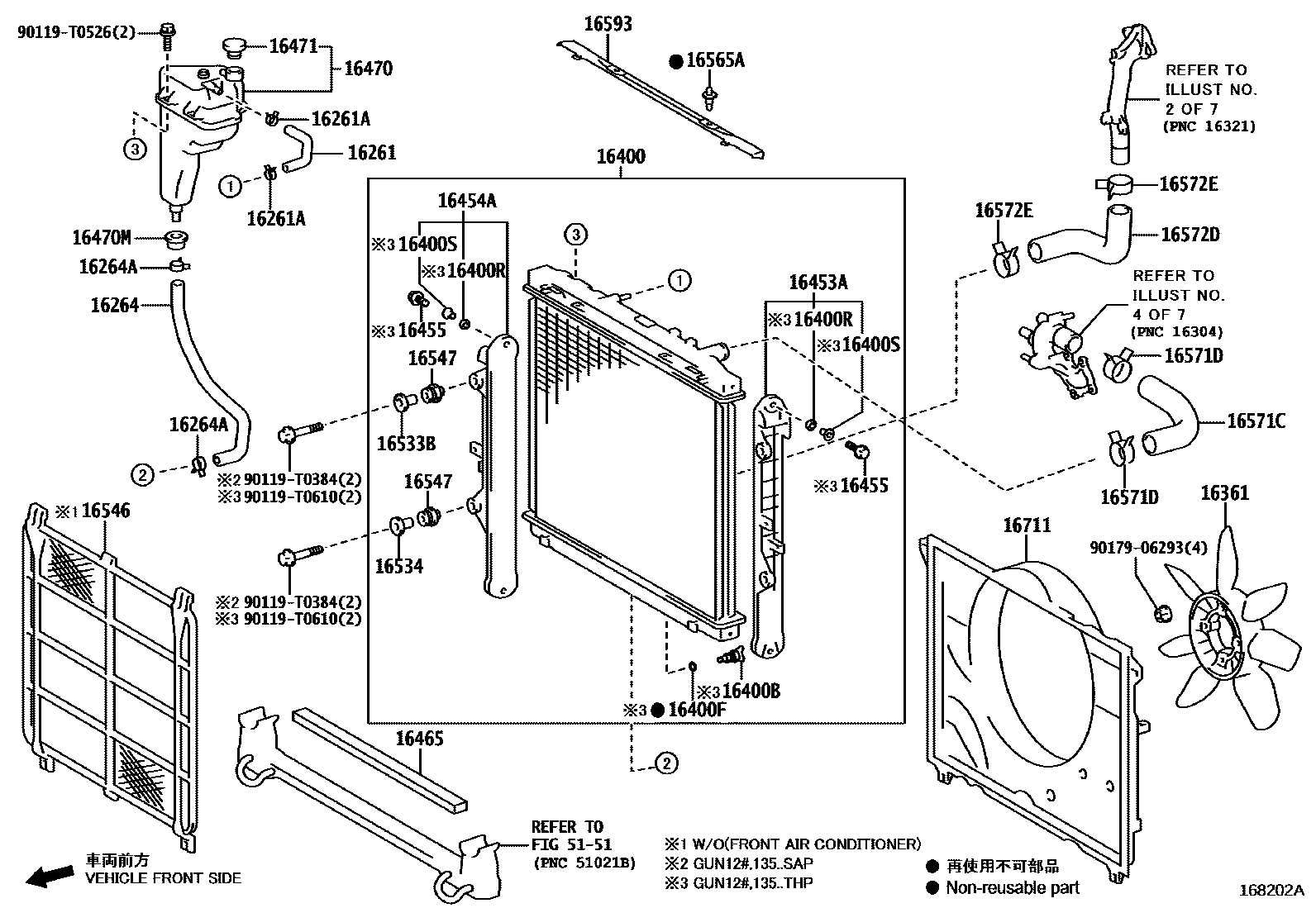

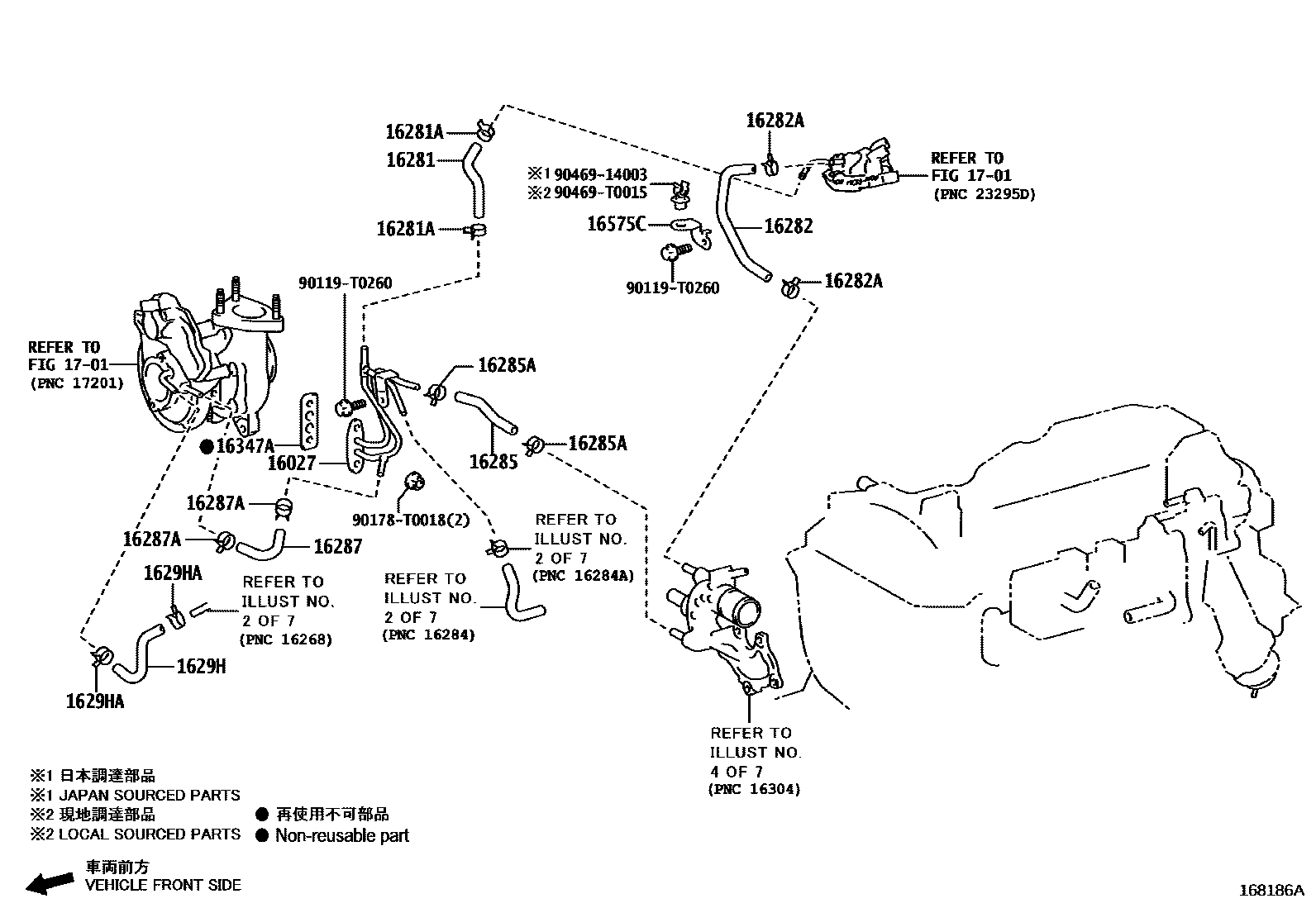

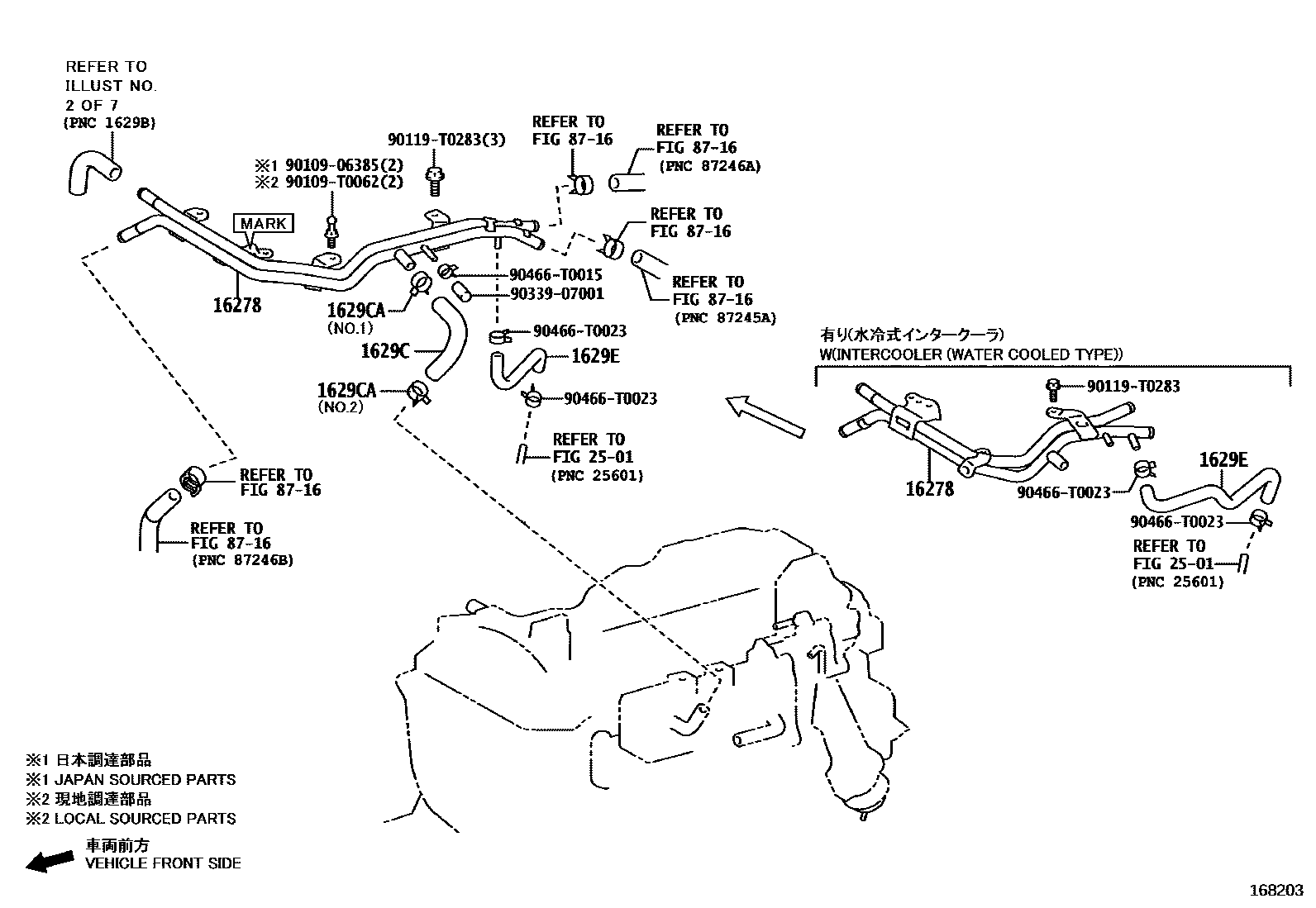

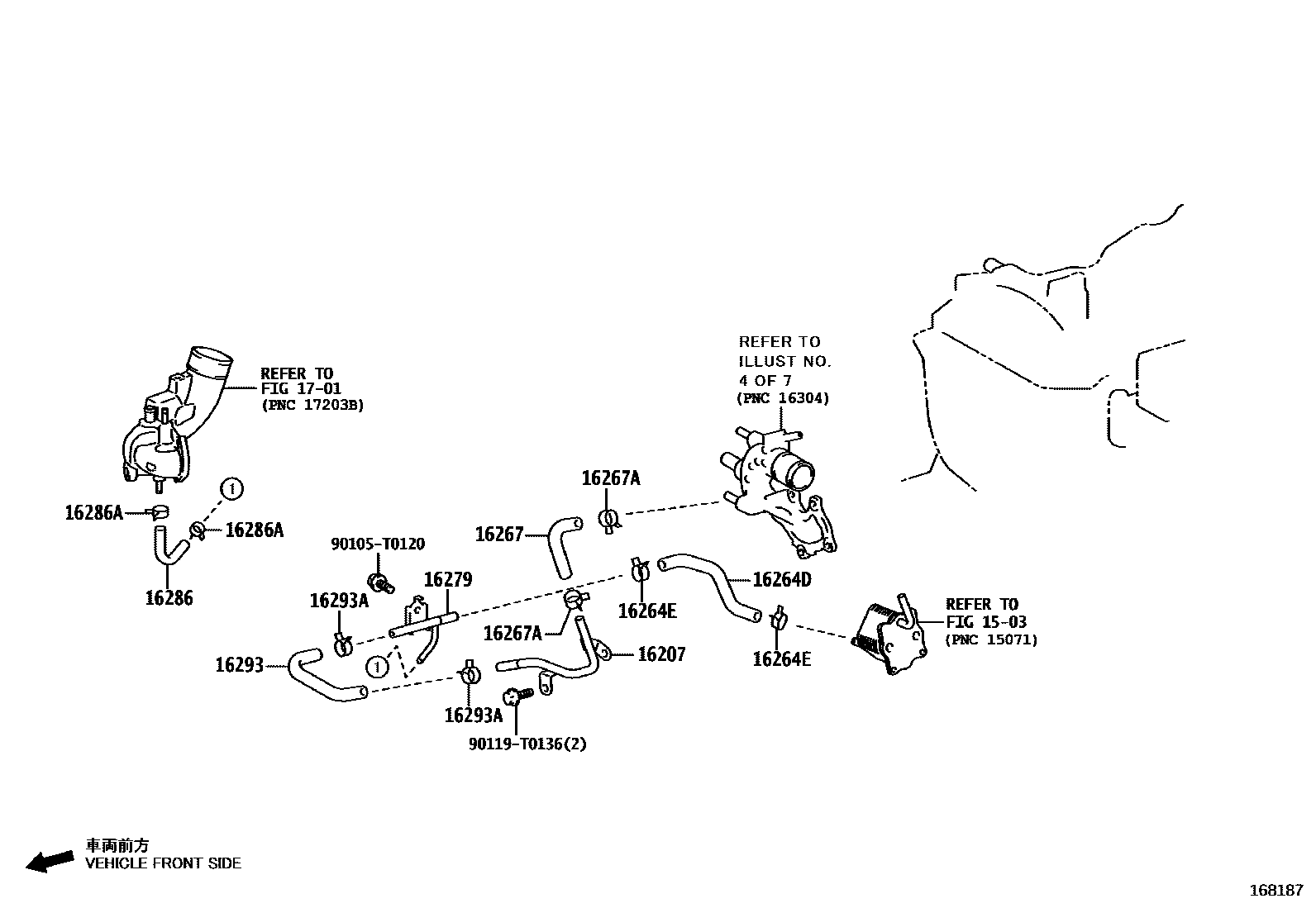

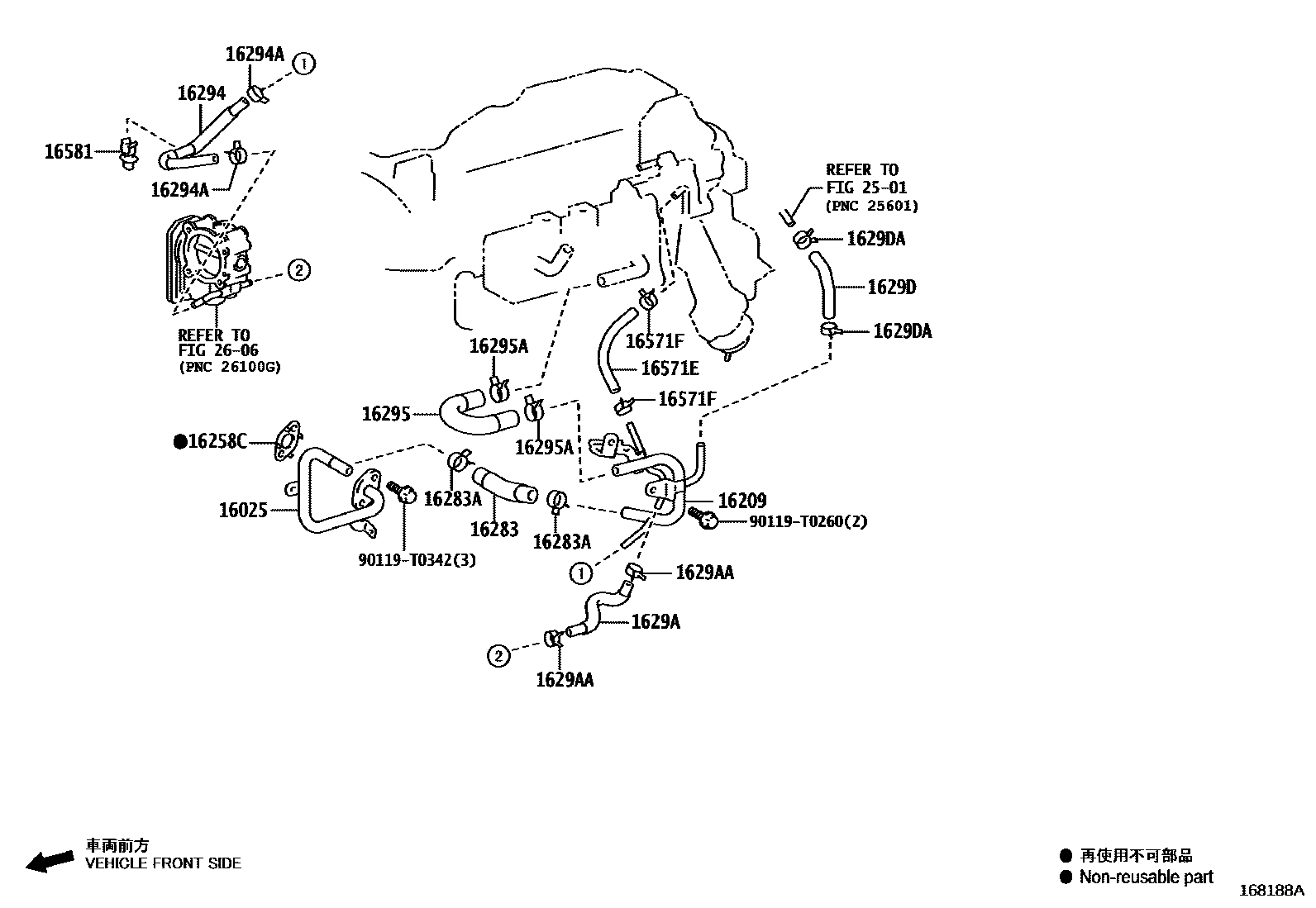

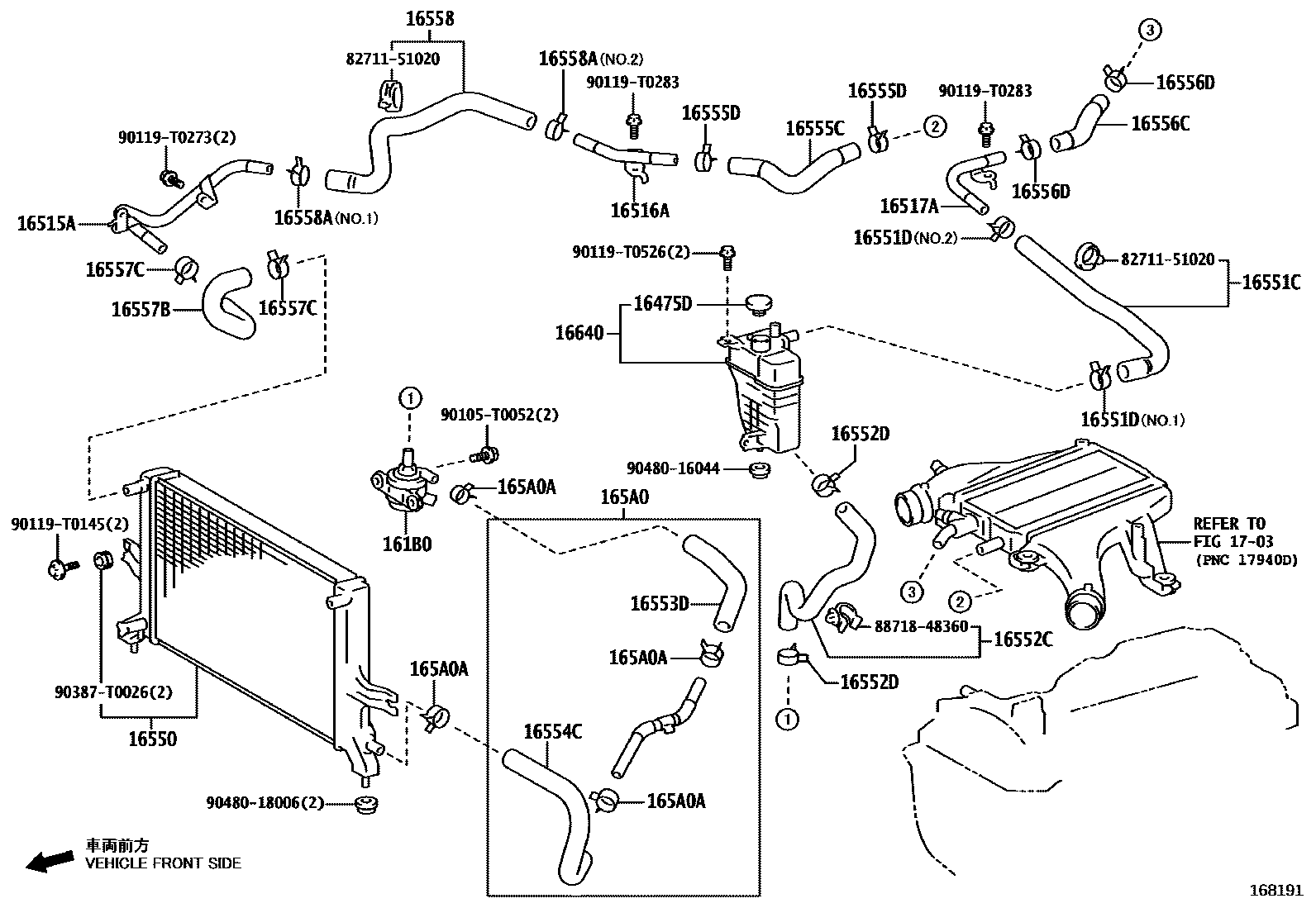

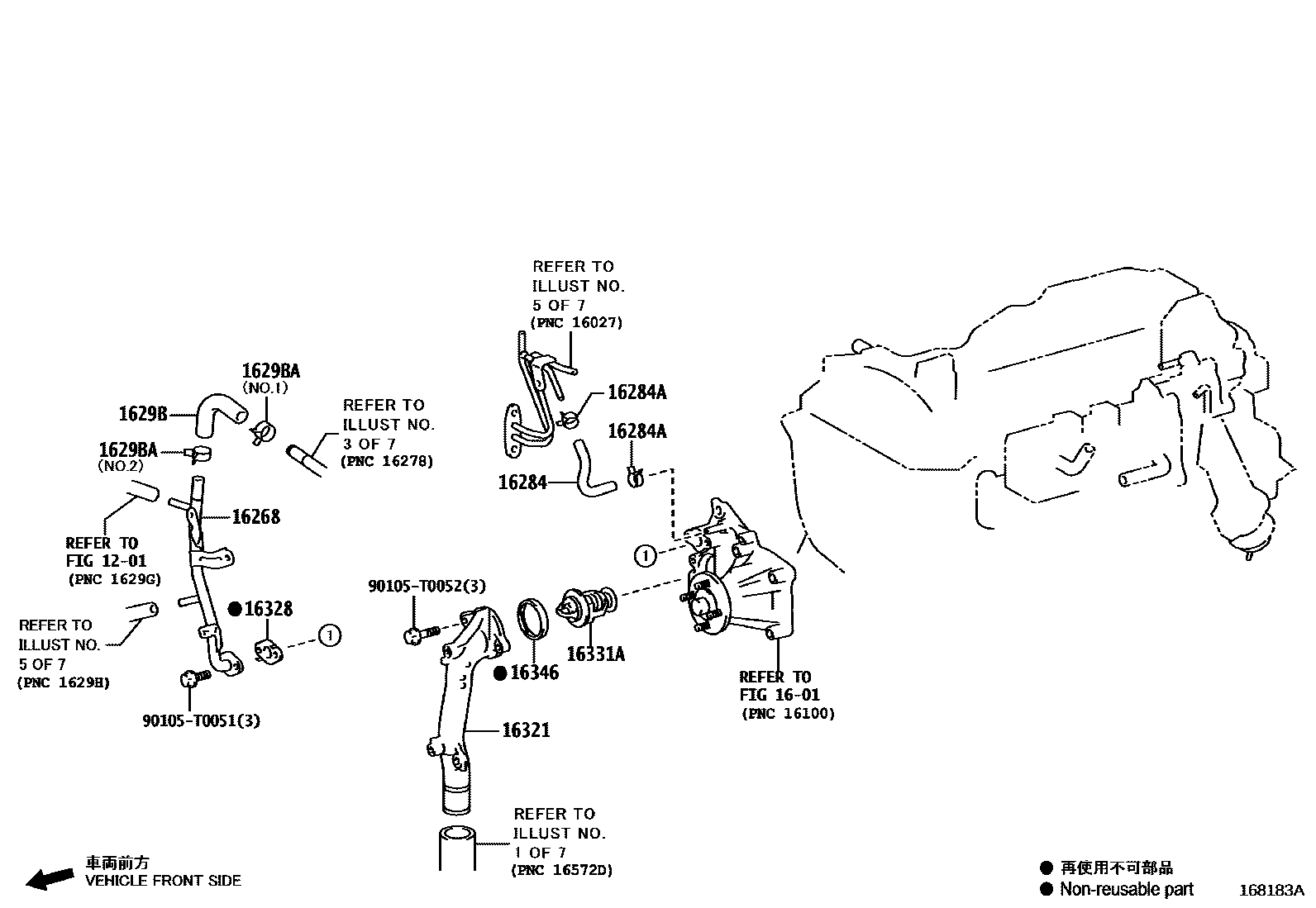

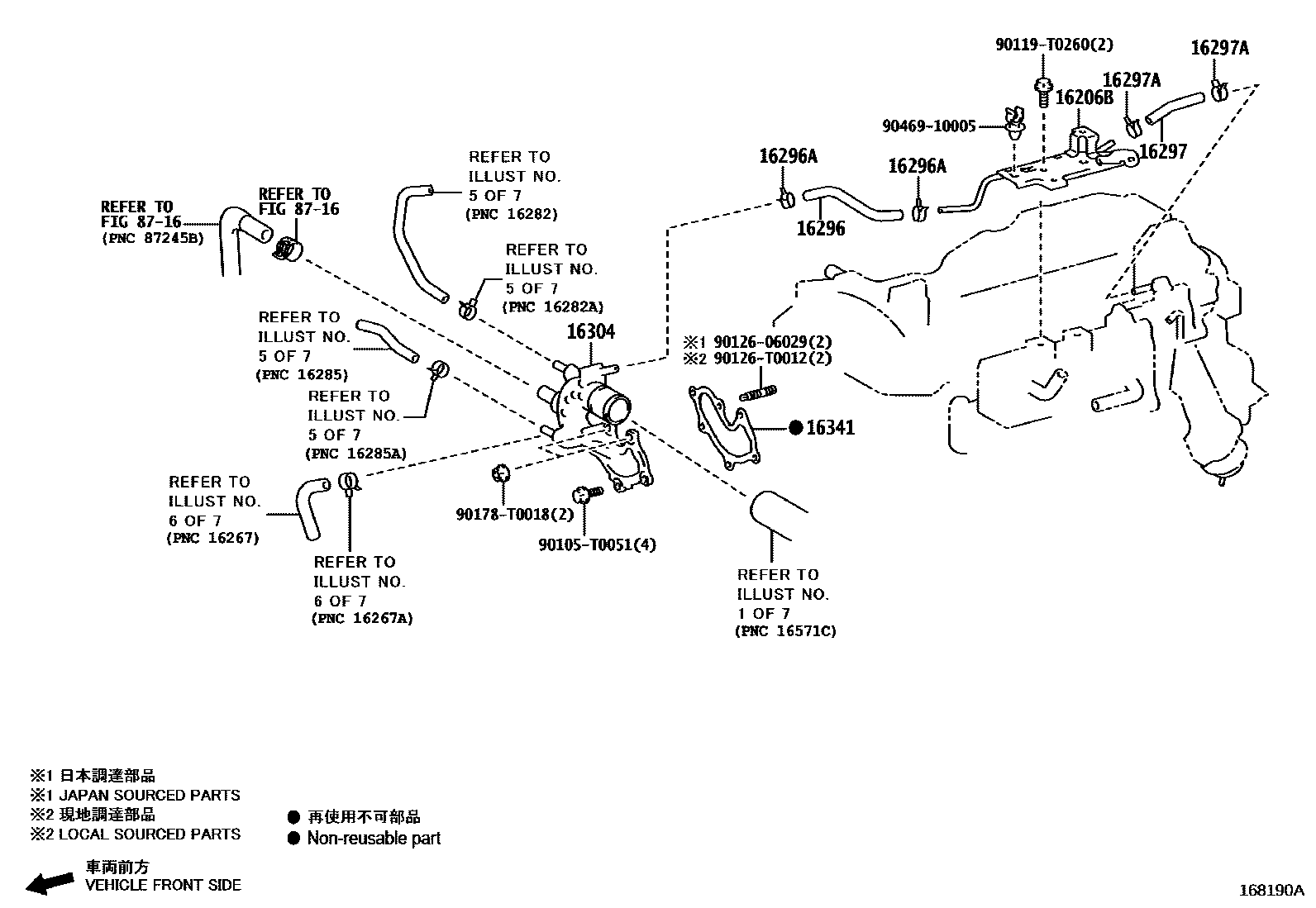

Toyota HILUX EPC diagram 1603, RADIATOR & WATER OUTLET, with 8 images and 108 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16025 | No. 5 water bypass pipe sub-assembly | 16025-0E010 · 16025-0E020 |
| 16027 | No. 1 turbine water pipe sub-assembly | 16027-0E040 · 16027-0E080 |
| 161B0 | ENS. POMPE, ELECTRIQUE EAU | 161B0-47010 |
| 16206B | No. 3 water bypass pipe sub-assembly | 16208-0E010 · 16208-0E020 · 16208-0E050 |
| 16207 | No. 2 water bypass pipe sub-assembly | 16207-0E011 · 16207-0E040 · 16207-11030 |
| 16209 | No. 4 water bypass pipe sub-assembly | 16209-0E040 · 16209-0E100 |
| 16258C | Gasket (for water bypass pipe) | 16258-0E010 · 16258-0E020 |
| 16261 | HOSE, WATER BY-PASS | 16261-0L121 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 90466-T0069 · 96136-51901 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-0L110 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90466-T0031 |
| 16264D | HOSE, WATER BY-PASS, NO.2 | 16264-0E011 · 16264-0E021 |
| 16264E | CLIP, WATER BY-PASS HOSE NO.2 | 90466-T0017 · 96136-42101 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-0E010 · 16267-0E020 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 90466-T0017 · 96136-42101 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-0E050 |
| 16278 | PIPE, WATER BY-PASS, NO.2 | 16278-0E030 · 16278-0E041 |
| 16279 | No. 3 water bypass pipe | 16279-0E020 |
| 16281 | HOSE, WATER BY-PASS, NO.4 | 16281-0E010 |
| 16281A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.4 | 90466-T0059 · 96137-41501 |
| 16282 | HOSE, WATER BY-PASS, NO.5 | 16282-0E010 |
| 16282A | Clip or clip (for No. 5 water bypass hose) | 90466-T0059 · 96137-41501 |
| 16283 | HOSE, WATER BY-PASS, NO.6 | 16283-0E010 · 16283-0E020 |
| 16283A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.6 | 90466-T0020 · 96136-42501 |
| 16284 | Turbine Water Hose No. 1 | 16284-0E010 · 16284-0E020 |
| 16284A | Clamp (for No. 1 turbine water hose) | 90466-T0059 |
| 16285 | Turbine Water Hose No. 2 | 16285-0E010 · 16285-0E020 |
| 16285A | Clamp (for No. 2 turbine water hose) | 90466-T0059 |
| 16286 | No. 3 turbine water hose | 16286-0E010 |
| 16286A | Clamp (for No. 3 turbine water hose) | 90466-T0015 |
| 16287 | No. 4 turbine water hose | 16287-0E010 · 16287-0E020 |
| 16287A | Clamp (for No. 4 turbine water hose) | 90466-T0059 |
| 16293 | No. 10 water bypass hose | 16293-0E011 · 16293-0E030 · 16293-11020 |
| 16293A | Clamp (for No. 10 water bypass hose) | 90466-T0017 · 96136-42101 |
| 16294 | HOSE, WATER BY-PASS, NO.11 | 16294-0E010 |
| 16294A | ATTACHE(POUR FLEX DERIVATION EAU NO.11) | 90466-T0015 |
| 16295 | HOSE, WATER BY-PASS, NO.7 | 16295-0E010 · 16295-0E020 |
| 16295A | CLIP, WATER BY-PASS HOSE NO.7 | 90466-T0020 · 96136-42501 |
| 16296 | HOSE, WATER BY-PASS, NO.8 | 16296-0E010 · 16296-0E020 |
| 16296A | CLIP, WATER BY-PASS HOSE NO.8 | 90466-T0015 |
| 16297 | No. 9 water bypass hose | 16297-0E010 · 16297-0E020 |
| 16297A | Clamp (for No. 9 water bypass hose) | 90466-T0015 |
| 1629A | CONDUITE FLEXIBLE, DERIVATION D'EAU, NO.14 | 1629A-0E010 |
| 1629AA | CLIP (POUR FLEXIBLE DE DERIVATION D'EAU NO.14) | 90466-T0015 |
| 1629B | CONDUITE FLEXIBLE, DERIVATION D'EAU, NO.15 | 1629B-0E010 |
| 1629BA | CLIP (POUR FLEXIBLE DE DERIVATION D'EAU NO.15) | 90466-T0020 · 96136-42501 |
| 1629C | CONDUITE FLEXIBLE, DERIVATION D'EAU, NO.16 | 1629C-0E010 · 1629C-0E030 |
| 1629CA | CLIP (POUR FLEXIBLE DE DERIVATION D'EAU NO.16) | 90466-T0020 · 96136-42501 · 96138-42501 |
| 1629D | CONDUITE FLEXIBLE, DERIVATION D'EAU, NO.17 | 1629D-0E010 · 1629D-0E011 |
| 1629DA | ATTACHE(POUR FLEX DERIVATION EAU NO.17) | 90466-T0042 |
| 1629E | CONDUITE FLEXIBLE, DERIVATION D'EAU, NO.18 | 1629E-0E010 · 1629E-0E020 |
| 1629H | FLEXIBLE, DERIV EAU, NO.21 | 1629H-0E010 · 1629H-0E020 · 1629H-11010 |
| 1629HA | ATTACHE(POUR FLEX DERIVATION EAU NO.21) | 90466-T0015 |
| 16304 | Water outlet sub-assembly | 16304-0E030 · 16304-0E060 |
| 16321 | water inlet | 16321-0E010 · 16321-0E020 · 16321-11050 |
| 16328 | Inlet pipe gasket | 16328-0E010 · 16328-0E020 |
| 16331A | thermostat | 90916-03118 |
| 16341 | GASKET, WATER OUTLET | 16341-0E010 · 16341-0E020 · 16341-11010 |
| 16346 | thermostat gasket | 16346-0K010 |
| 16347A | Liners (for turbine water pipes) | 16347-0E010 · 16347-0E020 |
| 16361 | Fan | 16361-0E010 · 16361-0L020 |
| 16400 | Radiator assembly | 16400-0L363 · 16400-0L392 · 16400-0L433 · 16400-0L462 |
| 16400B | Radiator drain switch screw plug | 16417-0C180 |
| 16400F | Seal (for radiator drain switch) | 16492-0L060 |
| 16400R | Bushing (for radiator) | 16444-0L060 |
| 16400S | Collar (for radiator) | 16445-0C180 |
| 16453A | PLAQUE, SUPPORT LAT RADIATEUR, MD | 16453-0L430 |
| 16454A | PLAQUE, SUPPORT LAT RADIATEUR, MG | 16454-0L361 |
| 16455 | Radiator side support plate bolts | 91651-B0820 |
| 16465 | Radiator seal | 88619-0K010 · 88619-0K030 |
| 16470 | Radiator reservoir assembly | 16470-0L083 · 16470-0L122 |
| 16470M | gasket | 90480-T0004 |
| 16471 | Liquid storage tank cover sub-assembly | 16475-28140 |
| 16475D | BOUCHON, RESERVOIR | 16475-28140 |
| 16515A | TUYAU, EAU REFROIDISSEMENT REFROIDISSEUR, NO.1 | 16516-0E020 |
| 16516A | TUYAU, EAU REFROID REFROIDISSEUR INTERMED, NO.2 | 16516-0E010 |
| 16517A | TUYAU, EAU REFROID REFROIDISSEUR INTERMED, NO.3 | 16517-0E010 |
| 16533B | Radiator bracket No. 1 | 16533-0L010 · 16533-0L020 |
| 16534 | Radiator bracket No. 2 | 16534-0L010 · 16534-0L020 |
| 16546 | Radiator protection device | 16546-0L051 |
| 16547 | Radiator bracket bushing No. 1 | 16547-0L010 · 16547-0L020 |
| 16550 | ENS. RADIATEUR, REFROID REFROIDISSEUR INTERMED | 16550-0E010 |
| 16551C | FLEXIBLE, EAU REFROIDISSEMENT REFROIDISSEUR, NO.1 | 16551-0E010 |
| 16551D | COLLIER OU ATTACHE(POUR FLEXIBLE EAU REFROID REFROIDIS NO.1) | 90466-T0017 · 90466-T0031 |
| 16552C | FLEXIBLE, EAU REFROIDISSEMENT REFROIDISSEUR, NO.2 | 16552-0E010 |
| 16552D | COLLIER OU ATTACHE(POUR FLEXIBLE EAU REFROID REFROIDIS NO.2) | 90466-T0031 |
| 16553D | FLEXIBLE, EAU REFROIDISSEMENT REFROIDISSEUR, NO.3 | 16553-0E010 |
| 16554C | FLEXIBLE, EAU REFROIDISSEMENT REFROIDISSEUR, NO.4 | 16554-0E010 |
| 16555C | FLEXIBLE, EAU REFROIDISSEMENT REFROIDISSEUR, NO.5 | 16555-0E010 |
| 16555D | COLLIER OU ATTACHE(POUR FLEXIBLE EAU REFROID REFROIDIS NO.5) | 90466-T0017 |
| 16556C | FLEXIBLE, EAU REFROIDISSEMENT REFROIDISSEUR, NO.6 | 16556-0E010 |
| 16556D | COLLIER OU ATTACHE(POUR FLEXIBLE EAU REFROID REFROIDIS NO.6) | 90466-T0017 |
| 16557B | FLEXIBLE, EAU REFROIDISSEMENT REFROIDISSEUR, NO.7 | 16555-0E020 |
| 16557C | COLLIER OU ATTACHE(POUR FLEXIBLE EAU REFROID REFROIDIS NO.7) | 90466-T0031 |
| 16558 | FLEXIBLE, EAU REFROIDISSEMENT REFROIDISSEUR, NO.8 | 16556-0E020 |
| 16558A | COLLIER OU ATTACHE(POUR FLEXIBLE EAU REFROID REFROIDIS NO.8) | 90466-T0017 · 90466-T0031 |
| 16571C | Radiator hose No. 1 | 16571-0L150 |
| 16571D | No. 1 radiator hose clip | 90466-T0024 |
| 16571F | Clamps or clips (for water hoses) | 90466-T0015 |
| 16572D | Radiator hose No. 2 | 16572-0L150 |
| 16572E | No. 2 radiator hose clip | 90466-T0024 |
| 16575C | No. 1 water hose clamp bracket | 16575-0E010 · 16575-0E020 |
| 16581 | Hose clamp (for water hose) | 16581-0E010 |
| 16593 | Radiator deflector No. 1 | 16593-0L030 · 16593-0L040 |
| 165A0 | ENS. FLEXIBLE, EAU REFR REFR INTERMEDIAIRE, NO.1 | 165A0-0E010 |
| 165A0A | ATTACHE, FLEXIBLE | 90466-T0031 |
| 16640 | ENS. RESERVOIR, AUXILIAIRE DE REFROIDISSEUR INTERMEDIAIRE | 16640-0E010 |
| 16711 | fan cover | 16711-0E010 · 16711-0E020 · 16711-0L140 |
