Toyota HILUX Heating & Air Conditioning - Compressor — Figure 8719

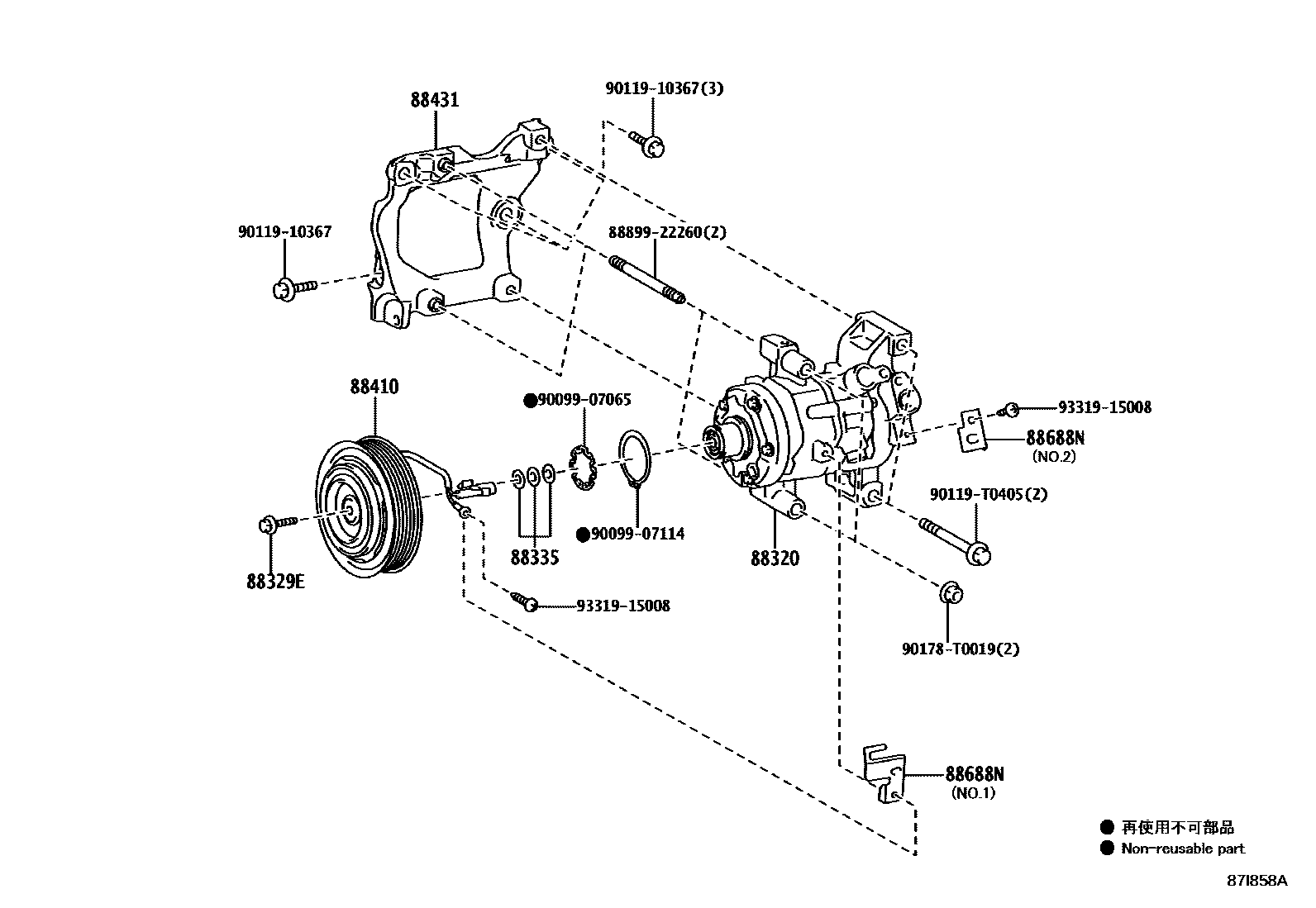

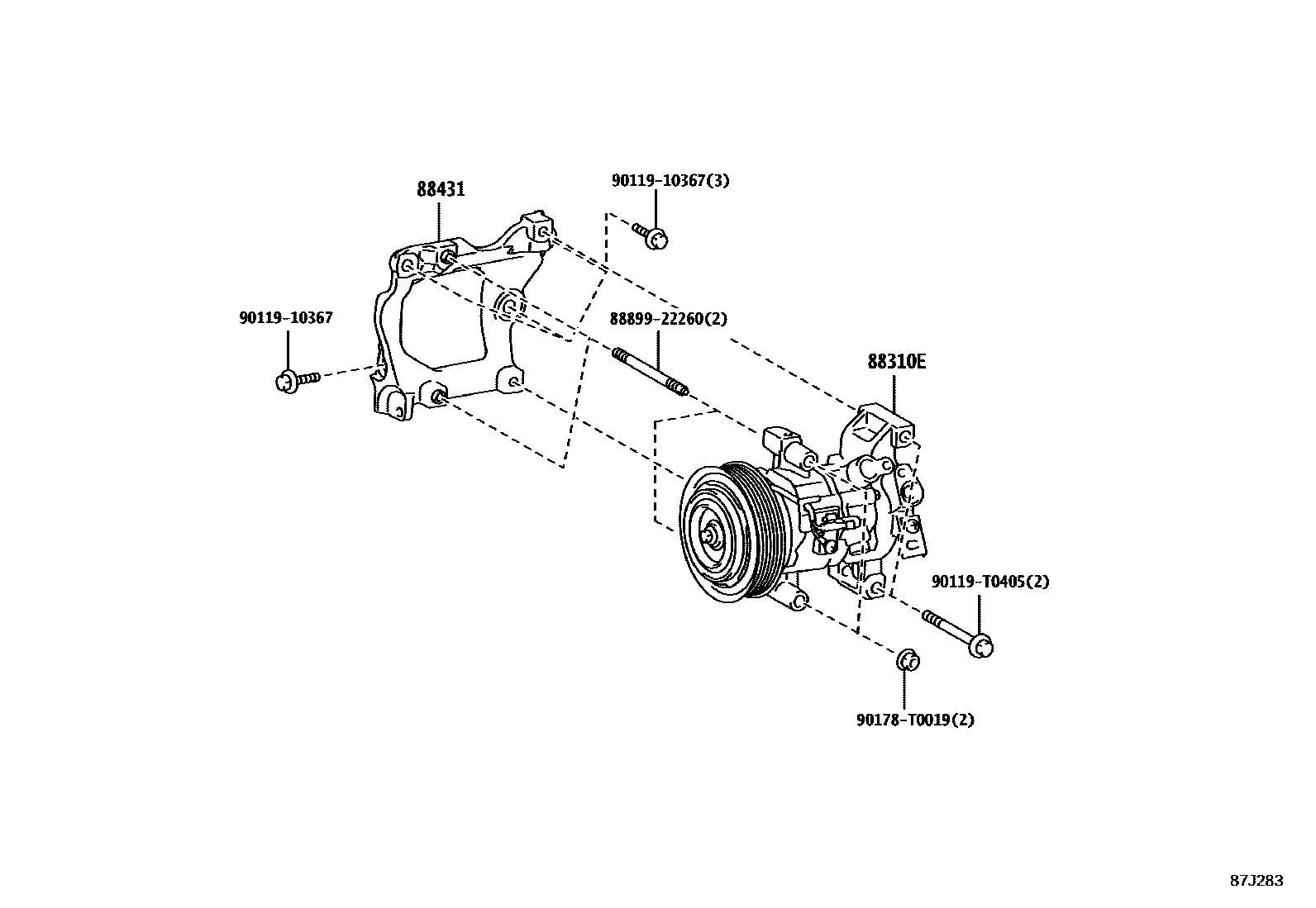

Toyota HILUX EPC diagram 8719, Heating & Air Conditioning - Compressor, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88310E | Compressor with electromagnetic clutch | 88310-0KE30 |
| 88320 | Cooler Compressor Assembly | 88320-0K520 |
| 88329E | No. 1 compressor bolt | 90099-04349 |
| 88335 | Overhaul gasket assembly | 88335-14020 |
| 88410 | Magnetic Clutch Assembly | 88410-0K600 |
| 88431 | Compressor No. 1 mounting bracket | 88431-0K140 · 88431-0K160 |
| 88688N | cooler bracket | 88849-0K010 · 88849-0K020 |
