Toyota HILUX 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota HILUX EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 7 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

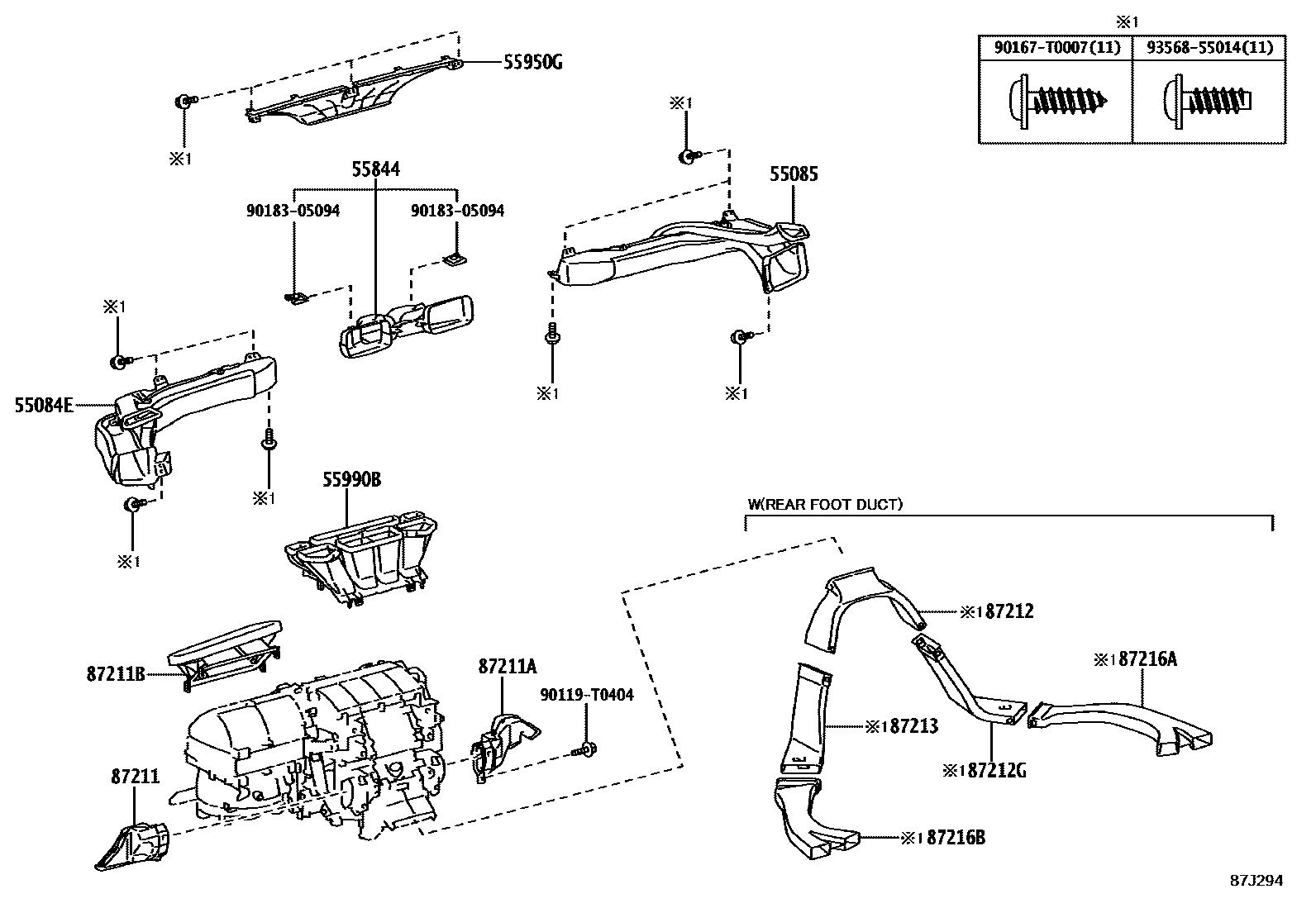

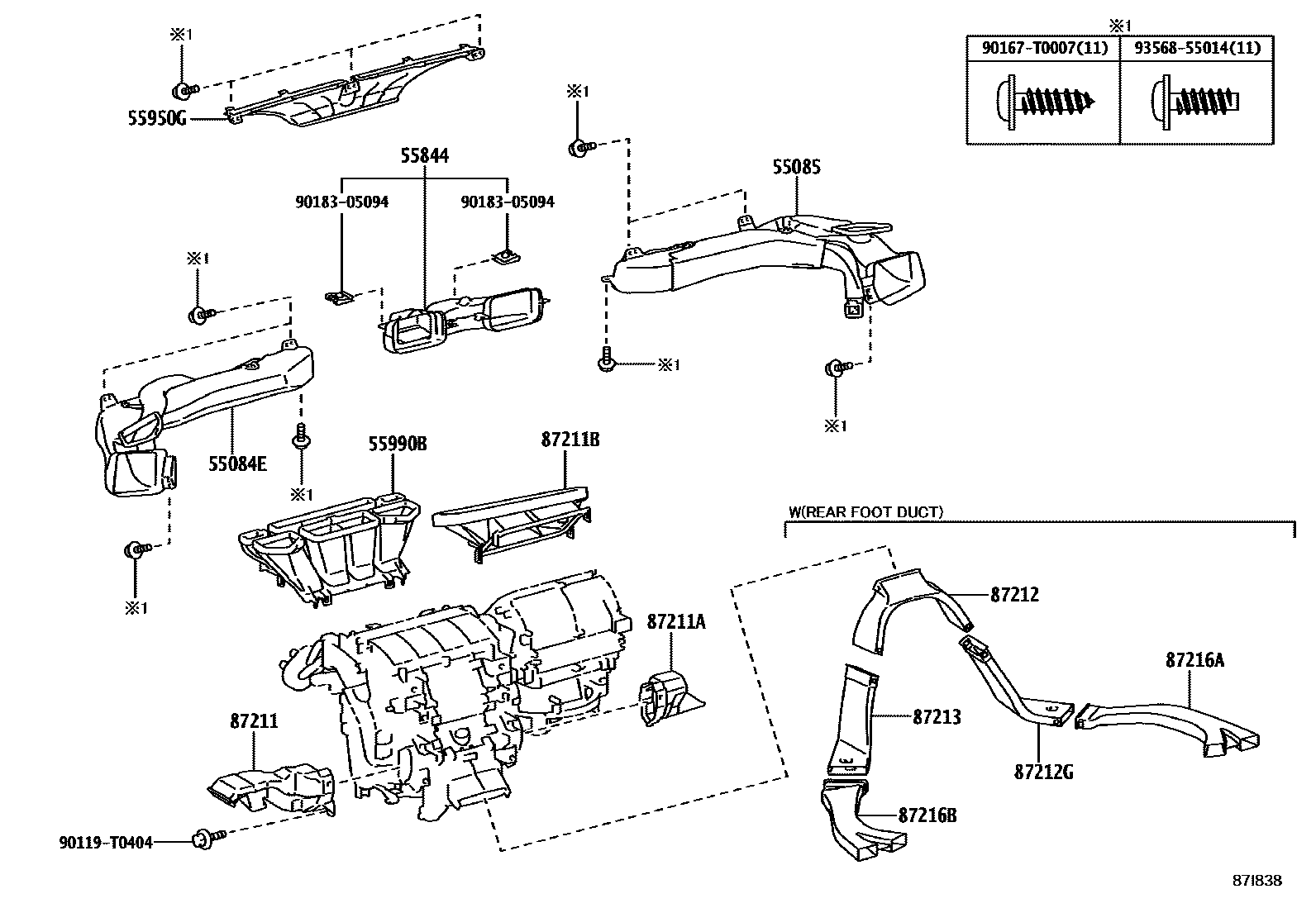

| 55084E | Heater to air regulator No. 1 air duct sub-assembly | 55084-KK020 · 55085-KK120 |
| 55085 | Heater to air regulator No. 2 air duct sub-assembly | 55084-KK010 · 55085-KK150 |
| 55844 | Air duct No. 2 from heater to air regulator | 55844-KK030 · 55844-KK040 |

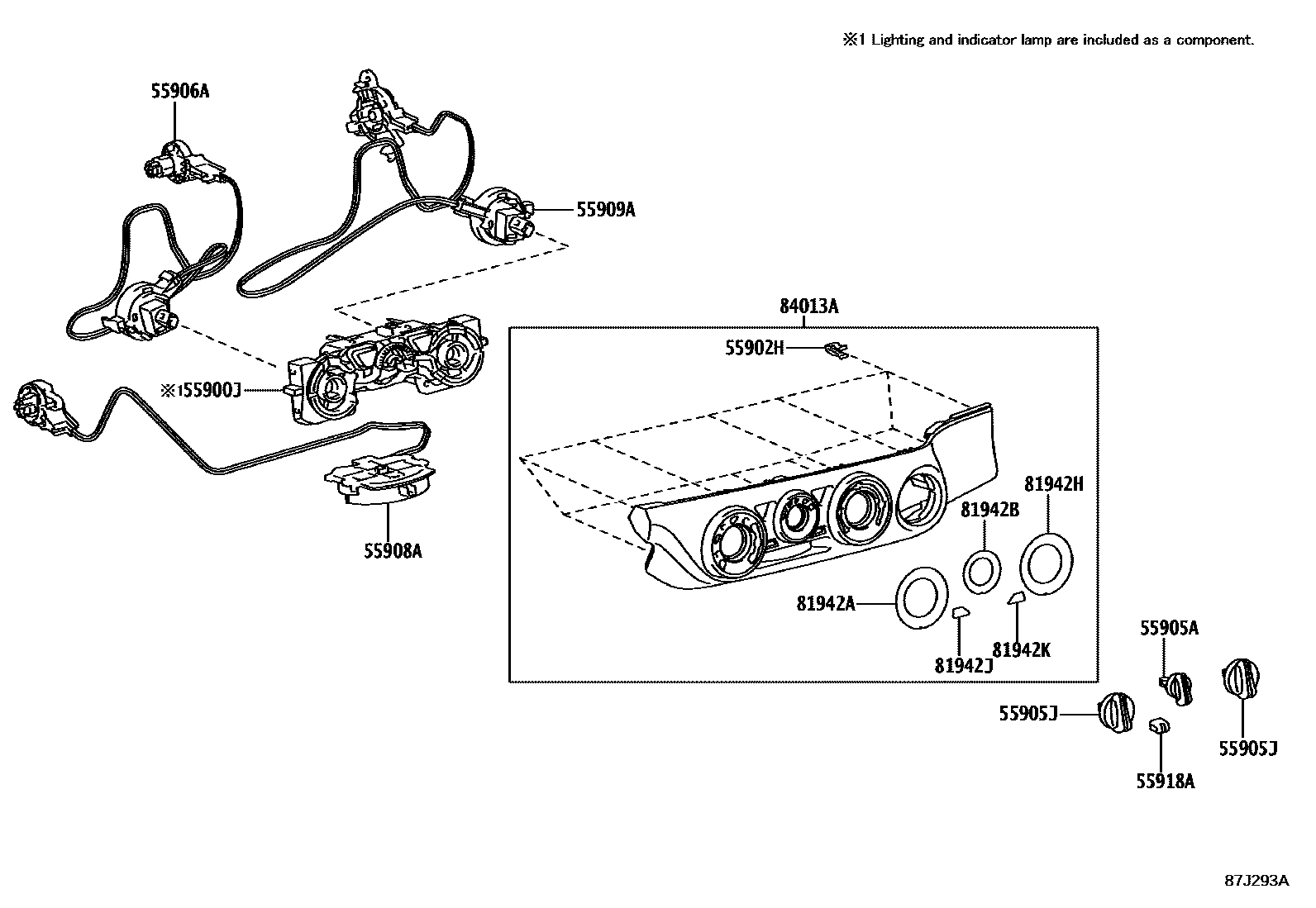

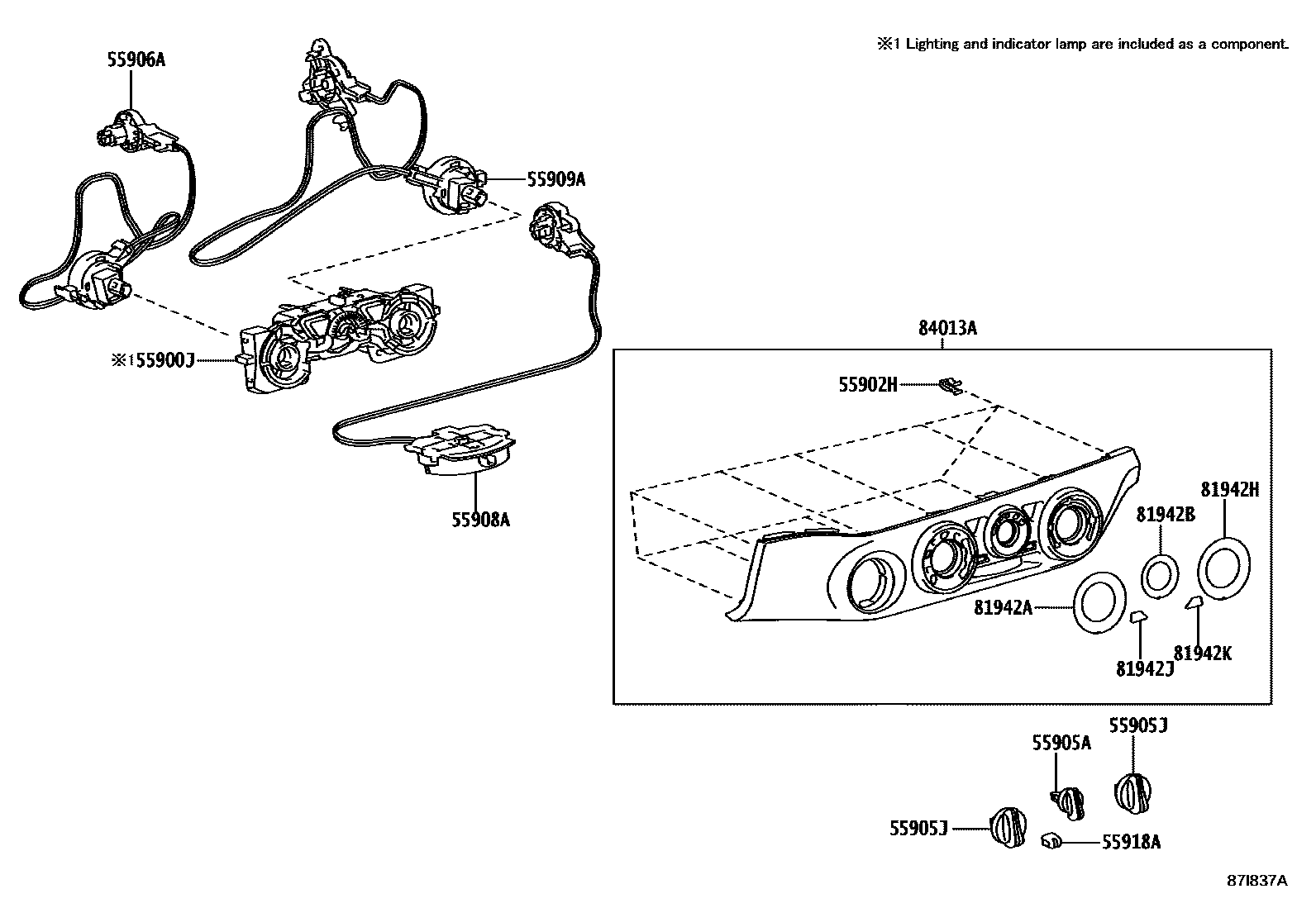

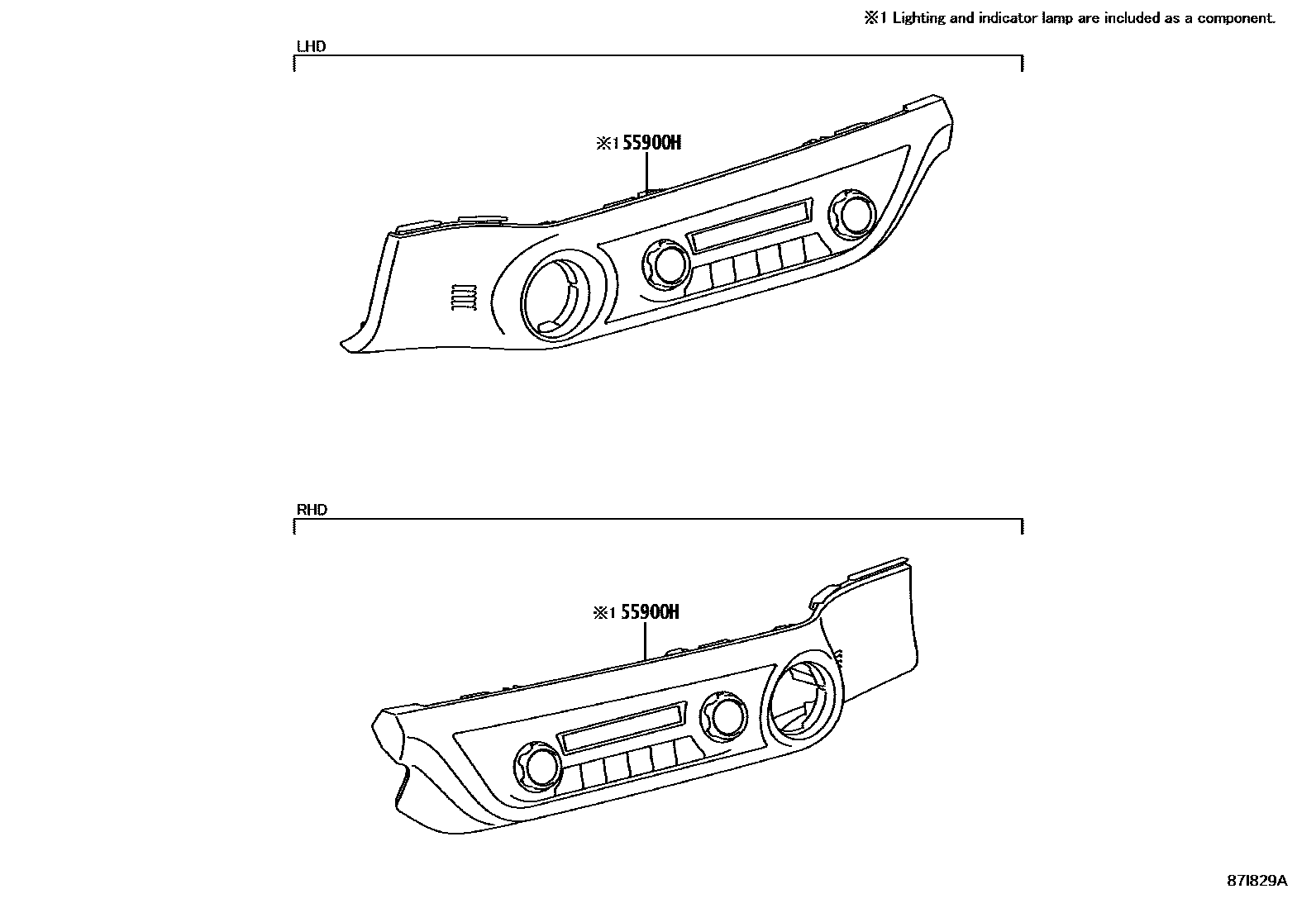

| 55900J | ENS. COMMANDE, CLIMATISATION(MANUELLE) | 55900-0KC10 · 55900-0KD61 · 55900-0KE01 · 55900-0KF00 · 55900-0KM30 |
| 55902H | ATTACHE(POUR PANNEAU CLIMATISATION) | 90467-05171 |
| 55905A | Heater control button | 55917-0K010 · 55917-0K021 |
| 55905J | Control button sub-assembly | 55905-0K230 · 55905-0K270 |
| 55906A | Defroster damper control cable sub-assembly | 55906-0K060 |
| 55908A | Intake air valve control cable sub-assembly | 55908-0K080 · 55908-0K110 |
| 55909A | Air mix damper control cable sub-assembly | 55909-0K060 |
| 55918A | Intake air door control lever | 55918-0K010 · 55918-0K020 |
| 55950G | Defroster nozzle assembly | 55950-KK030 |
| 55990B | Lower defroster nozzle assembly | 55990-KK020 |
| 81942A | Heater No. 1 control nameplate | 81941-0K010 · 81941-0K030 |
| 81942B | Heater No. 2 control nameplate | 81942-0K660 · 81942-0K770 |
| 81942H | Heater No. 3 control nameplate | 81943-0K040 · 81943-0K100 |
| 81942J | Heater No. 4 control nameplate | 81944-0K010 · 81944-0K020 |
| 81942K | Heater No. 5 control nameplate | 81945-0K010 · 81945-0K020 |
| 87211 | No. 1 air duct | 87211-0K760 · 87211-0KA10 · 87211-0KA70 |
| 87211A | Duct No. 2 | 87211-0K780 · 87211-0KA30 · 87211-0KA50 |
| 87211B | No. 3 air duct | 87211-0KA80 · 87211-0KB00 · 87211-0KB10 |
| 87212 | No. 1 rear air duct | 87214-KK010 |
| 87212G | No. 3 rear air duct | 87212-KK010 |
| 87213 | No. 2 rear air duct | 87213-KK010 |
| 87216A | No. 5 rear air duct | 87215-KK010 |
| 87216B | No. 4 rear air duct | 87216-KK010 |
| 88505 | Air conditioning duct sub-assembly | 88505-0K760 · 88505-0K790 · 88505-0K800 |

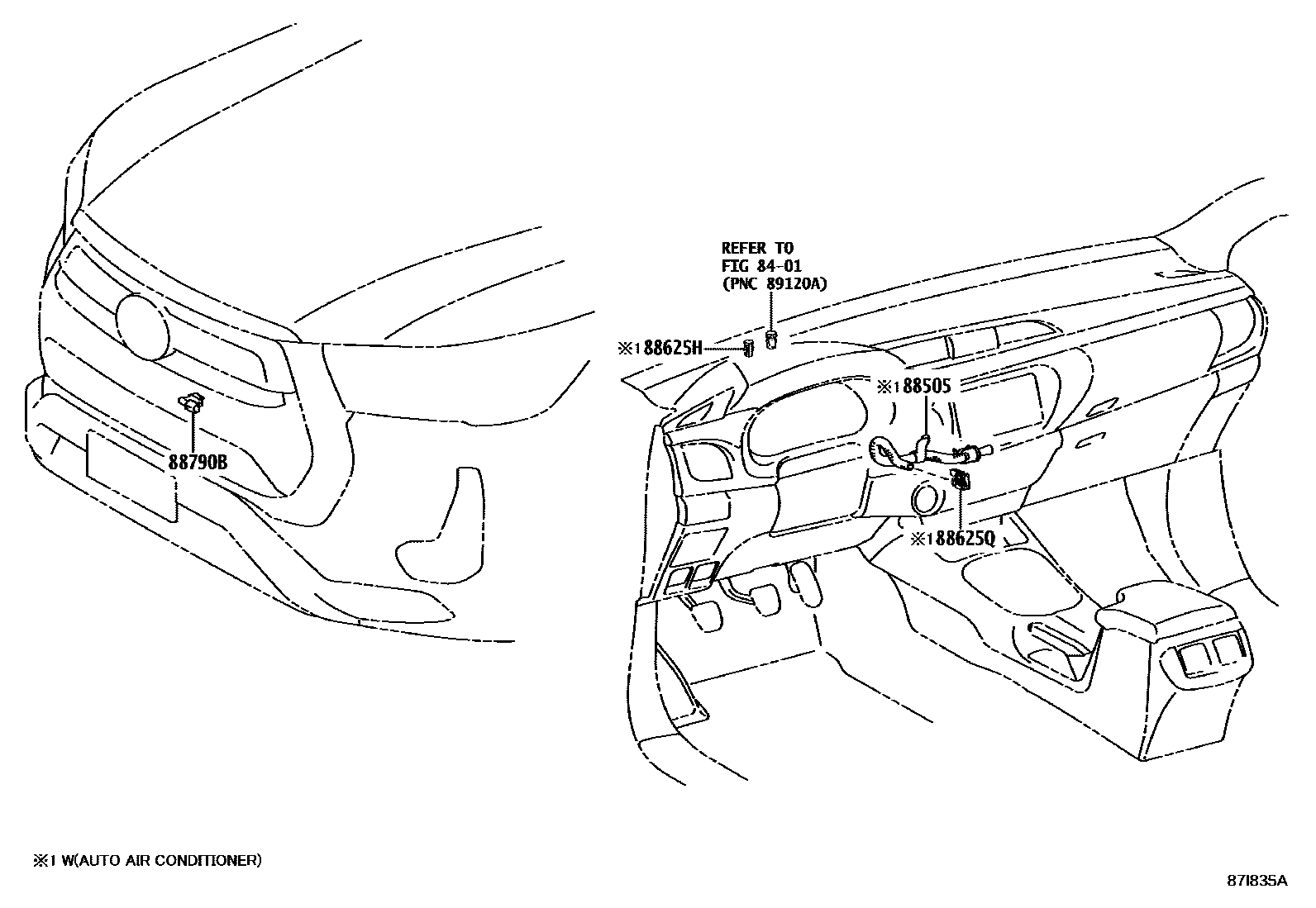

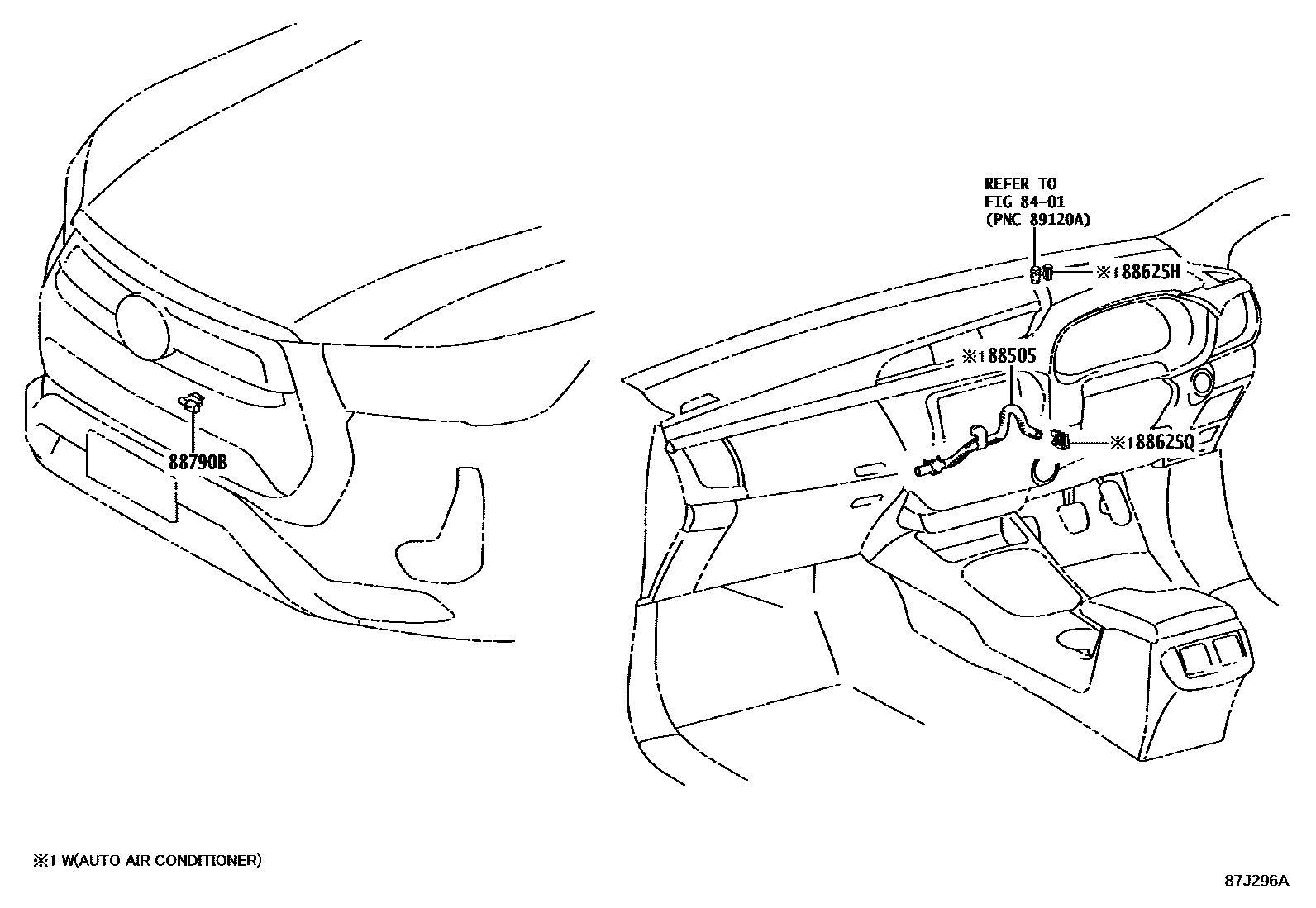

| 88625H | Cooler thermistor (sunlight sensor) | 88625-0K010 · 88625-47031 |
| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-0K020 · 88625-47021 |
| 88790B | Thermistor assembly | 88790-0K010 · 88790-28100 |
