Toyota HILUX antenna — Figure 8604

Toyota HILUX EPC diagram 8604, antenna, with 1 images and 6 PNC and OE references.

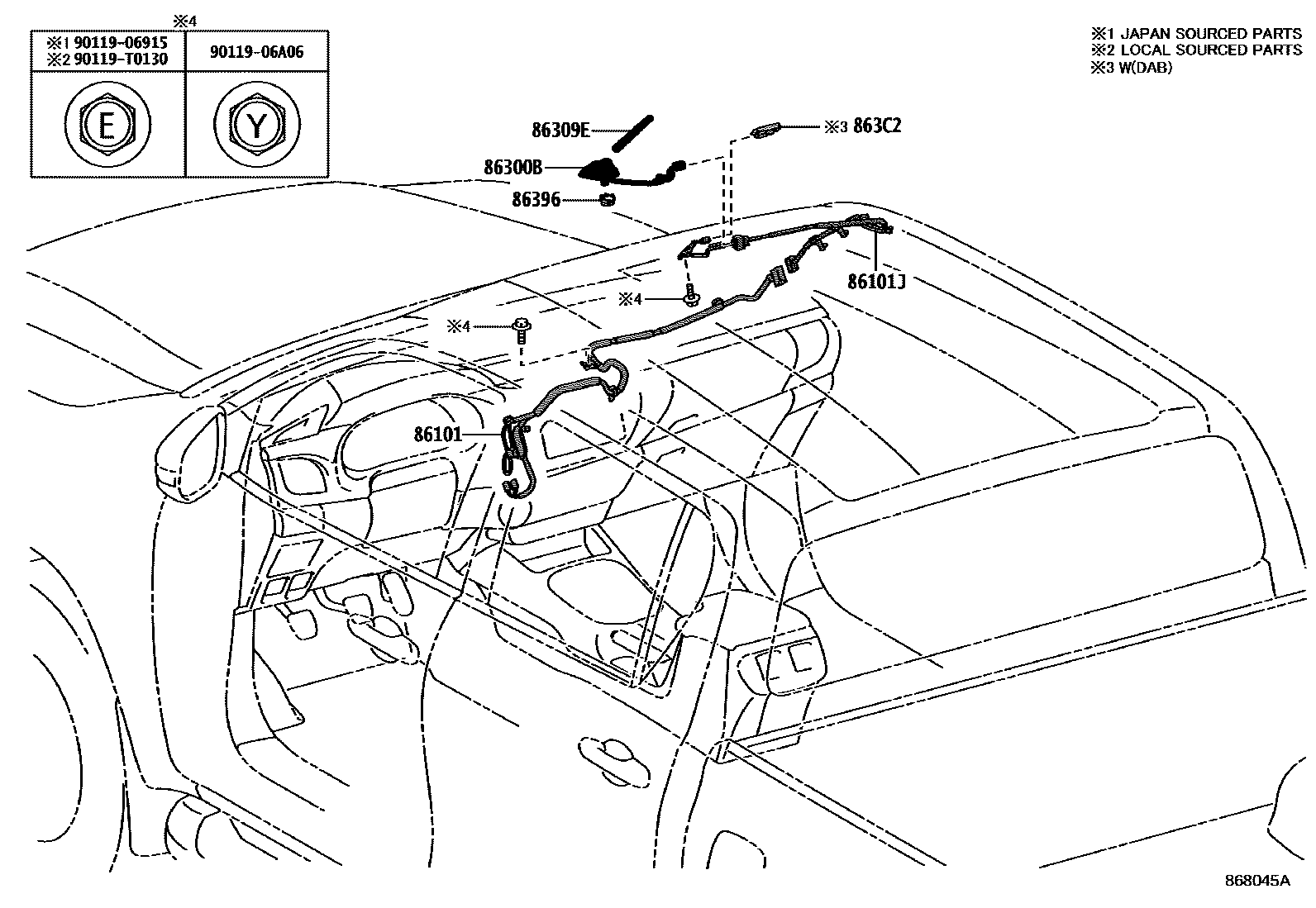

Toyota HILUX antenna EPC diagram — 868045A
antenna — 868045A (202006 – 999999)

PNC and OE references

PNCPart nameOE numbers
86101Antenna wire sub-assembly86101-0K770 · 86101-0K790 · 86101-0K810 · 86101-0K851 · 86101-0K880 · 86101-0KJ71 · 86101-0KJ91 · 86101-0KK01
86101JNo. 2 antenna wire sub-assembly86101-0KA21 · 86101-0KA51 · 86101-0KA60 · 86101-0KF40 · 86101-0KK41 · 86101-0KK51
86300BAmplifier antenna assembly86300-0K200 · 86300-0K210 · 86300-0K260
86309ERoof antenna sub-assembly86309-0K020 · 86309-0K080 · 86309-0K090
86396Antenna nut86396-47010
863C2BASE, ANTENNE DIFFUSION AUDIONUMERIQUE863C2-0K010 · 863C2-0K030
