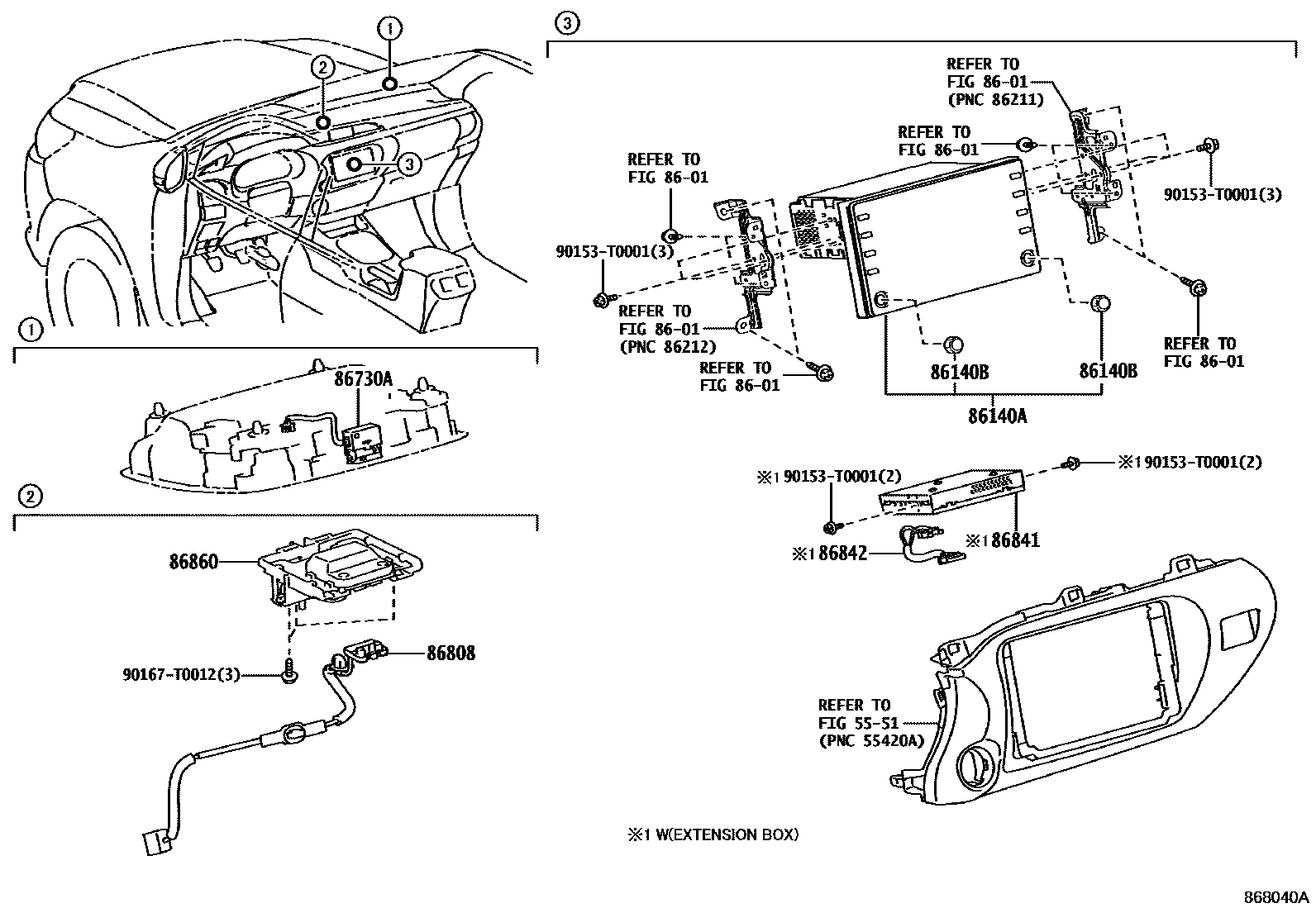

Toyota HILUX 导航和前监视器显示屏 — Figure 8603
Toyota HILUX EPC diagram 8603, 导航和前监视器显示屏, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86140A | Radio and display receiver assembly | 86140-0KP70 · 86140-0KP71 · 86140-0KP80 · 86140-0KP81 · 86140-0KQ80 · 86140-0KQ81 · 86140-0KQ90 · 86140-0KQ91 · 86140-0KS30 · 86140-0KS31 · 86140-0KS40 · 86140-0KS41 · 86140-0KT90 · 86140-0KT91 · 86140-0KU00 · 86140-0KU01 |
| 86140B | Radio and display receiver switch button | 90011-25321 |
| 86730A | Telephone amplifier assembly | 86730-20060 · 86730-60050 |
| 86808 | No. 1 navigation antenna wire sub-assembly | 86808-0K051 · 86808-0K231 |
| 86841 | Navigation ECU | 86840-K0010 |
| 86842 | Navigation harness No. 1 | 86842-33150 |
| 86860 | Navigation antenna assembly | 86860-0K040 |
