Toyota HILUX 挡风玻璃清洗器 — Figure 8503

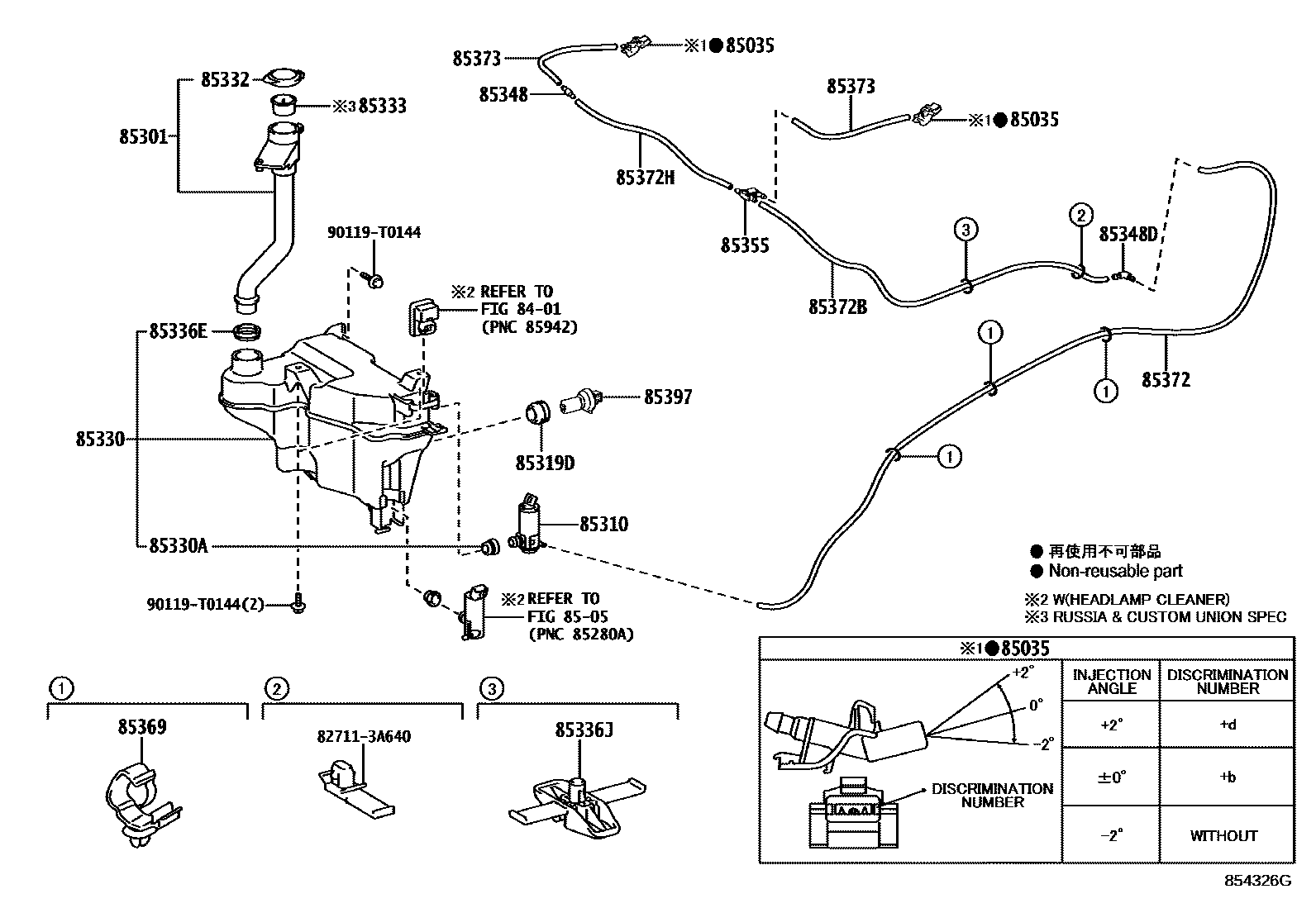

Toyota HILUX EPC diagram 8503, 挡风玻璃清洗器, with 1 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85381-0K070 · 85381-0K080 · 85381-0K090 |
| 85301 | Cleaner water inlet sub-assembly | 85301-0K111 |
| 85310 | Windshield washer motor and pump assembly | 85330-0K021 |
| 85319D | front washer seal | 85319-33230 |
| 85330 | Windshield washer fluid tank assembly | 85315-0K420 · 85355-0K040 |
| 85330A | Windshield washer fluid tank bushing | 90099-32089 |
| 85332 | Windshield washer fluid tank cap | 85316-YE011 |
| 85333 | Windshield washer fluid tank filter | 85312-71010 |
| 85336E | Windshield washer water inlet hose seal | 85336-30160 |
| 85336J | Cleaning fluid tank protection device | 85372-0K020 |
| 85348 | Windshield washer hose connector No. 1 | 85375-06101 |
| 85348D | No. 1 windshield washer elbow joint | 85377-0D040 |
| 85355 | Windshield washer hose valve | 85321-28020 |
| 85369 | card holder | 82711-0K070 |
| 85372 | Windshield washer hose No. 1 (from connector to connector) | 90068-33278 |
| 85372B | Windshield washer hose No. 2 (from connector to connector) | 90068-33296 |
| 85372H | No. 3 windshield washer hose (from connector to connector) | 90068-33258 |
| 85373 | Windshield washer hose (from connector to nozzle) | 90068-33251 |
| 85397 | Liquid level warning switch assembly | 85397-30400 |
