Toyota HILUX 线束和卡夹 — Figure 8202
Toyota HILUX EPC diagram 8202, 线束和卡夹, with 13 images and 78 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

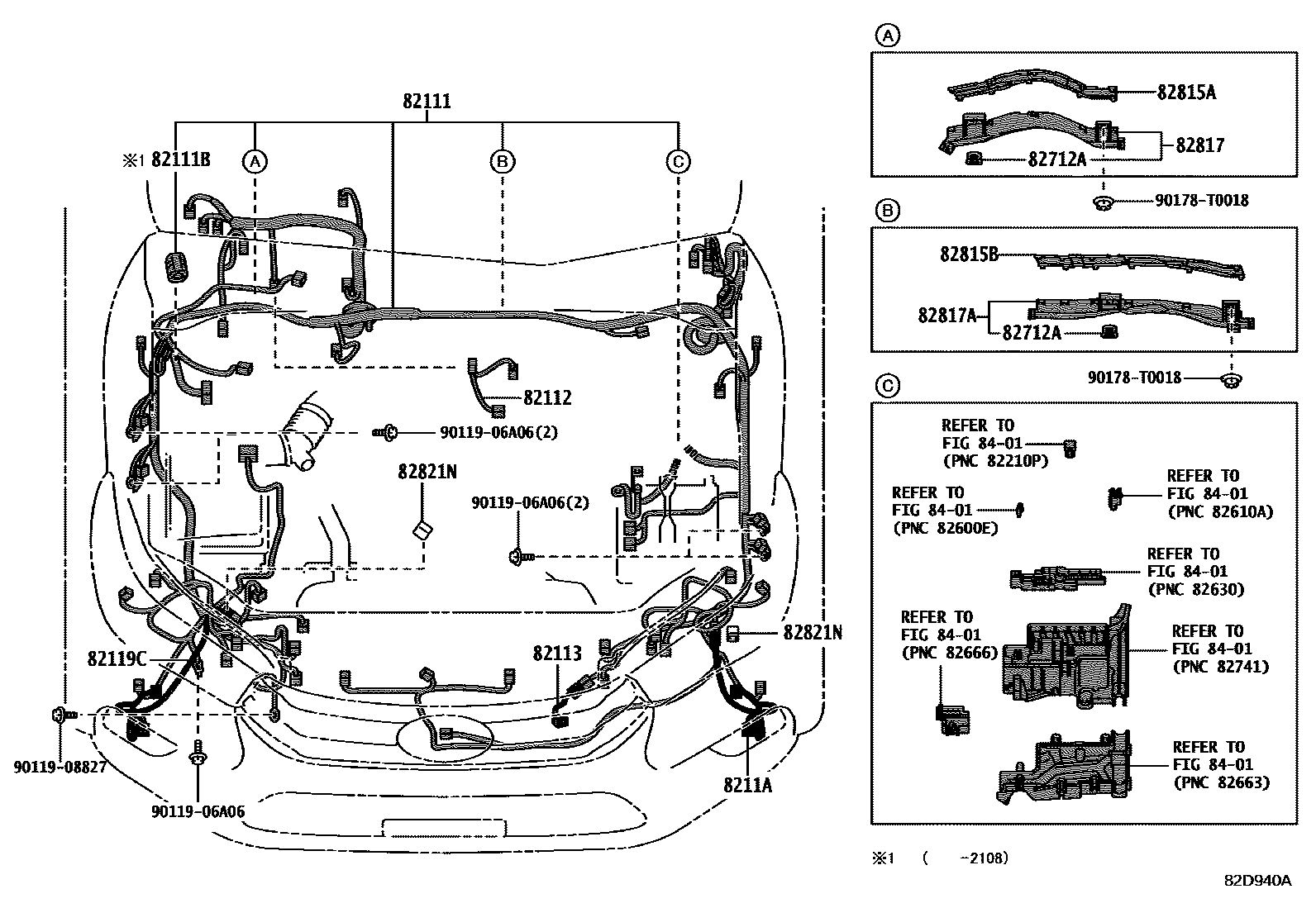

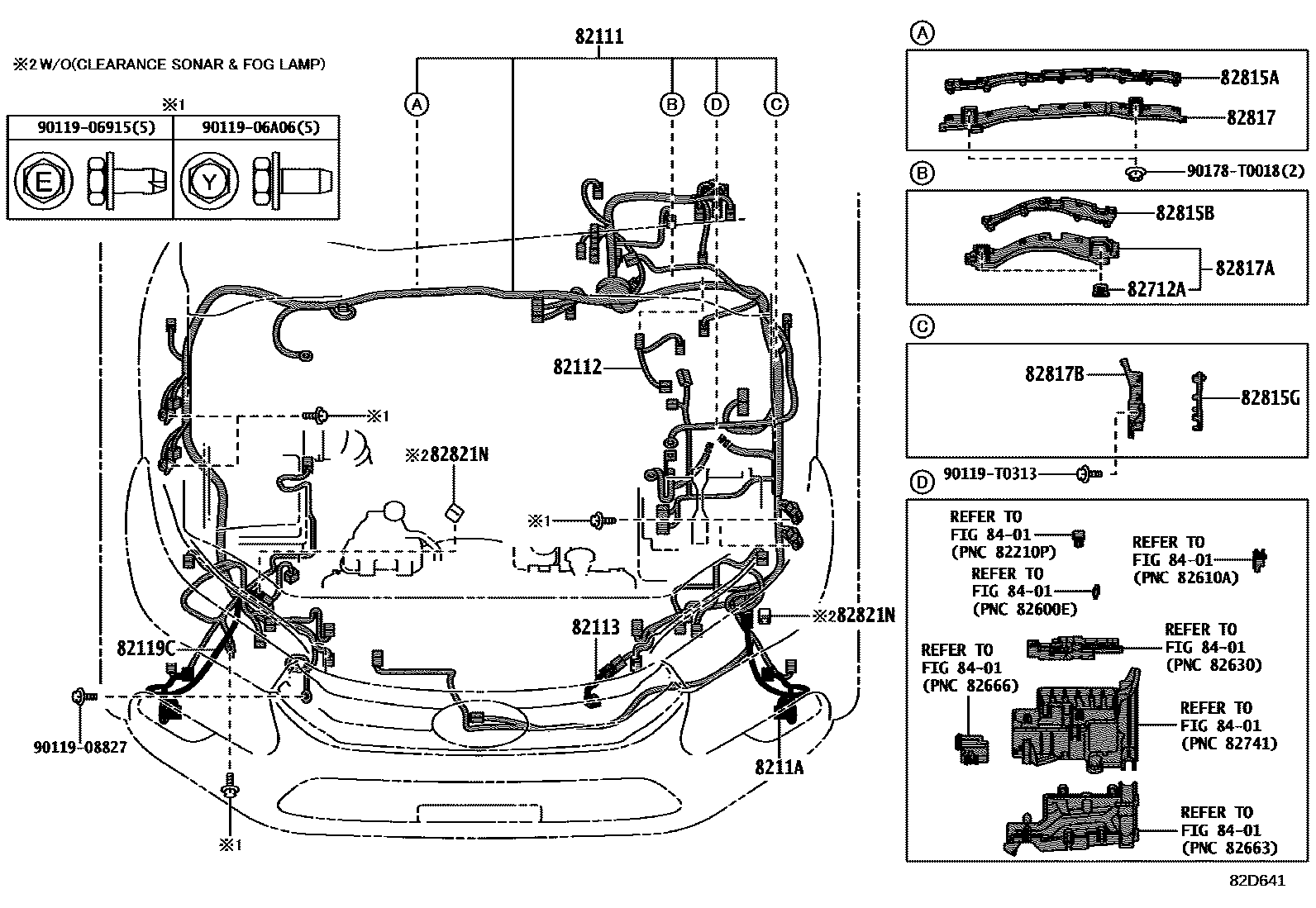

| 82111 | Engine room main wiring harness | 8211B-KK330 · 8211B-KK380 · 8211B-KKA60 · 8211B-KKB60 · 8211B-KKD60 · 8211B-KKD80 · 8211B-KKF00 · 8211B-KKF20 · 8211B-KKF40 · 8211B-KKF50 · 8211B-KKK60 · 8211B-KKL40 · 8211B-KKL70 · 8211B-KKR90 · 8211B-KKS10 · 8211B-KKS30 · 8211C-KKM10 · 8211C-KKM80 · 8211C-KKN10 · 8211C-KKN50 · 8211C-KKN80 · 8211C-KKR40 · 8211C-KKR60 · 8211C-KKU60 · 8211C-KKU80 · 8211C-KKV00 · 8211C-KKV20 · 8211C-KKV30 · 8211C-KKV50 · 8211C-KKV60 · 8211C-KKV70 · 8211C-KKW00 · 8211C-KKW20 · 8211D-KK030 · 8211D-KK050 · 8211D-KK240 · 8211D-KK250 · 8211D-KK270 · 8211E-KKU60 · 8211E-KKU70 · 8211E-KKU80 · 8211E-KKU90 · 8211E-KKV00 · 8211E-KKV10 · 8211E-KKV20 · 8211E-KKV30 · 8211E-KKV40 · 8211E-KKV50 · 8211E-KKV60 · 8211E-KKV70 |
| 82111B | condenser | 90980-04206 |
| 82112 | Engine room wiring harness No. 2 | 82112-KK010 |
| 82113 | Engine room wiring harness No. 3 | 82113-KK020 |
| 82119C | FIL, COMPARTIMENT MOTEUR, NO.5 | 82119-KK040 · 82119-KK050 · 82119-KK060 · 82119-KK070 · 82119-KK130 · 82119-KK140 |
| 8211A | FIL, COMPARTIMENT MOTEUR, NO.6 | 8211A-KK040 · 8211A-KK050 · 8211A-KK060 · 8211A-KK070 · 8211A-KK140 · 8211A-KK150 |

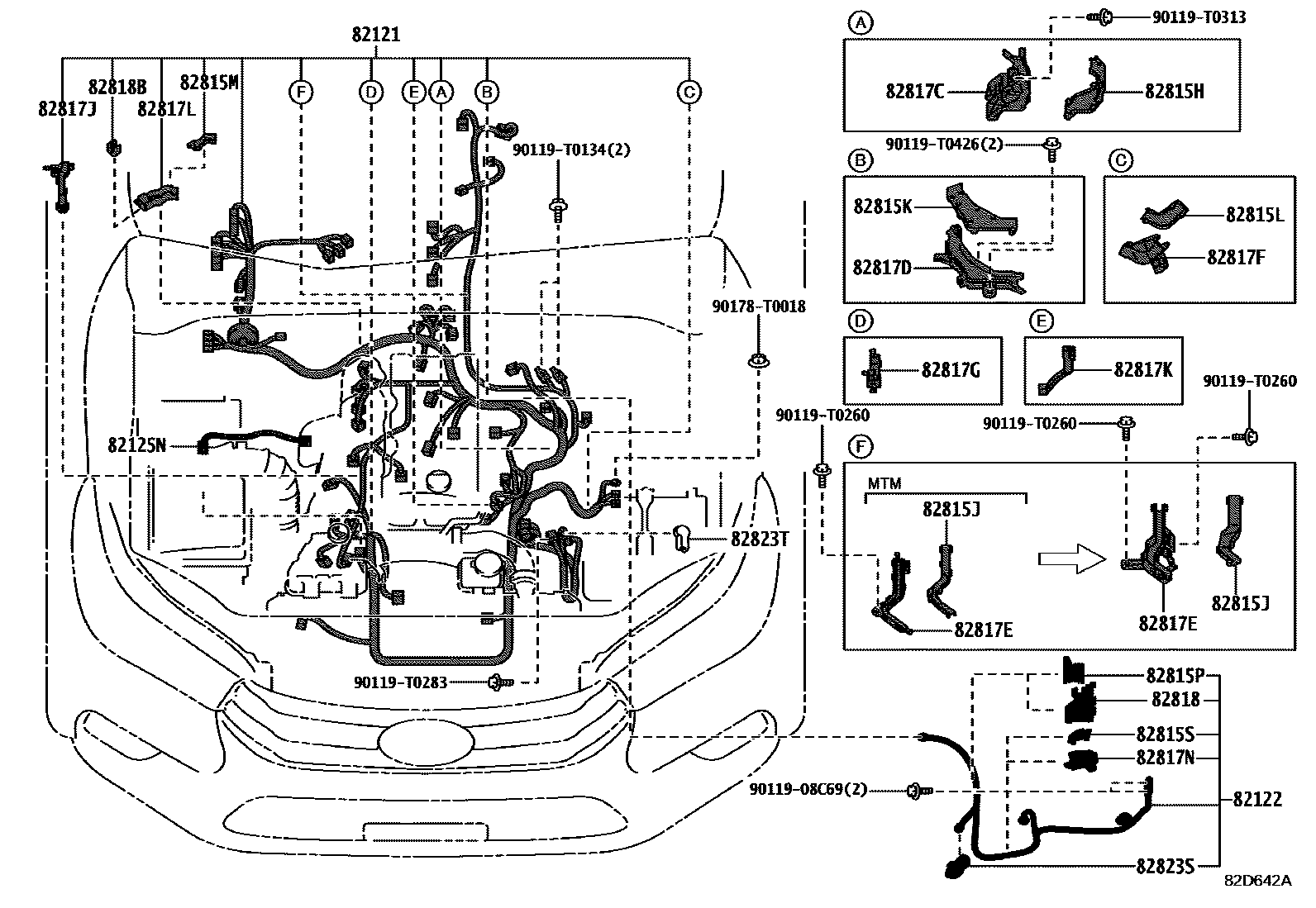

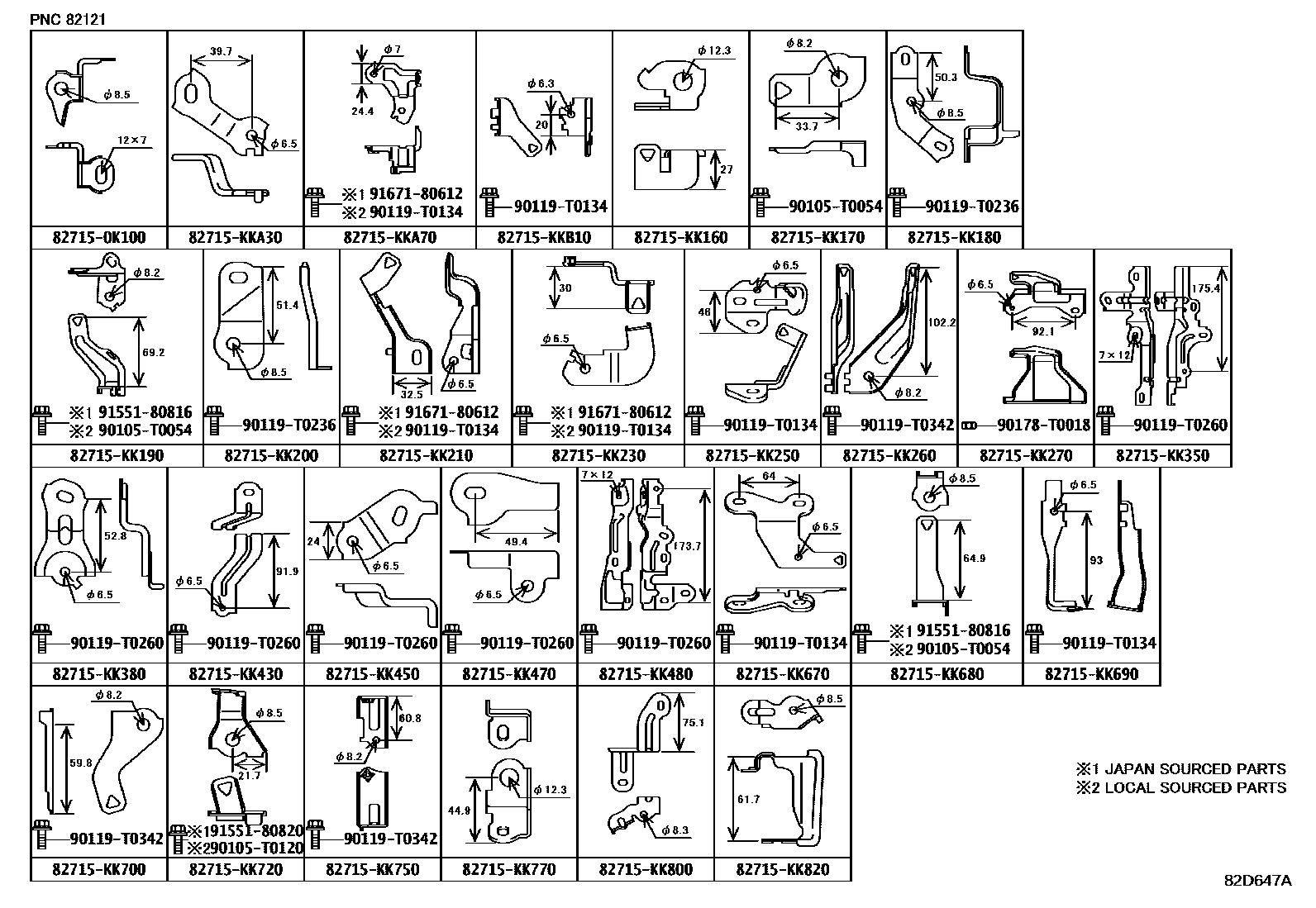

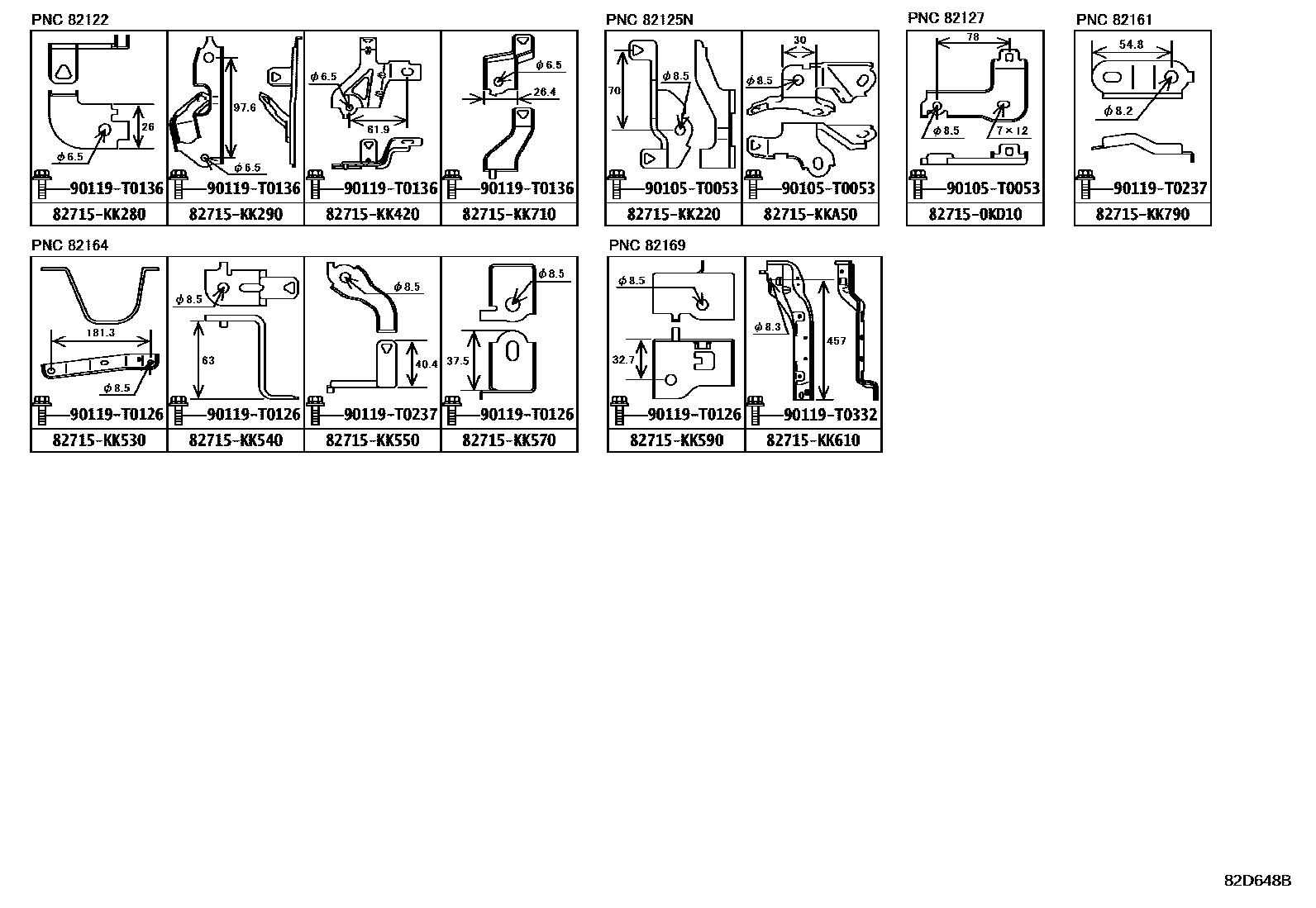

| 82121 | Engine wiring harness | 82126-KK130 · 82126-KK220 · 82126-KK250 · 82126-KK260 · 82126-KK270 · 82126-KK280 · 8213A-KK800 · 8213A-KKC80 · 8213A-KKE80 · 8213A-KKE90 · 8213A-KKF10 · 8213A-KKG80 · 8213A-KKG90 · 8213A-KKJ40 · 8213A-KKJ50 · 8213A-KKL80 · 8213A-KKM10 · 8213A-KKM20 · 8213A-KKR30 · 8213A-KKS60 · 8213A-KKS70 · 8213A-KKT80 · 8213A-KKV60 · 8213A-KKX20 · 8213A-KKY10 · 8213A-KKY20 |
| 82122 | Engine No. 2 wiring harness | 82122-KK100 · 82122-KK350 |
| 82125N | Engine No. 5 wiring harness | 82125-KK010 |
| 82127 | Differential harness | 82127-0K010 |

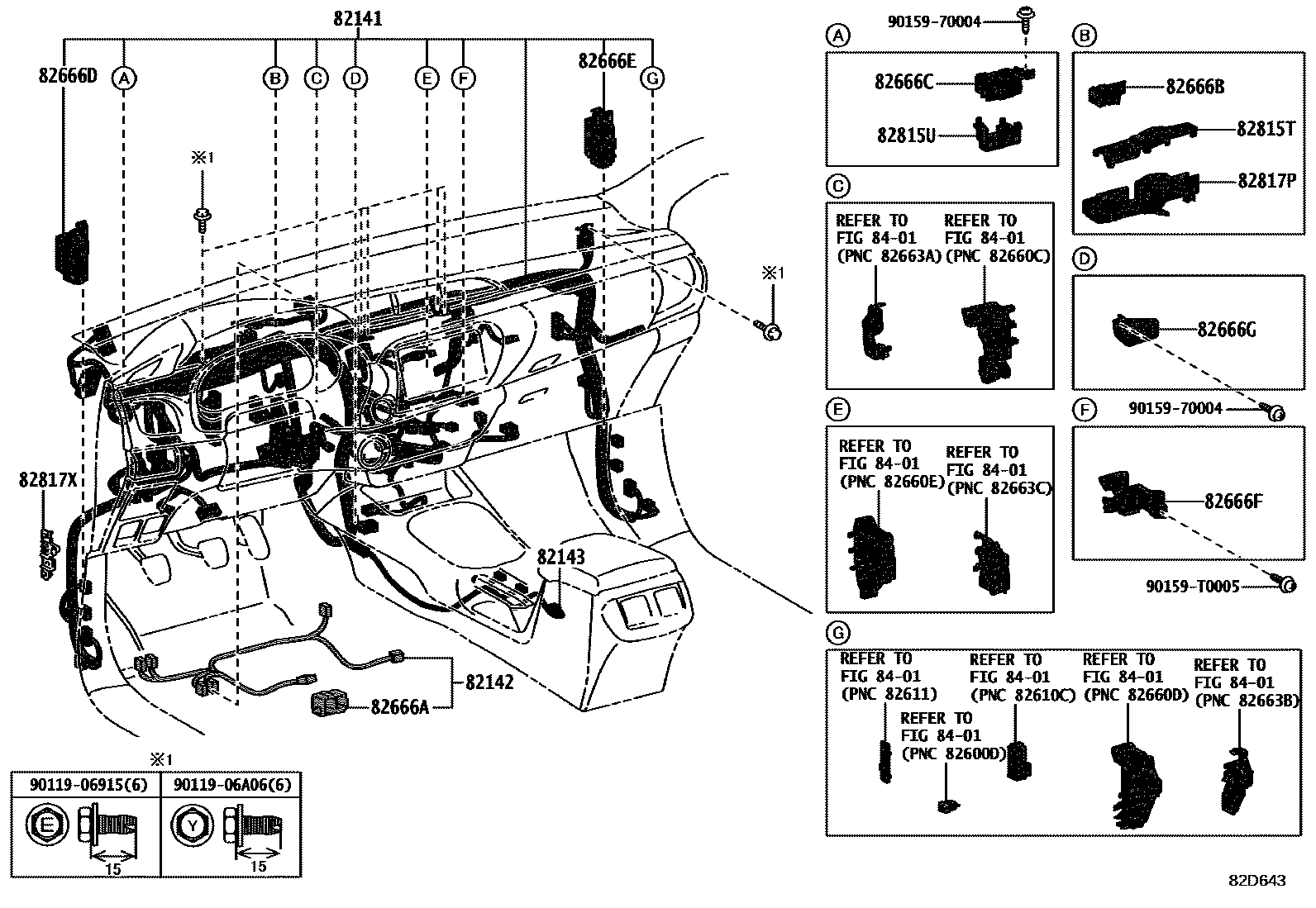

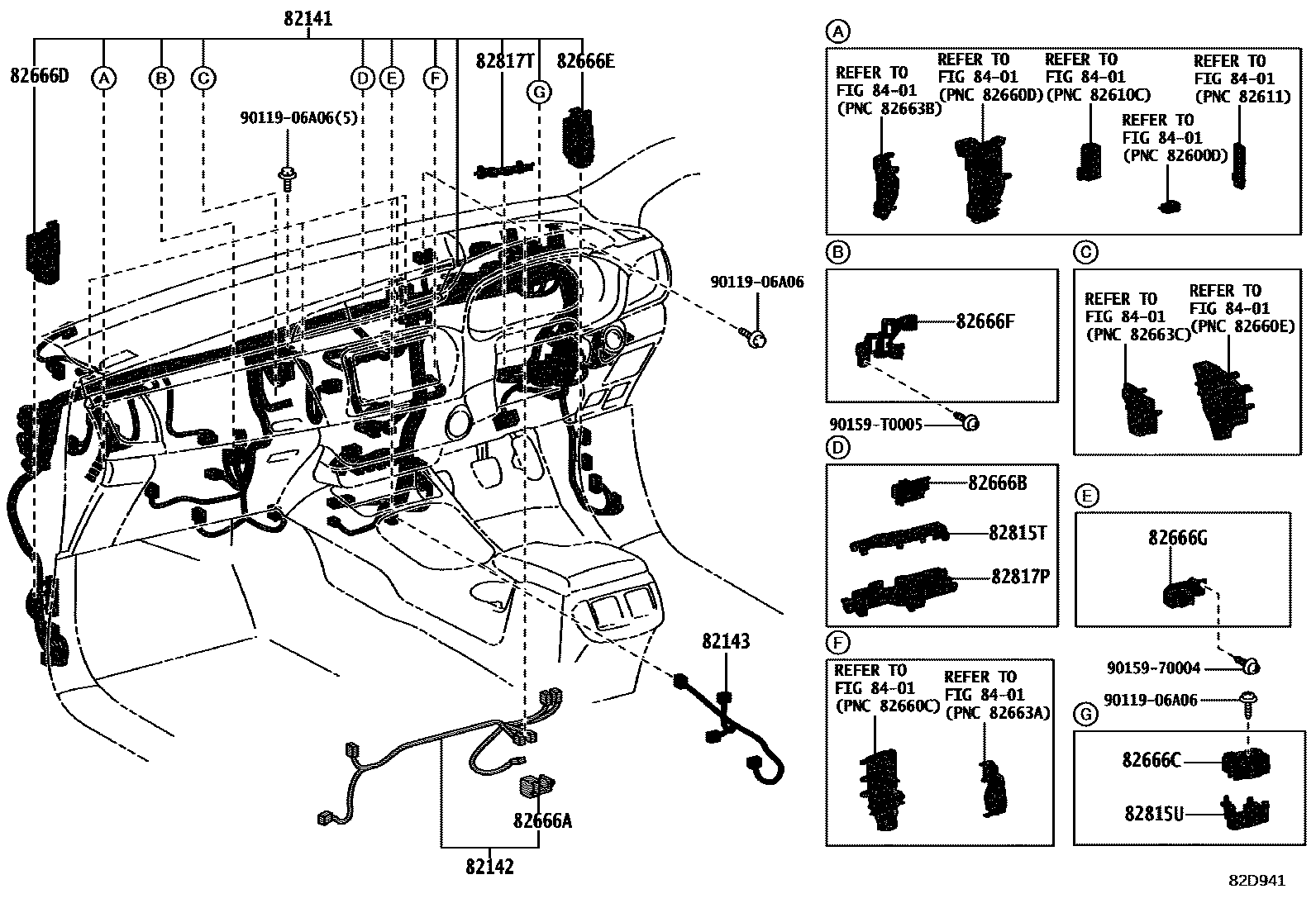

| 82141 | Dashboard wiring harness | 8214C-KK030 · 8214C-KK040 · 8214C-KK050 · 8214C-KK190 · 8214C-KK210 · 8214C-KKQ50 · 8214C-KKS00 · 8214C-KKT70 · 8214C-KKT90 · 8214C-KKU20 · 8214C-KKU30 · 8214D-KKB70 · 8214D-KKD60 · 8214D-KKD90 · 8214D-KKE10 · 8214D-KKE20 · 8214D-KKE30 · 8214D-KKE40 · 8214D-KKE50 · 8214D-KKE60 · 8214D-KKE70 · 8214D-KKE80 · 8214D-KKF20 · 8214D-KKF40 · 8214D-KKF50 · 8214D-KKF70 · 8214D-KKF80 · 8214D-KKF90 · 8214D-KKG00 · 8214D-KKG10 · 8214D-KKG20 · 8214D-KKG30 · 8214D-KKG40 · 8214D-KKG90 · 8214D-KKJ00 · 8214D-KKJ10 · 8214D-KKJ20 · 8214D-KKJ80 · 8214D-KKJ90 · 8214D-KKK00 · 8214D-KKK10 · 8214D-KKK20 · 8214D-KKK30 · 8214D-KKR30 · 8214D-KKS30 · 8214F-KKF00 · 8214F-KKF10 · 8214F-KKF30 · 8214F-KKF90 · 8214F-KKG30 · 8214F-KKG40 · 8214F-KKG60 |
| 82142 | Instrument panel wiring harness No. 2 | 82142-KK650 · 82142-KK680 · 82142-KK690 · 82142-KK720 · 82142-KK730 · 82142-KK740 · 82142-KK760 · 82142-KK770 · 82142-KK780 · 82142-KK790 |
| 82143 | Instrument panel wiring harness No. 3 | 82143-KK400 · 82143-KK690 · 82143-KK700 · 82143-KK750 · 82143-KK760 · 82143-KK770 |

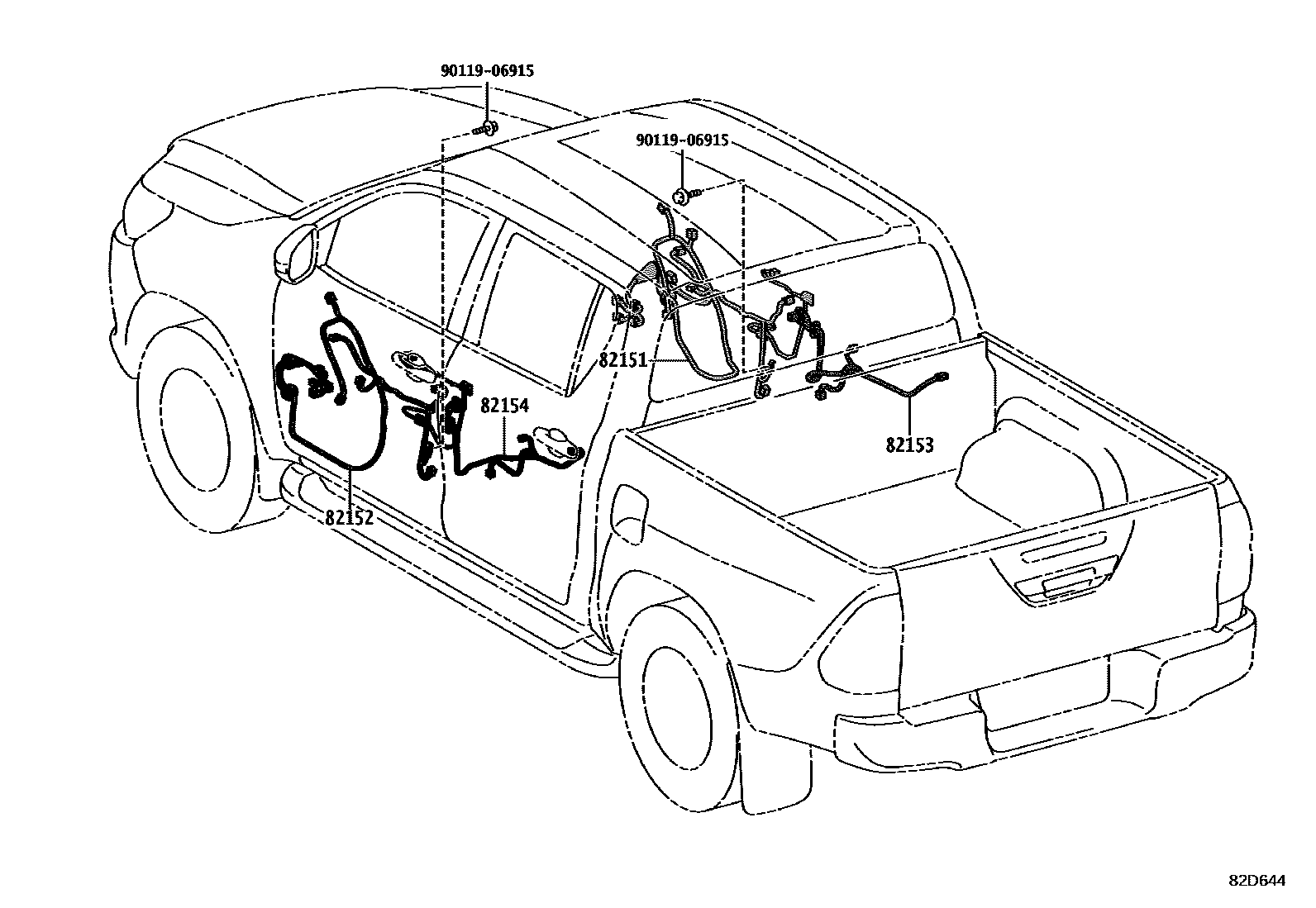

| 82151 | Right front door wiring harness | 82151-KKN30 · 82151-KKQ10 · 82151-KKQ30 · 82151-KKR00 · 82151-KKR80 · 82151-KKS00 · 82151-KKS10 · 82151-KKS30 · 82151-KKS60 · 82151-KKS70 · 82151-KKT10 · 82151-KKY70 · 82197-KKA10 · 82197-KKB40 · 82197-KKC10 |
| 82152 | Left front door wiring harness | 82152-KKK10 · 82152-KKL70 · 82152-KKL90 · 82152-KKM80 · 82152-KKN60 · 82152-KKN90 · 82152-KKP00 · 82152-KKP40 · 82152-KKP90 · 82152-KKQ20 · 82152-KKQ60 · 82152-KKV00 · 82198-KK450 · 82198-KK550 · 82198-KK740 |
| 82153 | Rear door wiring harness No. 1 | 82153-KK260 · 82153-KK360 · 82153-KK390 · 82153-KK400 · 82153-KK650 · 82153-KK680 |
| 82154 | Rear door wiring harness No. 2 | 82154-KK390 · 82154-KK400 · 82154-KK430 · 82154-KK440 · 82154-KK630 · 82154-KK660 |

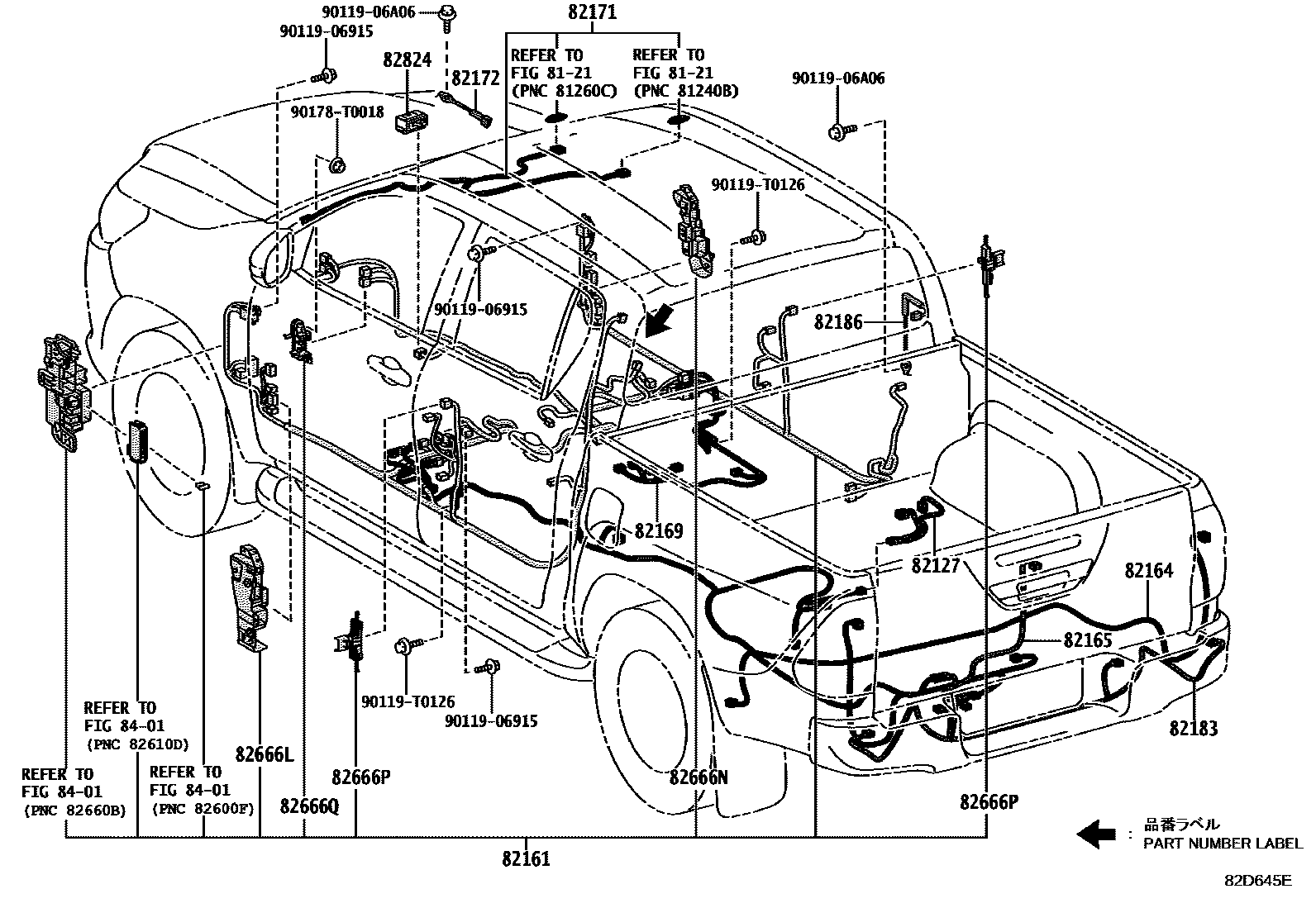

| 82161 | floor wiring harness | 8219F-KK050 · 8219F-KK110 · 8219F-KK111 · 8219F-KK330 · 8219F-KK331 · 8219F-KK340 · 8219F-KK341 · 8219F-KK350 · 8219F-KK351 · 8219F-KK760 · 8219F-KK810 · 8219F-KK811 · 8219F-KKE10 · 8219F-KKE11 · 8219F-KKE20 · 8219F-KKE21 · 8219F-KKE30 · 8219F-KKE31 · 8219F-KKF60 · 8219F-KKF61 · 8219F-KKG50 · 8219F-KKG51 · 8219F-KKG61 · 8219F-KKG90 · 8219F-KKG91 · 8219F-KKJ00 · 8219F-KKJ01 · 8219F-KKK80 · 8219F-KKK81 · 8219F-KKK90 · 8219F-KKK91 · 8219F-KKL00 · 8219F-KKL01 · 8219G-KK771 · 8219G-KK810 · 8219G-KK811 · 8219G-KK821 · 8219G-KK840 · 8219G-KK841 · 8219G-KKA70 · 8219G-KKA71 · 8219G-KKK90 · 8219G-KKK91 · 8219H-KKM80 · 8219H-KKN40 · 8219H-KKN60 · 8219H-KKN70 |
| 82164 | Frame wiring harness set | 82164-KK520 · 82164-KK730 · 82164-KK750 · 82164-KKB10 · 82164-KKB20 · 82164-KKB30 · 82164-KKB40 · 82164-KKB50 · 82164-KKB60 · 82164-KKB70 · 82164-KKB80 · 82164-KKB90 · 82164-KKC00 · 82164-KKC10 · 82164-KKC20 · 82164-KKC30 · 82164-KKC50 · 82164-KKC70 · 82164-KKC90 · 82164-KKD00 · 82164-KKD20 · 82164-KKD30 · 82164-KKD50 · 82164-KKD60 · 82164-KKD80 · 82164-KKE00 · 82164-KKE20 · 82164-KKE40 · 82164-KKE60 · 82164-KKE80 · 82164-KKF00 · 82164-KKF20 |
| 82165 | No. 2 frame wiring harness | 82165-KK070 · 82165-KK080 · 82165-KK100 |
| 82169 | No. 3 frame wiring harness | 82169-KK030 |
| 82171 | Roof No. 1 wiring harness | 82171-KK480 · 82171-KK490 · 82171-KK500 · 82171-KK520 · 82171-KK530 · 82171-KK540 · 82171-KK550 · 82171-KK560 · 82171-KK590 · 82171-KK600 · 82171-KK610 · 82171-KKB80 · 82171-KKB90 · 82171-KKC00 · 82171-KKC10 · 82171-KKC30 · 82171-KKC40 · 82171-KKC50 · 82171-KKC60 · 82171-KKC70 |
| 82172 | Roof No. 2 wiring harness | 82172-KK010 |
| 82183 | Luggage No. 3 wiring harness | 82183-KK090 |
| 82186 | Rear window wiring harness No. 1 | 82186-KK030 · 82186-KK060 |

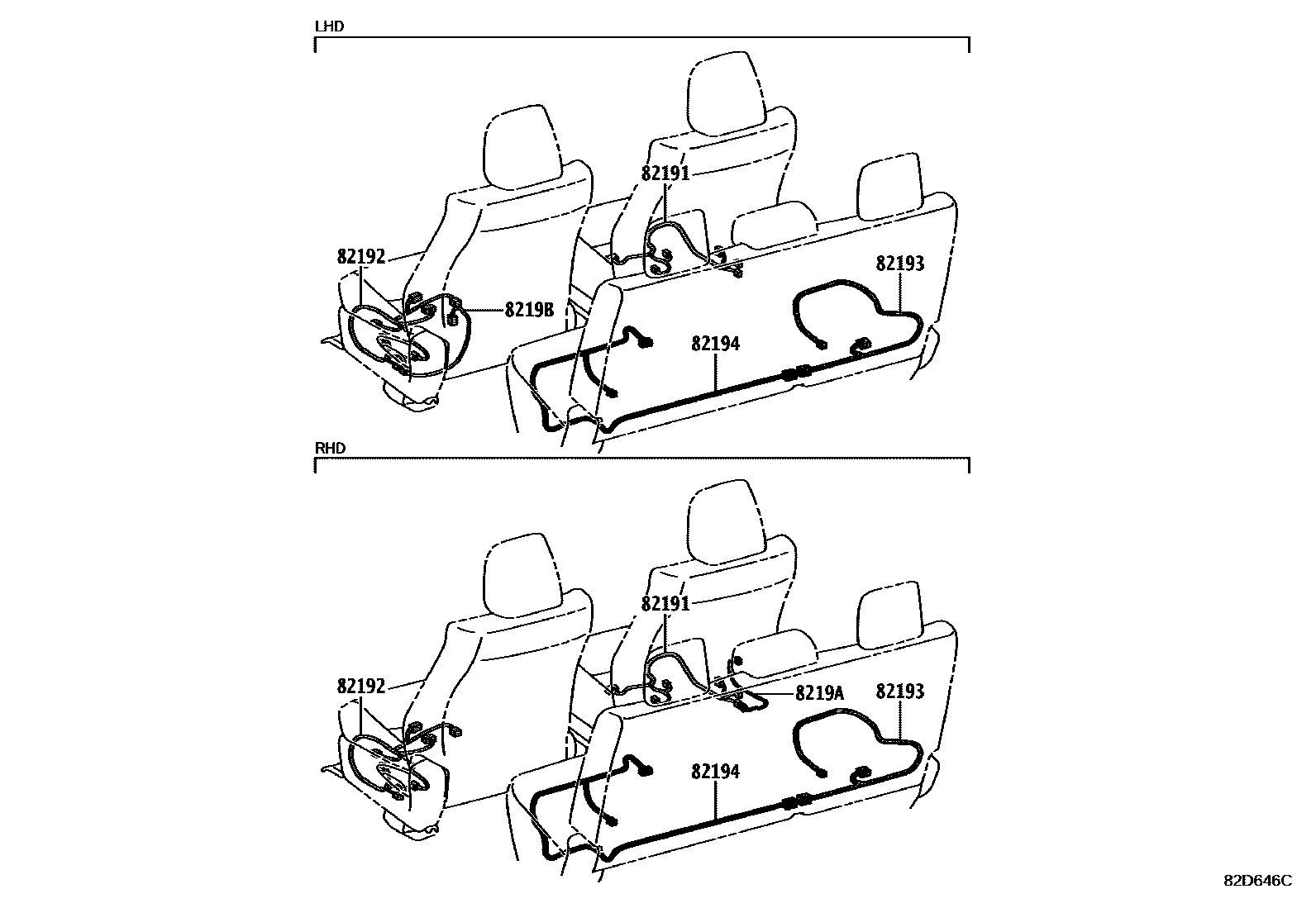

| 82191 | Front right seat wiring harness | 82191-0K070 · 82191-0K150 · 82191-0K190 |
| 82192 | Front left seat wiring harness | 82192-0K060 · 82192-0K080 · 82192-0K090 · 82192-0K100 · 82192-0K140 |
| 82193 | Rear right seat wiring harness | 82193-0K010 |
| 82194 | Rear left seat wiring harness | 82194-0K010 |
| 8219A | Wire harness No. 2, right side of front seat | 8219A-0K070 |
| 8219B | Wire harness No. 2, left side of front seat | 8219B-0K050 · 8219B-0K060 |

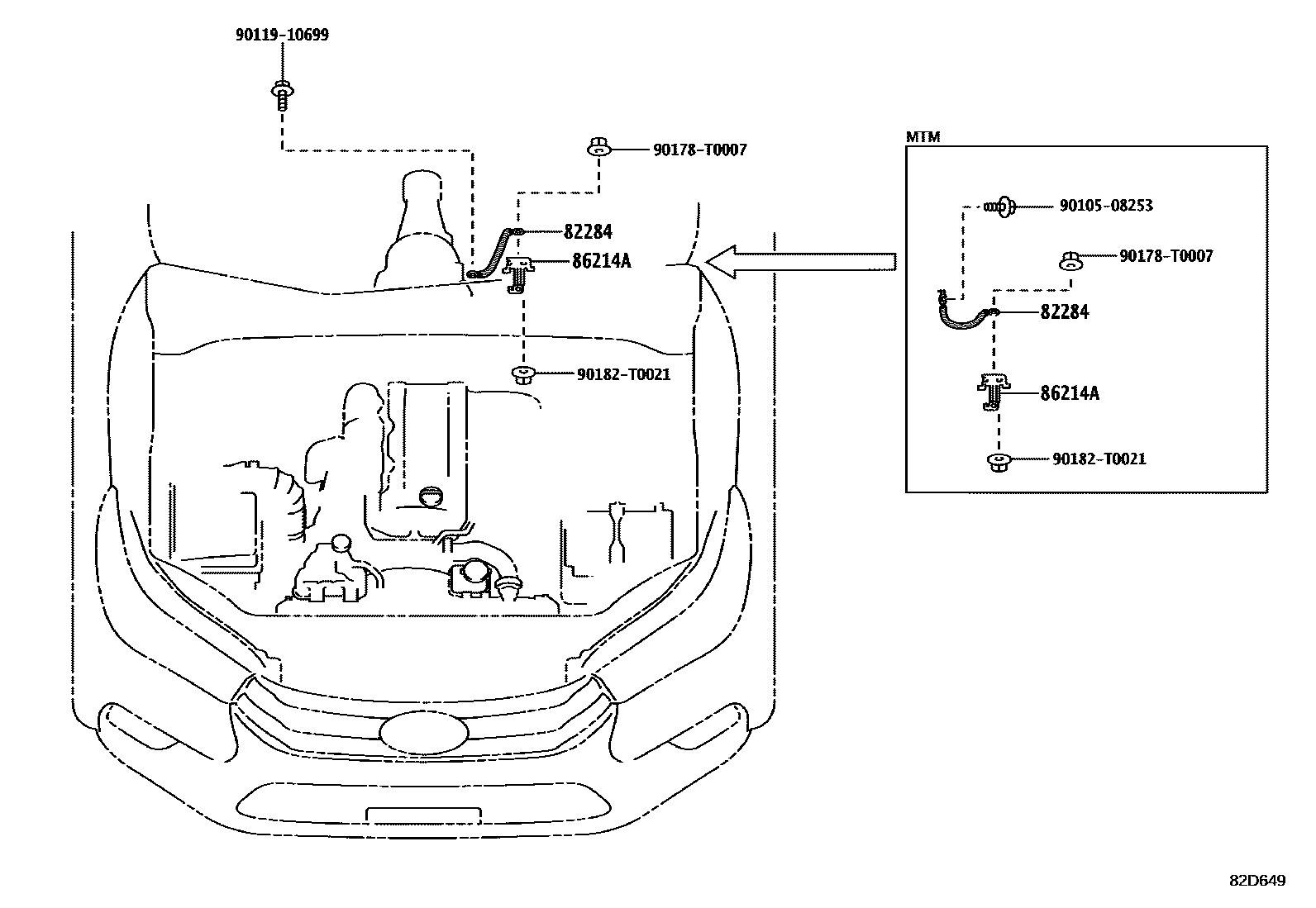

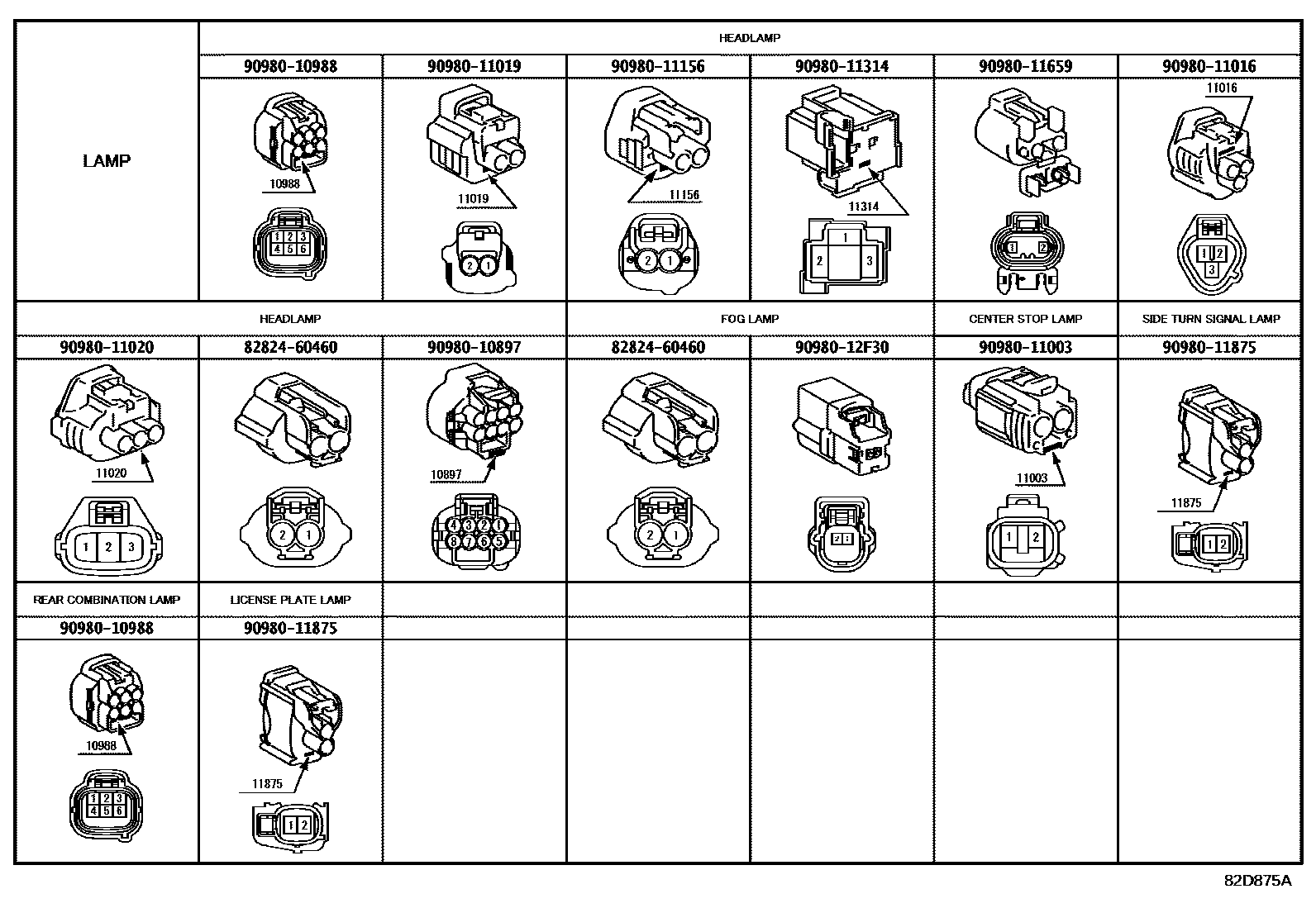

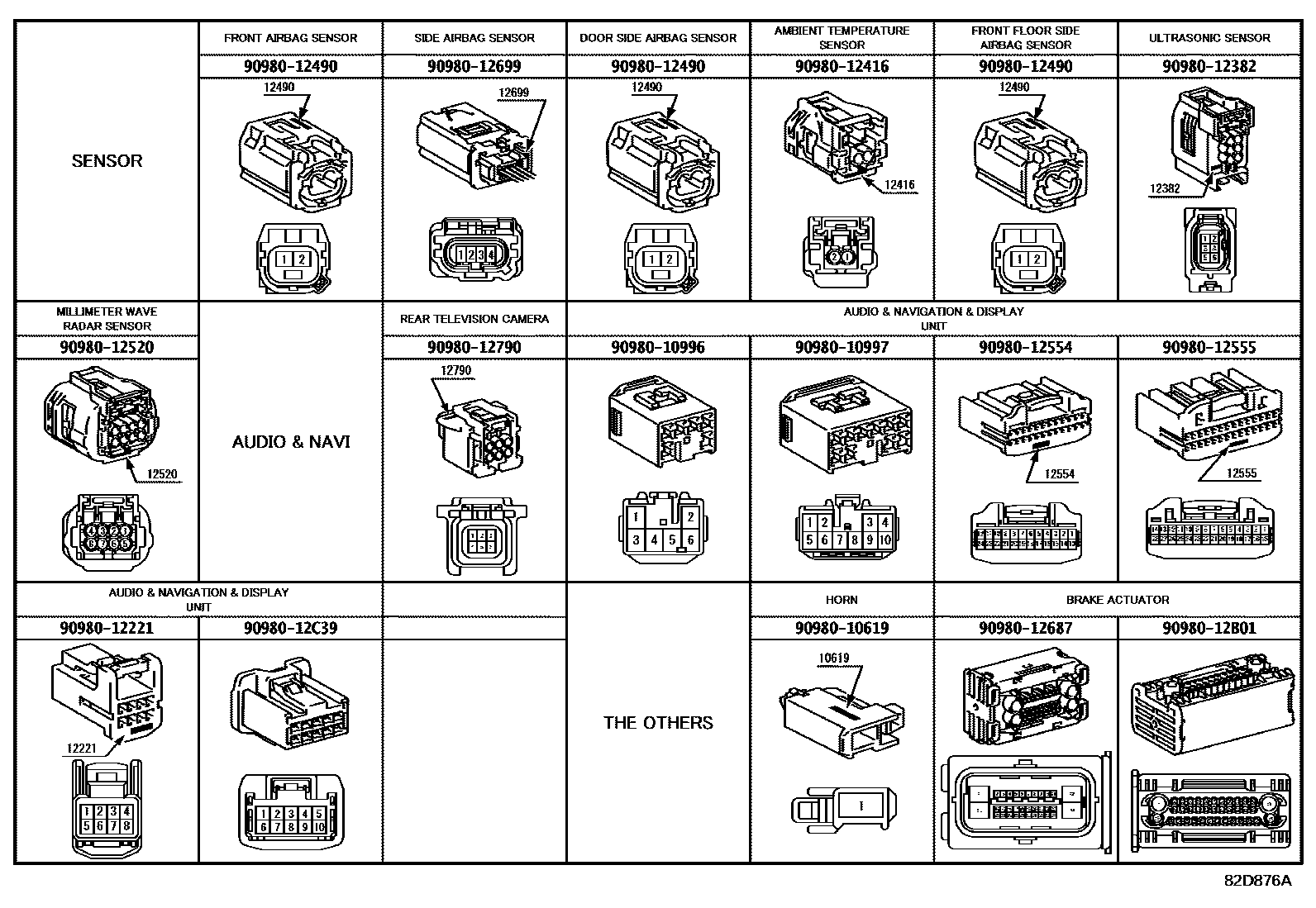

| 82284 | Ground wire | 82284-KK010 · 82284-KK020 · 82284-KK030 |
| 82666A | Connector holder No. 2 | 82666-0K200 |
| 82666B | No. 3 connector holder | 82666-0K160 · 82666-0K290 |
| 82666C | No. 4 connector holder | 82666-0K170 · 82666-0K180 |
| 82666D | No. 5 connector holder | 82666-0K210 |
| 82666E | No. 6 connector holder | 82666-0K220 |
| 82666F | No. 7 connector holder | 82666-0K230 · 82666-0K240 |
| 82666G | No. 8 connector holder | 82666-0K300 · 82666-0K310 |
| 82666L | No. 9 connector holder | 82666-0K250 |
| 82666N | No. 10 connector holder | 82666-0K260 |
| 82666P | No. 11 Connector Block | 82666-0K280 |
| 82666Q | No. 12 connector holder | 82666-0K410 |
| 82712A | Wire harness bracket | 82712-33190 |
| 82815A | Wiring harness protector cover | 82815-0K530 · 82815-0K560 |
| 82815B | Wiring harness protector cover | 82815-0K520 · 82815-0K550 |
| 82815G | Wiring harness protector cover | 82815-0K540 |
| 82815H | Wiring harness protector cover | 82815-0K270 |
| 82815J | No. 7 wire harness protector cover | 82815-0K340 · 82815-0K350 |
| 82815K | No. 8 wire harness protector cover | 82815-0K250 · 82815-0K280 |
| 82815L | No. 9 wire harness protector cover | 82815-0K510 |
| 82815M | No. 10 wire harness protector cover | 82815-0K240 |
| 82815P | No. 12 wire harness protector cover | 82815-0K070 |
| 82815S | No. 15 wire harness protector cover | 82815-0K400 |
| 82815T | No. 16 wire harness protector cover | 82815-0K410 · 82815-0K420 |
| 82815U | No. 17 wire harness protector cover | 82815-0K470 · 82815-0K480 |
| 82817 | No. 1 wire harness protection device | 82817-0K530 · 82817-0K560 |
| 82817A | No. 2 wire harness protection device | 82817-0K520 · 82817-0K550 |
| 82817B | No. 3 wire harness protection device | 82817-0K540 |
| 82817C | No. 4 wire harness protection device | 82817-0K270 |
| 82817D | No. 5 wire harness protection device | 82817-0K280 · 82817-0KB50 |
| 82817E | No. 6 wire harness protection device | 82817-0K340 · 82817-0K350 |
| 82817F | No. 7 wire harness protection device | 82817-0K510 |
| 82817G | No. 8 wire harness protection device | 82817-0K300 |
| 82817J | No. 9 wire harness protection device | 82817-60W20 |
| 82817K | No. 10 wire harness protection device | 82817-0K310 · 82817-60U70 |
| 82817L | No. 11 wire harness protection device | 82817-0KB40 |
| 82817N | No. 13 wire harness protection device | 82817-0K400 |
| 82817P | No. 14 wire harness protection device | 82817-0K410 · 82817-0K420 |
| 82817T | No. 15 wire harness protection device | 82817-0K800 |
| 82817X | No. 17 wire harness protection device | 82817-0K840 · 82817-0K860 |
| 82818 | No. 2 wire harness protection device | 82817-0K290 |
| 82818B | No. 3 wire harness protection device | 82818-0K010 · 82818-0K020 |
| 82821N | COUVERCLE, CONNECTEUR | 82821-KK030 |
| 82823S | BOUCHON, BORNE DEMARREUR | 82823-30100 |
| 82823T | BOUCHON, BORNE ALTERNATEUR | 82823-22050 |
| 82824 | Harness connector | 90980-12393 · 90980-12448 |
| 86214A | Radio ground bracket | 86214-KK010 |
