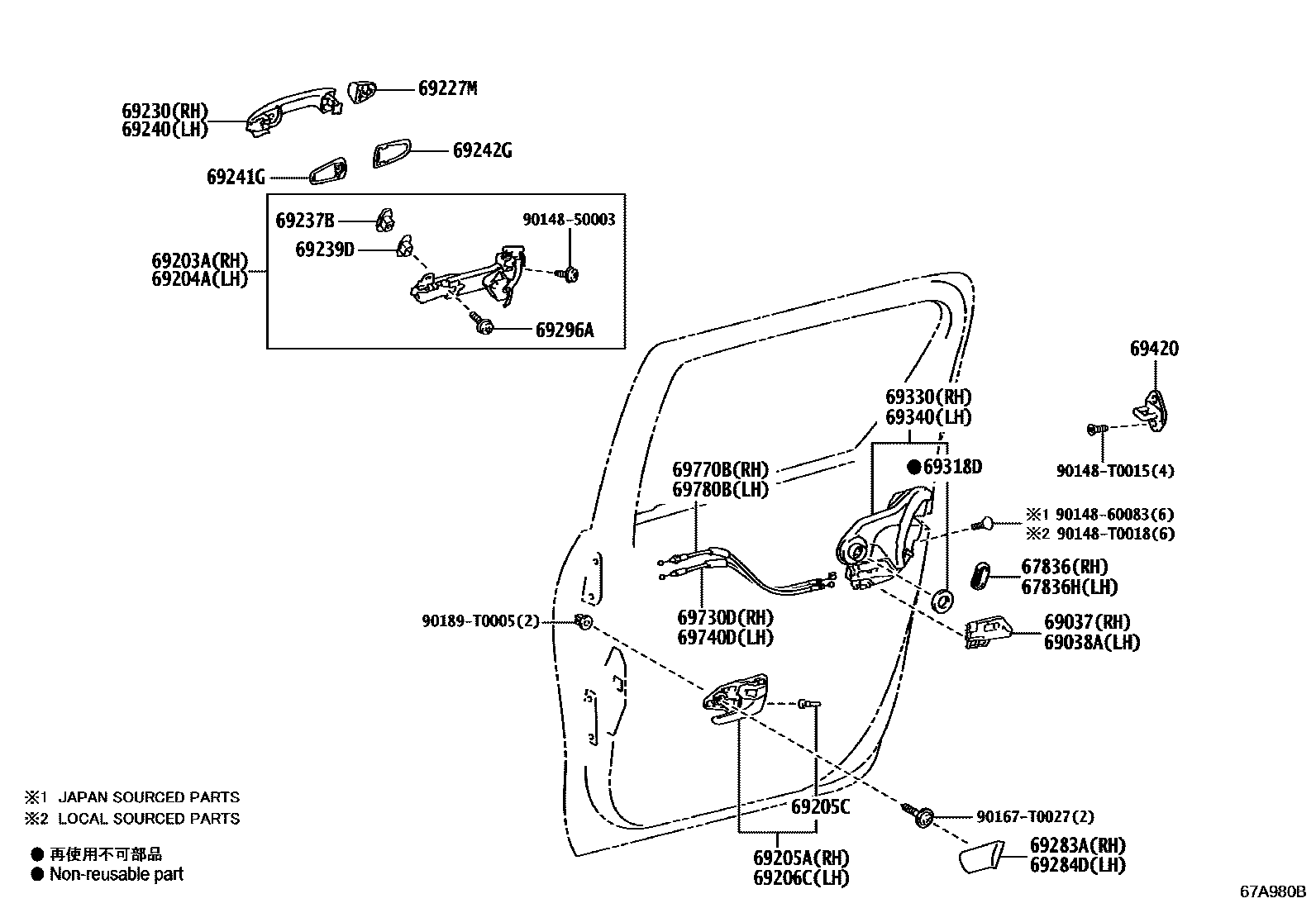

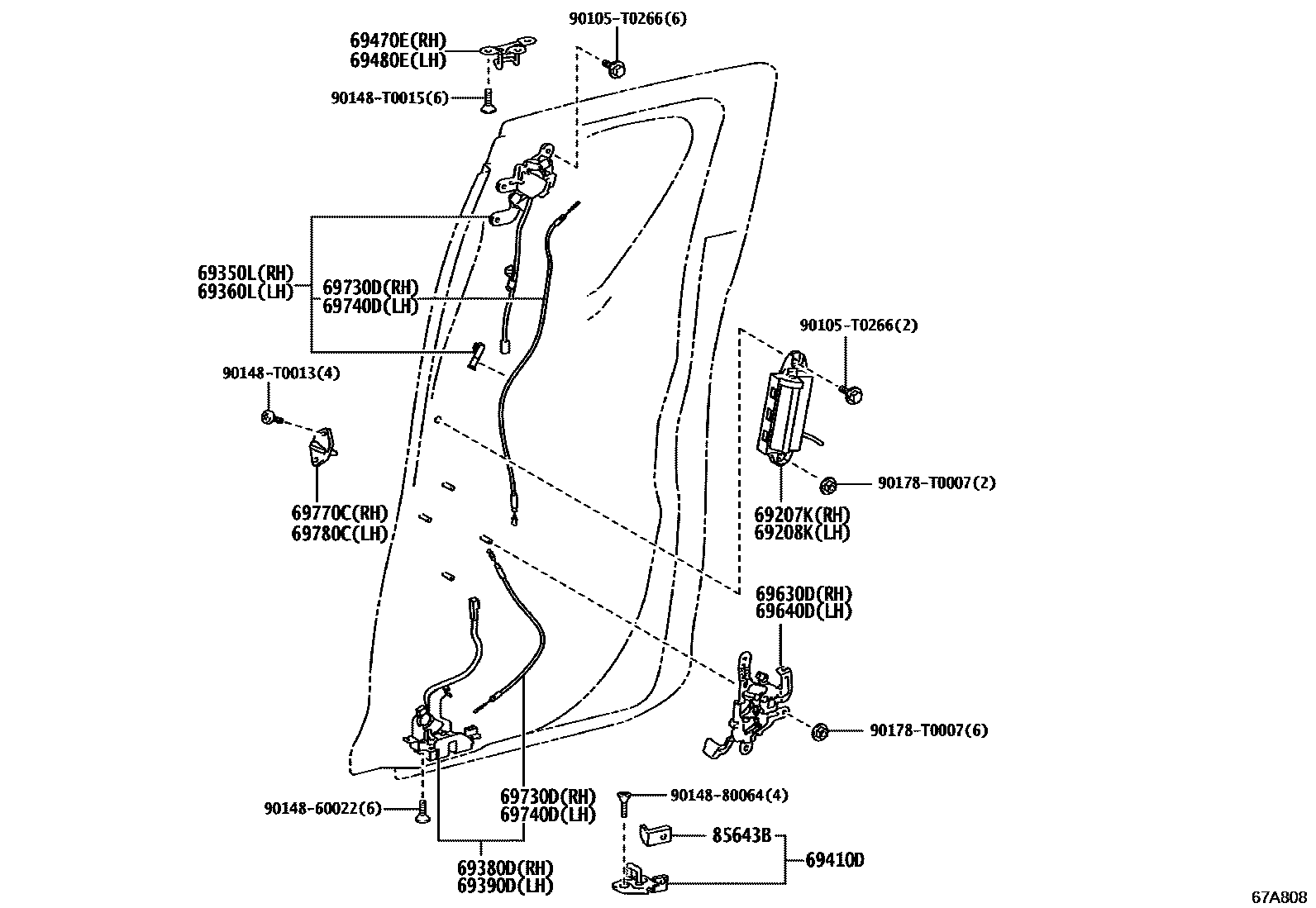

Toyota HILUX 后门锁和后门把手 — Figure 6756
Toyota HILUX EPC diagram 6756, 后门锁和后门把手, with 2 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67836 | Right rear door lock child restraint cover | 67836-02030 · 67836-0K030 |
| 67836H | Left rear door lock child restraint cover | 67836-02030 · 67836-0K030 |
| 69037 | SOUS-ENSEMBLE COUVERCLE, VERROU DE PORTE ARRIERE, MD | 69037-02040 |
| 69038A | SOUS-ENSEMBLE COUVERCLE, VERROU DE PORTE ARRIERE, MG | 69038-02040 |
| 69203A | Right rear door outer handle frame sub-assembly | 69203-0K092 · 69203-0K100 |
| 69204A | Left rear door outer handle frame sub-assembly | 69204-0K092 · 69204-0K100 |
| 69205C | Cushion pad (for rear door inner handle) | 90541-04027 |
| 69227M | Rear door outer handle cover | 69227-0K200 · 69227-0K210 · 69227-0K230 · 69227-0K300 · 69227-YP010 · 69227-YP020 |
| 69230 | Right rear door outer handle assembly | 69210-0K200 · 69210-0K210 · 69210-0K220 · 69210-0K250 · 69210-0K300 · 69210-YP030 · 69210-YP040 |
| 69237B | ECROU, POIGNEE PORTE ARRIERE | 69237-0E010 · 69237-0K040 |
| 69239D | BAGUE, POIGNEE PORTE ARRIERE | 69239-0K080 |
| 69240 | Left rear door outer handle assembly | 69210-0K200 · 69210-0K210 · 69210-0K220 · 69210-0K250 · 69210-0K300 · 69210-YP030 · 69210-YP040 |
| 69241G | Rear door front exterior handle pad | 69241-0K041 |
| 69242G | Rear door rear outer handle pad | 69242-0K030 |
| 69296A | Car door inner handle screws | 69296-0M010 · 69296-30010 |
| 69318D | door lock harness seal | 69318-51010 |
| 69330 | Right rear door door lock assembly | 69050-0K080 · 69050-0K110 · 69330-0K070 |
| 69340 | Left rear door lock assembly | 69060-0K090 · 69060-0K120 · 69340-0K070 |
| 69350L | Entry door panel right upper lock assembly | 69350-0K181 |
| 69360L | Entry door panel left upper lock assembly | 69360-0K021 |
| 69380D | Entry door panel right lower lock assembly | 69380-0K020 |
| 69390D | Entry door panel left lower lock assembly | 69390-0K020 |
| 69410D | Entry door door panel lock plate assembly | 69410-0K100 · 69420-0K020 |
| 69420 | Rear door lock plate assembly | 69410-0K070 |
| 69470E | Entry door panel right upper lock assembly | 69470-0K010 |
| 69480E | Entry door panel left upper lock assembly | 69480-0K010 |
| 69630D | Entry door panel right upper lock remote control mechanism assembly | 69630-0K020 |
| 69640D | Entry door panel left upper lock remote control mechanism assembly | 69640-0K020 |
| 69730D | Right rear door lock remote control cable assembly | 69703-0K020 · 69704-0K020 · 69730-0K170 |
| 69740D | Left rear door lock remote control cable assembly | 69703-0K020 · 69704-0K020 · 69730-0K170 |
| 69770B | Right rear door inner lock cable assembly | 69770-0K150 |
| 69770C | Entry door panel right lock cancel lever assembly | 69770-0K230 |
| 69780B | Left rear door inner lock cable assembly | 69770-0K150 |
| 69780C | Entry door panel left lock cancel lever assembly | 69780-0K150 |
| 85643B | COUSSIN, BUTOIR | 85643-0K010 · 85643-0K020 |
