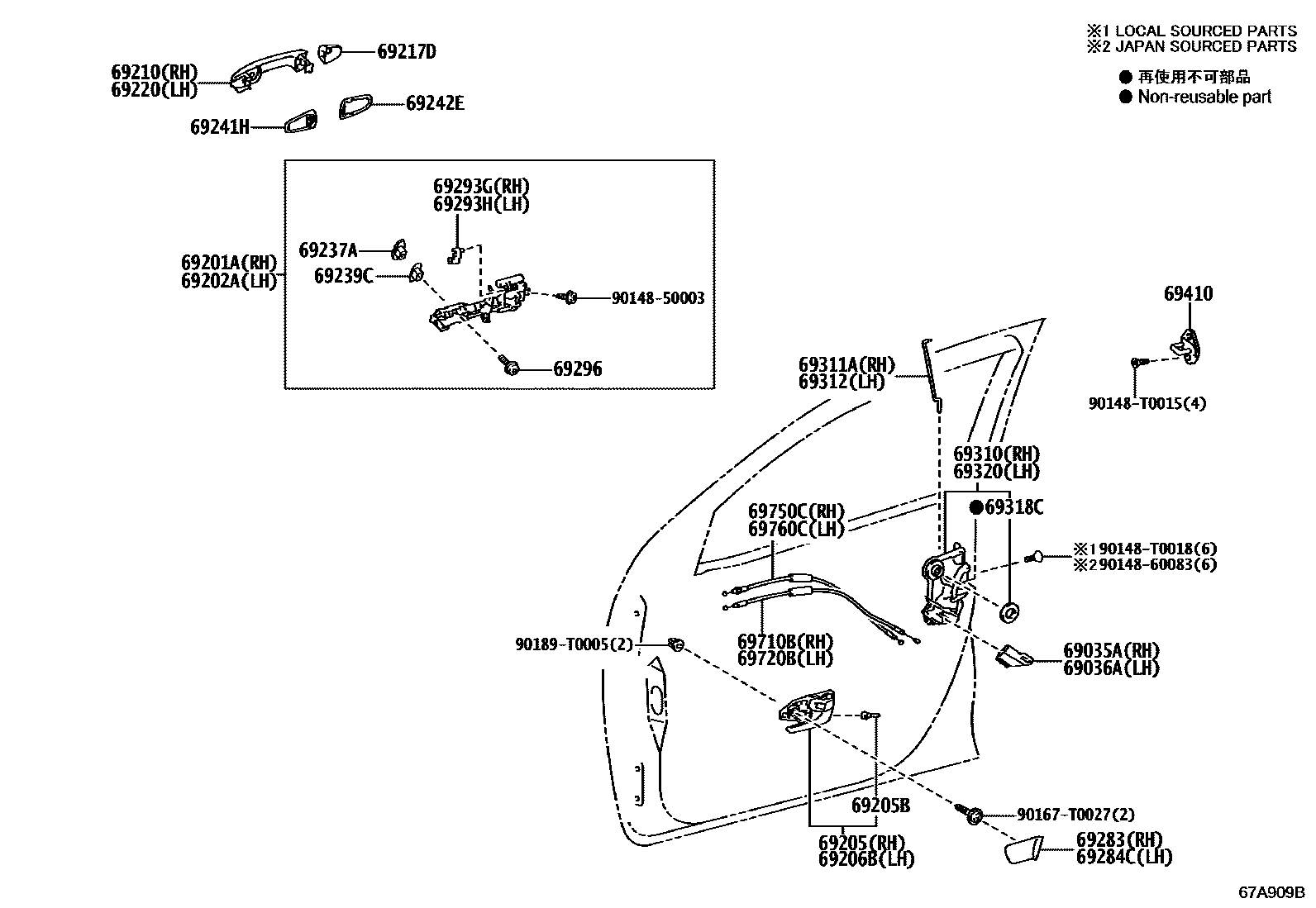

Toyota HILUX 前门锁和车门把手 — Figure 6753
Toyota HILUX EPC diagram 6753, 前门锁和车门把手, with 1 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69035A | SOUS-ENSEMBLE COUVERCLE, VERROU DE PORTE AVANT, MD | 69035-02040 |
| 69036A | Left front door lock cover sub-assembly | 69036-02040 |
| 69201A | Right front door outer handle frame sub-assembly | 69201-0K061 · 69201-0K070 |
| 69202A | Left front door outer handle frame sub-assembly | 69202-0K061 · 69202-0K070 |
| 69205B | Cushion pad (for inner front door handle) | 90541-04027 |
| 69210 | Right front door outer handle assembly | 69210-0K060 · 69210-0K200 · 69210-0K210 · 69210-0K220 · 69210-0K250 · 69210-0K291 · 69210-0K300 · 69210-YP020 · 69210-YP030 · 69210-YP040 |
| 69217D | Front door outer handle cover | 69217-0K370 · 69217-0K380 · 69217-0K430 · 69217-0K440 · 69217-0K450 · 69217-0K460 · 69217-0K570 · 69217-0K580 · 69217-YP010 · 69217-YP020 · 69217-YP030 · 69217-YP040 |
| 69220 | Left front door outer handle assembly | 69210-0K060 · 69210-0K200 · 69210-0K210 · 69210-0K220 · 69210-0K250 · 69210-0K291 · 69210-0K300 · 69210-YP020 · 69210-YP030 · 69210-YP040 |
| 69237A | ECROU, POIGNEE PORTE AVANT | 69237-0E010 · 69237-0K040 |
| 69239C | BAGUE, POIGNEE PORTE AVANT | 69239-0K080 |
| 69241H | Front door exterior handle pad | 69241-0K041 |
| 69242E | Front door rear outer handle pad | 69242-0K030 |
| 69293G | Right front door outer handle buckle | 69293-12030 |
| 69293H | Left front door outer handle buckle | 69293-12040 |
| 69296 | Car door inner handle screws | 69296-0M010 · 69296-30010 |
| 69310 | Right front door lock assembly | 69030-02470 · 69030-02480 · 69030-02600 · 69310-0K100 |
| 69311A | Right front door lock opening lever | 69311-0K120 · 69311-0K170 |
| 69312 | Left front door lock opening lever | 69312-0K120 · 69312-0K170 |
| 69318C | door lock harness seal | 69318-51010 |
| 69320 | Left front door lock assembly | 69040-02450 · 69040-02470 · 69040-02550 · 69320-0K090 |
| 69410 | Front door lock plate assembly | 69410-0K070 |
| 69710B | Right front door lock remote control cable assembly | 69710-0K140 · 69710-0K160 |
| 69720B | Left front door lock remote control cable assembly | 69710-0K140 · 69710-0K160 |
| 69750C | Right front door inner lock cable assembly | 69750-0K140 · 69750-0K160 |
| 69760C | Left front door inner lock cable assembly | 69750-0K140 · 69750-0K160 |
