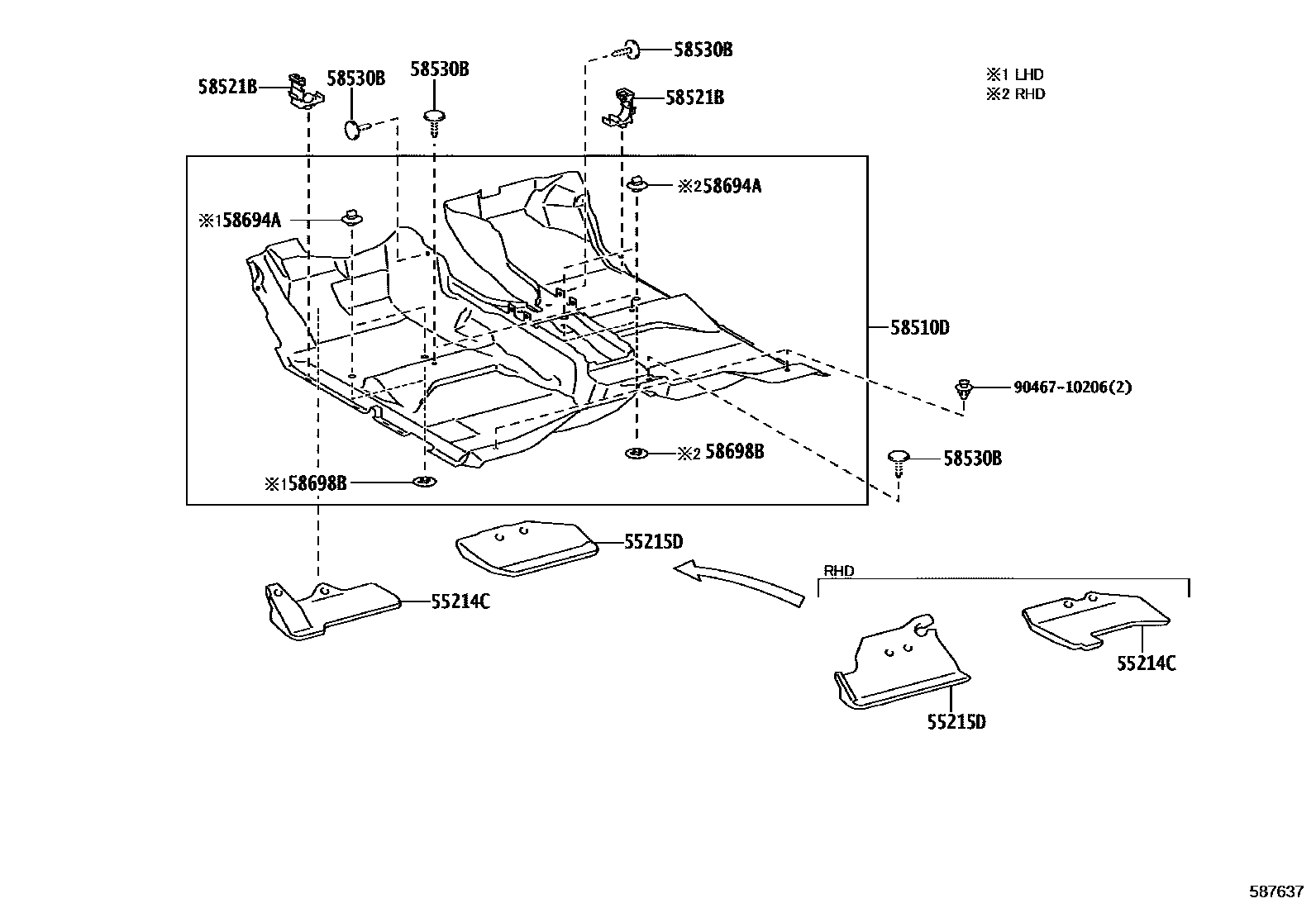

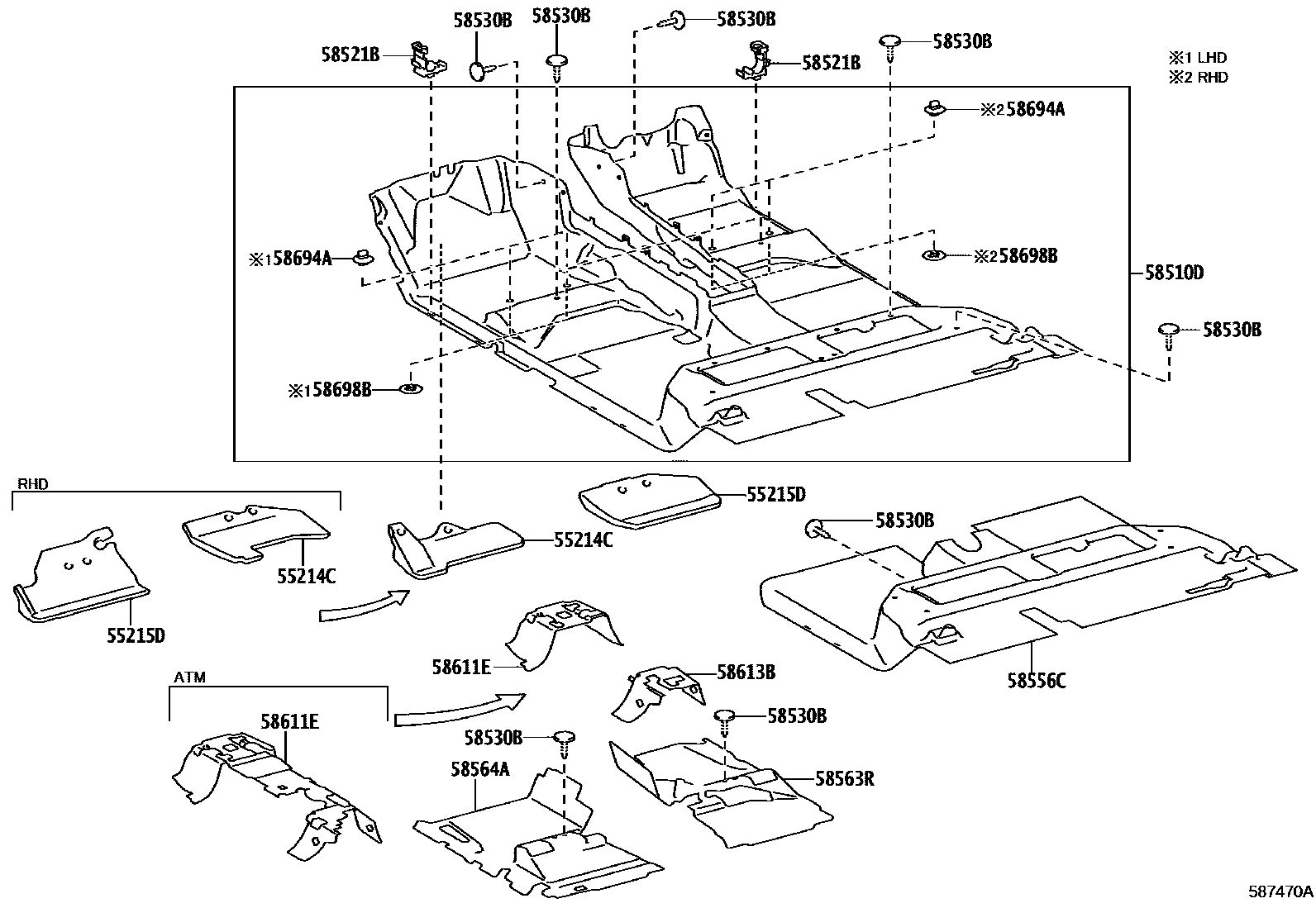

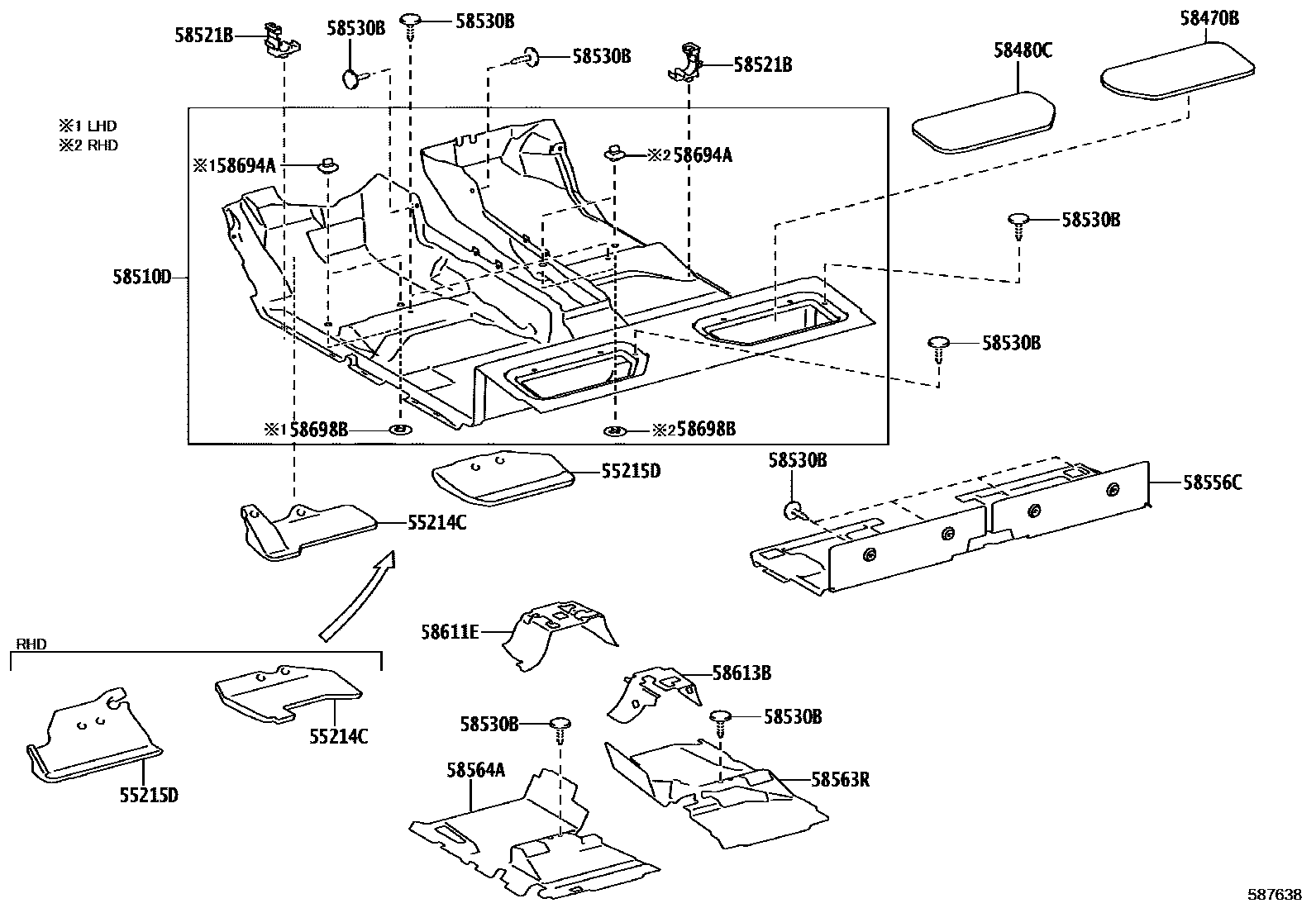

Toyota HILUX 地板垫和消声垫 — Figure 5854
Toyota HILUX EPC diagram 5854, 地板垫和消声垫, with 3 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55214C | No. 2 insulation pad for front wall panel | 55214-KK010 · 55214-KK020 · 55214-KK030 |
| 55215D | No. 3 insulation pad for front wall panel | 55215-KK010 · 55215-KK020 |
| 58521B | carpet hook | 58521-0K120 · 58521-KK010 |
| 58556C | Rear floor silencer | 58569-0K030 · 58569-0K270 · 58569-0K280 |
| 58563R | Front floor silencer No. 3 | 58563-0K130 · 58563-0K670 · 58563-0K680 · 58563-0K700 · 58563-0K710 |
| 58564A | Front floor silencer No. 4 | 58564-0K130 · 58564-0K250 · 58564-0K260 · 58564-0K270 · 58564-0K280 |
| 58611E | Front floor silencer panel | 58661-0K020 · 58661-0K040 · 58661-0K150 · 58661-0K160 · 58661-0K170 · 58661-0K180 |
| 58613B | Front floor center silencer panel | 58662-0K020 · 58662-0K070 · 58662-0K100 |
| 58694A | Pad the fixing plate | 58694-0K010 · 58694-76010 |
| 58698B | Fixing plate under the pad | 58698-0K070 · 58698-76010 |
